SECOND SEAT

SE-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

12. Remove seat front inner leg cover (rear).

13. Remove seat cushion rear center finisher.
14. Remove mounting bolts, and then remove seat link assembly.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Check seat cushion trim and seat cushion pad for damage. Replace with new part if necessary.

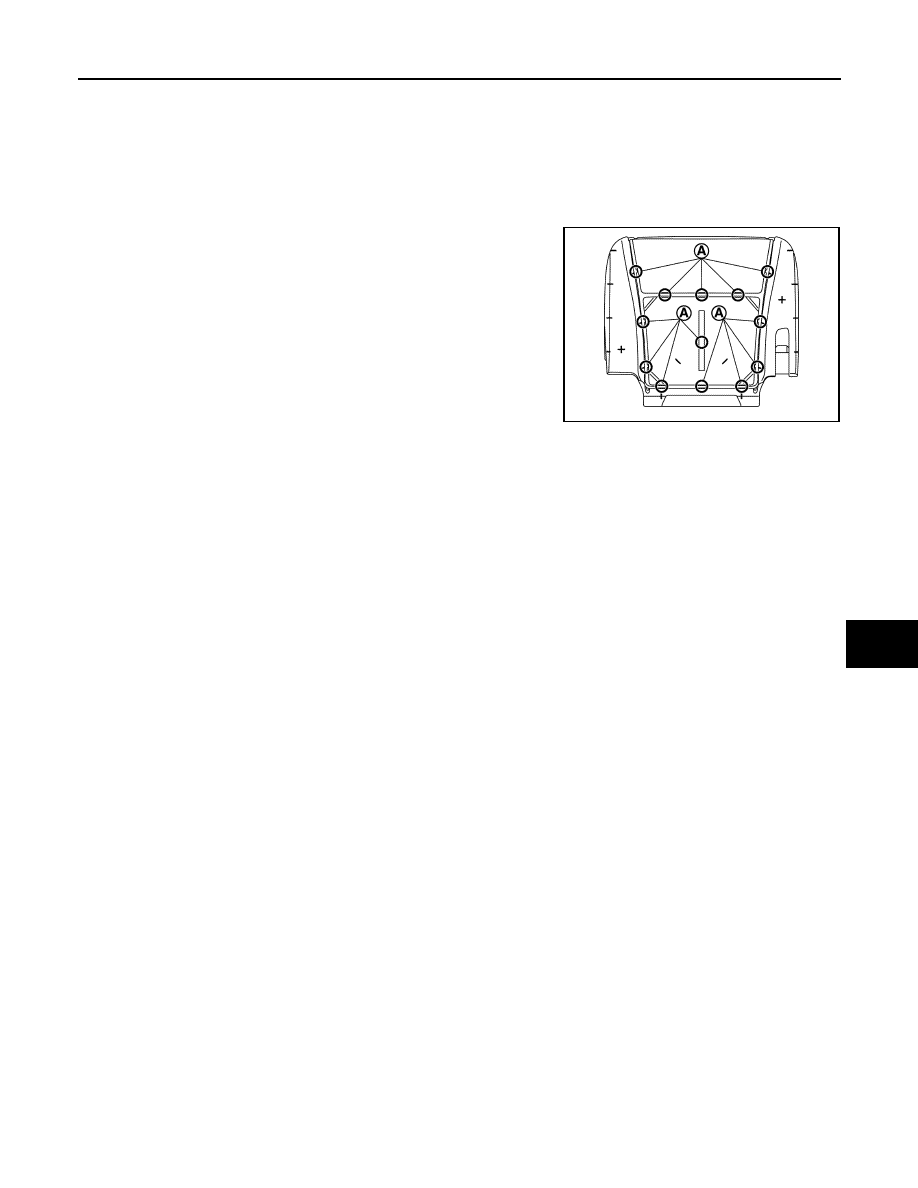

• Install hog ring (A) to the specified position as shown in the

figure.

JMJIA6266ZZ

SE-122

< REMOVAL AND INSTALLATION >

THIRD SEAT

THIRD SEAT

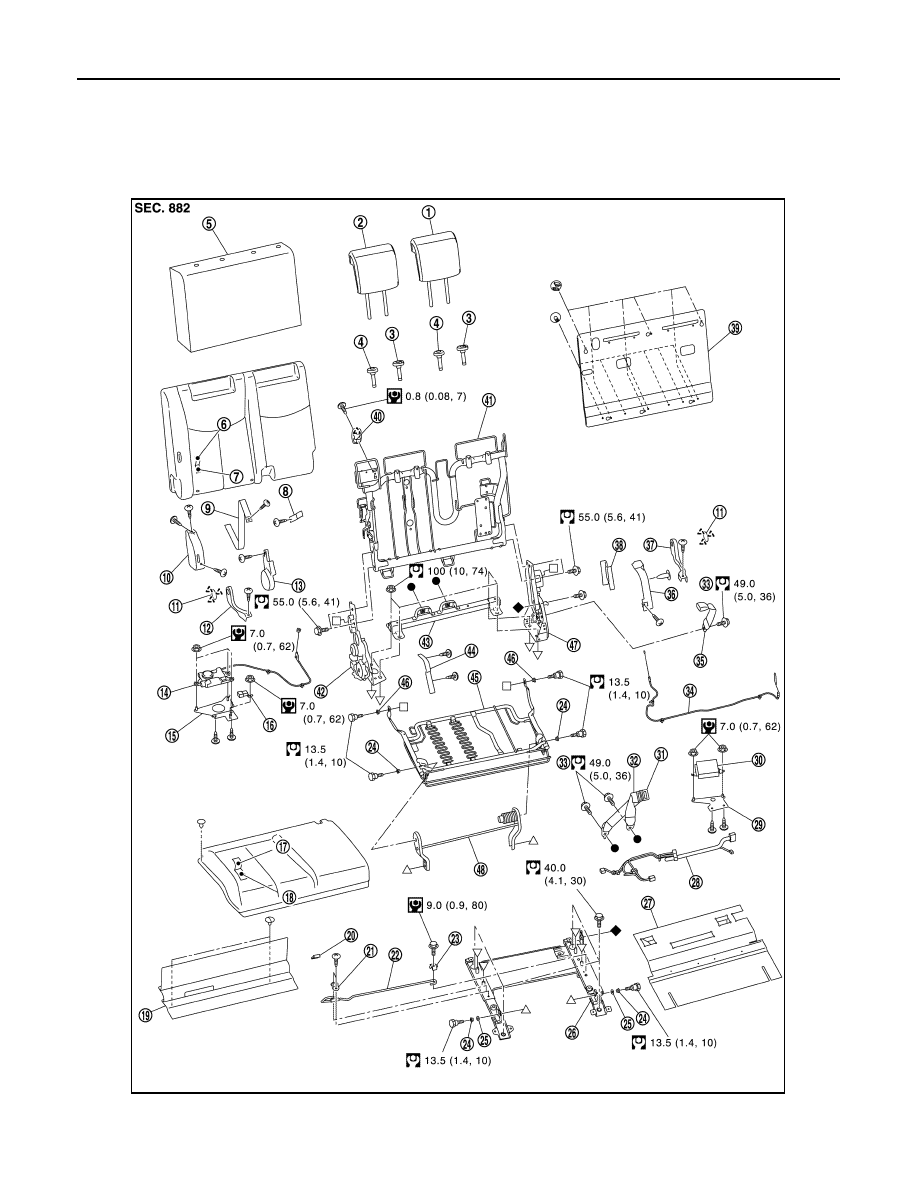

Exploded View

INFOID:0000000009652995

RH SIDE SEAT

JMJIA6103GB

THIRD SEAT

SE-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

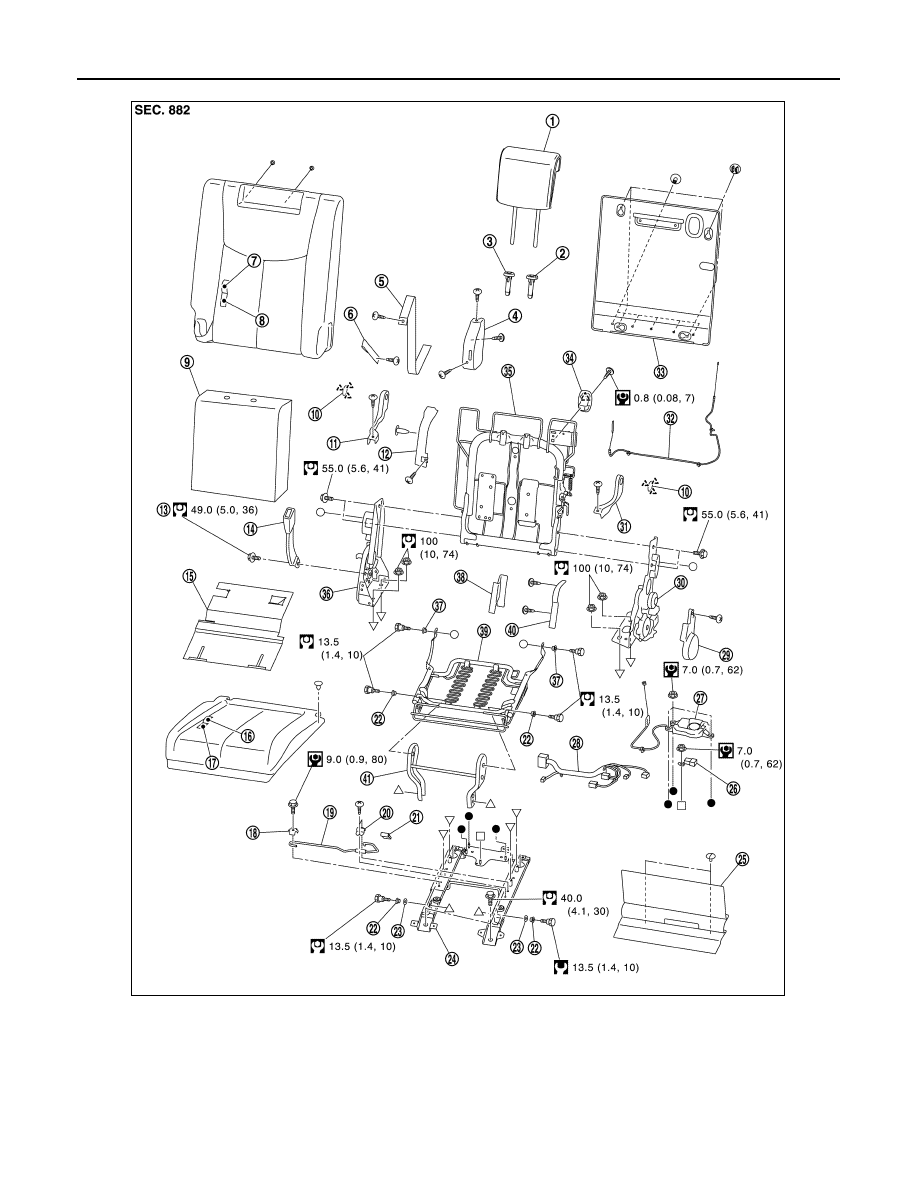

LH SIDE SEAT

1.

Center headrest

2.

Headrest RH

3.

Headrest holder (locked)

4.

Headrest holder (free)

5.

Seatback silencer

6.

Seatback trim

7.

Seatback pad

8.

Seatback strap (front)

9.

Seatback strap (rear)

10. Strap link cover

11.

Seat cushion hinge cap

12. Seat cushion outer hinge cover

13. Seat hinge arm cover

14. Seatback lock actuator

15. Actuator bracket

16. Seatback lock relay

17. Seat cushion trim

18. Seat cushion pad

19. Seat cushion carpet

20. Torsion bar silencer

21. Seat torsion bar outer bracket

22. Seat torsion bar

23. Seat torsion bar inner bracket

24. Bush A

25. Washer

26. Seat adjuster assembly

27. Seat adjuster lower carpet

28. Seat harness assembly

29. Control unit bracket

30. Seat control unit

31. Center seat belt buckle

32. RH seat belt buckle

33. Anchor bolt

34. Reclining cable

35. Connector buckle

36. Reclining device cover

37. Seat cushion inner hinge cover

38. Reclining arm cover

39. Seatback board

40. Seatback hook assembly

41. Seatback frame

42. Seat hinge assembly

43. Reinforcement pipe assembly

44. Seat hinge cover

45. Seat cushion frame assembly

46. Bush B

47. Reclining device assembly

48. Seat link assembly

: Pawl

: N·m (kg-m, ft-lb)

SE-124

< REMOVAL AND INSTALLATION >

THIRD SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Strap link cover

5.

Seatback strap (rear)

6.

Seatback strap (front)

7.

Seatback trim

8.

Seatback pad

9.

Seatback silencer

10. Seat cushion hinge cap

11.

Seat cushion inner hinge cover

12

Reclining device cover

13. Anchor bolt

14. LH seat belt buckle

15. Seat adjuster lower carpet

16. Seat cushion trim

17. Seat cushion pad

18. Seat torsion bar inner bracket

JMJIA6102GB
