THIRD SEAT

SE-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

i.

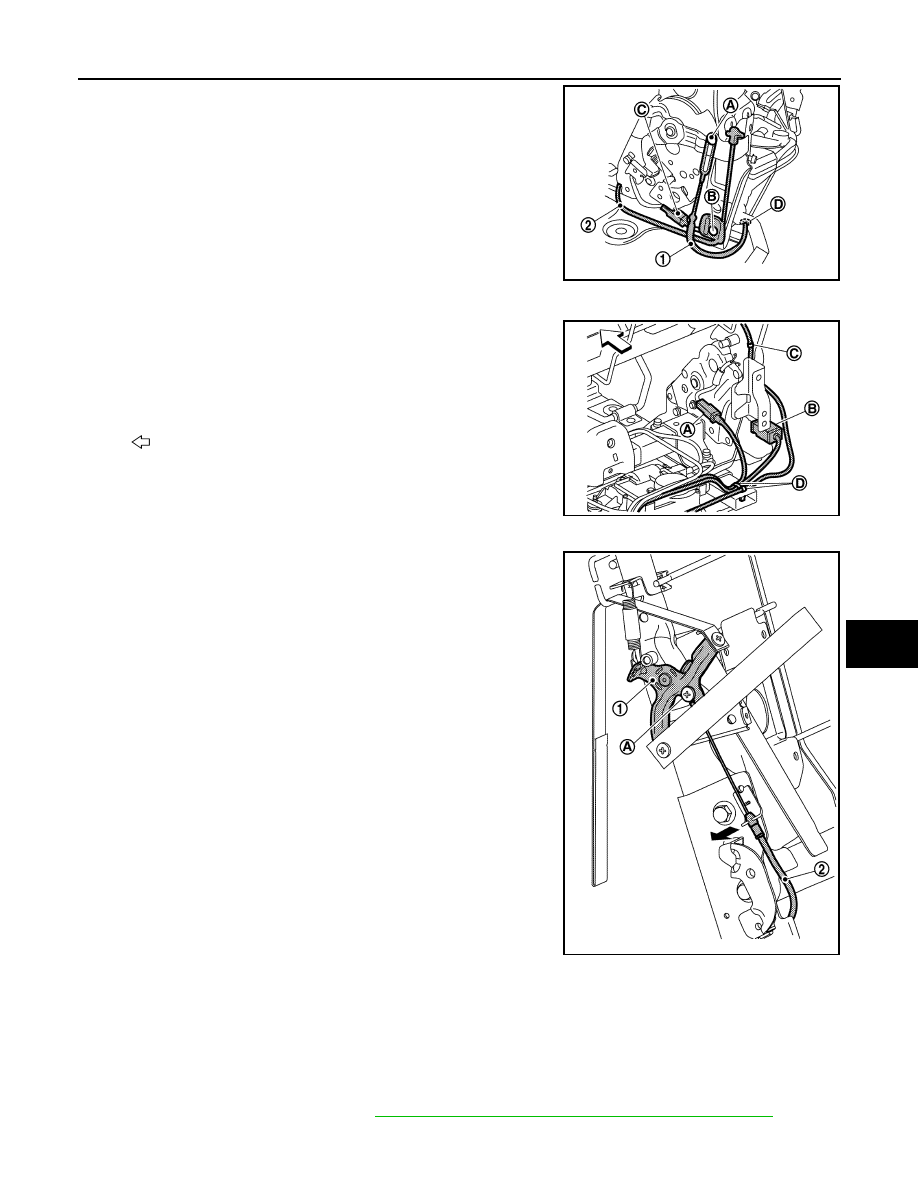

Remove fixing screw (A), and then remove reclining wire (1).

ii.

Remove fixing screw (B), and then remove actuator wire (2).
(only for seat with seatback power return system or seatback
power folding system)

iii.

Disconnect harness connector (C). (only for seat with seatback
power return system)

iv.

Remove wire clamp (D).

e.

Remove following parts from seat hinge assembly.

i.

Disconnect harness connector (A) and (B). (only for seat with
seatback power return system)

ii.

Remove wire clamp (C).

iii.

Remove wire clamp and harness clamp (only for seat with seat-
back power return system) (D).

f.

Remove fixing screws, and then remove strap link cover from seatback frame assembly.

g.

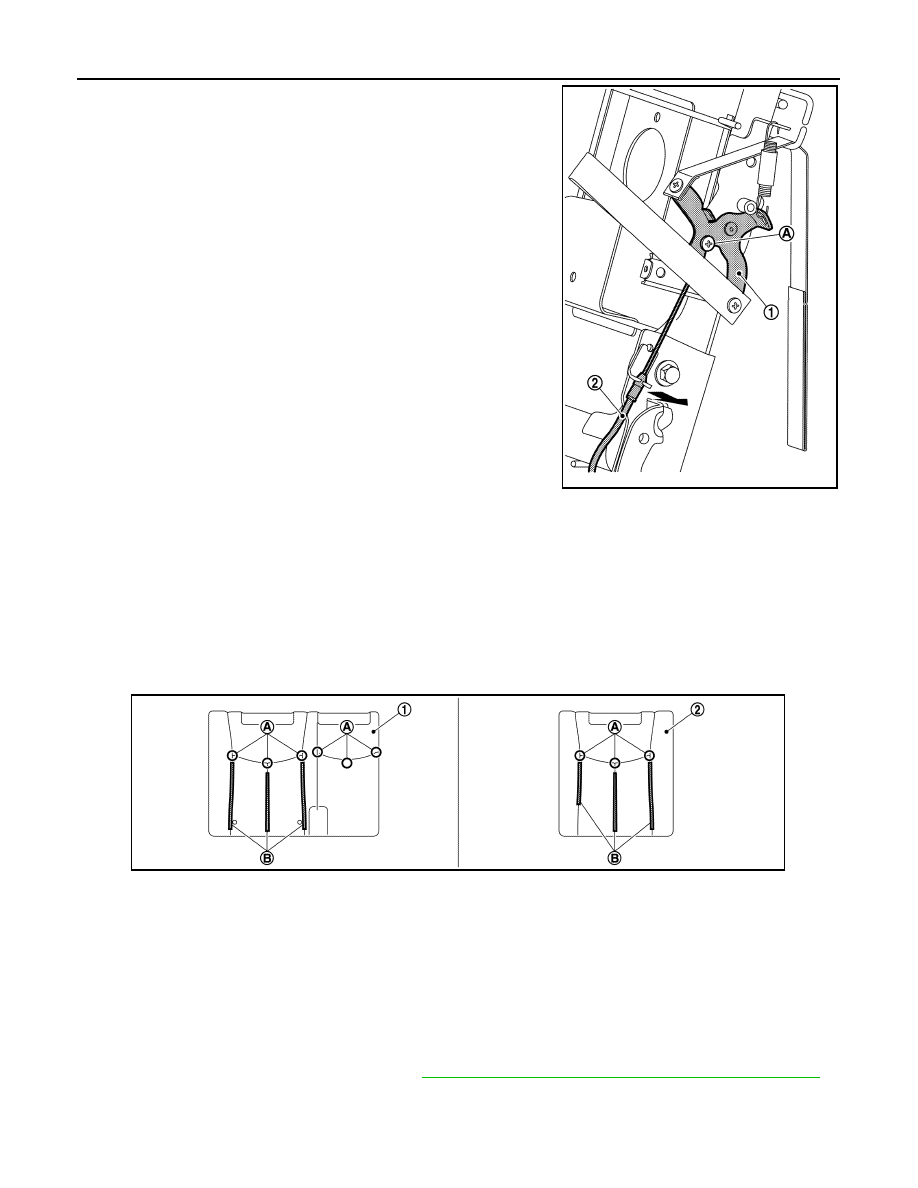

Remove reclining wire (2) fixing screw (A) installed on strap link
(1).

h.

Remove reclining wire from seat hinge assembly in direction
indicated by the arrow as shown in the figure.

i.

Remove fixing screws, and then remove seatback strap (front and rear).

j.

Remove mounting nuts, and then remove reinforcement pipe assembly from seat adjuster assembly.

k.

Remove seat hinge assembly and reclining device assembly from seat adjuster assembly.

15. Remove mounting bolts, and then remove seat hinge assembly and reclining device assembly from seat-

back frame assembly.

LH side seat

1.

Remove LH seat belt buckle. Refer to

SB-19, "SEAT BELT BUCKLE : Removal and Installation"

.

2.

Remove seat cushion frame assembly from seatback frame assembly.

JMJIA4943ZZ

: Vehicle front

JMJIA4942ZZ

JMJIA4944ZZ

SE-130

< REMOVAL AND INSTALLATION >

THIRD SEAT

Refer to

SE-132, "SEAT CUSHION : Disassembly and Assembly"

.

3.

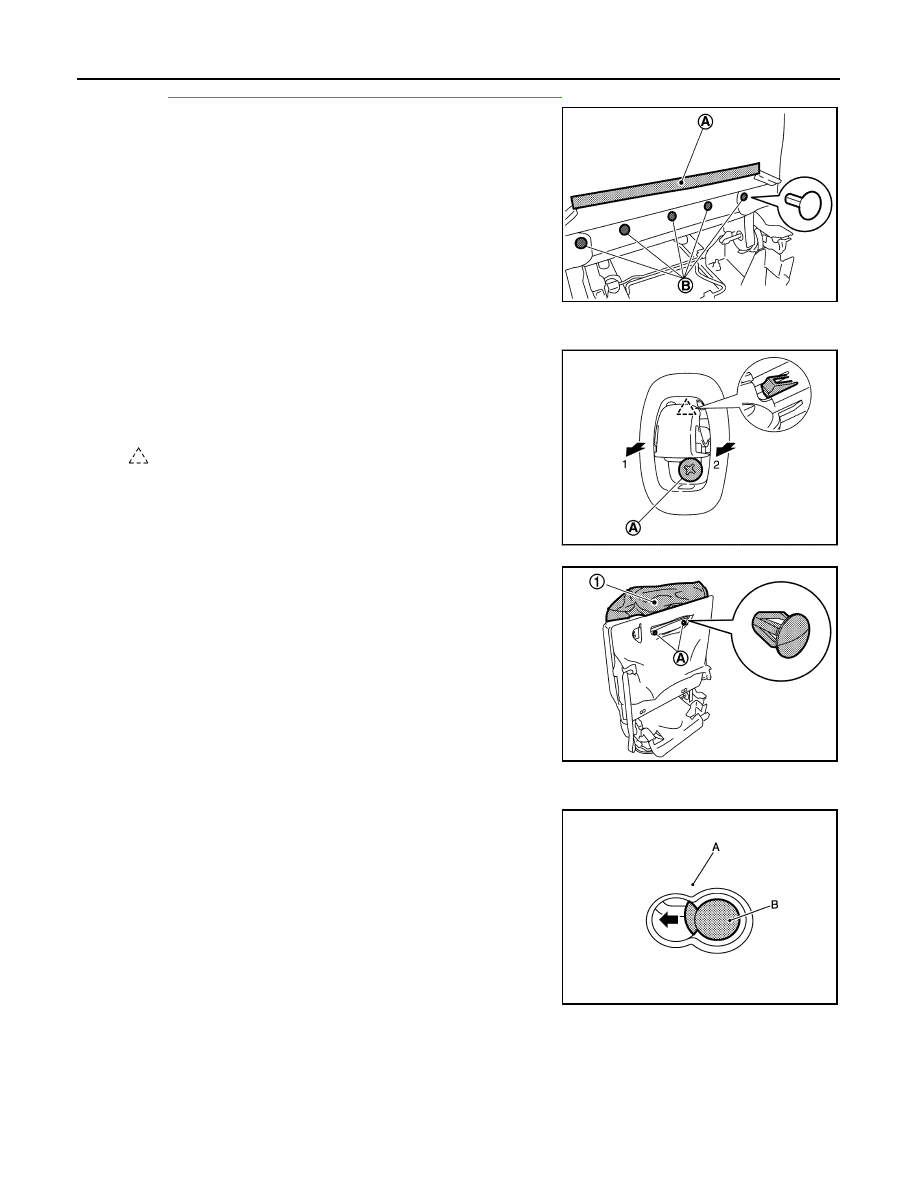

Remove seatback hook and loop fastener (A).

4.

Roll up seatback trim, and then remove fixing clips (B).

5.

Remove seatback hook assembly.

a.

Rotate seatback hook to the position where mounting screw (A)
can be removed, and then remove screw.

b.

Pull seatback hook assembly forward, disengage pawl, and then
remove seatback hook assembly from the seatback.

6.

Pull up seatback trim (1) to the position where seatback trim
mounting clips (A) can be removed.

CAUTION:

Be careful not to damage seatback trim when pulling up
seatback trim.

7.

Remove seatback trim fixing clips.

8.

Remove seatback board and fixing clips.

a.

Slide and align the clips (B) to the holes on the seatback as
shown in the figure, and then remove the seatback board (A).

CAUTION:

Always slide clips before removing seatback board. Clips
may be damaged if seatback board is removed without slid-
ing the clips.

b.

Remove seatback board fixing clips from seatback frame.

JMJIA6110ZZ

: Pawl

JMJIA4730ZZ

JMJIA6111ZZ

JMJIA4076ZZ

THIRD SEAT

SE-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

9.

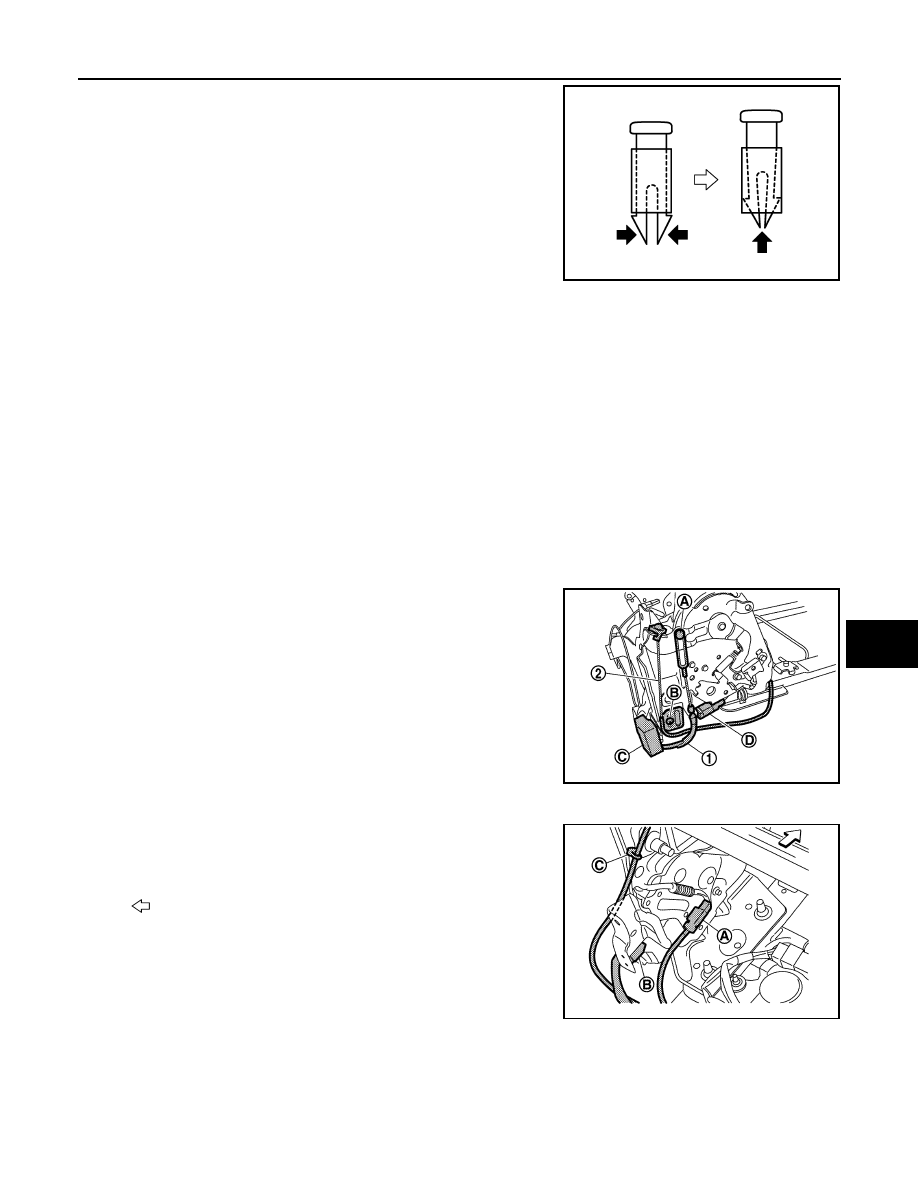

Use pincers, etc., to press up pawls as shown by the arrows in
the figure, and remove headrest holder from seatback.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

10. Pull out seatback strap from seatback pad.

11. Remove seatback trim and seatback pad from seatback frame assembly.
12. Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

13. Remove seatback silencer from seatback frame.

14. Remove seat hinge assembly and reclining device assembly from seat adjuster assembly.

a.

Remove seat adjuster lower carpet retainer, and then remove seat adjuster assembly from seat adjuster
assembly.

b.

Remove fixing screws and clips, and then remove reclining device cover and reclining arm cover from
reclining device assembly.

c.

Remove fixing screws, and then remove seat hinge arm cover and seat hinge cover from seat hinge
assembly.

d.

Remove following parts from reclining device assembly.

i.

Remove fixing screw (A), and then remove reclining wire (1).

ii.

Remove fixing screw (B), and then remove actuator wire (2).
(only for seat with seatback power return system or seatback
power folding system)

iii.

Remove harness connector clip (C). (only for seat with seatback
power return system or seatback power folding system)

iv.

Disconnect harness connector (D). (only for seat with seatback
power return system)

e.

Remove following parts from seat hinge assembly.

i.

Disconnect harness connector (A) and (B). (only for seat with
seatback power return system)

ii.

Remove wire clamp (C).

f.

Remove fixing screws, and then remove strap link cover from seatback frame assembly.

PIIB4084J

JMJIA4929ZZ

: Vehicle front

JMJIA4930ZZ

SE-132

< REMOVAL AND INSTALLATION >

THIRD SEAT

g.

Remove reclining wire (2) fixing screw (A) installed on strap link
(1).

h.

Remove reclining wire from seat hinge assembly in direction
indicated by the arrow as shown in the figure.

i.

Remove mounting nut, and then remove seat hinge assembly and reclining device assembly from seat
adjuster assembly.

15. Remove mounting bolts, and then remove seat hinge assembly and reclining device assembly from seat-

back frame assembly.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Check seatback trim and seatback pad for damage. Replace with new part if necessary.
• Install hog ring (A) to the specified position as shown in the figure.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000009652998

DISASSEMBLY

RH side seat

1.

Remove seat belt connector buckle. Refer to

SB-19, "SEAT BELT BUCKLE : Removal and Installation"

.

2.

Remove seat cushion trim retainer from seat cushion frame assembly.

JMJIA4928ZZ

1.

Seatback RH

2.

Seatback LH

B.

hook and loop fastener
