Nissan Quest E52. Manual - part 1077

LUMBAR SUPPORT SWITCH

SE-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

LUMBAR SUPPORT SWITCH

Removal and Installation

INFOID:0000000009653000

REMOVAL

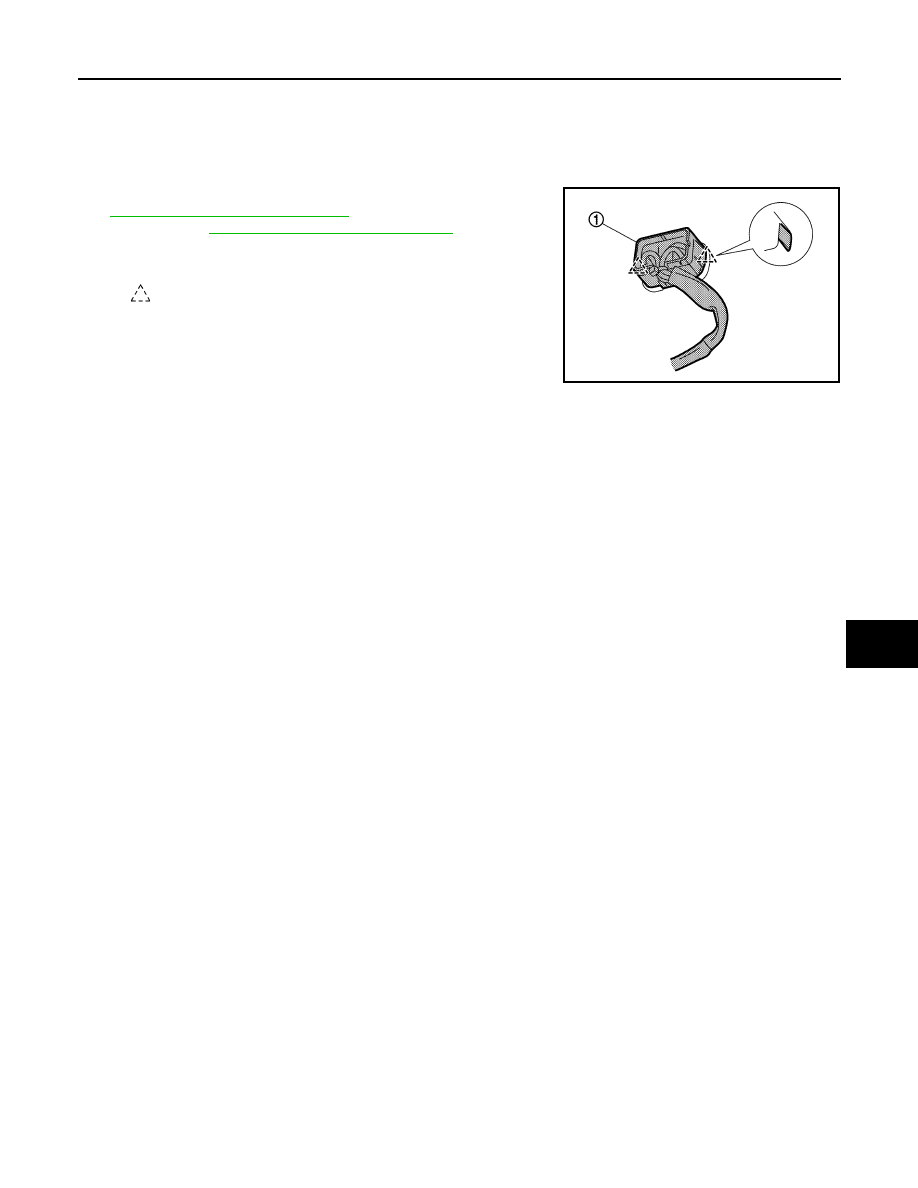

1.

Remove seat cushion inner finisher (For manual seat. Refer to

SE-88, "Removal and Installation"

) or outer finisher (For power

seat. Refer to

SE-102, "Removal and Installation"

).

2.

Remove lumber support switch (1) from seat cushion finisher.

INSTALLRATION

Install in the reverse order of removal.

: Pawl

JMJIA4840ZZ

SE-138

< REMOVAL AND INSTALLATION >

HEATED SEAT SWITCH

HEATED SEAT SWITCH

Removal and Installation

INFOID:0000000009653001

REMOVAL

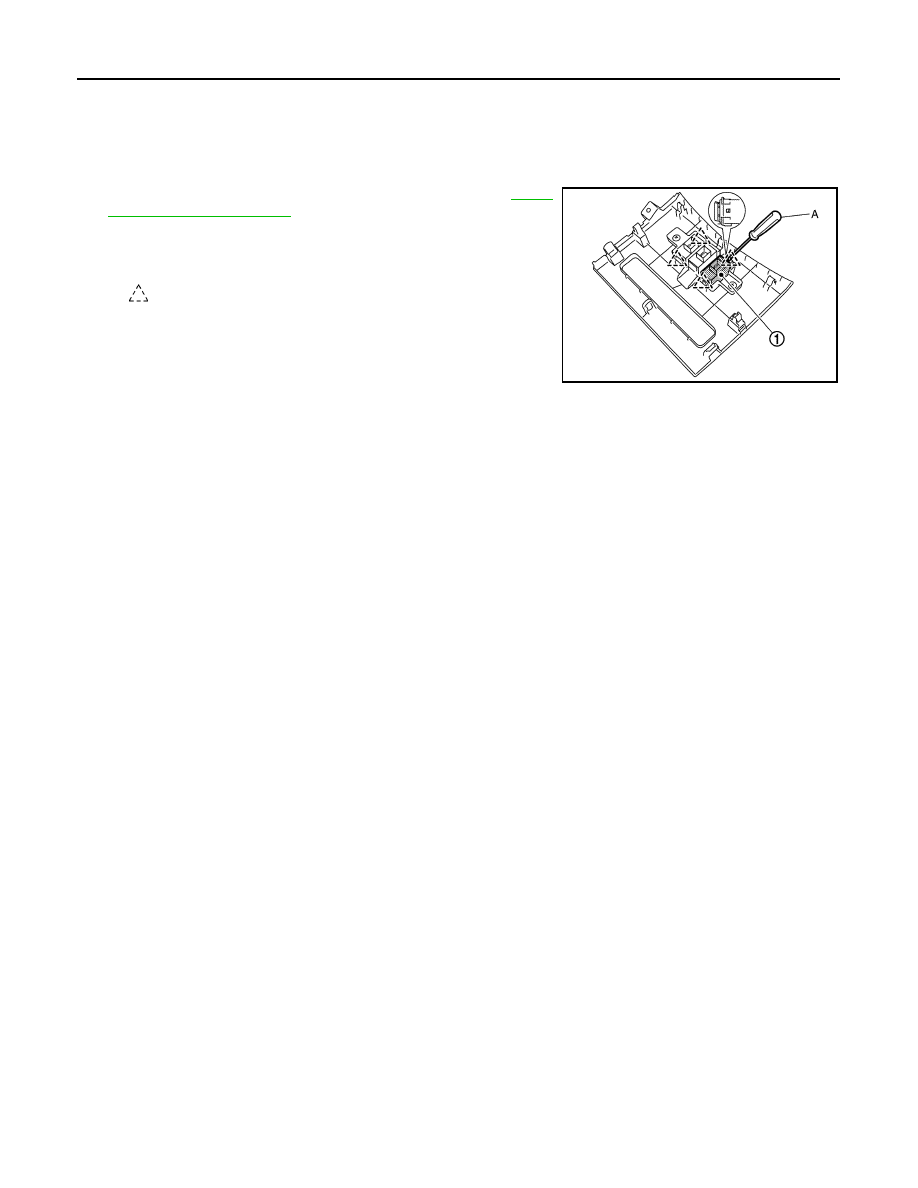

1.

Remove instrument lower center panel. Refer to

IP-14,

"Removal and Installation"

.

2.

Remove heated seat switch (1) from instrument lower center
panel using remover tool (A).

INSTALLRATION

Install in the reverse order of removal.

: Pawl

JMJIA4901ZZ

SEATBACK POWER RETURN CONTROL UNIT

SE-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEATBACK POWER RETURN CONTROL UNIT

Removal and Installation

INFOID:0000000009653002

REMOVAL

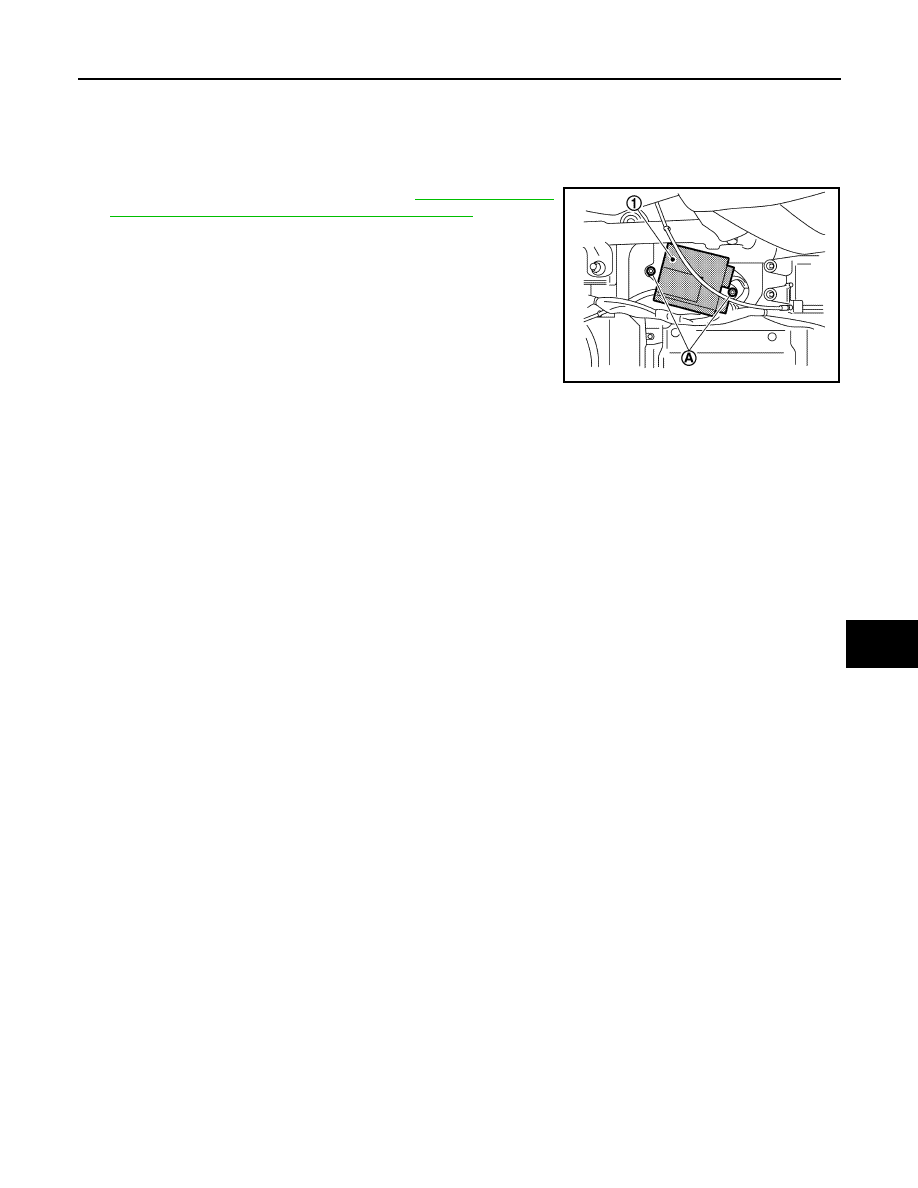

1.

Remove luggage floor front board. Refer to

INT-42, "LUGGAGE

FLOOR FRONT BOARD : Removal and Installation"

.

2.

Remove screws (A), and then remove seatback power return
control unit (1).

INSTALLRATION

Install in the reverse order of removal.

JMJIA4763ZZ

SEC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

SEC

A

B

SEC

N

O

P

CONTENTS

SECURITY CONTROL SYSTEM

WITH INTELLIGENT KEY SYSTEM

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precautions for Removing Battery Terminal  .............

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

4

Precaution for Procedure without Cowl Top Cover

......

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

Component Parts Location ........................................

6

CVT Shift Selector (Detention Switch)  ......................

8

NATS Antenna Amp. .................................................

9

SYSTEM .............................................................

10

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION .................................................................

10

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION : System Description ............................

10

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION : Circuit Diagram  ..................................

14

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

....

15

NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS : System Description .....................................

16

NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS : Circuit Diagram ...........................................

19

VEHICLE SECURITY SYSTEM .................................

20

VEHICLE SECURITY SYSTEM : System Dia-
gram ........................................................................

21

VEHICLE SECURITY SYSTEM : Circuit Diagram

....

25

DIAGNOSIS SYSTEM (BCM)  ............................

29

COMMON ITEM  .........................................................

29

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

29

INTELLIGENT KEY ....................................................

30

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ................................................

31

THEFT ALM  ...............................................................

34

THEFT ALM : CONSULT Function (BCM -
THEFT) ....................................................................

34

IMMU ..........................................................................

35

IMMU : CONSULT Function (BCM - IMMU) ............

35

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

37

CONSULT Function (IPDM E/R)  .............................

37

ECU DIAGNOSIS INFORMATION ..............

39

ECM, IPDM E/R, BCM .......................................

39

List of ECU Reference .............................................

39

WIRING DIAGRAM  ......................................

40

SECURITY CONTROL SYSTEM  ......................

40

Wiring Diagram ........................................................

40

BASIC INSPECTION  ...................................

55

DIAGNOSIS AND REPAIR WORK FLOW  .......

55

Work Flow ................................................................

55

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT ................................................

58

ECM ............................................................................

58

ECM : Description ....................................................

58

ECM : Work Procedure ............................................

58

BCM ...........................................................................

58

BCM : Description ....................................................

58

BCM : Work Procedure ............................................

58

DTC/CIRCUIT DIAGNOSIS  .........................

60

P1610 LOCK MODE  .........................................

60

Description ...............................................................

60
