WIND DEFLECTOR

RF-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

WIND DEFLECTOR

FRONT SUNROOF

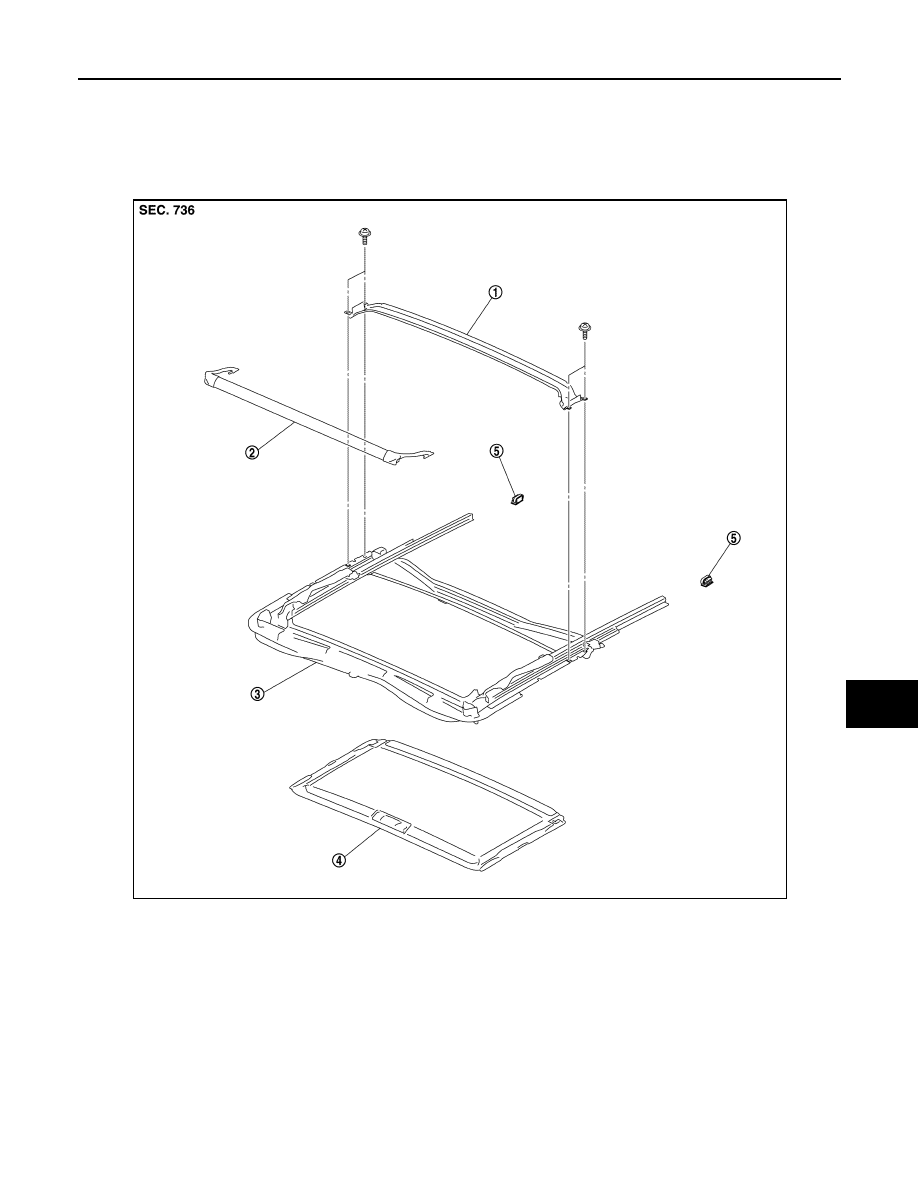

FRONT SUNROOF : Exploded View

INFOID:0000000009650406

FRONT SUNROOF : Removal and Installation

INFOID:0000000009650407

REMOAL

1.

Open the glass lid to see the wind deflector installation point on the sun roof slide rail.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

JMKIA6148ZZ

RF-68

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

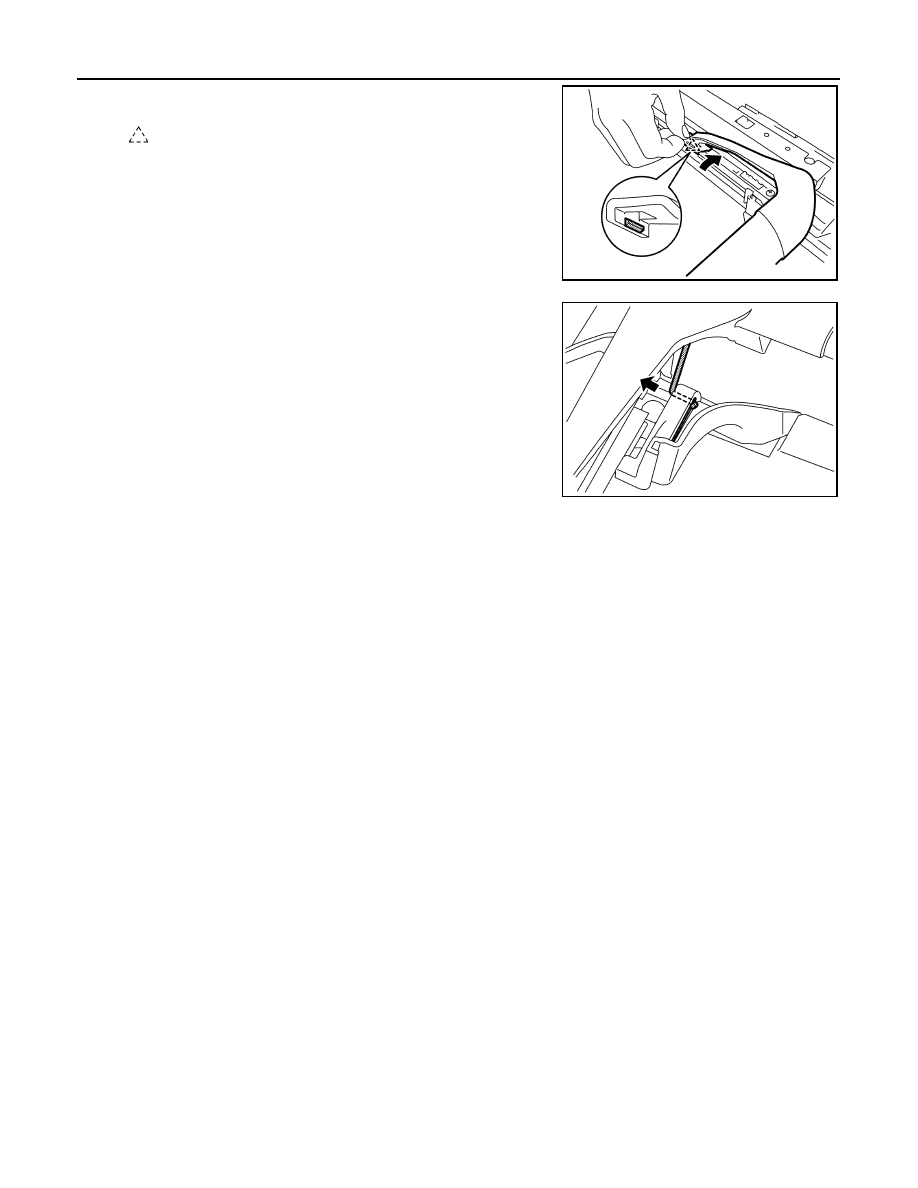

2.

Remove wind deflector link base.

3.

Rotate wind deflector, and then remove the spring from wind
deflector spring base.

INSTALLATION

Install in the reverse order of removal.

REAR SUNROOF

: Pawl

JMKIA6153ZZ

JMKIA6154ZZ

WIND DEFLECTOR

RF-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

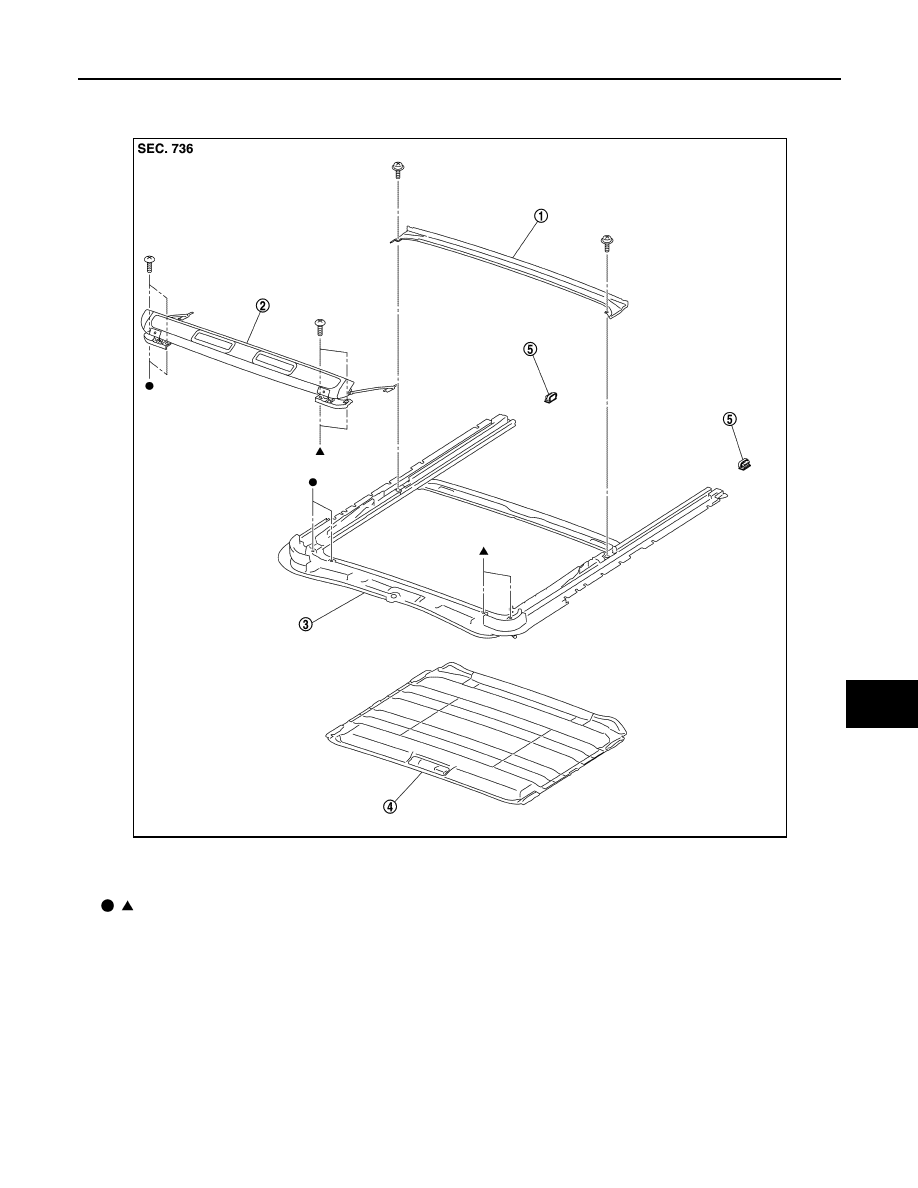

REAR SUNROOF : Exploded View

INFOID:0000000009650408

REAR SUNROOF : Removal and Installation

INFOID:0000000009650409

REMOVAL

1.

Open the glass lid to see the wind deflector installation point on the sun roof slide rail.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6149ZZ

RF-70

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

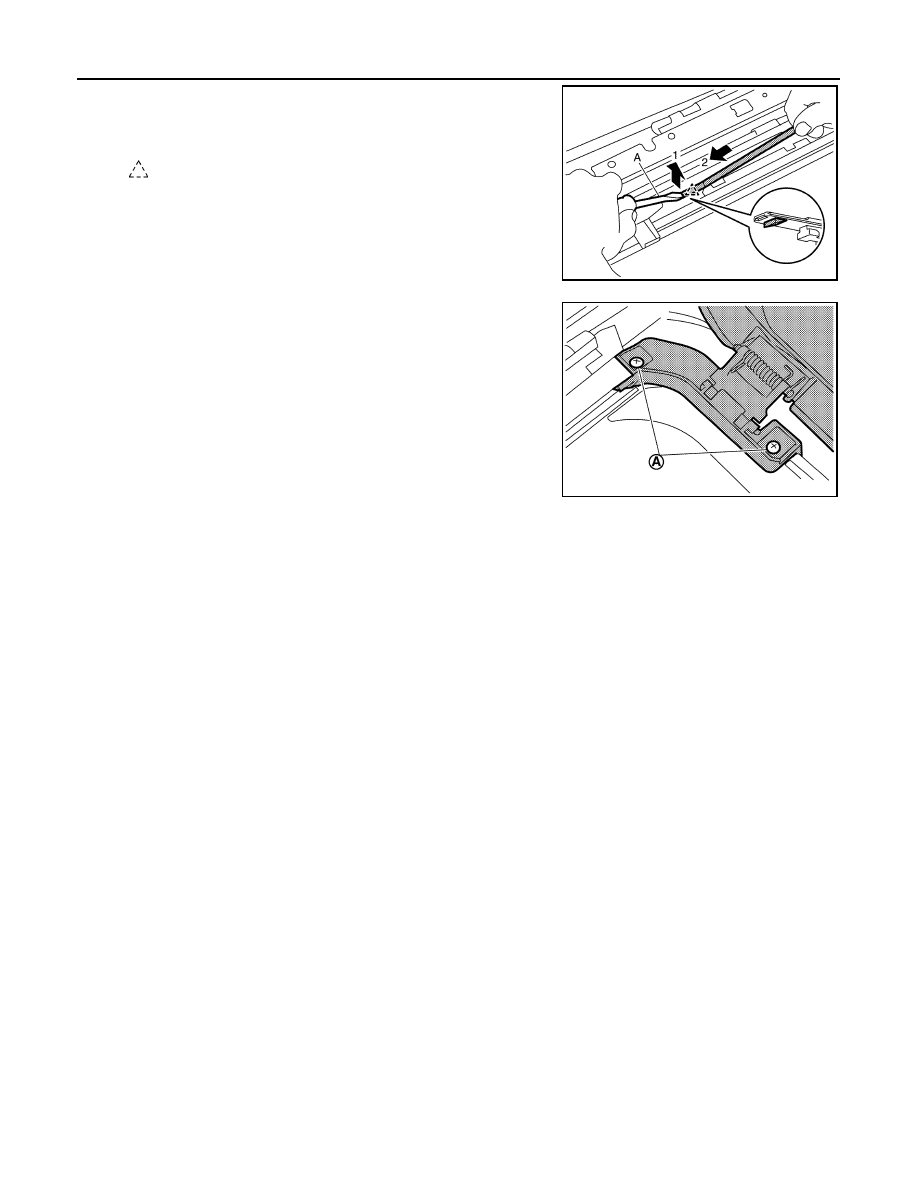

2.

Remove mounting pawl of wind deflector link using a removal
tool (A) in numerical order as shown in the figure, and then
remove wind deflector link.

3.

Remove hinge fixing screws (A), and then remove wind deflec-
tor.

INSTALLATION

Install in the reverse order of removal.

: Pawl
