Nissan Quest E52. Manual - part 1030

SUNSHADE

RF-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

FRONT SUNROOF

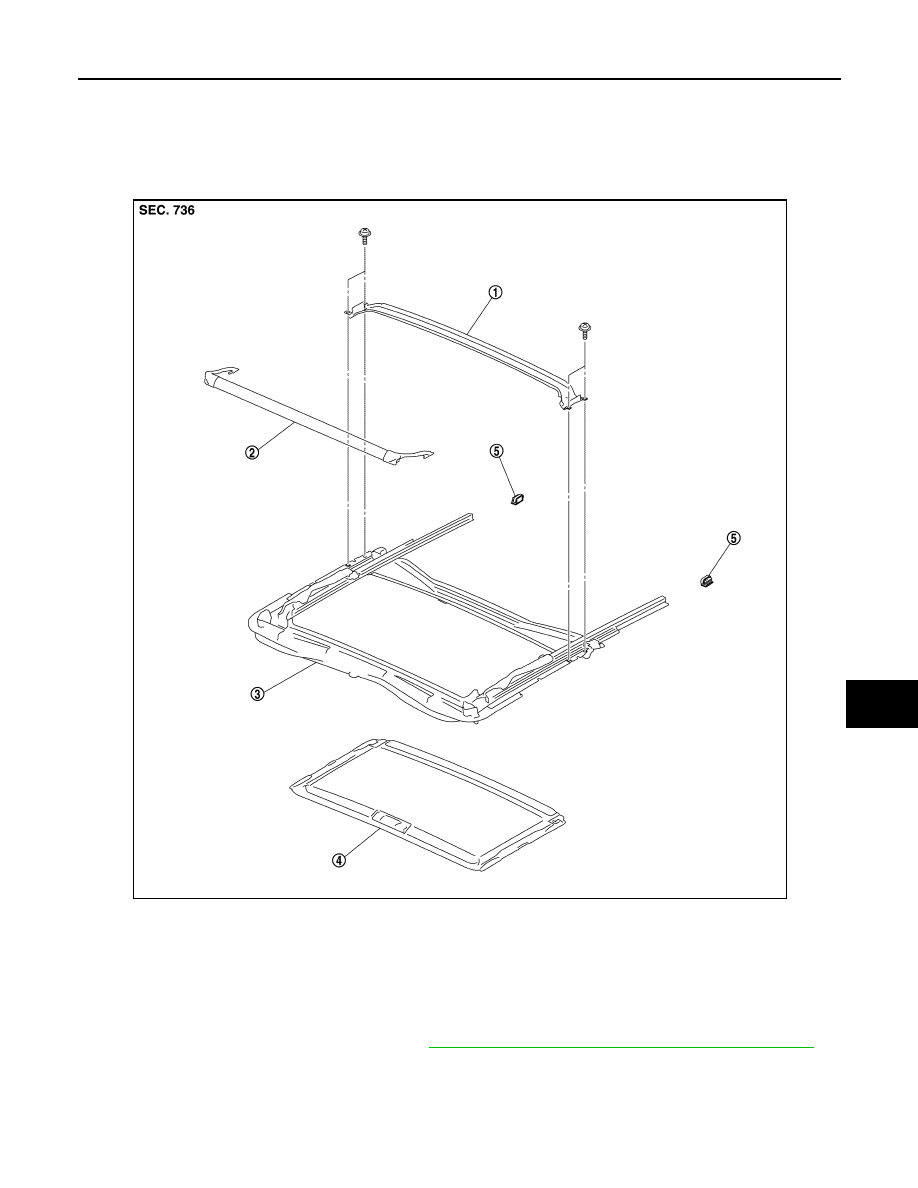

FRONT SUNROOF : Exploded View

INFOID:0000000009650402

FRONT SUNROOF : Removal and Installation

INFOID:0000000009650403

REMOVAL

1.

Remove front sunroof unit assembly. Refer to

RF-58, "FRONT SUNROOF : Removal and Installation"

.

2.

Remove rear drain assembly.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

JMKIA6148ZZ

RF-64

< REMOVAL AND INSTALLATION >

SUNSHADE

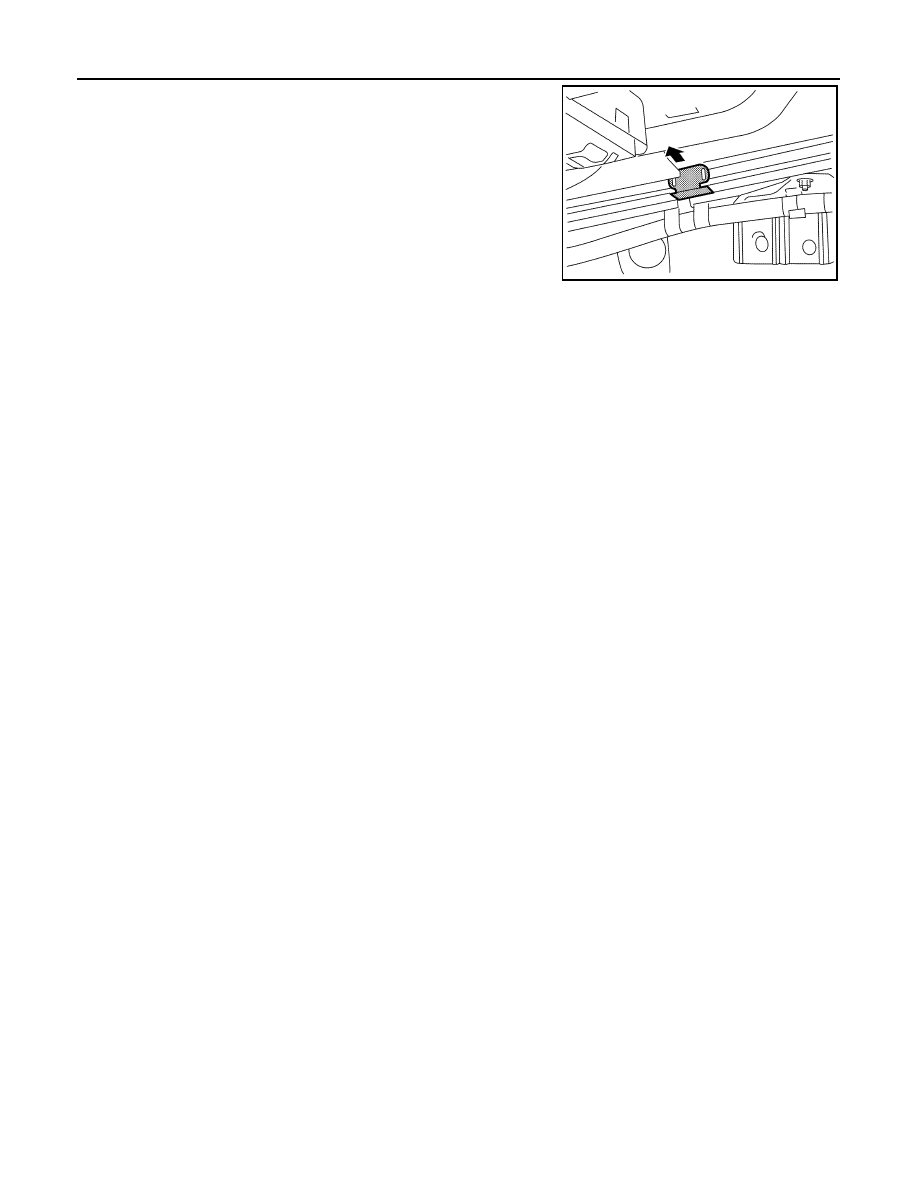

3.

Remove sunshade stopper (LH and RH) from the sunroof frame
end.

4.

Remove sunshade from the rear end of sunroof frame.

INSTALLATION

Install in the reverse order of removal.

REAR SUNROOF

JMKIA6187ZZ

SUNSHADE

RF-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

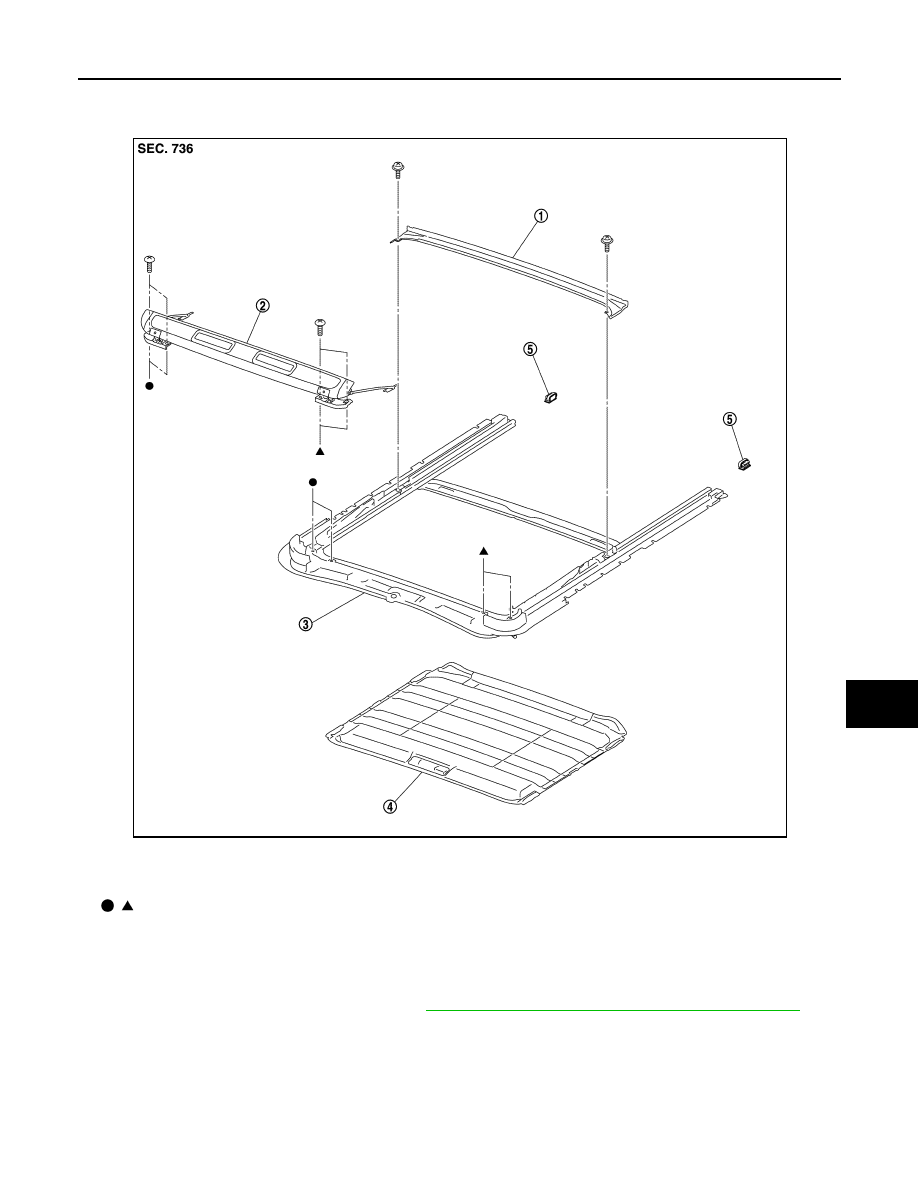

REAR SUNROOF : Exploded View

INFOID:0000000009650404

REAR SUNROOF : Removal and Installation

INFOID:0000000009650405

REMOVAL

1.

Remove rear sunroof unit assembly. Refer to

RF-61, "REAR SUNROOF : Removal and Installation"

.

2.

Remove rear drain assembly.

1.

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6149ZZ

RF-66

< REMOVAL AND INSTALLATION >

SUNSHADE

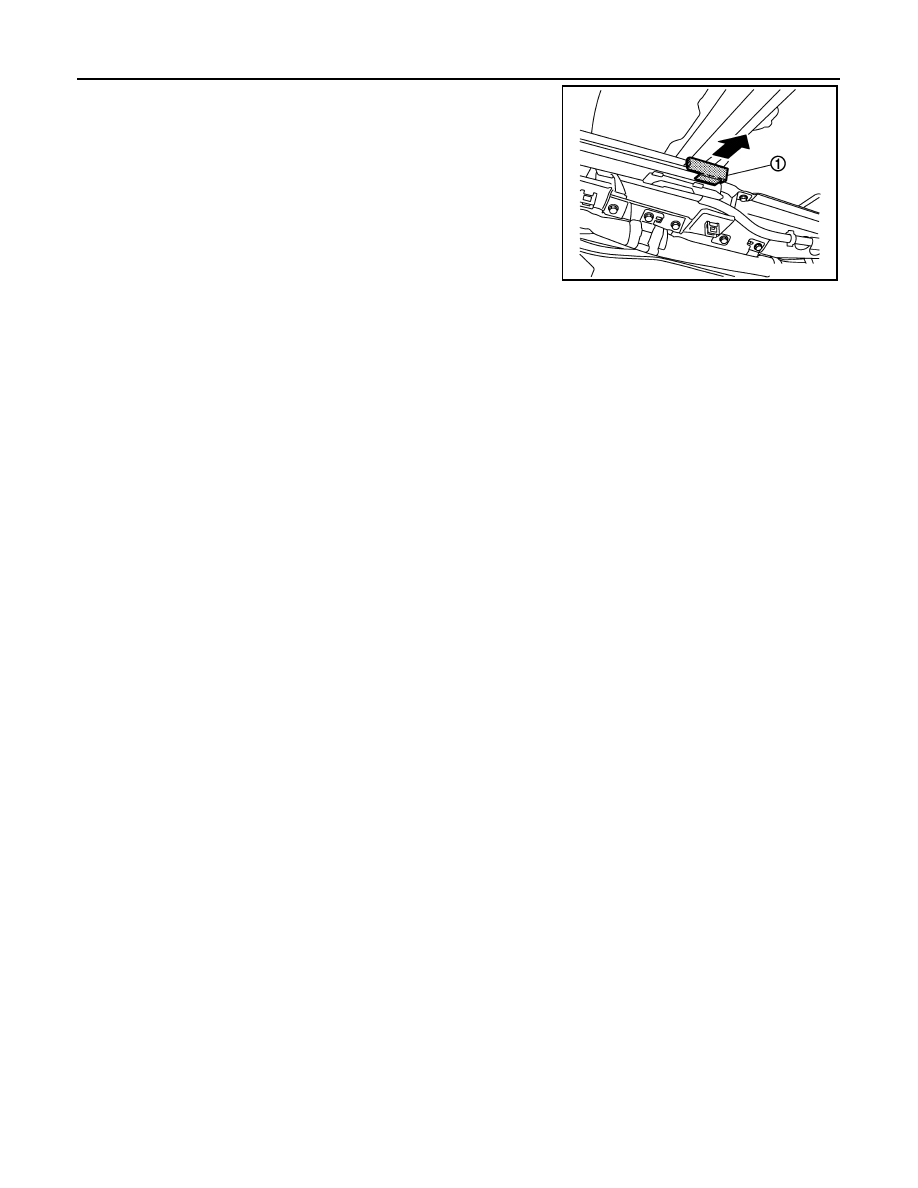

3.

Remove sunshade stopper (1) (LH and RH) from the sunroof
frame end.

4.

Remove sunshade from the rear end of sunroof frame.

INSTALLATION

Install in the reverse order of removal.

JMKIA2045ZZ
