SUNROOF MOTOR ASSEMBLY

RF-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

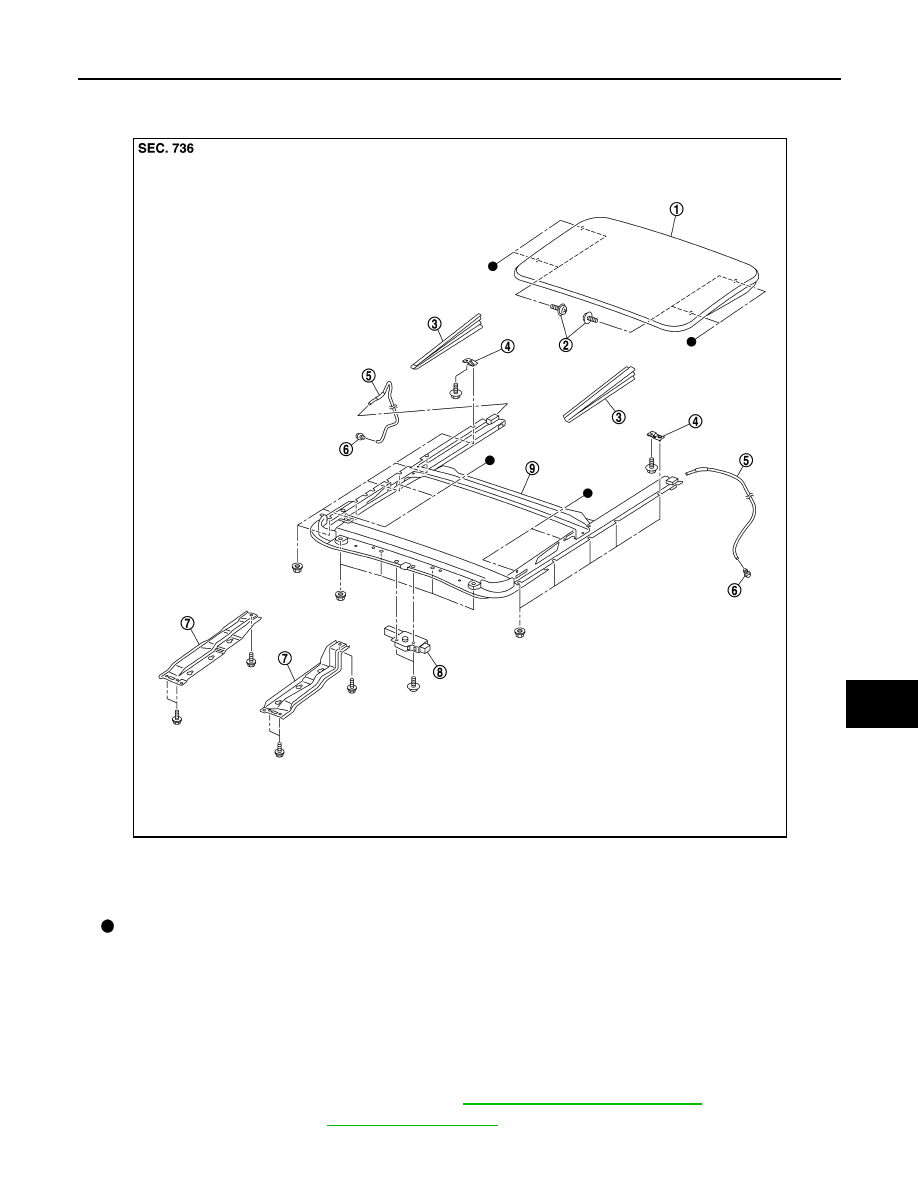

REAR SUNROOF : Exploded View

INFOID:0000000009650394

REAR SUNROOF : Removal and Installation

INFOID:0000000009650395

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.
• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

1.

Fully close glass lid.

2.

Remove headlining. (without rear display) Refer to

INT-35, "Removal and Installation"

.

3.

Remove roof console. Refer to

INT-33, "Exploded View"

.

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear sunroof bracket

5.

Rear drain hose

6.

Rear drain connector

7.

Rear display bracket

8.

Sunroof motor assembly

9.

Sunroof unit assembly

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6144ZZ

RF-56

< REMOVAL AND INSTALLATION >

SUNROOF MOTOR ASSEMBLY

4.

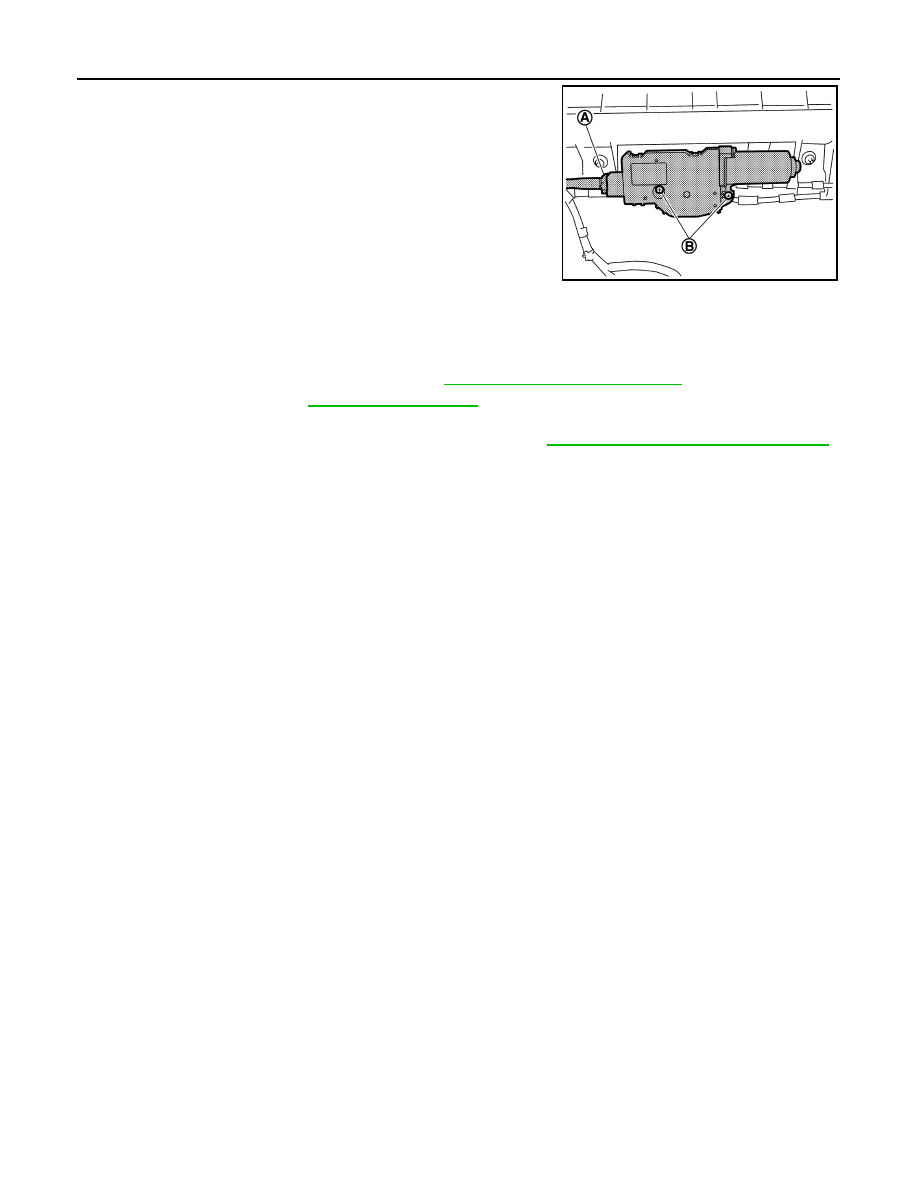

Disconnect harness connector (A) from sunroof motor assembly.

5.

Remove sunroof motor assembly fixing screws (B), and then
remove sunroof motor assembly.

INSTALLAITON

1.

Move the sunroof motor assembly laterally by little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screws.

2.

Install headlining. (without rear display) Refer to

INT-35, "Removal and Installation"

.

3.

Install roof console. Refer to

INT-33, "Exploded View"

.

NOTE:
After installation sunroof motor, perform additional service. Refer to

RF-21, "REAR SUNROOF : Description"

.

JMKIA6152ZZ

SUNROOF UNIT ASSEMBLY

RF-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF UNIT ASSEMBLY

FRONT SUNROOF

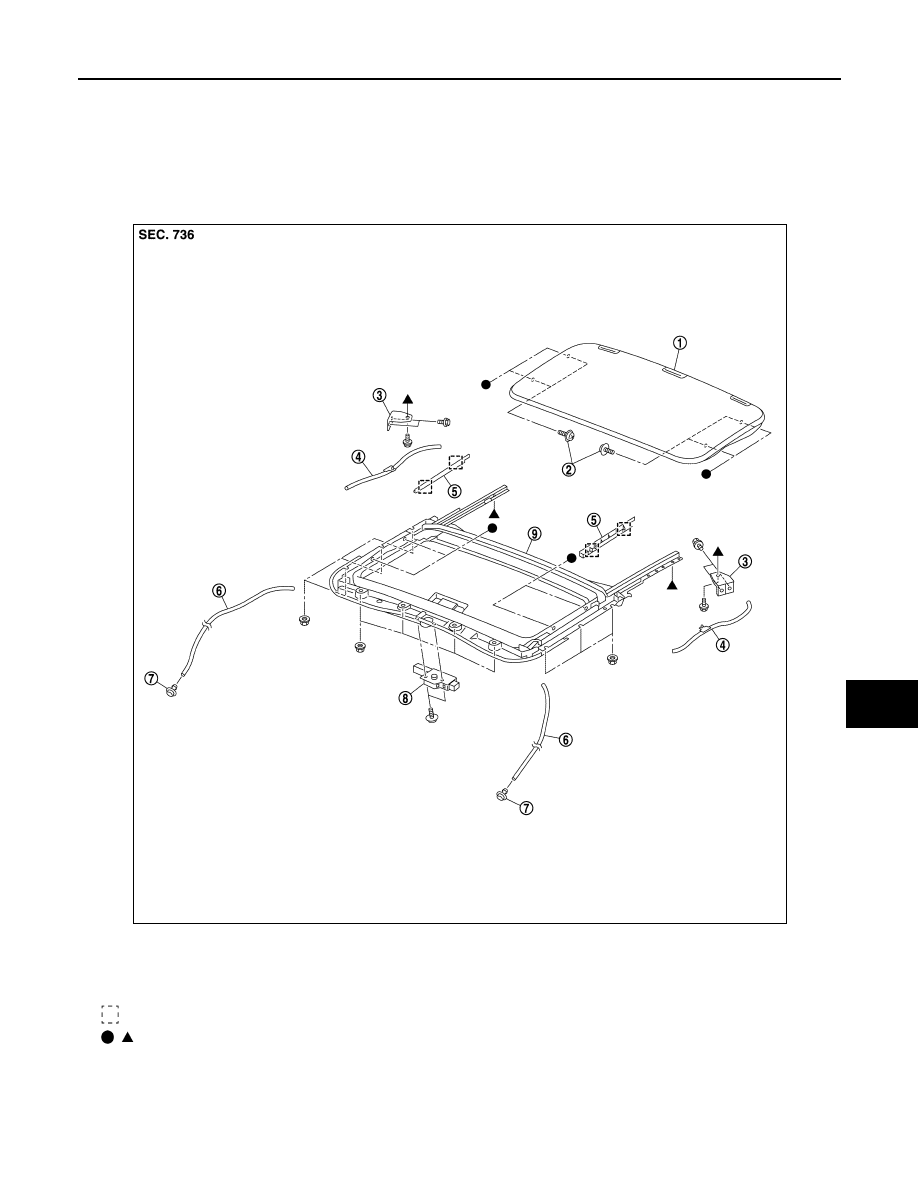

FRONT SUNROOF : Exploded View

INFOID:0000000009650396

REMOVAL

DISASSEMBLY

1.

Glass lid

2.

TORX bolt

3.

Front sunroof bracket

4.

Center drain hose

5.

Side trim

6.

Front drain hose

7.

Front drain connector

8.

Sunroof motor assembly

9.

Sunroof unit assembly

: Metal clip

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6143ZZ

RF-58

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

FRONT SUNROOF : Removal and Installation

INFOID:0000000009650397

REMOVAL

CAUTION:

• Always work with a helper.
• Fully close the glass lid assembly, before removal, then never operate sunroof motor assembly after

removal.

• After removing sunroof motor assembly, never attempt to rotate sunroof motor assembly as a single

unit.

• When remove/install sunroof unit, use cloths to protect the seats and trim from damage.
• After installing the sunroof unit and glass lid, perform the leak test and check that there is no mal-

function.

1.

Remove headlining. Refer to

INT-33, "Exploded View"

.

2.

Remove rear display. (with rear display) Refer to

AV-252, "Removal and Installation"

.

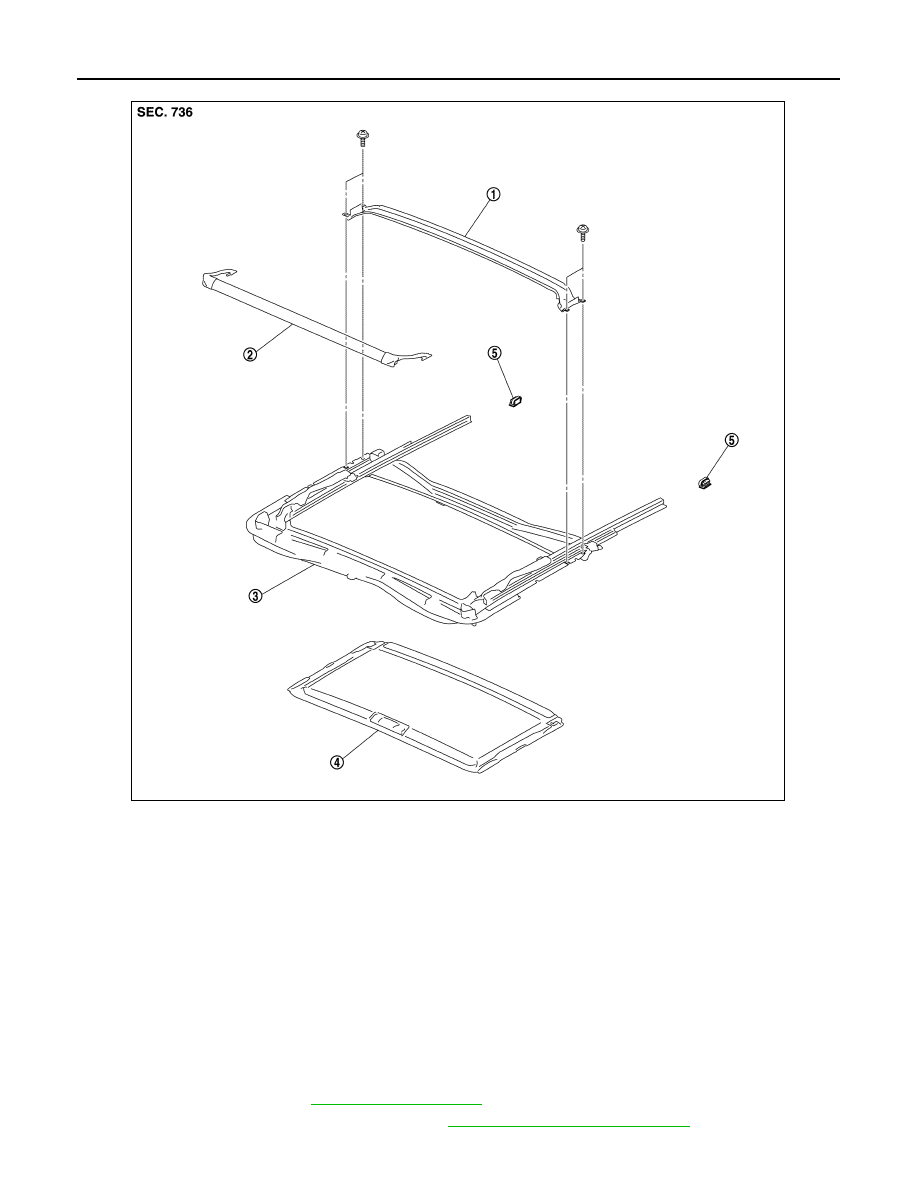

1.

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

JMKIA6148ZZ
