REAR SUNROOF : Removal and Installation

INFOID:0000000009650390

REMOVAL

1.

Tilt up glass lid and remove side trims (LH and RH).

2.

Remove glass lid mounting TORX bolts, and then remove glass lid from vehicle.

3.

Fully close glass lid.

INSTALLAITON

Note the following items, and then install in the reverse order of removal.
NOTE:
After installation carry out fitting adjustment. Refer to

RF-51, "REAR SUNROOF : Adjustment"

.

REAR SUNROOF : Adjustment

INFOID:0000000009650391

Adjustment

If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

1.

Tilt up glass lid and remove side trims (LH and RH).

2.

Loosen glass lid mounting TORX bolts.

3.

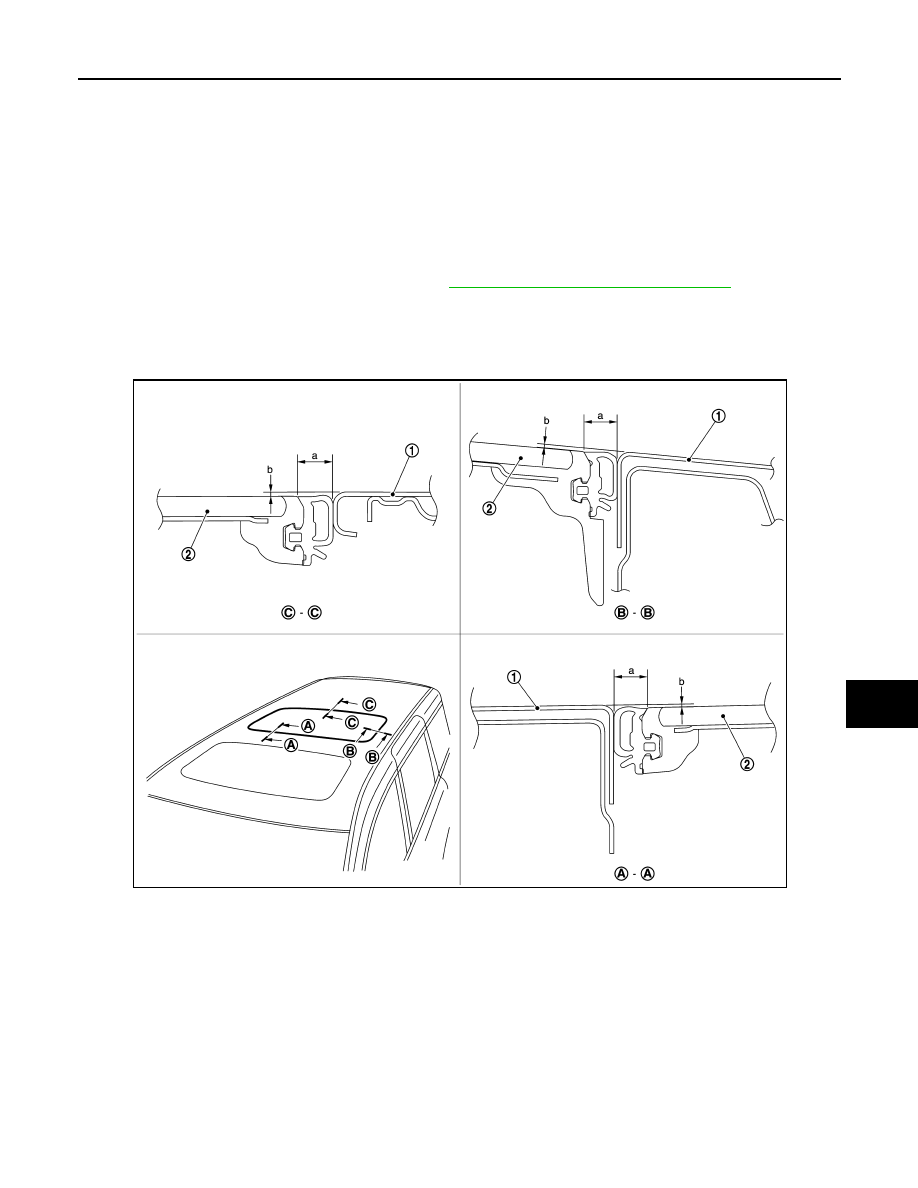

Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.

1.

Roof panel

2.

Glass lid

JMKIA6147ZZ

RF-52

< REMOVAL AND INSTALLATION >

GLASS LID

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-21, "REAR SUNROOF :

Description"

.

Portion

a (Clearance)

b (Surface height difference)

A – A

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

2.3) – (+0.7) mm

[(

−

0.091) – (+0.028) in]

B – B

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

2.3) – (+0.7) mm

[(

−

0.091) – (+0.028) in]

C – C

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

2.3) – (+0.7) mm

[(

−

0.091) – (+0.028) in]

SUNROOF MOTOR ASSEMBLY

RF-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF MOTOR ASSEMBLY

FRONT SUNROOF

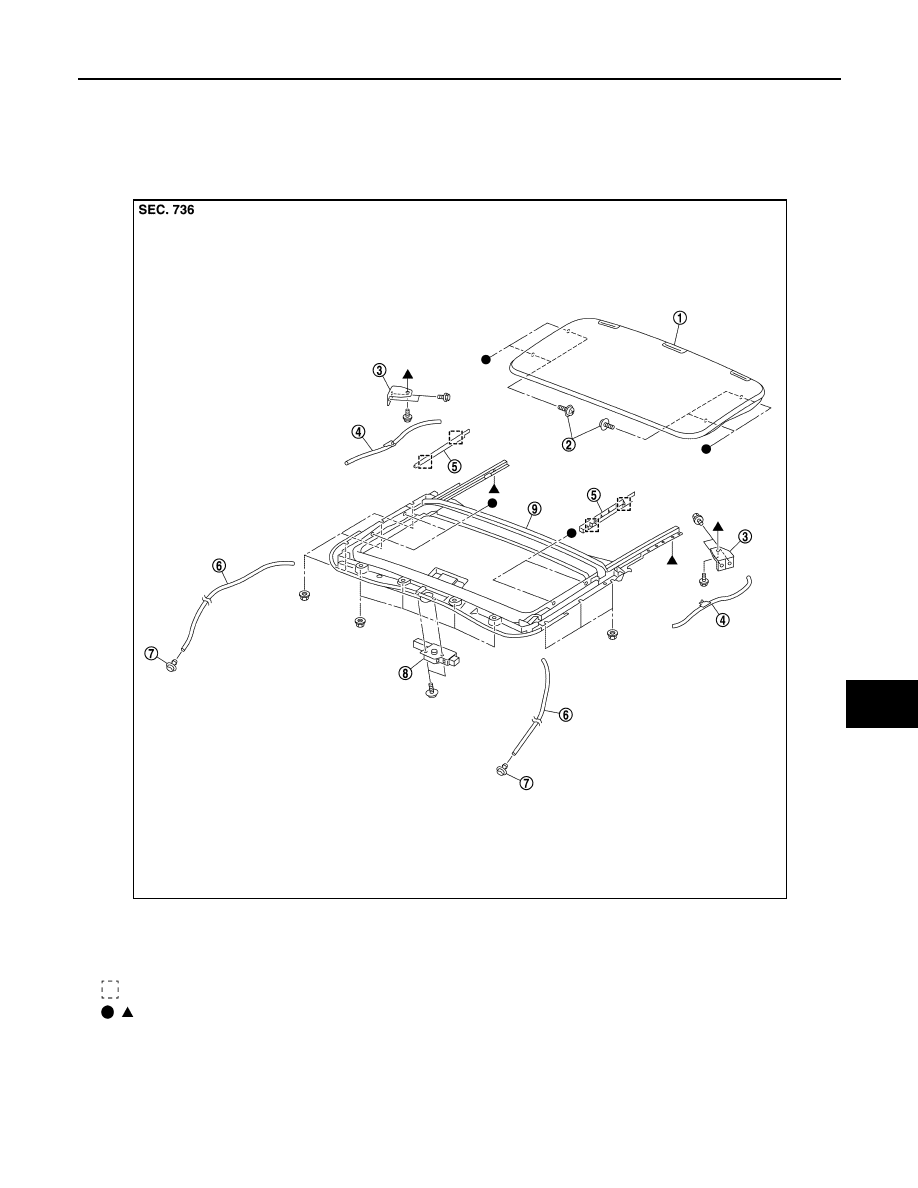

FRONT SUNROOF : Exploded View

INFOID:0000000009650392

FRONT SUNROOF : Removal and Installation

INFOID:0000000009650393

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.

1.

Glass lid

2.

TORX bolt

3.

Front sunroof bracket

4.

Center drain hose

5.

Side trim

6.

Front drain hose

7.

Front drain connector

8.

Sunroof motor assembly

9.

Sunroof unit assembly

: Metal clip

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6143ZZ

RF-54

< REMOVAL AND INSTALLATION >

SUNROOF MOTOR ASSEMBLY

• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

1.

Fully close glass lid.

2.

Remove map lamp assembly. Refer to

INL-67, "Removal and Installation"

.

3.

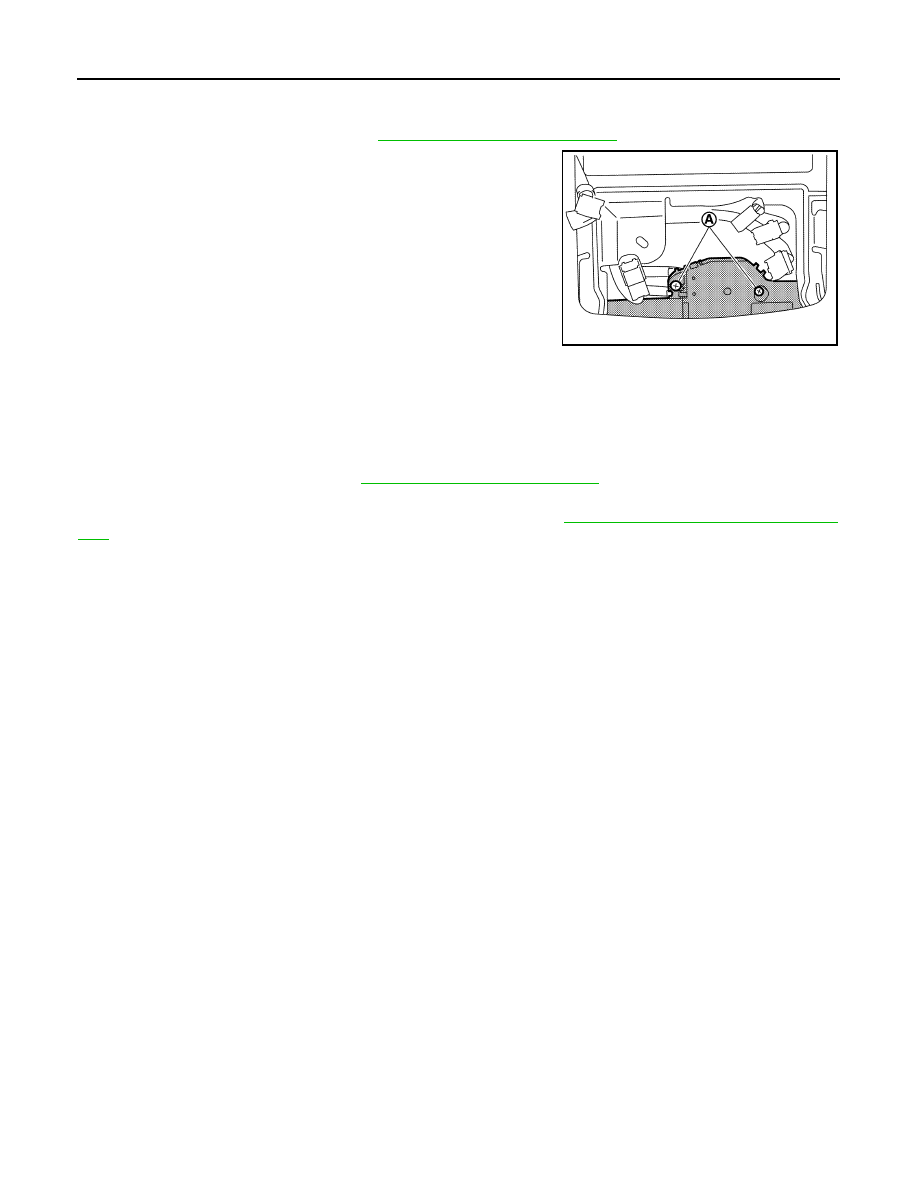

Remove sunroof motor assembly fixing screws (A), and then
remove sunroof motor assembly.

4.

Disconnect harness connector from sunroof motor.

INSTALLAITON

1.

Move the sunroof motor assembly laterally by little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screws.

2.

Install map lamp assembly. Refer to

INL-67, "Removal and Installation"

.

NOTE:
After installation sunroof motor, perform additional service. Refer to

RF-21, "FRONT SUNROOF : Descrip-

tion"

.

REAR SUNROOF
