Nissan Quest E52. Manual - part 1026





SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-47

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PIIB8742E

RF-48

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

FRONT SUNROOF

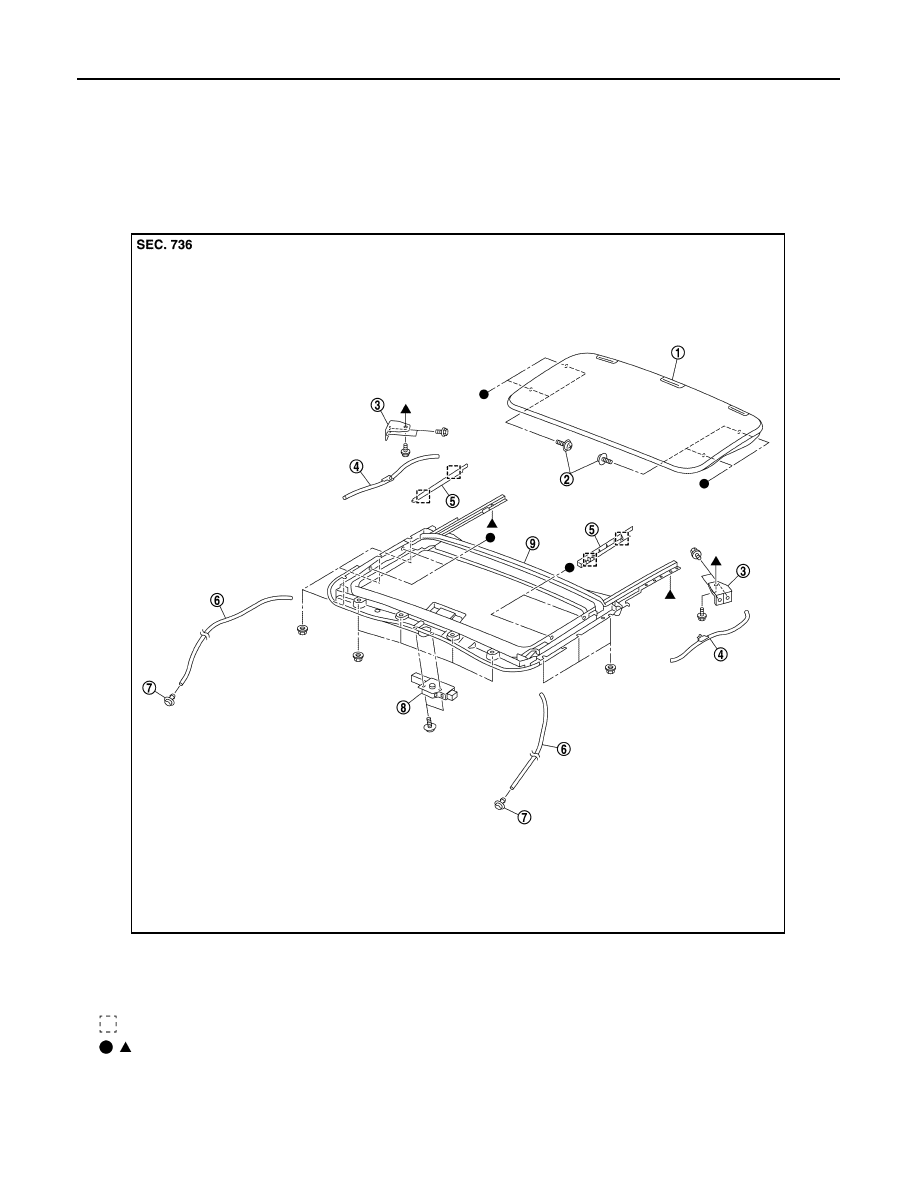

FRONT SUNROOF : Exploded View

INFOID:0000000009650386

FRONT SUNROOF : Removal and Installation

INFOID:0000000009650387

REMOVAL

1.

Glass lid

2.

TORX bolt

3.

Front sunroof bracket

4.

Center drain hose

5.

Side trim

6.

Front drain hose

7.

Front drain connector

8.

Sunroof motor assembly

9.

Sunroof unit assembly

: Metal clip

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6143ZZ

GLASS LID

RF-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1.

Tilt up glass lid and remove side trims (LH and RH).

2.

Remove glass lid mounting TORX bolts, and then remove glass lid from vehicle.

3.

Fully close glass lid.

INSTALLAITON

Note the following items, and then install in the reverse order of removal.
NOTE:
After installation carry out fitting adjustment. Refer to

RF-49, "FRONT SUNROOF : Adjustment"

.

FRONT SUNROOF : Adjustment

INFOID:0000000009650388

Adjustment

If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

1.

Tilt up glass lid and remove side trims (LH and RH).

2.

Loosen glass lid mounting TORX bolts.

3.

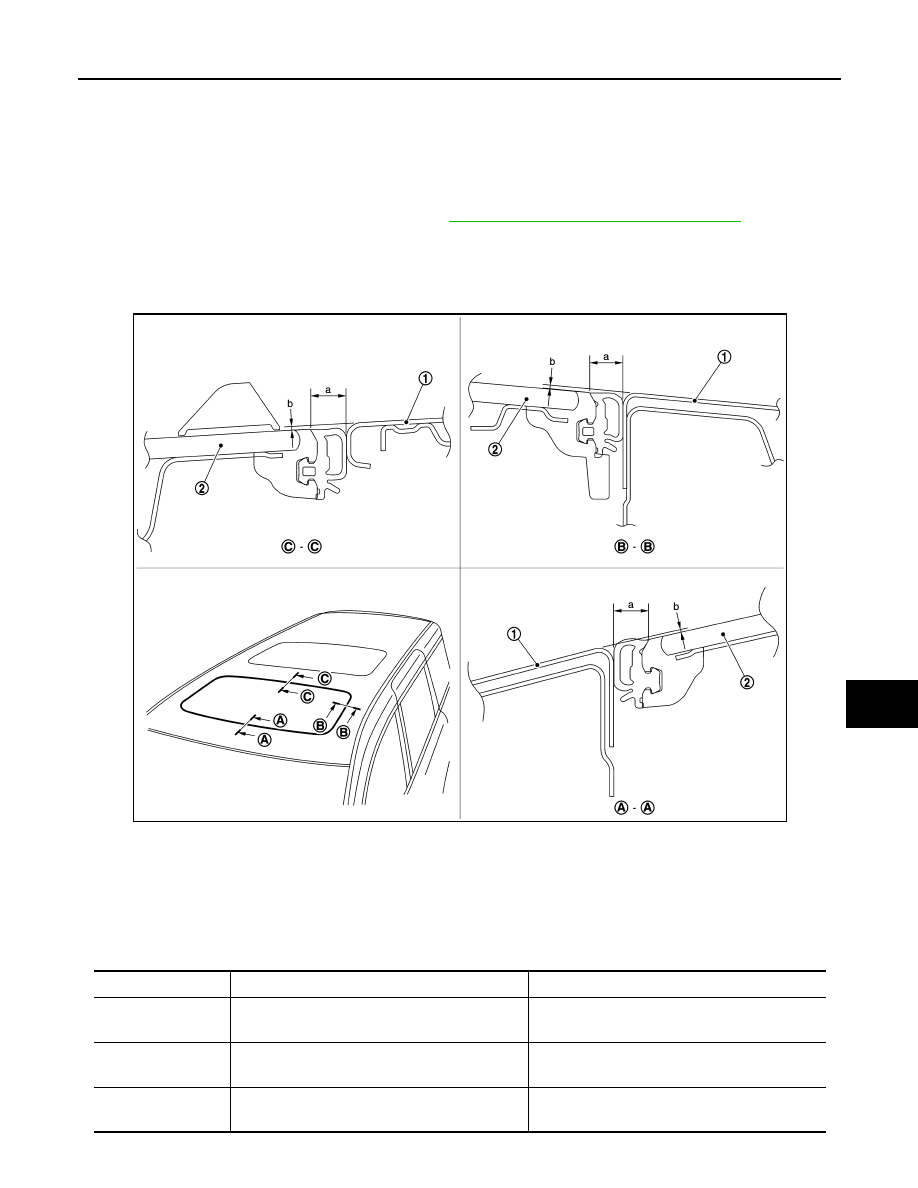

Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.

1.

Roof panel

2.

Glass lid

JMKIA6146ZZ

Portion

a (Clearance)

b (Surface height difference)

A – A

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

2.3) – (+0.7) mm

[(

0.091) – (+0.028) in]

B – B

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

2.3) – (+0.7) mm

[(

0.091) – (+0.028) in]

C – C

6.5 – 8.1 mm

(0.256 – 0.319 in)

(

2.3) – (+0.7) mm

[(

0.091) – (+0.028) in]

RF-50

< REMOVAL AND INSTALLATION >

GLASS LID

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-21, "FRONT SUNROOF :

Description"

.

REAR SUNROOF

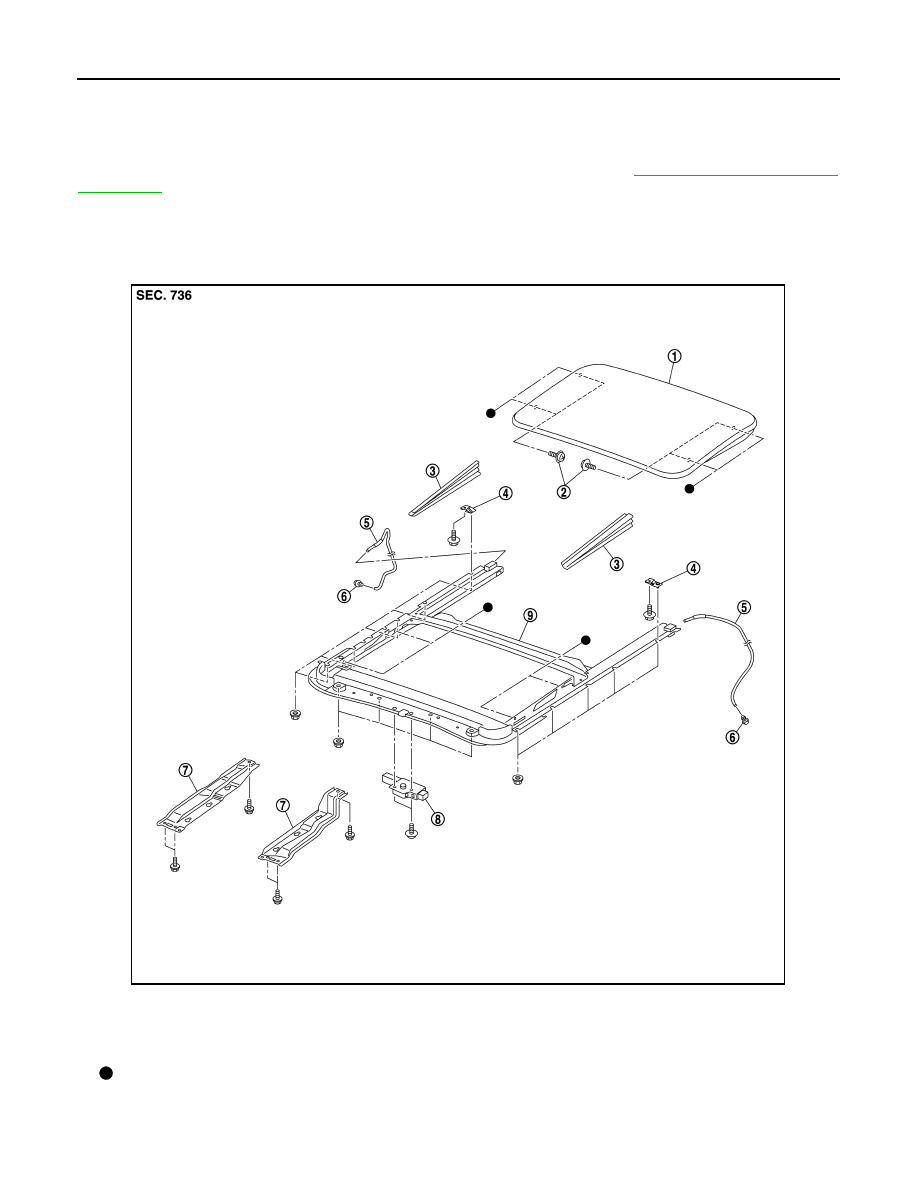

REAR SUNROOF : Exploded View

INFOID:0000000009650389

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear sunroof bracket

5.

Rear drain hose

6.

Rear drain connector

7.

Rear display bracket

8.

Sunroof motor assembly

9.

Sunroof unit assembly

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6144ZZ
