3.

Remove rear sunroof unit assembly. Refer to

RF-61, "REAR SUNROOF : Removal and Installation"

.

4.

Remove rear display brackets.

5.

Remove front sunroof glass lid. Refer to

RF-48, "FRONT SUNROOF : Removal and Installation"

.

6.

Disconnect front drain hoses.

7.

Remove front sunroof brackets mounting bolts, and then remove front sunroof brackets.

8.

Remove nuts from the front end and side rail, and then remove front sunroof unit assembly from roof
panel.

9.

Remove front sunroof unit assembly from roof panel.

10. Remove sunroof motor assembly.

INSTALLATION

1.

Install front sunroof motor assembly.

2.

Bring front sunroof unit into back door.

3.

Temporarily tighten the mounting nuts to the side rail of front sunroof unit assembly.

4.

Temporarily tighten the mounting nuts to the front end of front sunroof unit assembly.

5.

Temporarily tighten the mounting bolts to the front sunroof brackets (LH and RH).

6.

Tighten the front sunroof assembly mounting nuts diagonally in order.

7.

Tighten front sunroof bracket bolts on the roof panel, and then tighten bolts on the side rail.

CAUTION:

Install front sunroof unit assembly evenly without any distortion on front sunroof unit assembly.

8.

Connect front drain hoses.

9.

Install rear display brackets.

10. Install rear sunroof unit assembly. Refer to

RF-61, "REAR SUNROOF : Removal and Installation"

.

11. Install rear display. (with rear display) Refer to

AV-252, "Removal and Installation"

.

12. Install headlining. Refer to

INT-35, "Removal and Installation"

.

13. Install front sunroof glass lid. Refer to

RF-48, "FRONT SUNROOF : Removal and Installation"

.

FRONT SUNROOF : Disassembly and Assembly

INFOID:0000000009650398

DISASSEMBLY

1.

Remove rear drain assembly from front sunroof unit assembly.

2.

Remove sunshade. Refer to

RF-63, "FRONT SUNROOF : Removal and Installation"

.

3.

Remove wind deflector. Refer to

RF-67, "FRONT SUNROOF : Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

REAR SUNROOF

REAR SUNROOF : Exploded View

INFOID:0000000009650399

REMOVAL

RF-60

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

DISASSEMBLY

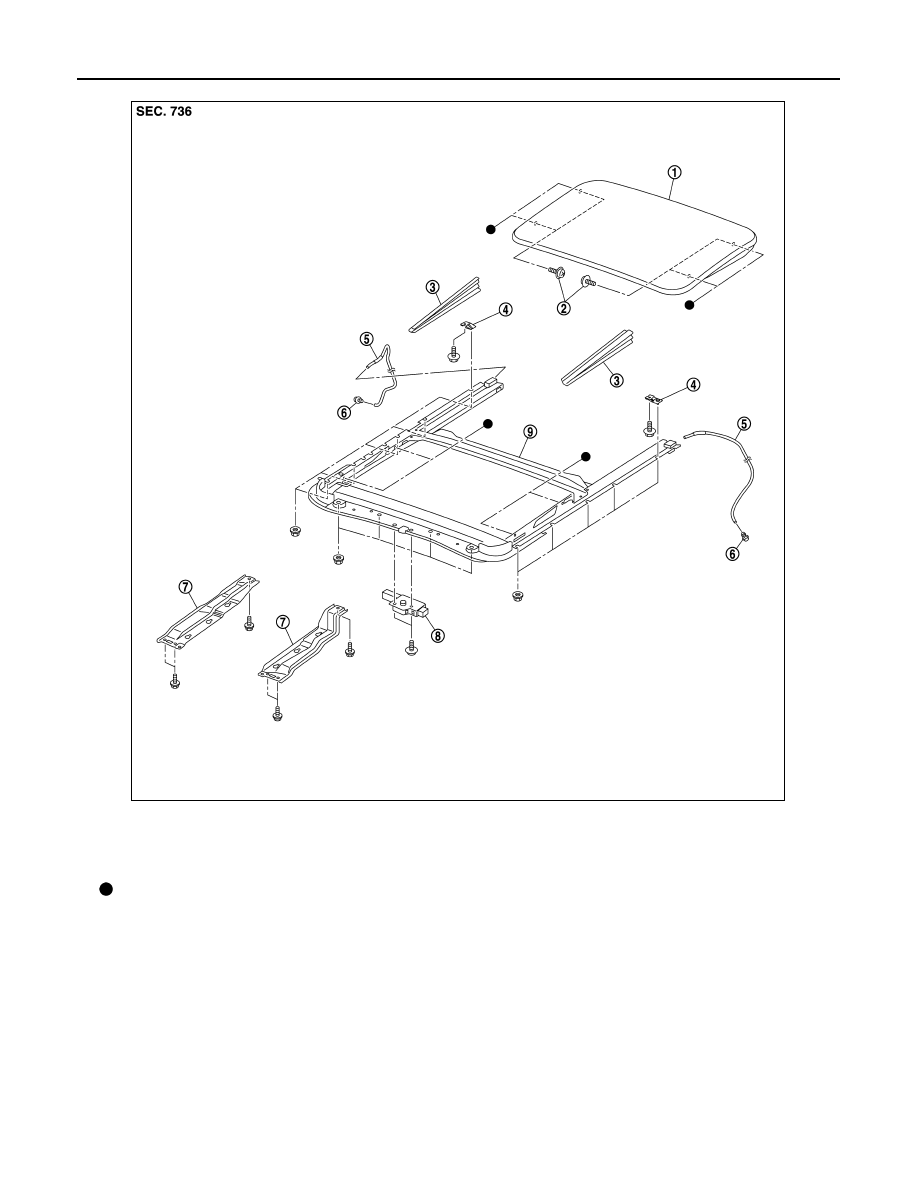

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear sunroof bracket

5.

Rear drain hose

6.

Rear drain connector

7.

Rear display bracket

8.

Sunroof motor assembly

9.

Sunroof unit assembly

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6144ZZ

SUNROOF UNIT ASSEMBLY

RF-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

REAR SUNROOF : Removal and Installation

INFOID:0000000009650400

REMOVAL

CAUTION:

• Always work with a helper.
• Fully close the glass lid assembly, before removal, then never operate sunroof motor assembly after

removal.

• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.
• When remove/install sunroof unit, use cloths to protect the seats and trim from damage.

1.

Remove headlining. Refer to

INT-35, "Removal and Installation"

.

2.

Remove glass lid. Refer to

RF-51, "REAR SUNROOF : Removal and Installation"

.

3.

Disconnect center drain hoses and rear drain hoses.

4.

Remove rear sunroof brackets (LH and RH).

1.

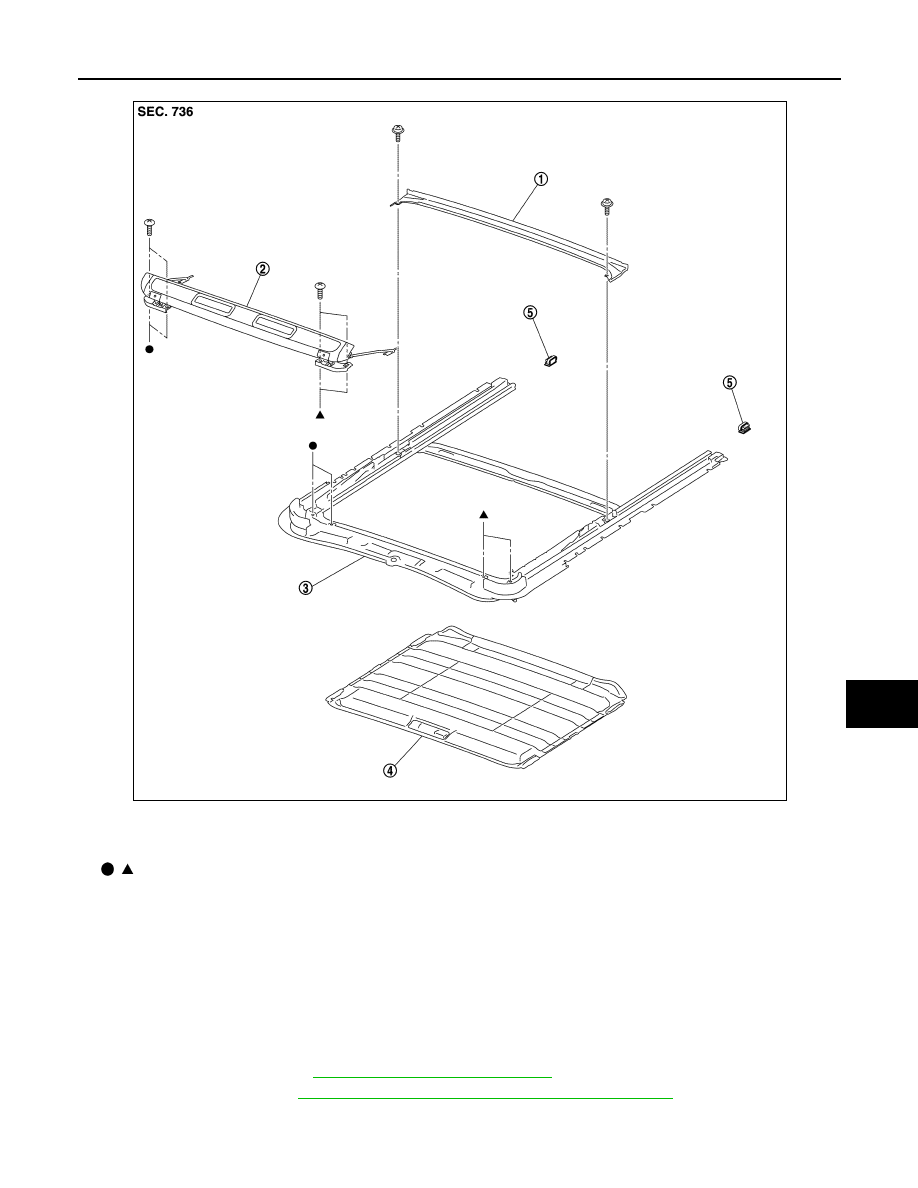

Rear drain assembly

2.

Wind deflector

3.

Sunroof frame assembly

4.

Sunshade

5.

Sunshade stopper

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6149ZZ

RF-62

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

5.

Remove nuts from the front end and side rail, and then remove rear sunroof unit assembly from roof
panel.

6.

Remove rear sunroof unit assembly through the back door while being careful not to damage the seats
and trim.

7.

Remove rear sunroof motor assembly.

INSTALLATION

1.

Install rear sunroof motor assembly.

2.

Bring rear sunroof unit into back door.

3.

Temporarily tighten the mounting nuts to the side rail of rear sunroof unit assembly.

4.

Temporarily tighten the mounting nuts to the front end of rear sunroof unit assembly.

5.

Temporarily tighten the mounting bolts to the rear sunroof brackets (LH and RH).

6.

Tighten the rear sunroof assembly mounting nuts diagonally in order.

7.

Tighten rear sunroof bracket bolts on the roof panel, and then tighten bolts on the side rail.

CAUTION:

Install rear sunroof unit assembly evenly without any distortion on rear sunroof unit assembly.

8.

Connect center drain hoses and rear drain hoses.

9.

Install headlining. Refer to

INT-35, "Removal and Installation"

.

10. Install glass lid. Refer to

RF-51, "REAR SUNROOF : Removal and Installation"

.

REAR SUNROOF : Disassembly and Assembly

INFOID:0000000009650401

DISASSEMBLY

1.

Remove rear drain assembly from rear sunroof unit assembly.

2.

Remove sunshade. Refer to

RF-65, "REAR SUNROOF : Removal and Installation"

.

3.

Remove wind deflector. Refer to

RF-69, "REAR SUNROOF : Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.
