Nissan Quest E52. Manual - part 1032





SUNROOF SWITCH

RF-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SWITCH

FRONT

FRONT : Removal and Installation

INFOID:0000000009650410

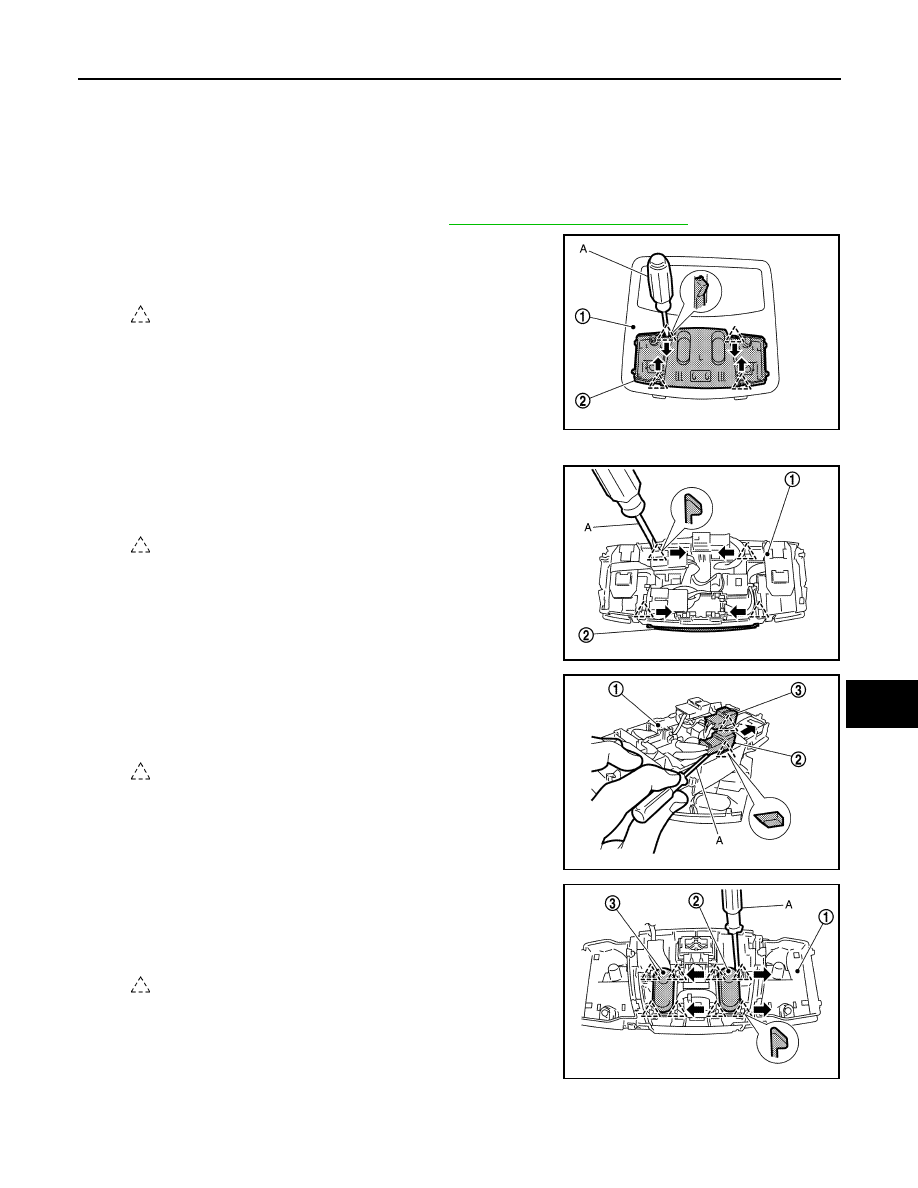

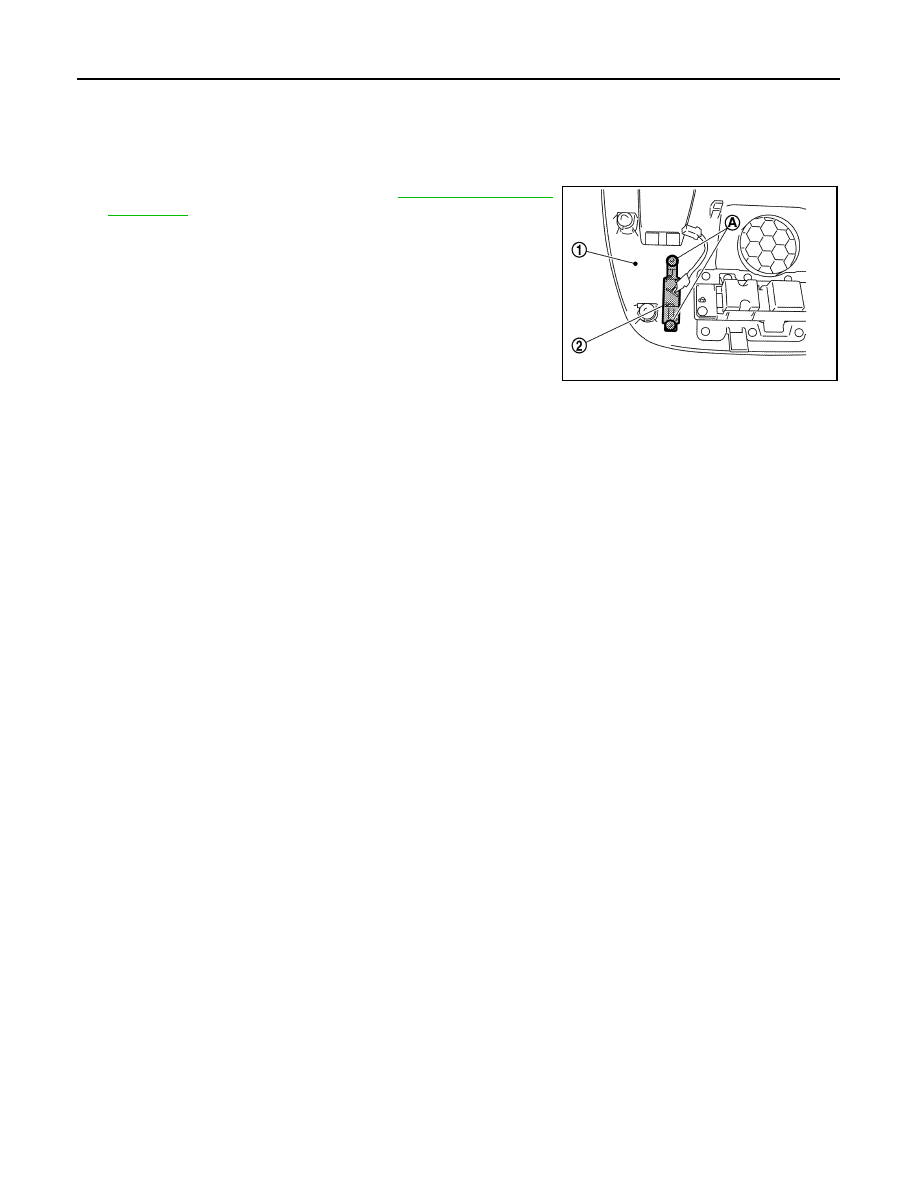

REMOVAL

1.

Remove lens from map lamp assembly. Refer to

INL-67, "Removal and Installation"

.

2.

Using a flat-bladed screw driver (A), disconnect pawls of map
lamp assembly (2) from roof console assembly (1), and then
remove map lamp assembly (2).

3.

Remove harness connector.

4.

Using a flat-bladed screw driver (A), disconnect pawls of switch
finisher (2) from map lamp assembly (1), and then remove
switch finisher (2).

5.

Disconnect pawls of connector (2) using a flat-bladed screw
driver (A), and then remove connector (2) from map lamp
assembly (1) in the direction indicated by an arrow as shown in
the figure. Remove connector (3) in the same procedures.

6.

Disconnect pawls of sunroof switch (2) using a flat-bladed screw
driver (A), and then remove sunroof switch (2) from map lamp
assembly (1). Remove sunroof switch (3) in the same proce-
dures.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA6061ZZ

: Pawl

JMKIA6062ZZ

: Pawl

JMKIA6063ZZ

: Pawl

JMKIA6064ZZ

RF-72

< REMOVAL AND INSTALLATION >

SUNROOF SWITCH

REAR

REAR : Removal and Installation

INFOID:0000000009650411

REMOVAL

1.

Remove roof console assembly. Refer to

INT-35, "Removal and

Installation"

.

2.

Remove torx bolts (A), and then remove sunroof switch (2) from
roof console assembly (1).

INSTALLATION

Installation in the reverse order of removal.

JMKIA6065ZZ

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precautions for Suspension  ......................................

2

Precautions for Removing Battery Terminal  .............

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tools  ........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

REAR SUSPENSION ASSEMBLY  .....................

5

Inspection ..................................................................

5

WHEEL ALIGNMENT ..........................................

6

Inspection ..................................................................

6

Adjustment ................................................................

6

REMOVAL AND INSTALLATION ................

8

REAR LOWER LINK & COIL SPRING  ...............

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

8

Inspection ..................................................................

9

REAR SHOCK ABSORBER  ..............................

10

Exploded View  ........................................................

10

Removal and Installation  .........................................

10

Disassembly and Assembly .....................................

11

Inspection ................................................................

11

Disposal ...................................................................

12

RADIUS ROD  ....................................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection ................................................................

13

FRONT LOWER LINK .......................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

15

SUSPENSION ARM  ..........................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

REAR SUSPENSION ASSEMBLY ...................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

Inspection ................................................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

21

Wheel Alignment  .....................................................

21

Ball Joint  ..................................................................

21

Wheelarch Height  ....................................................

21

RSU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precautions for Suspension

INFOID:0000000009652815

• When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires

on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.
• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled,

tighten as they are.

Precautions for Removing Battery Terminal

INFOID:0000000009871459

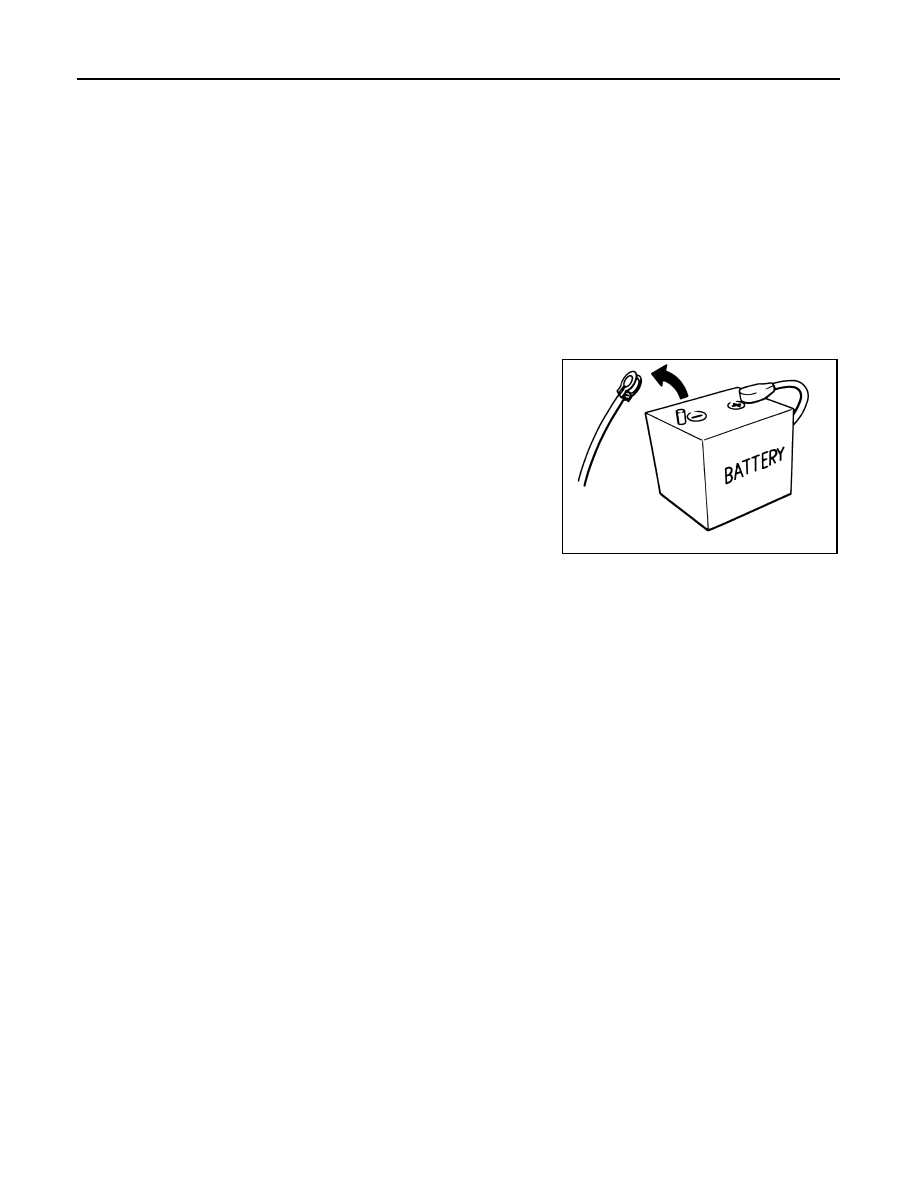

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H
