Nissan Quest E52. Manual - part 8





DRIVER SEAT CONTROL UNIT

ADP-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DRIVER SEAT CONTROL UNIT

Reference Value

INFOID:0000000009649609

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

SET SW

Set switch

Push

ON

Release

OFF

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SLIDE SW–FR

Sliding switch (forward)

Operate

ON

Release

OFF

SLIDE SW–RR

Sliding switch (backward)

Operate

ON

Release

OFF

RECLN SW–FR

Reclining switch (forward)

Operate

ON

Release

OFF

RECLN SW–RR

Reclining switch (back-
ward)

Operate

ON

Release

OFF

LIFT FR SW–UP

Lifting switch front (up)

Operate

ON

Release

OFF

LIFT FR SW–DN

Lifting switch front (down)

Operate

ON

Release

OFF

LIFT RR SW–UP

Lifting switch rear (up)

Operate

ON

Release

OFF

LIFT RR SW–DN

Lifting switch rear (down)

Operate

ON

Release

OFF

MIR CON SW–UP

Mirror switch

Up

ON

Other than the above

OFF

MIR CON SW–DN

Mirror switch

Down

ON

Other than the above

OFF

MIR CON SW–RH

Mirror switch

Right

ON

Other than the above

OFF

MIR CON SW–LH

Mirror switch

Left

ON

Other than the above

OFF

MIR CHNG SW–R

Changeover switch

Right

ON

Other than the above

OFF

MIR CHNG SW–L

Changeover switch

Left

ON

Other than the above

OFF

DETENT SW

CVT shift selector

P position

OFF

Other than the above

ON

ADP-26

< ECU DIAGNOSIS INFORMATION >

DRIVER SEAT CONTROL UNIT

STARTER SW

Ignition position

Cranking

ON

Other than the above

OFF

SLIDE PULSE

Seat sliding

Forward

The numeral value decreases *

Backward

The numeral value increases*

Other than the above

No change to numeral value*

RECLN PULSE

Seat reclining

Forward

The numeral value decreases*

Backward

The numeral value increases

*

Other than the above

No change to numeral value

*

LIFT FR PULSE

Seat lifter (front)

Up

The numeral value decreases

*

Down

The numeral value increases

*

Other than the above

No change to numeral value

*

LIFT RR PULSE

Seat lifter (rear)

Up

The numeral value decreases

*

Down

The numeral value increases

*

Other than the above

No change to numeral value

*

MIR/SEN RH U–D

Door mirror (passenger side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN RH R–L

Door mirror (passenger side)

Change between 3.4 (close to left edge)

0.6 (close to right edge)

MIR/SEN LH U–D

Door mirror (driver side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN LH R–L

Door mirror (driver side)

Change between 0.6 (close to left edge)

3.4 (close to right edge)

STEERING STATUS

Steering lock unit

Unlock

NOTE:
This item is indicated, but not monitored.

VEHICLE SPEED

The condition of vehicle speed is displayed

km/h

P RANG SW CAN

CVT shift selector

P position

ON

Other than the above

OFF

R RANGE (CAN)

CVT shift selector

R position

ON

Other than the above

OFF

DOOR SW-FL

Driver door

Open

ON

Close

OFF

DOOR SW-FR

Passenger door

Open

ON

Close

OFF

IGN ON SW

Ignition switch

ON position

ON

Other than the above

OFF

ACC ON SW

Ignition switch

ACC or ON position

ON

Other than the above

OFF

KEYLESS ID

UNLOCK button of Intelligent Key is pressed

1, 2, 3, 4 or 5

KYLS DR UNLK

Intelligent Key or driver
side door request switch

ON

ON

OFF

OFF

VHCL SPEED (ABS)

Can signal from ABS

Received

ON

Not received

OFF

HANDLE

The BCM for handle position is displayed

LHD

RHD

Monitor Item

Condition

Value/Status

DRIVER SEAT CONTROL UNIT

ADP-27

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

*

: The value at the position attained when the battery is connected is regarded as 32768.

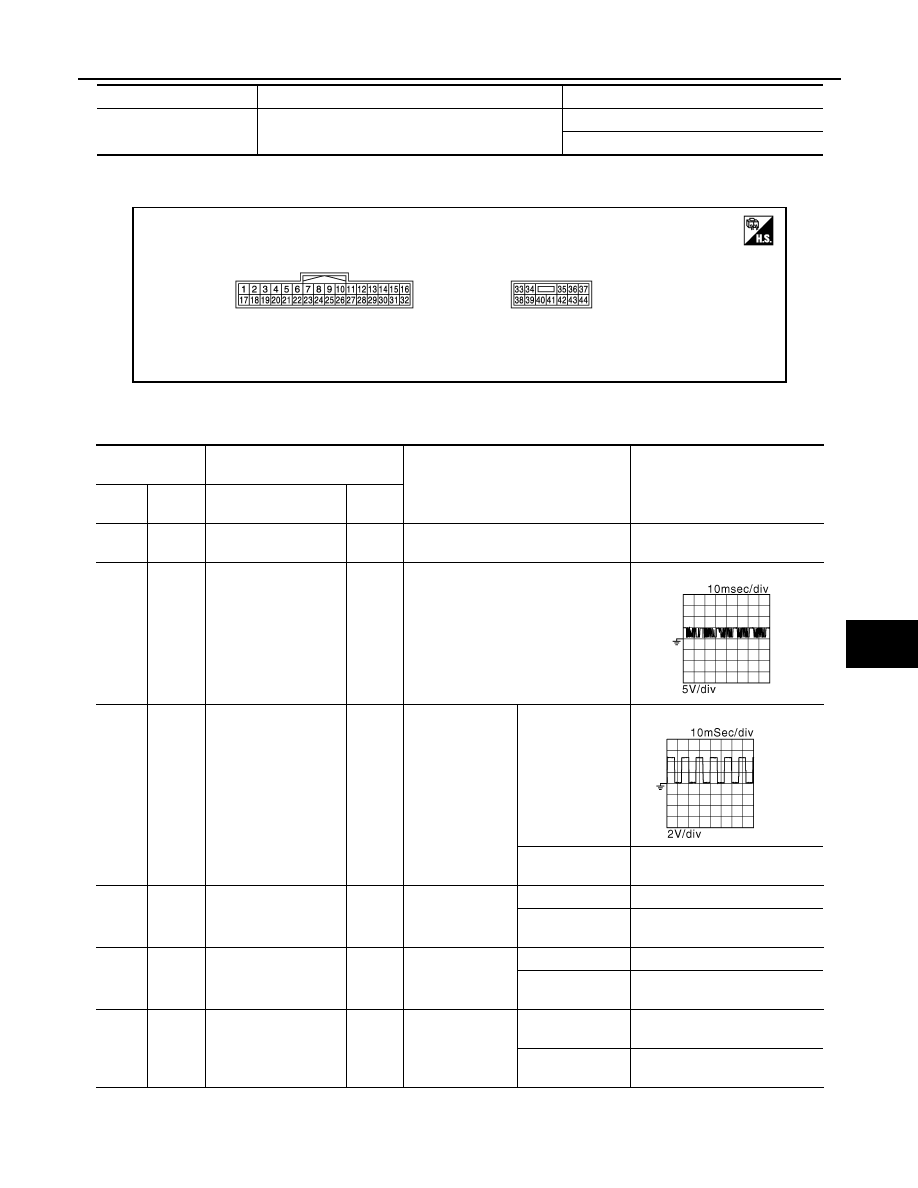

TERMINAL LAYOUT

PHYSICAL VALUES

TRANSMISSION

Transmission type is displayed

AT or CVT

MT

Monitor Item

Condition

Value/Status

JMJIA3903ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

output

1

(R/Y)

CAN-H

2

(R)

Ground

UART communication
(TX/RX)

Input

Ignition switch ON

4

(R/L)

Ground

Reclining sensor sig-
nal

Input

Seat reclining

Operate

Other than the
above

0 – 1  or  4 – 6

6

(R/W)

Ground

Memory switch 2 sig-
nal

Input

Memory switch 2

Press

0 – 1

Other than the
above

4 – 6

7

(R/G)

Ground

Memory indicator 2
signal

Output

Memory indicator
2

Illuminate

0 – 1

Other than the
above

9 – 16

8

(SB)

Ground

Sliding switch back-
ward signal

Input

Sliding switch

Operate
(backward)

0 – 1

Other than the
above

9 – 16

JMJIA1391ZZ

JMJIA0119ZZ

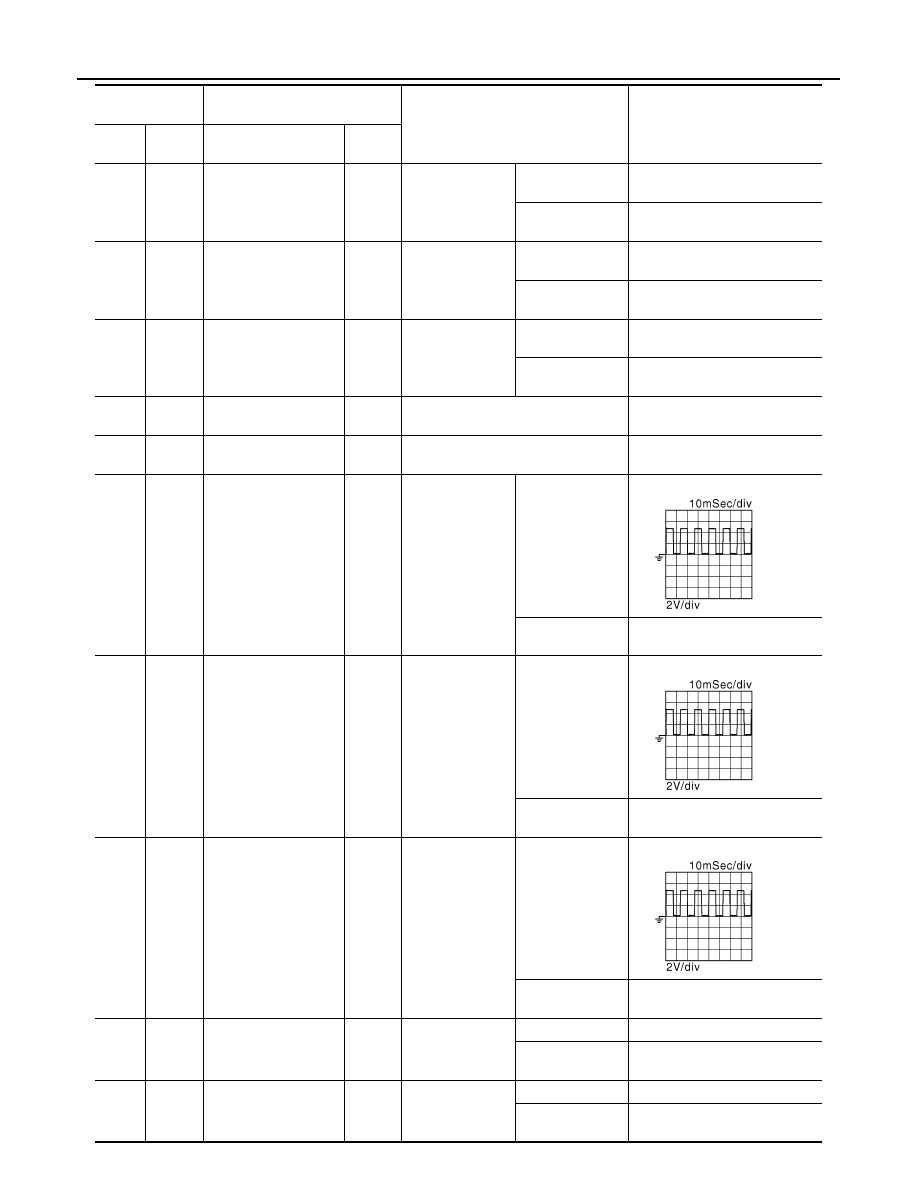

ADP-28

< ECU DIAGNOSIS INFORMATION >

DRIVER SEAT CONTROL UNIT

9

(L)

Ground

Reclining switch back-
ward signal

Input

Reclining switch

Operate
(backward)

0 – 1

Other than the
above

9 – 16

10

(L/B)

Ground

Lifting switch (front)
down signal

Input

Lifting switch
(front)

Operate
(down)

0 – 1

Other than the
above

9 – 16

11

(L/W)

Ground

Lifting switch (rear)
down signal

Input

Lifting switch
(rear)

Operate
(down)

0 – 1

Other than the
above

9 – 16

12

(L/R)

Ground

Sensor power supply

Output

9 – 16

17

(V)

CAN-L

18

(B/W)

Ground

Sliding sensor signal

Input

Seat sliding

Operate

Other than the
above

0 – 1  or  4 – 6

19

(B/R)

Ground

Lifting sensor (front)
signal

Input

Seat lifting (front)

Operate

Other than the
above

0 – 1  or  4 – 6

20

(B/L)

Ground

Lifting sensor (rear)
signal

Input

Seat lifting (rear)

Operate

Other than the
above

0 – 1  or  4 – 6

22

(W/L)

Ground

Memory switch 1 sig-
nal

Input

Memory switch 1

Press

0 – 1

Other than the
above

4 – 6

23

(W/R)

Ground

Memory indicator 1
signal

Output

Memory indicator
1

Illuminate

0 – 1

Other than the
above

9 – 16

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

output

JMJIA0119ZZ

JMJIA0119ZZ

JMJIA0119ZZ
