TM-228

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

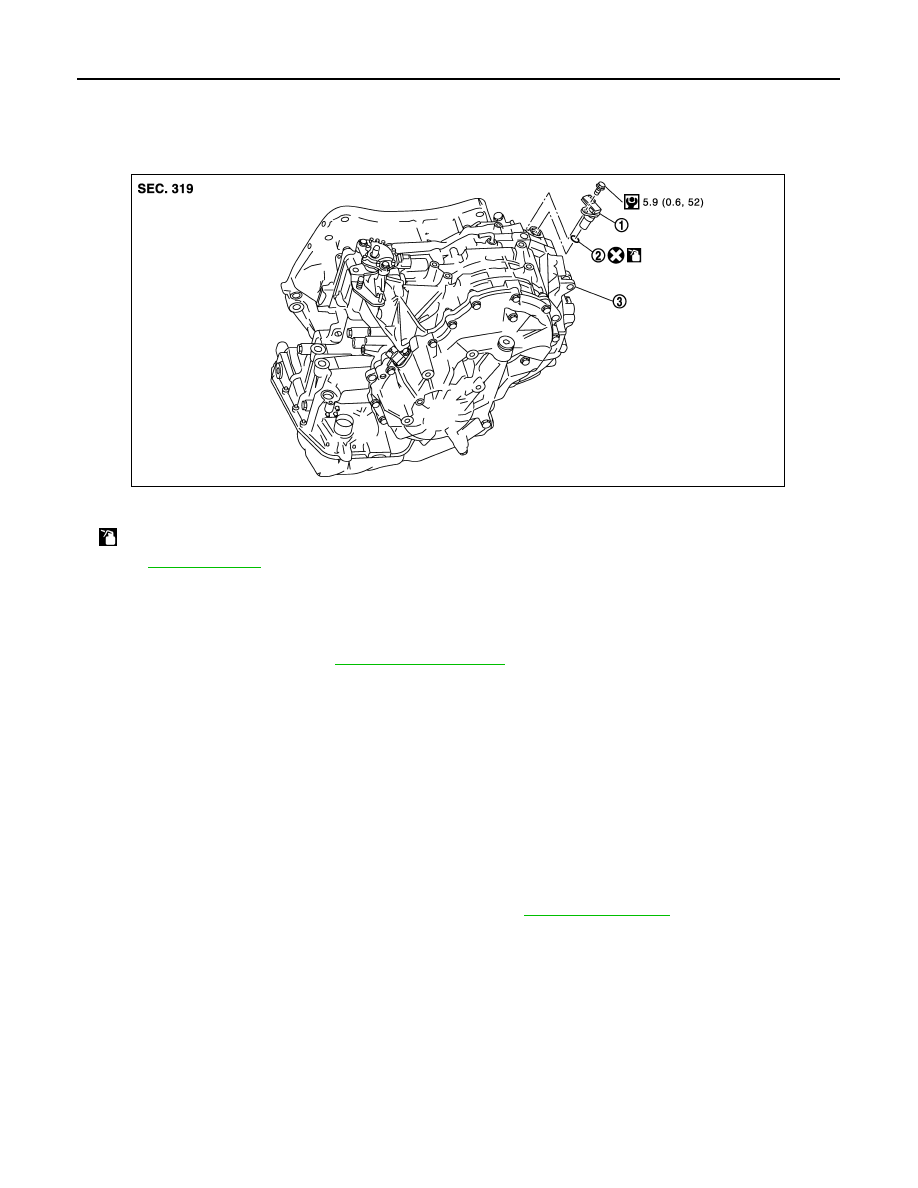

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000009949100

Removal and Installation

INFOID:0000000009949101

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-24, "Exploded View"

.

2.

Disconnect secondary speed sensor connector.

3.

Remove secondary speed sensor.

4.

Remove O-ring from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000009949102

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-206, "Inspection"

.

1.

Secondary speed sensor

2.

O-ring

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JSDIA0751GB

DIFFERENTIAL SIDE OIL SEAL

TM-229

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

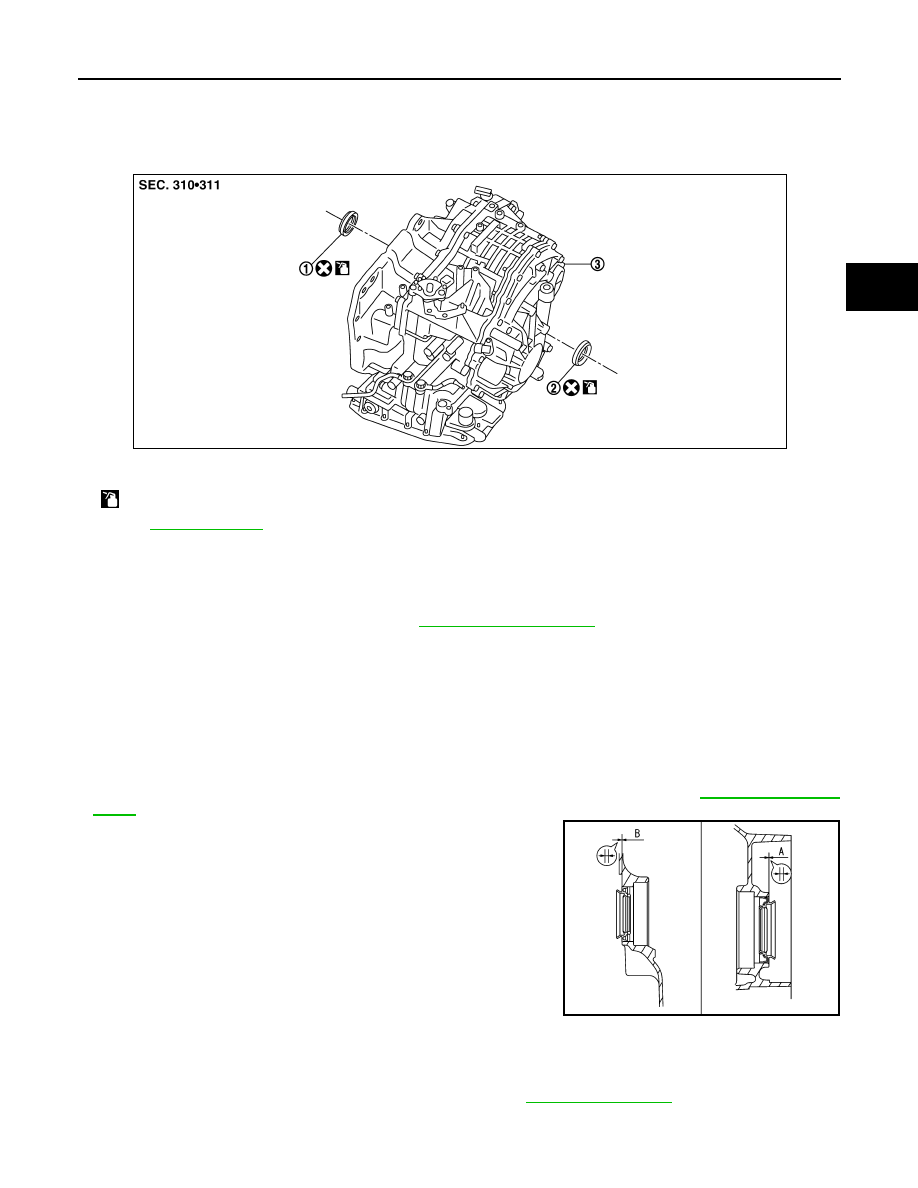

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000009949103

Removal and Installation

INFOID:0000000009949104

REMOVAL

1.

Remove front drive shaft assembly. Refer to

FAX-15, "Exploded View"

.

2.

Remove differential side oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transaxle case and converter housing.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse differential side oil seals.
• Apply CVT fluid to differential side oil seals.
• When insert drive shaft, always use a protector [SST: KV38107900 ( — )]. Refer to

FAX-15, "Exploded

View"

.

Install drive shaft using drifts [SST: ST35325000 ( — ) and
KV31103000 ( — )]. Check that side oil seal height difference from
case end surface is within the specified value “A” and “B”.

NOTE:

Differential side oil seal pulling direction is used as the reference.

Inspection

INFOID:0000000009949105

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-206, "Inspection"

.

1.

RH differential side oil seal

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

SCIA8345J

Dimension “A”

: Height difference from case end sur-
face is within 0

±

 0.5 mm (0

±

 0.020 in).

Dimension “B”

: Height difference from case end sur-
face is within 0

±

 0.5 mm (0

±

 0.020 in).

SCIA4076J

TM-230

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

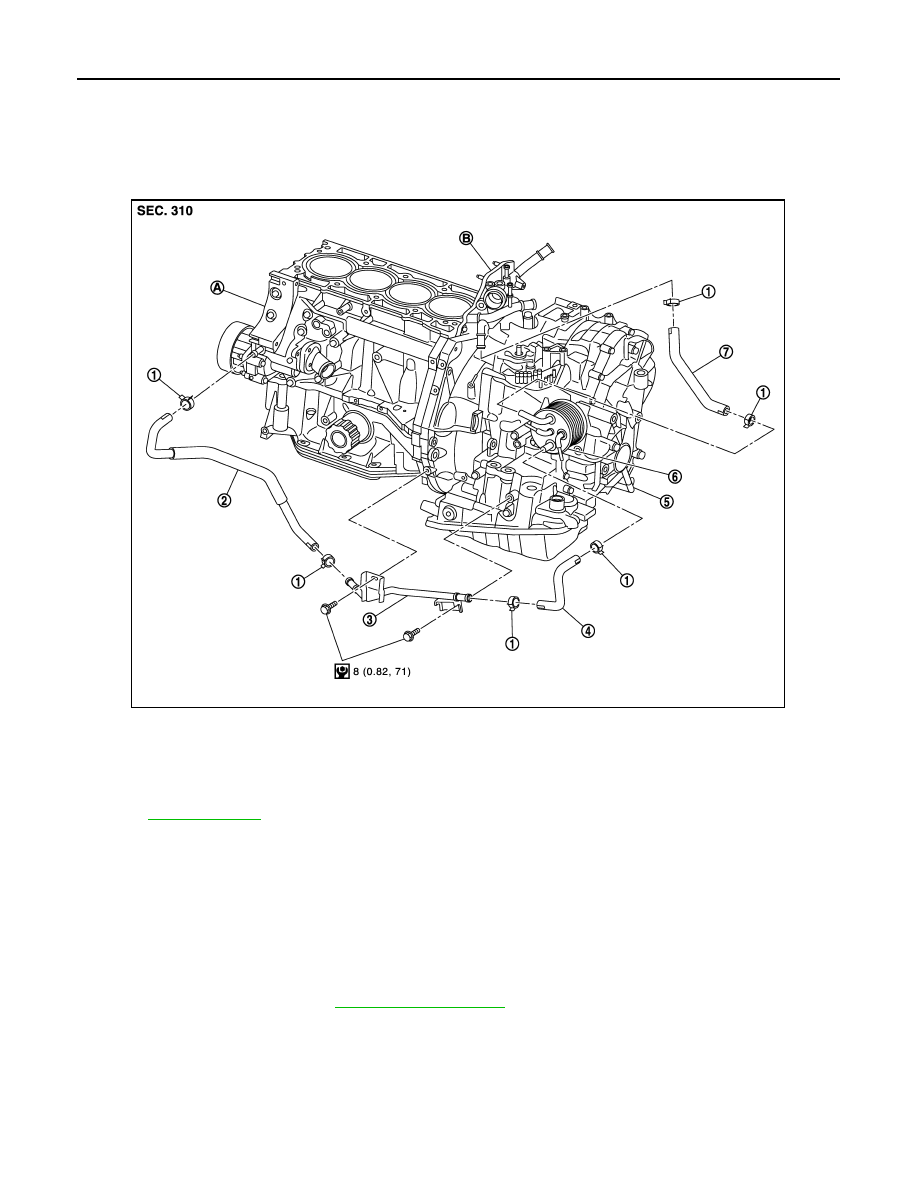

CVT OIL WARMER SYSTEM

CVT OIL WARMER SYSTEM

WATER HOSE

WATER HOSE : Exploded View

INFOID:0000000009949106

WATER HOSE : Removal and Installation

INFOID:0000000009949107

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.

CAUTION:

Perform this step engine is cold.

1.

Remove air duct (inlet). Refer to

EM-24, "Exploded View"

.

2.

Remove hose clamps, and remove CVT water hose A.

3.

Remove hose clamps, and remove CVT water hose B.

4.

Remove hose clamps, and remove CVT water hose C.

5.

Remove CVT water tube.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Hose clamp

2.

CVT water hose C

3.

CVT water tube

4.

CVT water hose B

5.

Transaxle assembly

6.

CVT oil warmer

7.

CVT water hose A

A.

Water pump

B.

Water inlet-outlet

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1290GB

CVT OIL WARMER SYSTEM

TM-231

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

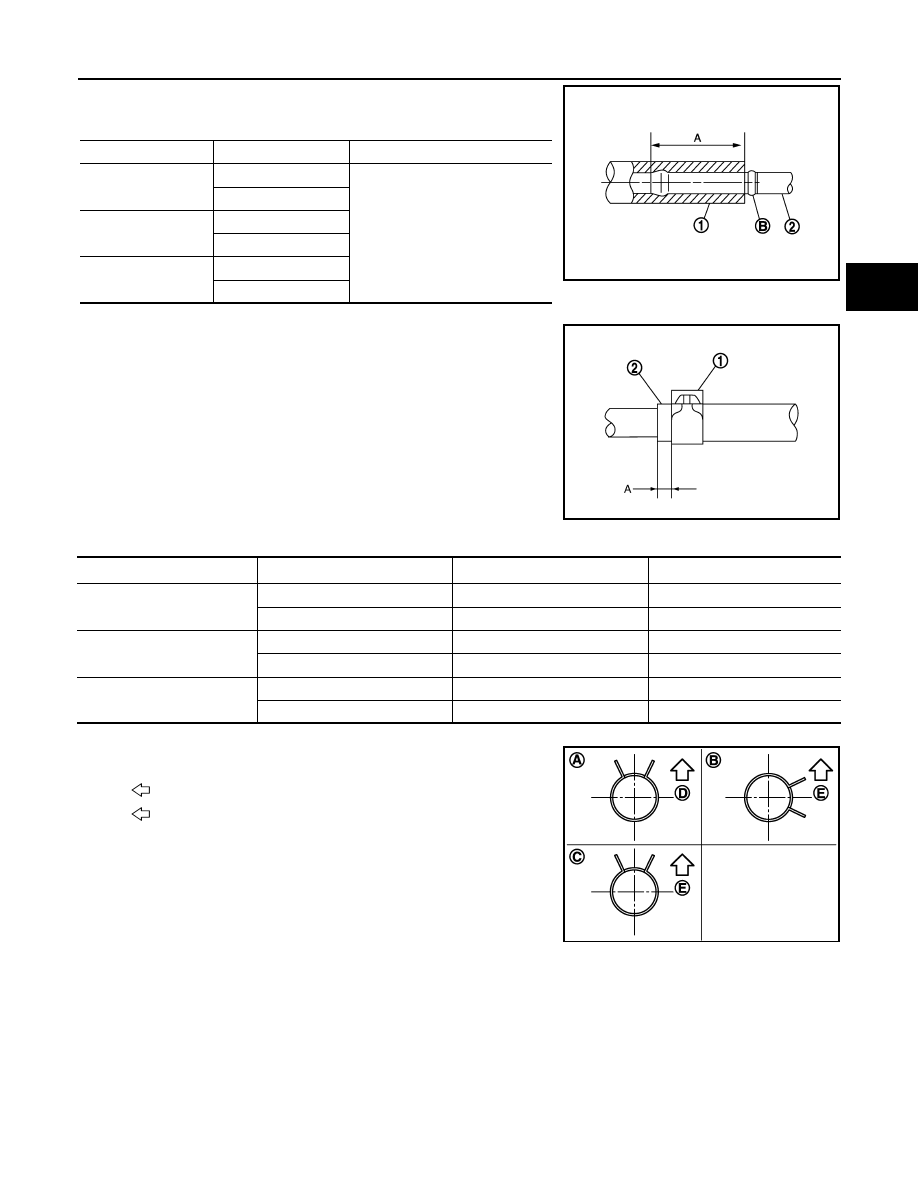

• Insert CVT water hose according to dimension “A” described

below.

• Set hose clamps (1) at the both ends of fluid cooler hose (2) with

dimension “A” from the hose edge.

• Hose clamp should not interfere with the bulge.

*: Refer to the illustrations for the specific position of each hose clamp tab.

• The illustrations indicate the view from the hose ends.

• When installing hose clamps the center line of each clamp tab

should be positioned as shown in the figure.

WATER HOSE : Inspection

INFOID:0000000009949108

INSPECTION AFTER INSTALLATION

Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.

CVT FLUID COOLER HOSE

CVT FLUID COOLER HOSE : Exploded View

INFOID:0000000009949109

COMPONENT PARTS LOCATION

CVT water hose (1)

Insert side tube (2)

Dimension “A”

CVT water hose A

Water inlet-outlet

End reaches the spool portion (B)

CVT oil warmer

CVT water hose B

CVT oil warmer

CVT water tube

CVT water hose C

CVT water tube

Water pump

JSDIA1291ZZ

Dimension “A”

: 5 – 7 mm (0.20 – 0.28 in)

SCIA8123E

CVT water hose

Hose end

Paint mark

Position of hose clamp

*

CVT water hose A

Water inlet-outlet side

Facing forward

A

CVT oil warmer side

Facing forward

A

CVT water hose B

CVT oil warmer side

Facing to the right of the vehicle

B

CVT water tube side

Facing forward

A

CVT water hose C

CVT water tube side

Facing forward

A

Water pump side

Facing upward

C

D

: Vehicle front

E

: Vehicle upper

JSDIA1292ZZ
