CONTROL CABLE

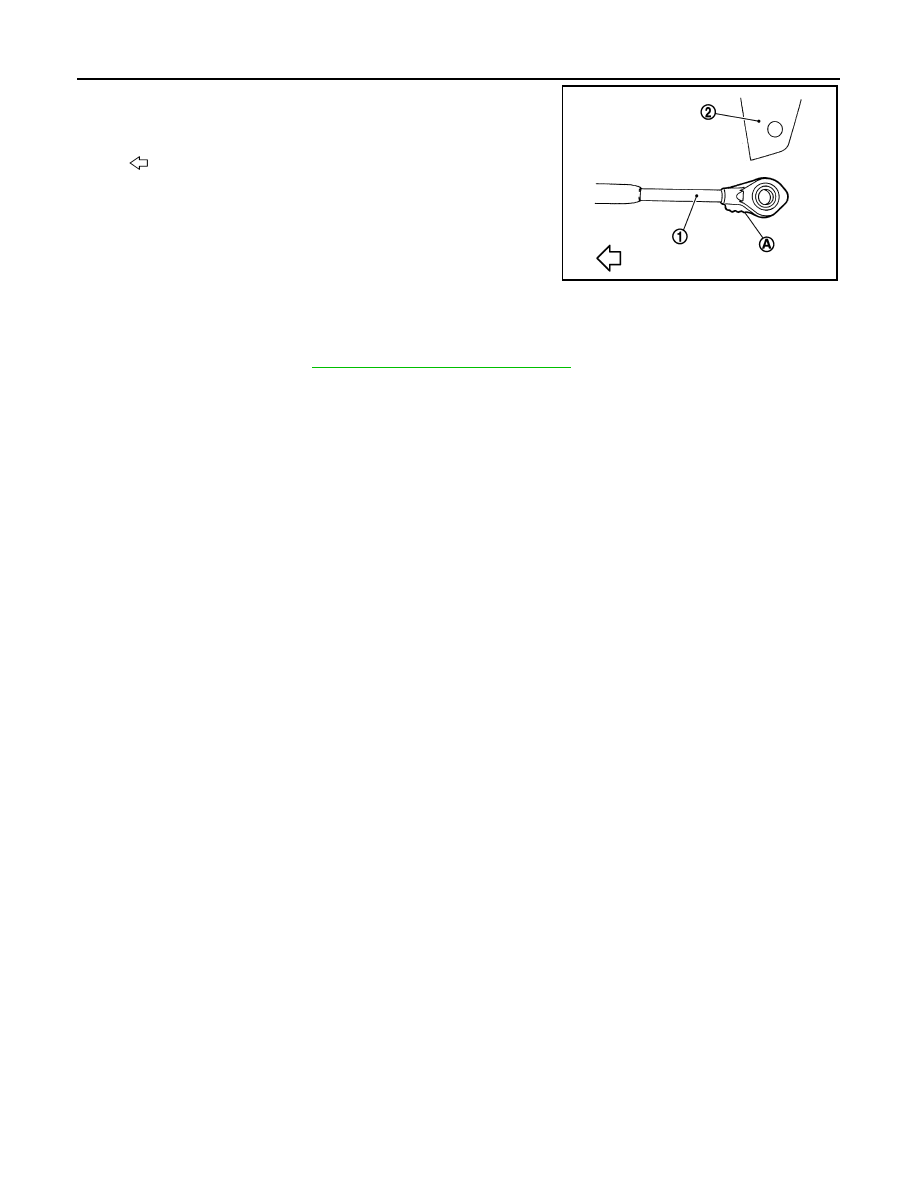

When installing control cable (1) to CVT shift selector assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.

Inspection

INFOID:0000000009949086

INSPECTION AFTER INSTALLATION

Check the CVT position. Refer to

TM-215, "Inspection and Adjustment"

.

: Vehicle front

JPDIA0136ZZ

KEY INTERLOCK CABLE

TM-221

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

KEY INTERLOCK CABLE

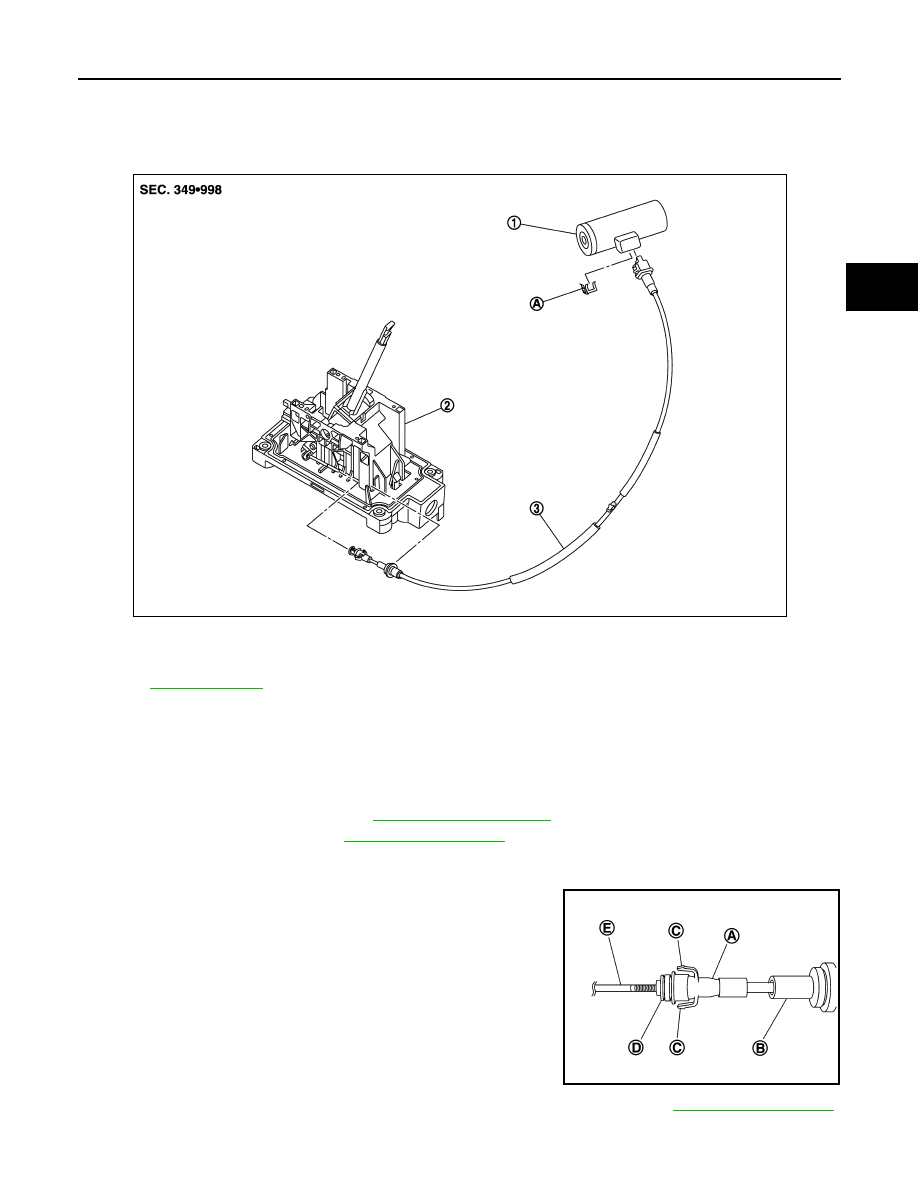

Exploded View

INFOID:0000000009949087

Removal and Installation

INFOID:0000000009949088

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.

1.

Remove selector lever knob. Refer to

TM-216, "Exploded View"

.

2.

Remove center console. Refer to

IP-23, "Exploded View"

.

3.

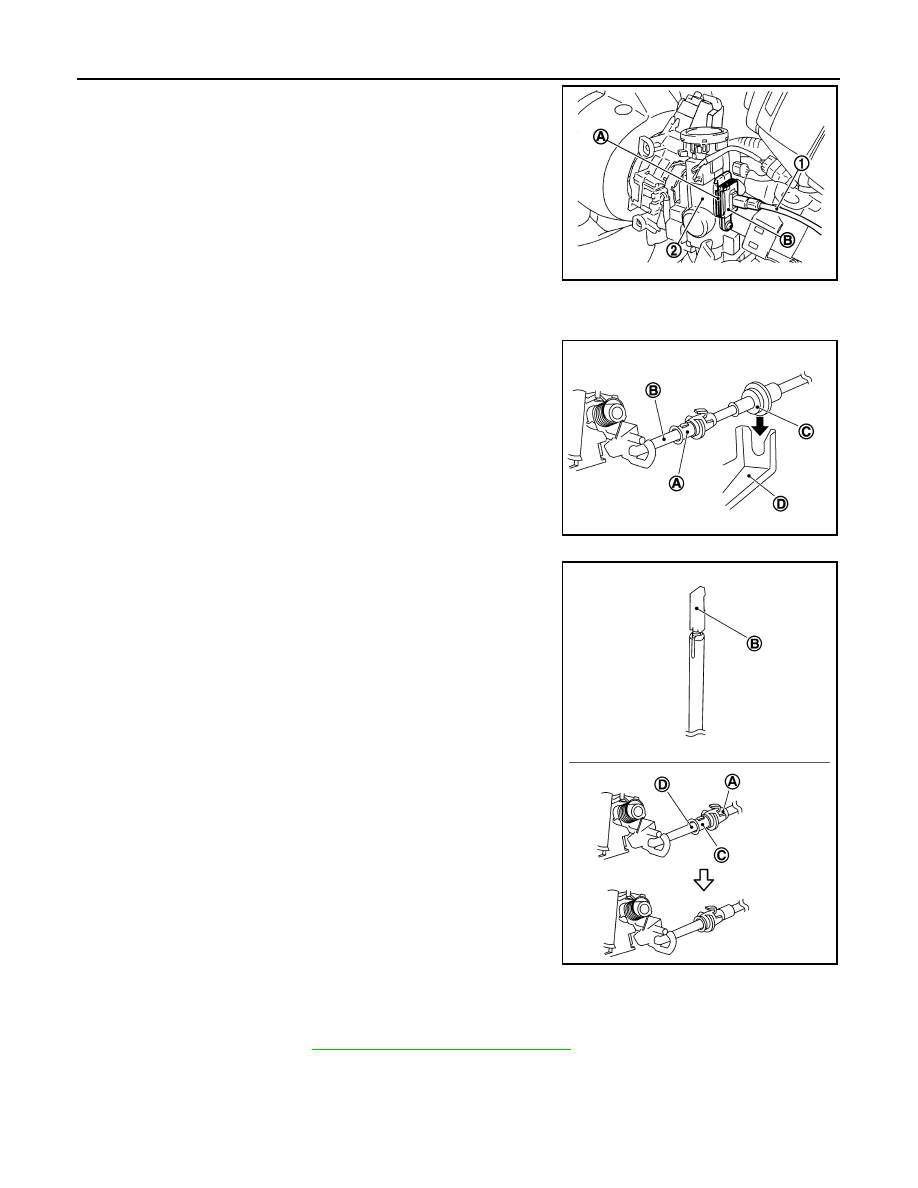

Slide slider (A) toward casing cap (B) while pressing tabs (C) on slider to separate slider from adjust
holder (D).

4.

Remove steering column cover lower and instrument driver lower panel. Refer to

IP-13, "Exploded View"

.

1.

Key cylinder

2.

CVT shift selector assembly

3.

key interlock cable

A.

Lock plate

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1297ZZ

E

: Key interlock rod

SCIA6975E

TM-222

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

KEY INTERLOCK CABLE

5.

Pull out the lock plate (A) from the holder (B).

6.

Remove the key interlock cable (1) from the key cylinder (2).

7.

Remove clip and remove key interlock cable.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Temporarily install adjust holder (A) to key interlock rod (B). Install

casing cap (C) to cable bracket (D) on CVT shift selector assem-
bly.

CAUTION:

• Never bend or twist key interlock cable excessively when

installing.

• Check that casing cap is firmly secured in cable bracket on

CVT shift selector assembly after installing key interlock
cable to cable bracket on CVT shift selector assembly.

• Slide the slider (A) toward the key interlock rod (D) while pressing

the pull lock (B) down to securely connect the adjust holder (C)
with the key interlock rod (D).

CAUTION:

• Never press tabs when holding slider.
• Never apply any force at a right angle to key interlock rod

when sliding.

Inspection

INFOID:0000000009949089

INSPECTION AFTER INSTALLATION

Check the CVT position. Refer to

TM-215, "Inspection and Adjustment"

.

JSDIA1308ZZ

SCIA6188E

SCIA6978E

TCM

TM-223

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TCM

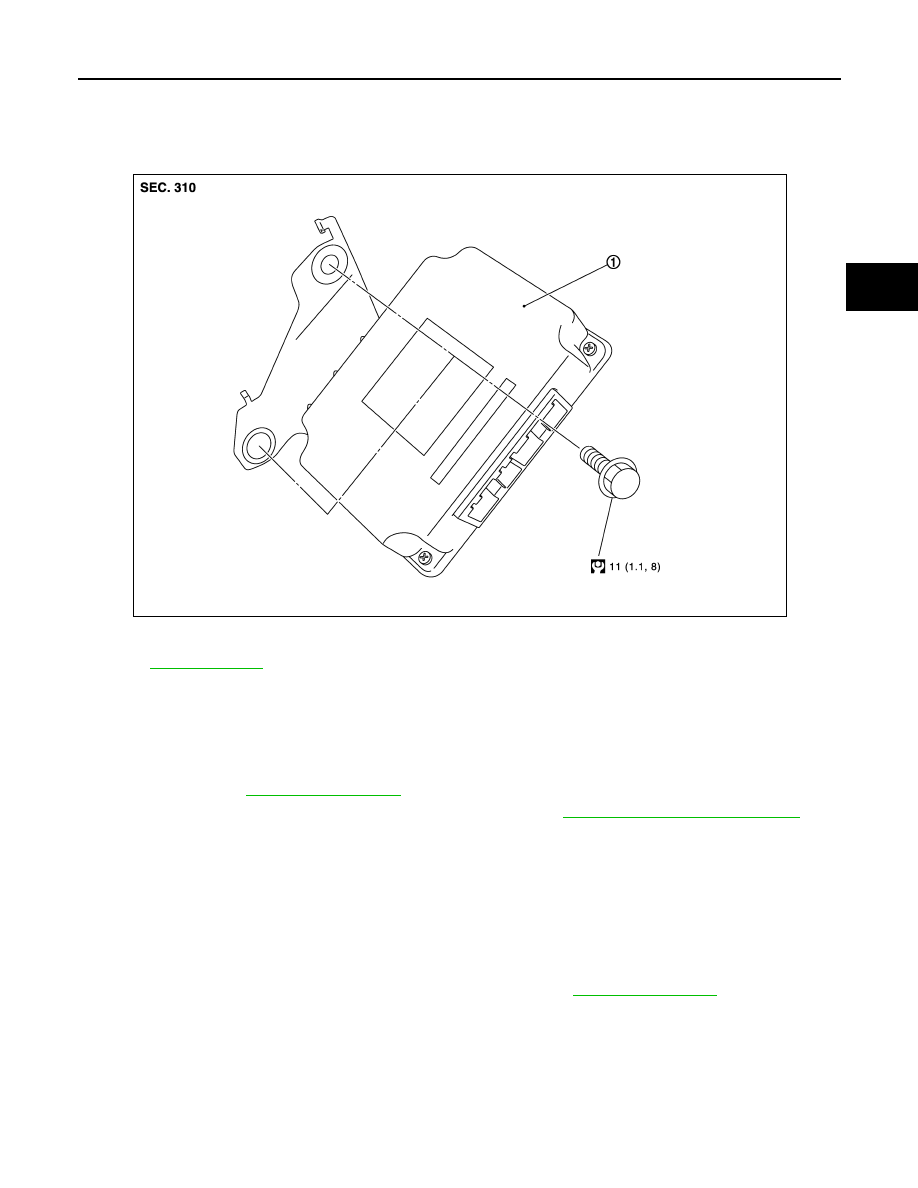

Exploded View

INFOID:0000000009949090

Removal and Installation

INFOID:0000000009949091

REMOVAL

CAUTION:

When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM. Refer to

TM-68, "Description"

.

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-82, "Removal and Installation"

.

2.

Disconnect TCM connector.

3.

Remove TCM.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000009949092

ADJUSTMENT AFTER INSTALLATION

Perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-67, "Description"

.

1.

TCM

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1232GB
