TM-224

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000009949093

REMOVAL

1.

Remove clip from air cleaner assembly.

2.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Check that air breather hose is not collapsed or blocked due to folding or bending when installed.
• Fix clip to mounting hole.
• Check that insertion allowance of hose to transaxle tube is end reaches radius curve end.
• When inserting air breather hose to transaxle tube, check that paint mark faces vehicle upper side.

OIL PAN

TM-225

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

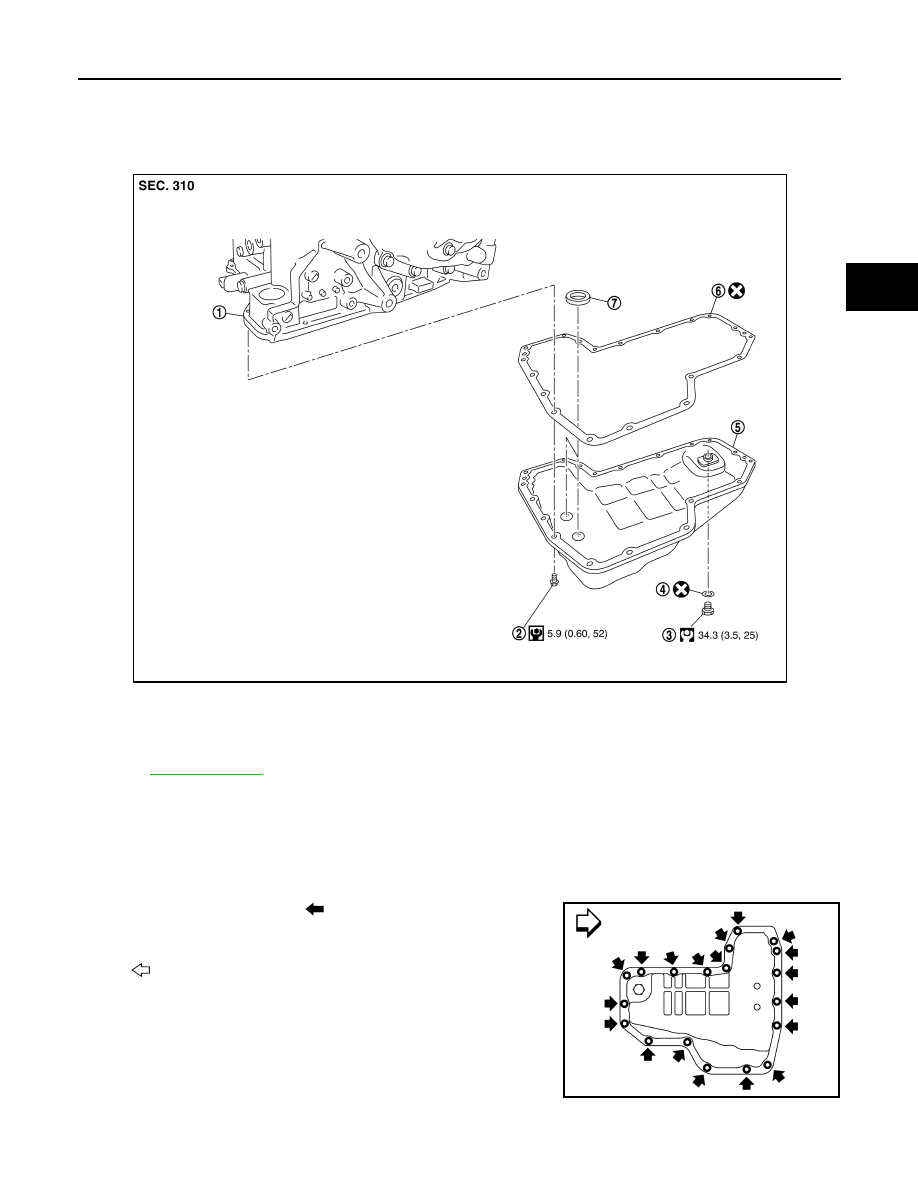

OIL PAN

Exploded View

INFOID:0000000009949094

Removal and Installation

INFOID:0000000009949095

REMOVAL

1.

Remove engine under cover.

2.

Remove drain plug from oil pan and then drain the CVT fluid.

3.

Remove oil pan fitting bolts (

), and then remove oil pan and oil

pan gasket.

4.

Remove magnets from oil pan.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Transaxle assembly

2.

Oil pan fitting bolt

3.

Drain plug

4.

Drain plug gasket

5.

Oil pan

6.

Oil pan gasket

7.

Magnet

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA2985GB

: Vehicle front

JSDIA2850ZZ

TM-226

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

OIL PAN

CAUTION:

• Never reuse oil pan gasket and drain plug gasket.
• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of

transaxle case and oil pan.

Inspection

INFOID:0000000009949096

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.
• If a large amount of worn material is found, clutch plate may be worn.
• If iron powder is found, bearings, gears, or clutch plates may be worn.
• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.
Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-206, "Inspection"

.

PRIMARY SPEED SENSOR

TM-227

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

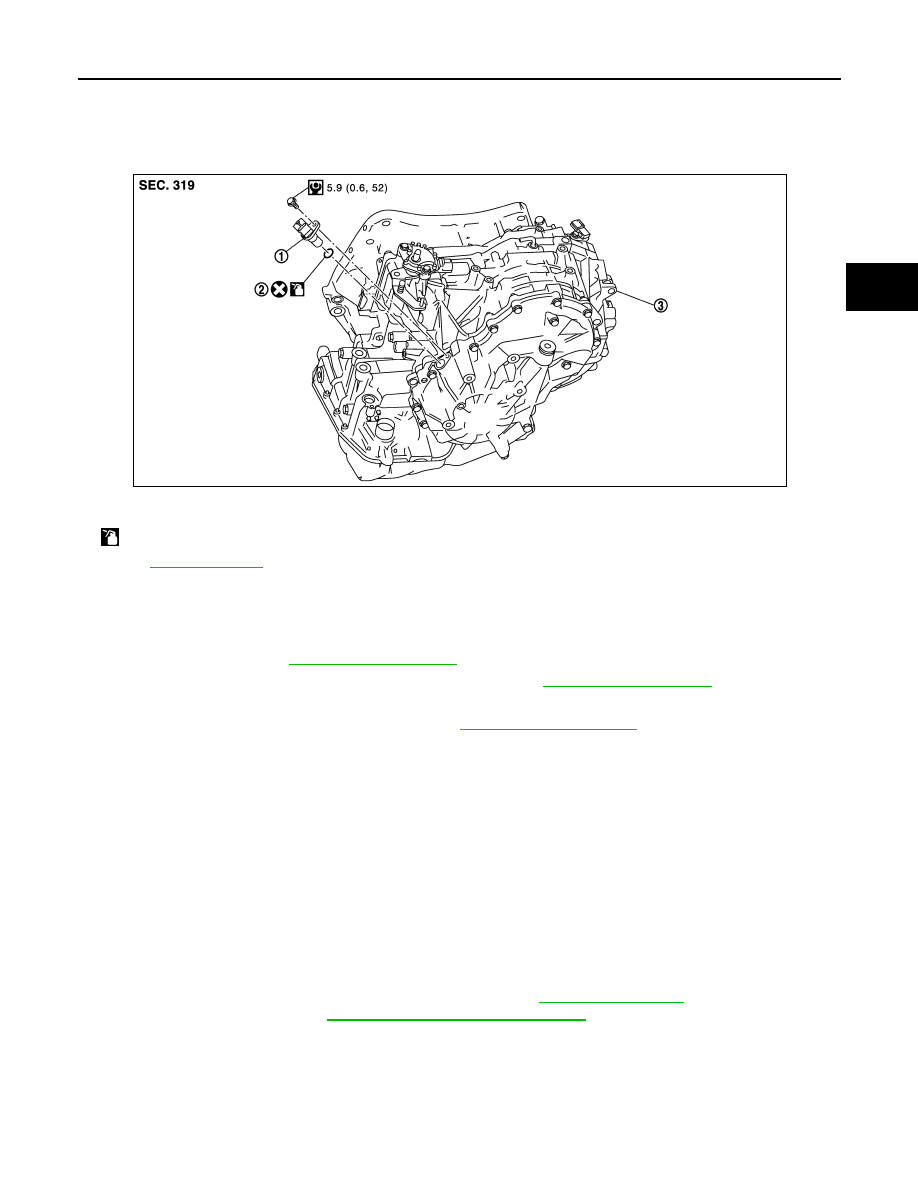

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000009949097

Removal and Installation

INFOID:0000000009949098

REMOVAL

1.

Remove battery. Refer to

PG-82, "Exploded View"

.

2.

Remove air duct (inlet), air duct and air cleaner case. Refer to

EM-24, "Exploded View"

.

3.

Remove battery bracket.

4.

Remove control cable from manual lever. Refer to

TM-219, "Exploded View"

.

5.

Place manual lever to “L” position.

6.

Disconnect primary speed sensor connector.

7.

Remove primary speed sensor.

8.

Remove O-ring from primary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000009949099

INSPECTION AFTER INSTALLATION

• Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-206, "Inspection"

.

• Check the CVT position. Refer to

TM-215, "Inspection and Adjustment"

.

1.

Primary speed sensor

2.

O-ring

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JSDIA0750GB
