Nissan Cube. Manual - part 990





TM-216

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

CVT SHIFT SELECTOR

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

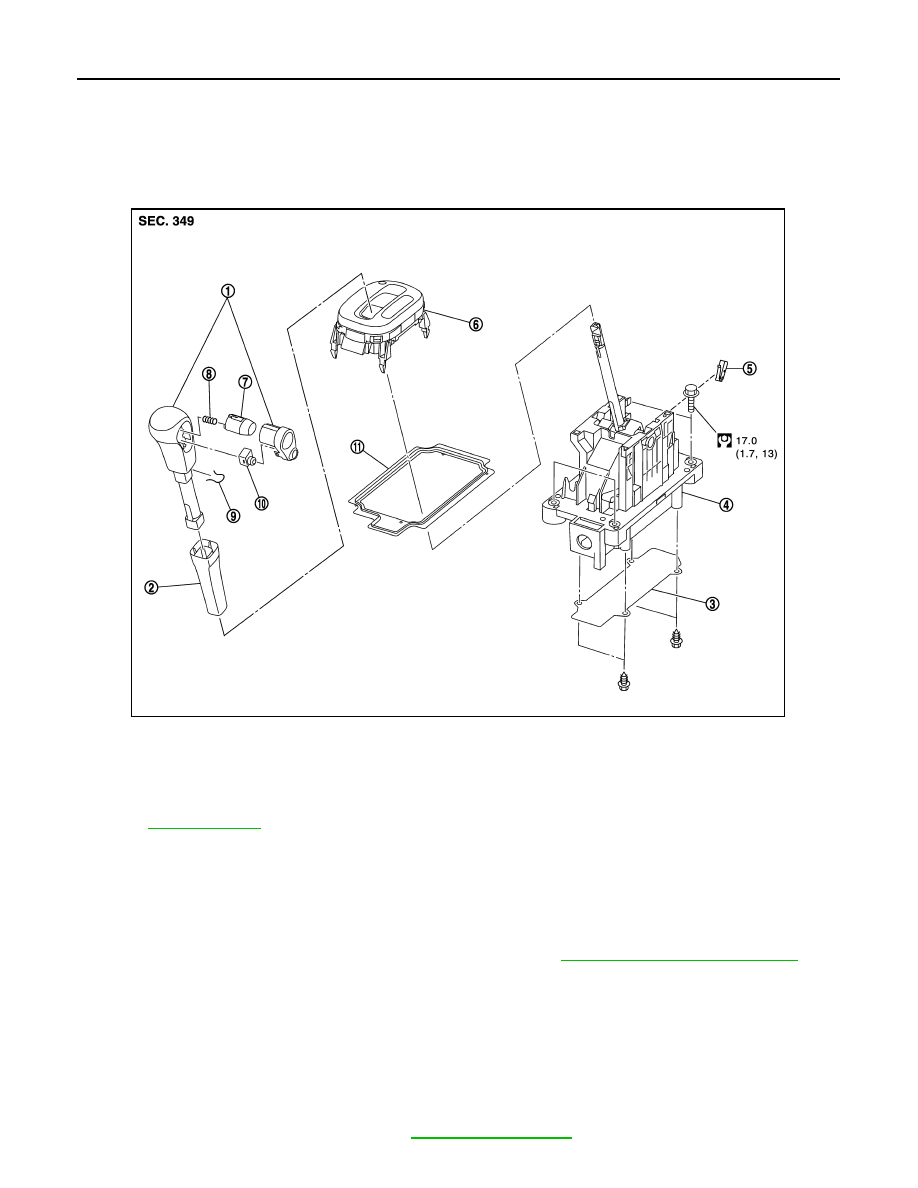

Exploded View

INFOID:0000000009949080

Removal and Installation

INFOID:0000000009949081

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal and installation.

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-82, "Removal and Installation"

.

2.

Shift selector lever knob in “N” position.

3.

Slide knob cover downward.

CAUTION:

Be careful not to damage selector lever knob.

4.

Pull out lock pin from selector lever knob.

5.

Remove selector lever knob and knob cover as a set from selector lever.

CAUTION:

Never press selector button.

6.

Remove center console assembly. Refer to

IP-23, "Exploded View"

.

1.

Selector lever knob

2.

Knob cover

3.

Plate

4

CVT shift selector

5.

Park position switch

6.

Position indicator plate

7.

Selector button

8.

Selector button return spring

9.

Lock pin

10.

Overdrive control switch

11.

Dust cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1298GB

CVT SHIFT SELECTOR

TM-217

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

7.

Disconnect CVT shift selector connector.

8.

Disconnect key interlock cable from CVT shift selector assembly. Refer to

TM-221, "Exploded View"

.

(Without intelligent Key system)

9.

Remove the bolts from the CVT shift selector assembly.

10. Remove exhaust front tube, center muffler and heat plates. Refer to

EX-5, "Exploded View"

.

11. Remove the plate from the CVT shift selector assembly.

12. Remove the lock plate from the control cable. Refer to

TM-219, "Exploded View"

.

13. Remove control cable from the CVT shift selector assembly. Refer to

TM-219, "Exploded View"

.

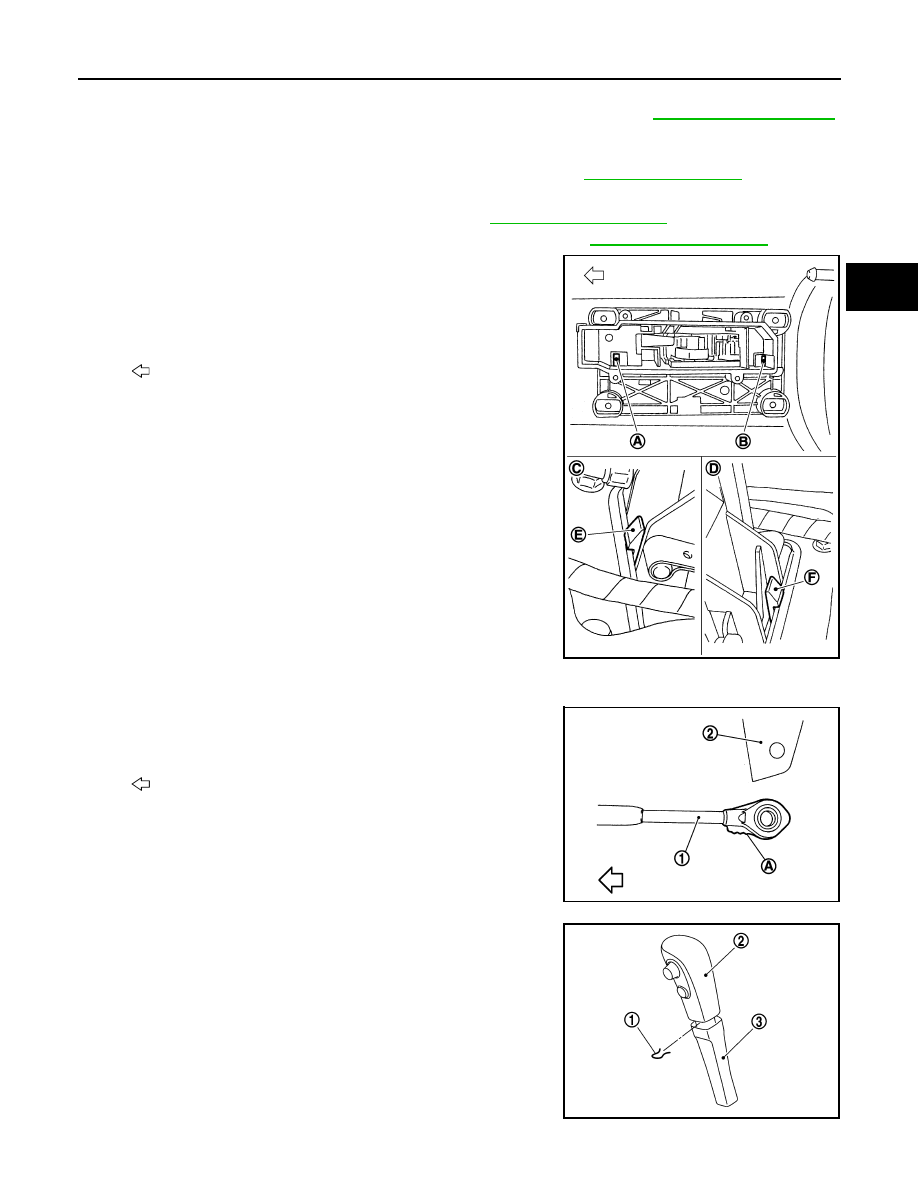

14. Insert flat-bladed screwdrivers at points (A) and (B) as shown,

and press both tabs (E) and (F) at the front (C) and rear (D)
slightly toward the center of the CVT shift selector assembly to
remove the CVT shift selector assembly from the underside of
the vehicle.

15. Remove CVT shift selector assembly from vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing control cable (1) to CVT shift selector assembly

(2), check that control cable is fully pressed in with the ribbed (A)
surface facing upward.

• Refer to the followings when installing the selector lever knob to

the CVT shift selector assembly.

- Install the lock pin (1) to the selector lever knob (2).
- Install the knob cover (3) to the selector lever knob.
- Shift selector lever in “N” position.
- Insert the shift lever knob into the shift lever until it clicks.

CAUTION:

• Install it straight, and never tap or apply any shock to install

it.

• Never press selector button.

: Vehicle front

SCIA6970E

: Vehicle front

JPDIA0136ZZ

SCIA6972E

TM-218

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

CVT SHIFT SELECTOR

Disassembly and Assembly

INFOID:0000000009949082

DISASSEMBLY

1.

Remove overdrive control switch, selector lever button, and selector button return spring from selector
lever knob.

CAUTION:

Be careful not to damage selector lever knob.

2.

Remove dust cover from CVT shift selector assembly.

3.

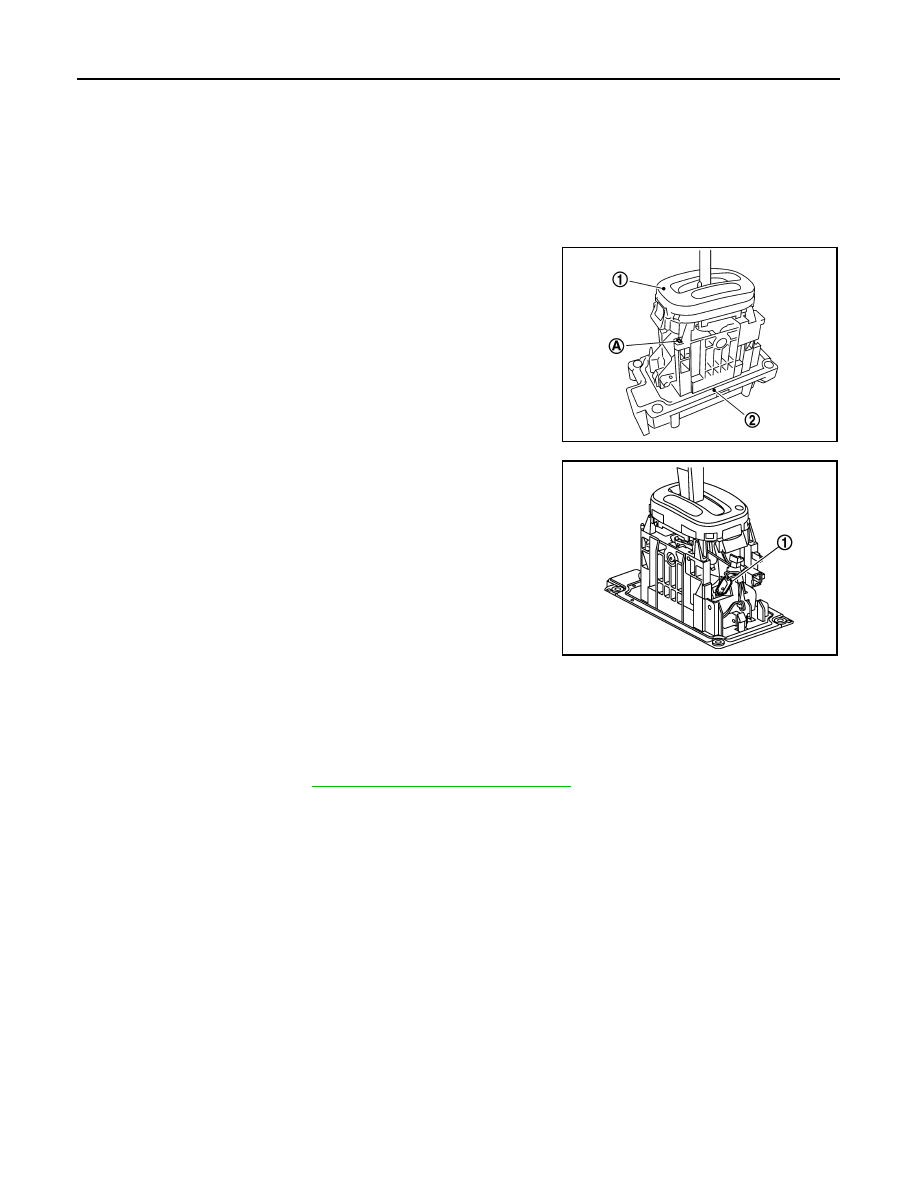

Insert a flat-bladed screwdriver to (A) (at 4 locations) as shown,
and bend each hook slightly to raise position indicator plate (1)
and remove from CVT shift selector assembly (2).

4.

Remove park position switch (1) from CVT shift selector assem-
bly.

ASSEMBLY

Assembly is in the reverse order of disassembly.

Inspection

INFOID:0000000009949083

INSPECTION AFTER INSTALLATION

Check the CVT position. Refer to

TM-215, "Inspection and Adjustment"

.

SCIA6969E

JSDIA1307ZZ

CONTROL CABLE

TM-219

< REMOVAL AND INSTALLATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL CABLE

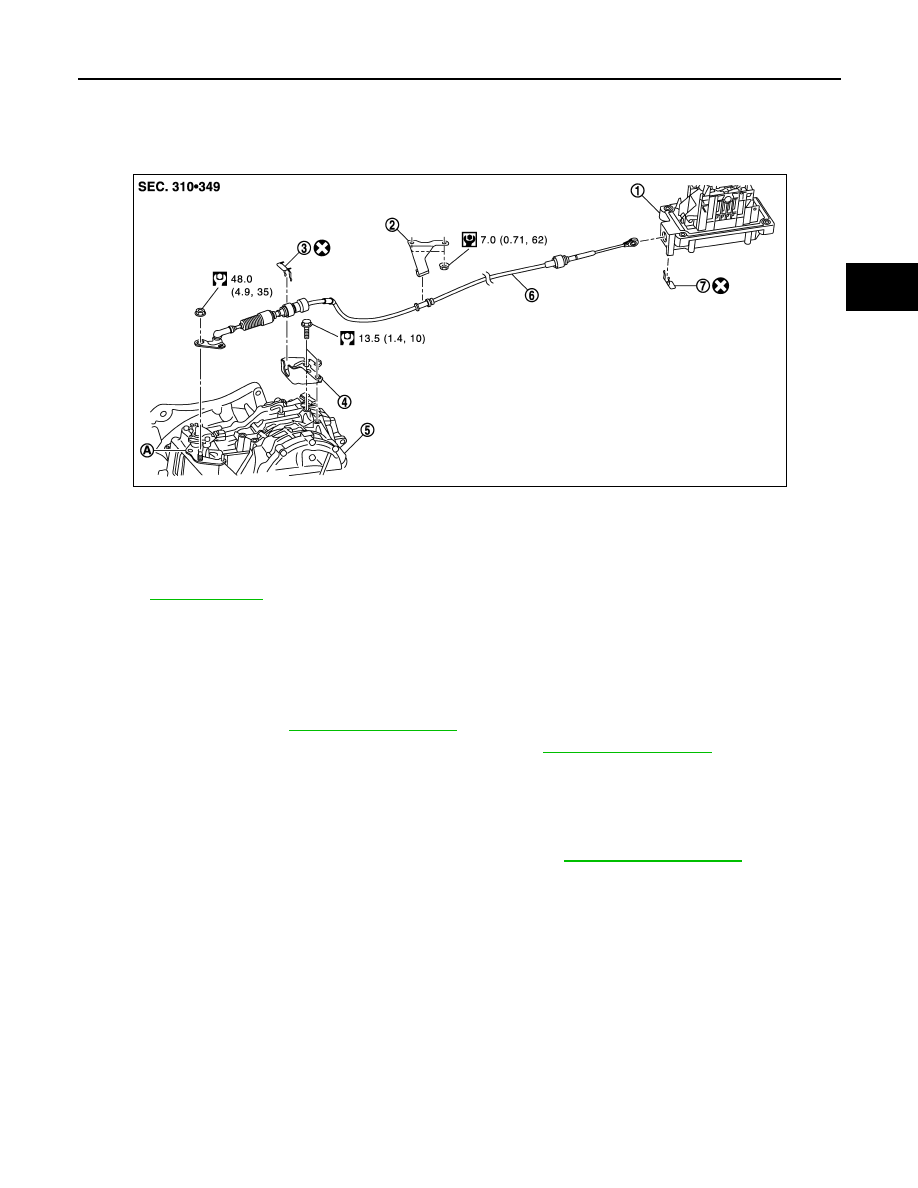

Exploded View

INFOID:0000000009949084

Removal and Installation

INFOID:0000000009949085

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.

1.

Remove battery. Refer to

PG-82, "Exploded View"

.

2.

Remove air duct (inlet), air duct and air cleaner case. Refer to

EM-24, "Exploded View"

.

3.

Remove battery bracket.

4.

Remove control cable fitting nut from control cable.

5.

Remove lock plate from bracket.

6.

Remove control cable from bracket.

7.

Remove control cable from CVT shift selector assembly. Refer to

TM-219, "Exploded View"

.

8.

Remove control cable from vehicle.

9.

Remove bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

CVT shift selector assembly

2.

Bracket

3.

Lock plate

4.

Bracket

5.

Transaxle assembly

6.

Control cable

7.

Lock plate

A.

Manual lever

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA1296GB
