TM-168

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F08B]

SHIFT LOCK SYSTEM

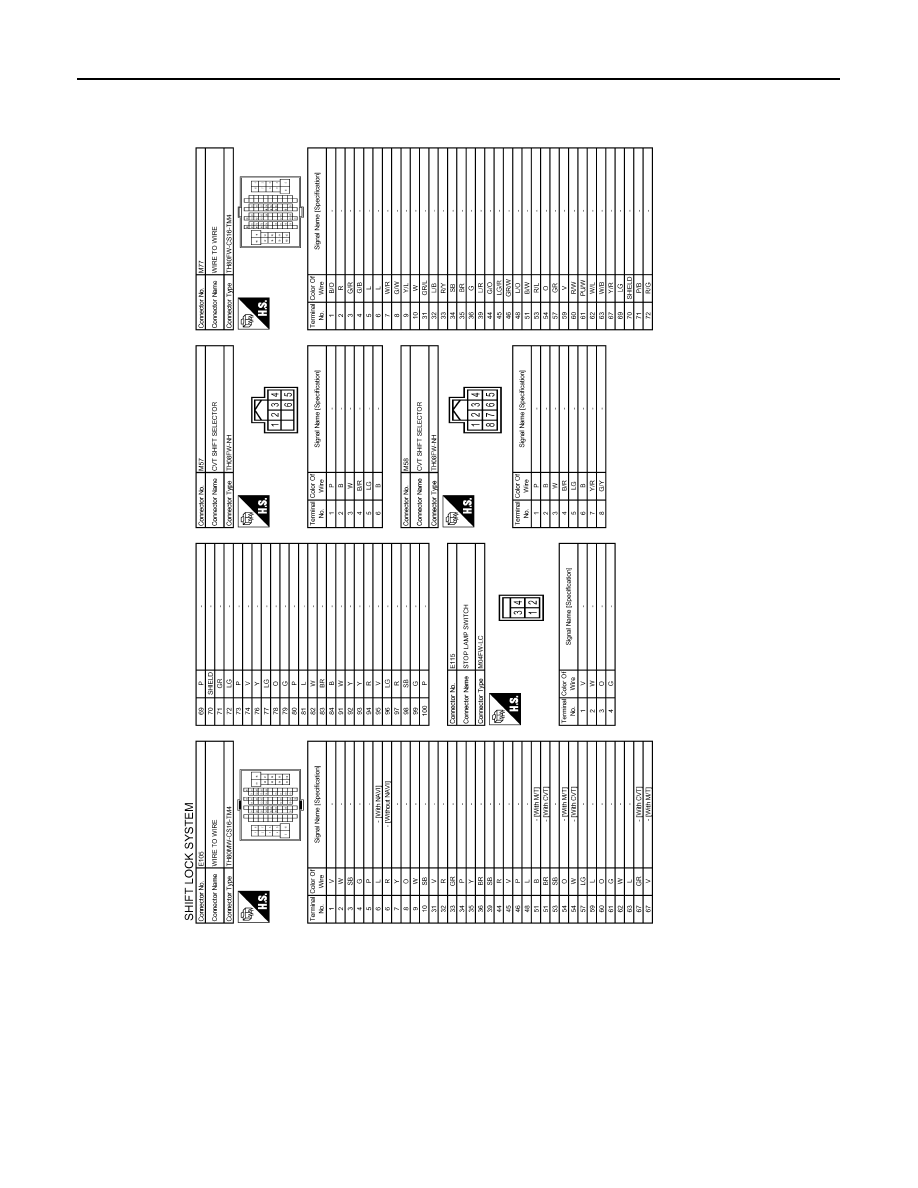

JRDWC1938GB

SHIFT LOCK SYSTEM

TM-169

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Function Check

INFOID:0000000009949050

1.

CHECK CVT SHIFT LOCK OPERATION (PART 1)

1.

Turn ignition switch ON.

2.

Shift selector lever to “P” position.

3.

Attempt to shift the selector lever to any other position with the brake pedal released.

Can the selector lever be shifted to any other position?

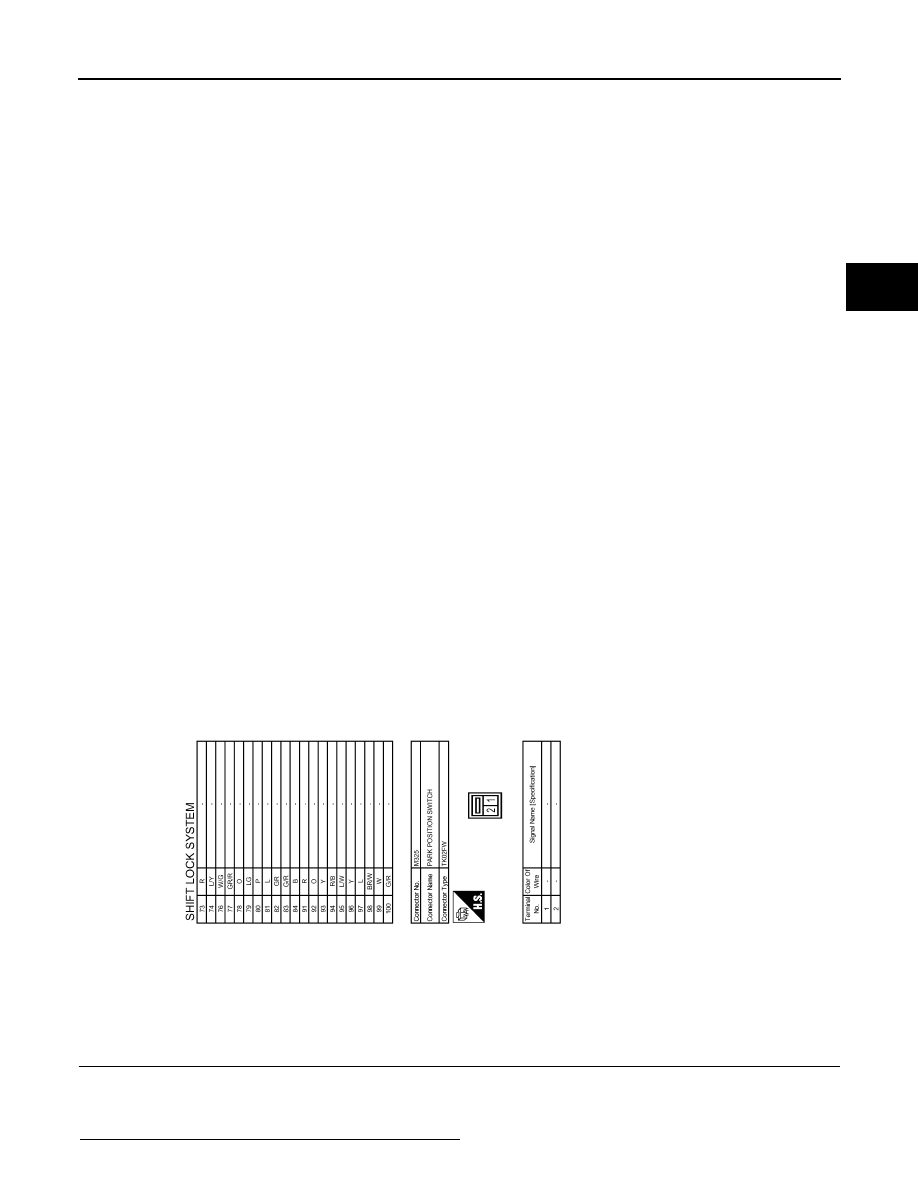

JRDWC1939GB

TM-170

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F08B]

SHIFT LOCK SYSTEM

YES

>> Go to

TM-170, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

CHECK CVT SHIFT LOCK OPERATION (PART 2)

1.

Shift selector lever to “P” position.

2.

Attempt to shift the selector lever to any other position with the brake pedal depressed.

Can the selector lever be shifted to any other position?

YES

>> INSPECTION END

NO

>> Go to

TM-170, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009949051

1.

 CHECK CVT SHIFT SELECTOR POWER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect CVT shift selector connector.

3.

Turn ignition switch ON.

4.

Check voltage between CVT shift selector vehicle side harness connector terminal and ground.

With intelligent key system

Without intelligent key system

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 6.

2.

CHECK GROUND CIRCUIT

Check continuity between CVT shift selector vehicle side harness connector terminal and ground.

With intelligent key system

Without intelligent key system

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK CVT SHIFT SELECTOR

1.

Shift selector lever to “P” position.

2.

Check continuity between CVT shift selector connector terminals.

CVT shift selector vehicle side harness connector

Ground

Condition

Voltage (Approx.)

Connector

 Terminal

M58

5

Depressed brake pedal

Battery voltage

Brake pedal not depressed

0 V

CVT shift selector vehicle side harness connector

Ground

Condition

Voltage (Approx.)

Connector

 Terminal

M57

5

Depressed brake pedal

Battery voltage

Brake pedal not depressed

0 V

CVT shift selector vehicle side harness connector

Ground

Continuity

Connector

 Terminal

M58

6

Existed

CVT shift selector vehicle side harness connector

Ground

Continuity

Connector

 Terminal

M57

6

Existed

SHIFT LOCK SYSTEM

TM-171

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

With intelligent key system

Without intelligent key system

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK PARK POSITION SWITCH

1.

Disconnect park position switch connector.

2.

Check park position switch. Refer to

TM-173, "Component Inspection (Park Position Switch)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace park position switch. Refer to

TM-216, "Exploded View"

.

5.

CHECK SHIFT LOCK SOLENOID

Check shift lock solenoid. Refer to

TM-173, "Component Inspection (Shift Lock Solenoid)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-40, "Intermittent Incident"

.

NO

>> Replace CVT shift selector. Refer to

TM-216, "Exploded View"

.

6.

CHECK HARNESS BETWEEN CVT SHIFT SELECTOR AND STOP LAMP SWITCH (PART 1)

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch connector.

3.

Check continuity between CVT shift selector vehicle side harness connector terminal and stop lamp
switch vehicle side harness connector terminal.

With intelligent key system

Without intelligent key system

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace damaged parts.

7.

CHECK HARNESS BETWEEN CVT SHIFT SELECTOR AND STOP LAMP SWITCH (PART 2)

Check continuity between CVT shift selector vehicle side harness connector terminal and ground.

With intelligent key system

CVT shift selector connector

Condition

Continuity

Connector

Terminal

M58

5

6

Selector lever: “P” position

Existed

Other conditions

Not existed

CVT shift selector connector

Condition

Continuity

Connector

Terminal

M57

5

6

Selector lever: “P” position

Existed

Other conditions

Not existed

CVT shift selector vehicle side harness connector

Stop lamp switch vehicle side harness connector

Continuity

Connector

Terminal

Connector

Terminal

M58

5

E115

4

Existed

CVT shift selector vehicle side harness connector

Stop lamp switch vehicle side harness connector

Continuity

Connector

Terminal

Connector

Terminal

M57

5

E115

4

Existed

CVT shift selector vehicle side harness connector

Ground

Continuity

Connector

 Terminal

M58

5

Not existed
