MWI-24

< SYSTEM DESCRIPTION >

METER SYSTEM

INFORMATION DISPLAY

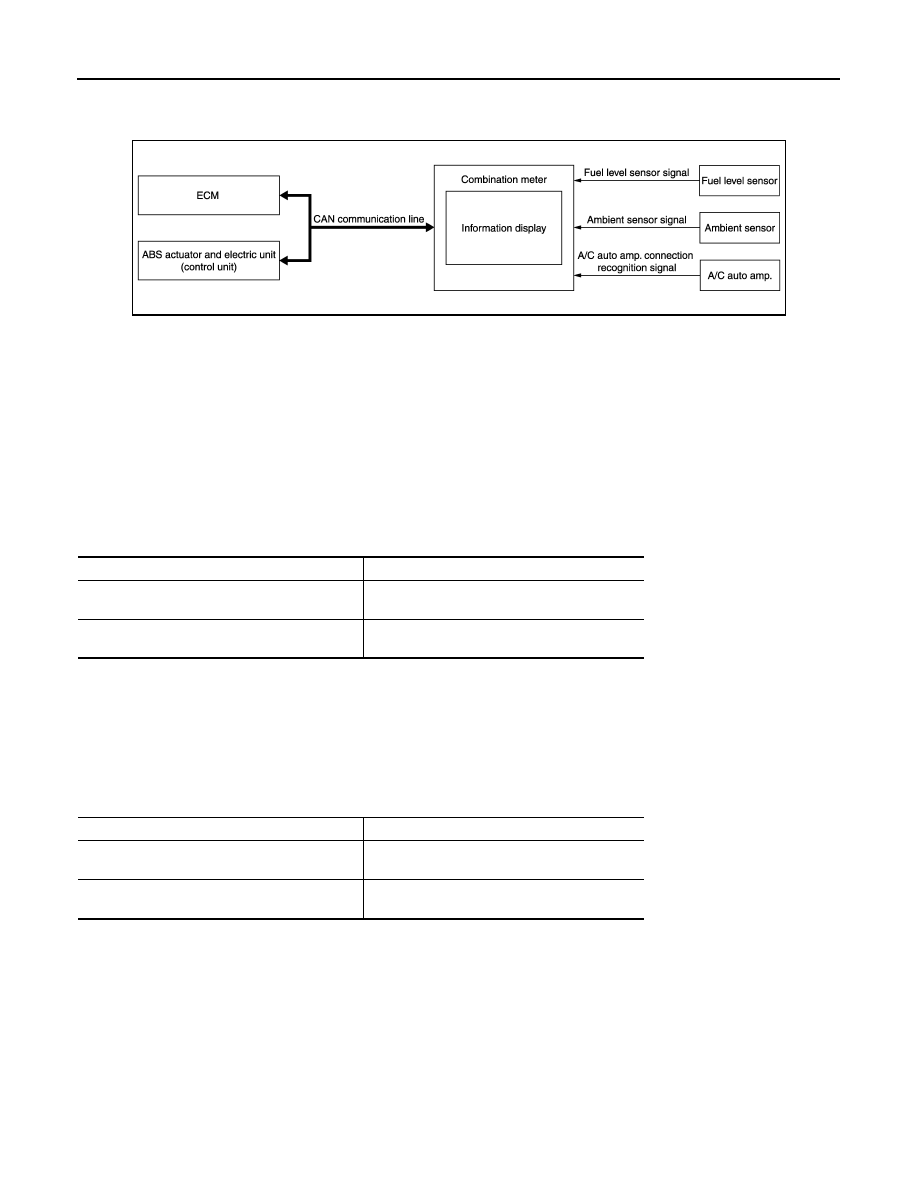

INFORMATION DISPLAY : System Diagram

INFOID:0000000009945686

INFORMATION DISPLAY : System Description

INFOID:0000000009945687

DESCRIPTION

• The combination meter inputs the information required to control the operation of information display by

using the communication signals and others from each units and sensors.

• The combination meter incorporates a trip computer that displays the warning/information according to the

information received from various units and sensors.

INSTANTANEOUS FUEL CONSUMPTION

The combination meter calculates instantaneous fuel consumption based on the following signals, and the cal-
culated value is displayed on the information display.

NOTE:
• Instantaneous fuel consumption on the information display is updated approximately every 0.5 seconds.
• Instantaneous fuel consumption on the information display shows 0 l/100km (0 mpg) when vehicle speed is

0 km/h (0 MPH).

AVERAGE FUEL CONSUMPTION

The combination meter calculates average fuel consumption based on the following signals, and the calcu-
lated value is displayed on the information display.

NOTE:
• Average fuel consumption on the information display is updated approximately every 30 seconds.
• Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, “

−−−

”

is displayed until after a travel of 30 seconds and approximately 500 m (0.31 mile).

POSSIBLE DRIVING DISTANCE

The combination meter calculates possible driving distance based on the following signals, and the calculated
value is displayed on the information display.

JPNIA1666GB

Signal name

Signal source

Fuel consumption monitor signal
(CAN communication)

ECM

Vehicle speed signal
(CAN communication)

ABS actuator and electric unit (control unit)

Signal name

Signal source

Fuel consumption monitor signal
(CAN communication)

ECM

Vehicle speed signal
(CAN communication)

ABS actuator and electric unit (control unit)

MWI

METER SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
• Possible driving distance on the information display is updated approximately every 30 seconds.
• When the ignition switch is turned from OFF to ON, “

−−−

” is displayed until after a travel of approximately

500 m (0.31 mile).

• The indicated values may not match each other when refueling with the ignition switch ON. Refer to

MWI-90,

"INFORMATION DISPLAY : Description"

.

AVERAGE VEHICLE SPEED

The combination meter calculates average vehicle speed based on the following signals, and the calculated
value is displayed on the information display.

NOTE:
• Average vehicle speed on the information display is updated approximately every 30 seconds.
• Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, “

−−−

”

is displayed until after a 30 seconds.

AMBIENT AIR TEMPERATURE (FOR AUTO AIR CONDITIONING MODELS)

• The combination meter corrects an indicated temperature, based on various signals.
• The combination meter calculates ambient air temperature based on the following signals, and the calcu-

lated value is displayed on the information display.

Correction Process (Temperature indicated soon after the ignition switch ON)

A temperature indicated soon after the ignition switch is turned ON depends on the time from the ignition
switch OFF to ON and a temperature detected by the ambient sensor.

When any condition described below is met, an ambient sensor-detected temperature is indicated.

• Time from the ignition switch OFF to ON

≥

 Predetermined time

• Sensor-detected temperature < Temperature at the last ignition switch OFF

When all the conditions described below are met, the temperature at the last ignition switch OFF is indicated.

• Time from the ignition switch OFF to ON < Predetermined time
• Sensor-detected temperature

≥

 Temperature at the last ignition switch OFF

Correction Process (Temperature at the Ignition switch ON)

A temperature indicated when the ignition switch is ON depends on a vehicle speed, an ambient sensor-
detected temperature, and traveling time.

The temperature on the information display is corrected to an ambient sensor-detected temperature when the following condition
is met.

• Ambient sensor-detected temperature < Temperature on the information display

Signal name

Signal source

Fuel level sensor signal

Fuel level sensor unit

Fuel consumption monitor signal
(CAN communication)

ECM

Vehicle speed signal
(CAN communication)

ABS actuator and electric unit (control unit)

Signal name

Signal source

Ignition signal

—

Vehicle speed signal
(CAN communication)

ABS actuator and electric unit (control unit)

Signal name

Signal source

Ignition signal

—

Ambient sensor signal

Ambient sensor

A/C auto amp. connection recognition signal

A/C auto amp.

Vehicle speed signal
(CAN communication)

ABS actuator and electric unit (control unit)

MWI-26

< SYSTEM DESCRIPTION >

METER SYSTEM

A temperature on the information display is not updated when the following condition is met.

• Ambient sensor-detected temperature

≥

 Temperature on the information display

• Vehicle speed

≤

 20 km/h (12 MPH)

A temperature on the information display slowly rises to an ambient sensor-detected temperature when the following condition is
met.

• Ambient sensor-detected temperature

≥

 Temperature on the information display

• Vehicle speed

≥

 20 km/h (12 MPH)

A temperature on the information display rapidly rises to an ambient sensor-detected temperature when the following condition
is met.

• Ambient sensor-detected temperature

≥

 Temperature on the information display

• Vehicle speed

≥

 20 km/h (12 MPH)

• When driving more than set time

A/C Auto Amp. Connection Recognition

The combination meter judges from A/C auto amp. connection recognition signals that A/C auto amp. is con-
nected and indicates an ambient air temperature on the information display.
NOTE:
• After an ignition switch is turned ON, “–––” is displayed until after a 2.5 seconds.
• The ambient sensor input value that is displayed on “Data Monitor” of CONSULT is the value before the cor-

rection. It may not match the indicated temperature on the information display.

• After removal and installation of the battery and combination meter, an ambient sensor-detected tempera-

ture is indicated on the information display.

• Depending on engine heat or heat on the road surfaces, an ambient temperature may be indicated higher

than actual one.

ICY WARNING (LOW AMBIENT AIR TEMPERATURE)

Based on an ambient temperature indication, the combination meter blinks the ambient temperature indication
to warn the driver of a low ambient temperature.

Warning Operation Condition

Information display indication temperature

≤

 3

°

C (37

°

F)

Warning Cancel Condition

Warning is canceled if any of the following conditions is fulfilled.
• Information display indication temperature

≥

 4

°

C (39

°

F)

• 60 seconds after the start of warning indication

LOW FUEL WARNING

Combination meter indicates the low fuel warning judged by the fuel level sensor signal received from fuel
level sensor unit.

Warning Operation Condition

Fuel level: Approx. 9.5   (2-1/2 US gal, 2-1/8 Imp gal) or less [1.5   (3/8 US gal, 3/8 Imp gal) fuel residues
included].

FUEL FILLER CAP WARNING

• The combination meter judges showing/hiding of “fuel filler cap warning”, according to the signals below:

• For further information, refer to

EC-99, "System Description"

.

LOW TIRE PRESSURE WARNING

• The combination meter judges showing/hiding of “low tire pressure warning”, according to the signals below:

Signal name

Signal source

Ignition signal

—

Fuel filler cap warning display signal
(CAN communication)

ECM

Signal name

Signal source

Ignition signal

—

Low tire pressure warning lamp signal
(CAN communication)

BCM

MWI

METER SYSTEM

MWI-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• For further information, refer to

WT-8, "TIRE PRESSURE MONITORING SYSTEM : System Description"

.

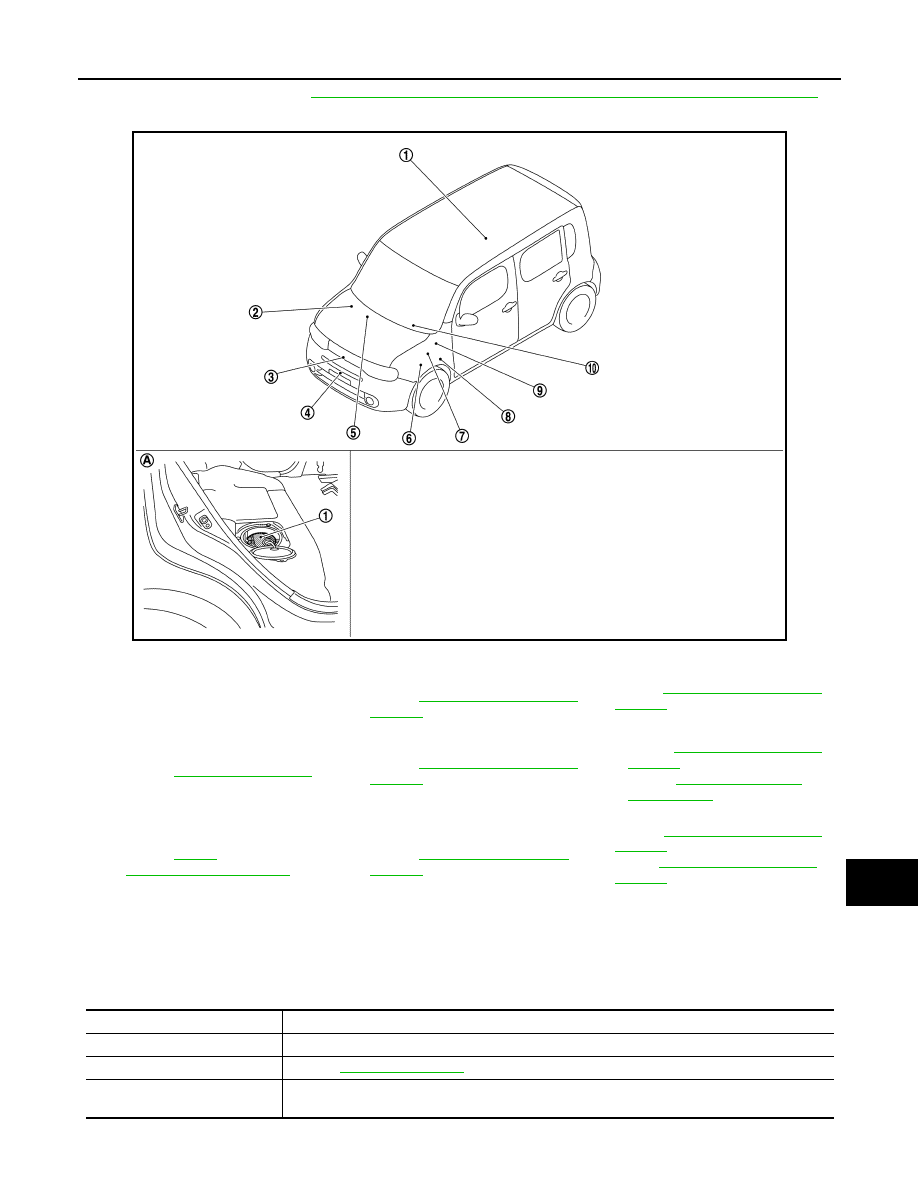

INFORMATION DISPLAY : Component Parts Location

INFOID:0000000010235634

INFORMATION DISPLAY : Component Description

INFOID:0000000009945689

JSNIA6649ZZ

1.

Fuel level sensor unit

2.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-12, "Component Parts

Location"

.

3.

Ambient sensor
Refer to

HAC-24, "Component Parts

Location"

.

4.

Oil pressure switch
Refer to

EM-86, "Exploded View"

.

5.

A/C auto amp. (auto A/C models)
Refer to

HAC-24, "Component Parts

Location"

.

6.

IPDM E/R
• Refer  to

PCS-5, "Component Parts

Location"

 (with I-KEY).

• Refer  to

PCS-36, "Component

Parts Location"

 (without I-KEY).

7.

ECM
Refer to

EC-36,

"Component Parts Location"

.

8.

TCM
Refer to

TM-71, "Component Parts

Location"

.

9.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (With intelligent key sys-

tem) or

BCS-95, "Component Parts

Location"

 (Without intelligent key sys-

tem).

10. Combination meter

A.

Under of right side rear seat

Unit

Description

Combination meter

Controls the information display according to the signal received from each unit.

Fuel level sensor unit

Refer to

MWI-42, "Description"

.

ECM

Transmits the fuel consumption monitor signal and fuel filler cap warning display signal to the
combination meter via CAN communication.
