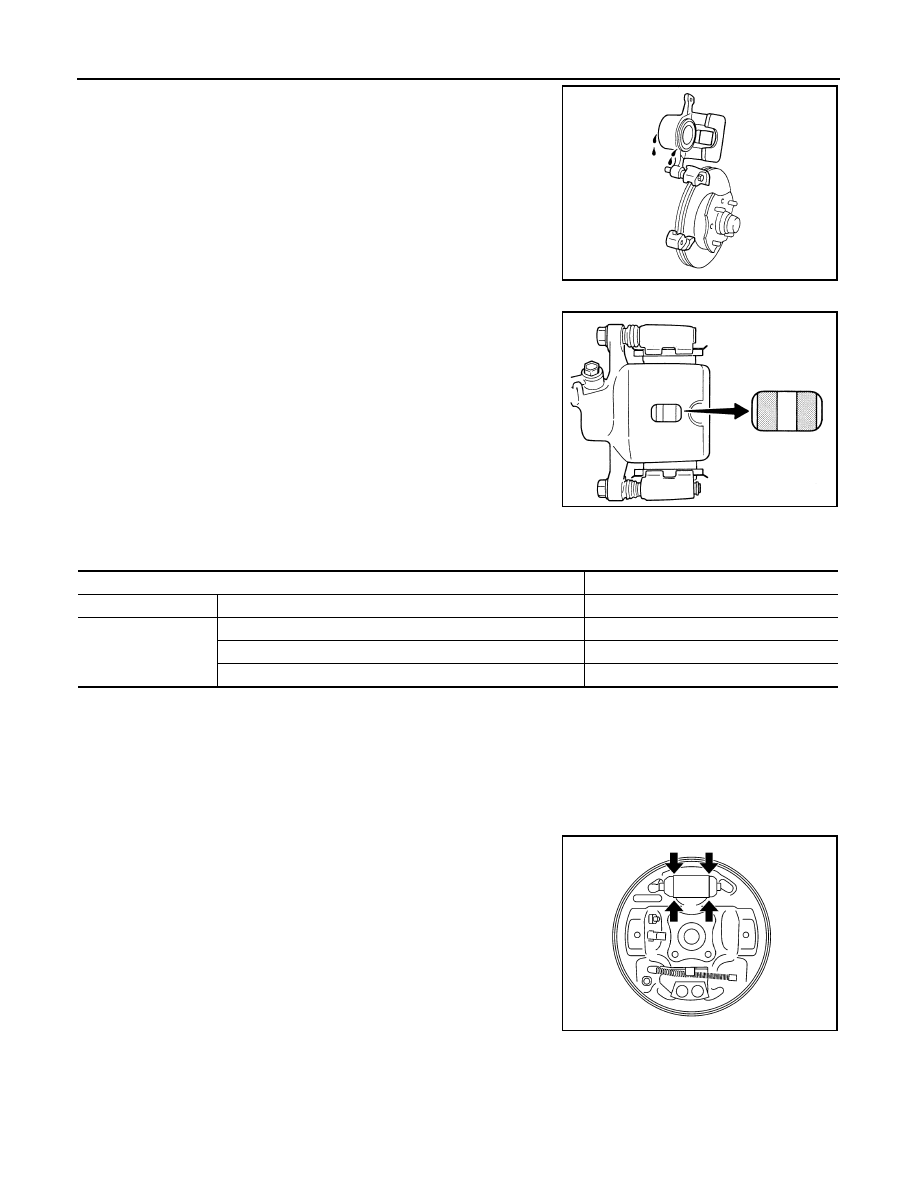

MA-26

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

• Check for leakage.

BRAKE PAD

• Check for wear or damage.

DISC BRAKE : Front Disc Brake

INFOID:0000000009949445

Unit: mm (in)

DRUM BRAKE

DRUM BRAKE : Inspection

INFOID:0000000009949446

DRUM

Check condition, wear, and damage.

WHEEL CYLINDER

• Check for leakage.

LINING

SMA922A

BRA0010D

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

22.0 (0.866)

Thickness variation (measured at 8 positions)

0.015 (0.0006)

Runout (with it attached to the vehicle)

0.035 (0.0014)

SFIA0657J

CHASSIS MAINTENANCE

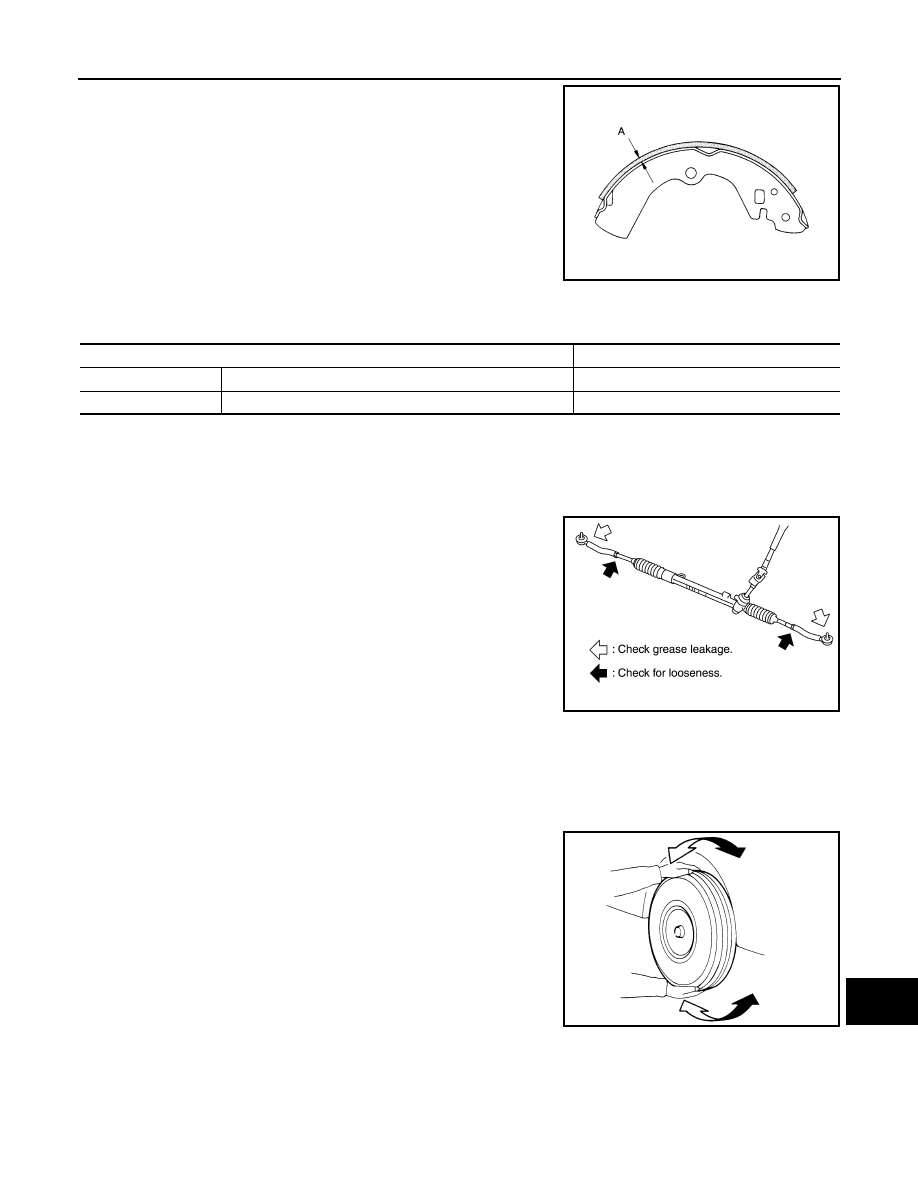

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• Check for lining thickness.

DRUM BRAKE : Rear Drum Brake

INFOID:0000000009949447

Unit: mm (in)

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000009949448

STEERING GEAR

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000009949449

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

SBR021A

Item

Limit

Brake lining

Wear thickness

1.5 (0.059)

Brake drum

Wear inner diameter

230.0 (9.06)

JPPIA0013GB

SMA525A

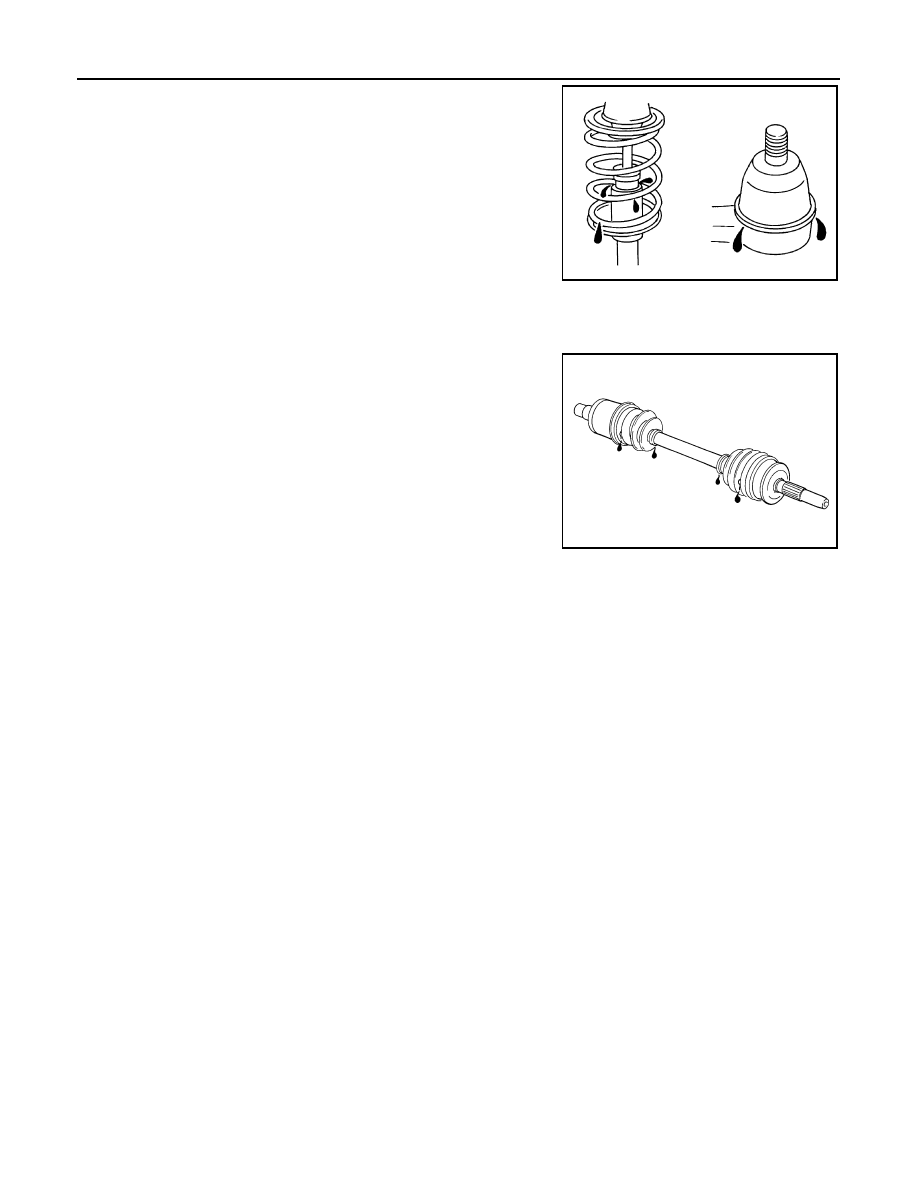

MA-28

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

DRIVE SHAFT

DRIVE SHAFT : Inspection

INFOID:0000000009949450

• Check boot and drive shaft for cracks, wear, damage and grease

leakage.

JPPIA0011ZZ

SFA108A

BODY MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000009949451

For hood and hood lock illustration.
• Hood: Refer to

DLK-181, "HOOD ASSEMBLY : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Hood: Refer to

DLK-334, "HOOD ASSEMBLY : Exploded View"

. (WITHOUT INTELLIGENT KEY SYSTEM)

• Hood lock control: Refer to

DLK-210, "Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Hood lock control: Refer to

DLK-363, "Exploded View"

. (WITHOUT INTELLIGENT KEY SYSTEM)

For door and door lock illustration.
• Front door: Refer to

DLK-190, "DOOR ASSEMBLY : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Front door: Refer to

DLK-343, "DOOR ASSEMBLY : Exploded View"

. (WITHOUT INTELLIGENT KEY SYS-

TEM)

• Front door lock: Refer to

DLK-212, "DOOR LOCK : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Front door lock: Refer to

DLK-365, "DOOR LOCK : Exploded View"

. (WITHOUT INTELLIGENT KEY SYS-

TEM)

• Rear door: Refer to

DLK-196, "DOOR ASSEMBLY : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Rear door: Refer to

DLK-349, "DOOR ASSEMBLY : Exploded View"

. (WITHOUT INTELLIGENT KEY SYS-

TEM)

• Rear door lock: Refer to

DLK-216, "DOOR LOCK : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Rear door lock: Refer to

DLK-369, "DOOR LOCK : Exploded View"

. (WITHOUT INTELLIGENT KEY SYS-

TEM)

For back door and back door lock illustration.
• Back door: Refer to

DLK-201, "BACK DOOR ASSEMBLY : Exploded View"

. (WITH INTELLIGENT KEY

SYSTEM)

• Back door: Refer to

DLK-354, "BACK DOOR ASSEMBLY : Exploded View"

. (WITHOUT INTELLIGENT KEY

SYSTEM)

• Back door lock: Refer to

DLK-220, "DOOR LOCK : Exploded View"

. (WITH INTELLIGENT KEY SYSTEM)

• Back door lock: Refer to

DLK-373, "DOOR LOCK : Exploded View"

. (WITHOUT INTELLIGENT KEY SYS-

TEM)

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000009949452

For front seat belt illustration. Refer to

SB-6, "SEAT BELT RETRACTOR : Exploded View"

.

For rear seat belt illustration. Refer to

SB-11, "SEAT BELT RETRACTOR : Exploded View"

.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

SB-4, "SEAT BELT RETRACTOR : Inspection"

 ,

SB-9, "SEAT BELT RETRACTOR :

Inspection"

 in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released
