switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

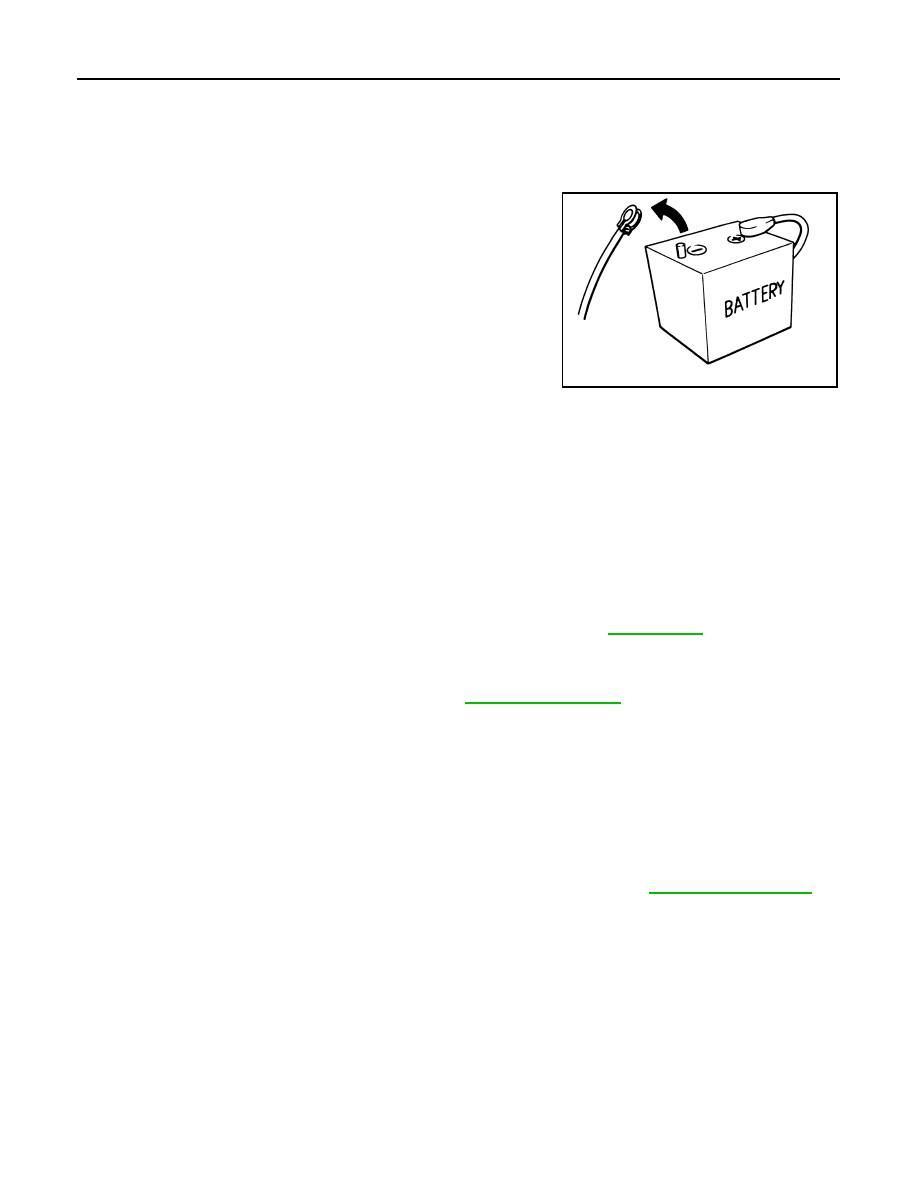

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

General Precautions

INFOID:0000000009950420

WARNING:

When replacing fuel line parts, be sure to observe the following.
• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use gasoline required by the regulations for octane number. Refer to

GI-30, "Fuel"

• Before removing fuel line parts, perform out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-478, "Inspection"

- Disconnect the battery cable from the negative terminal.
• Always replace O-ring and clamps with new ones.
• Never kink or twist tubes when they are being installed.
• Never tighten hose clamps excessively to avoid damaging hoses.
• After installing tubes, check there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check

for fuel leakage at connections.

- Start engine and rev it up and check for fuel leakage at connections.
• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

“MIL” may come on.

• For servicing “On Board Refueling Vapor Recovery (ORVR)” parts, refer to

EC-418, "Description"

SEF289H

PREPARATION

FL-3

< PREPARATION >

PREPARATION

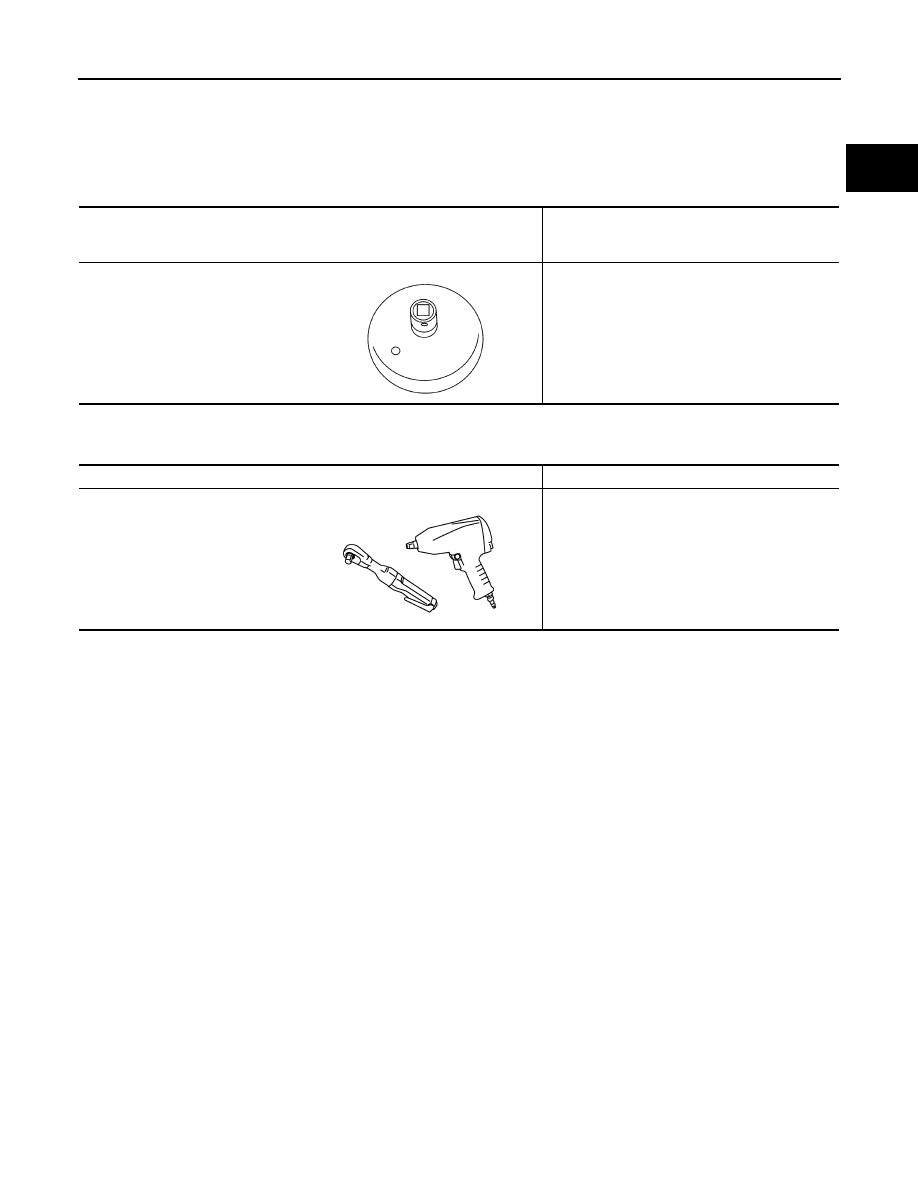

Special Service Tool

INFOID:0000000009950421

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009950422

Tool number
(Kent-Moore No.)
Tool name

Description

KV991J0090
(J-46214)
Lock ring wrench

Removing and Installing lock ring

LBIA0353E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FL-4

< PERIODIC MAINTENANCE >

FUEL SYSTEM

PERIODIC MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000009950423

Inspect fuel lines, fuel filler cap, and fuel tank for improper attach-
ment, leakage, cracks, damage, loose connections, chafing or dete-
rioration.

If necessary, repair or replace damaged parts.

Quick Connector

INFOID:0000000009950424

CAUTION:

• After connecting fuel tube quick connectors, check quick connectors are secure.
• Ensure that connector and resin tube never contact any adjacent parts.

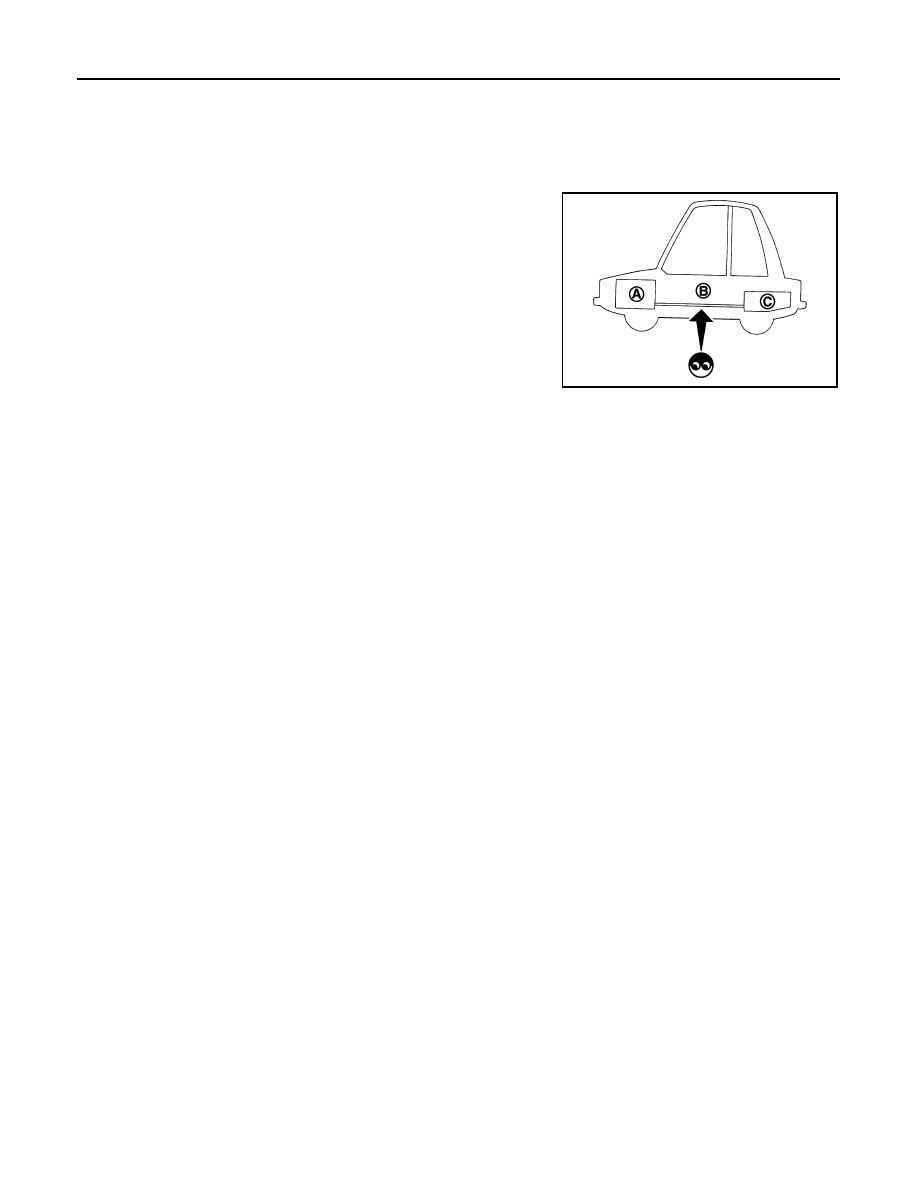

: Engine

: Fuel line

: Fuel tank

JPBIA0129ZZ
