FENDER PROTECTOR

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

FENDER PROTECTOR

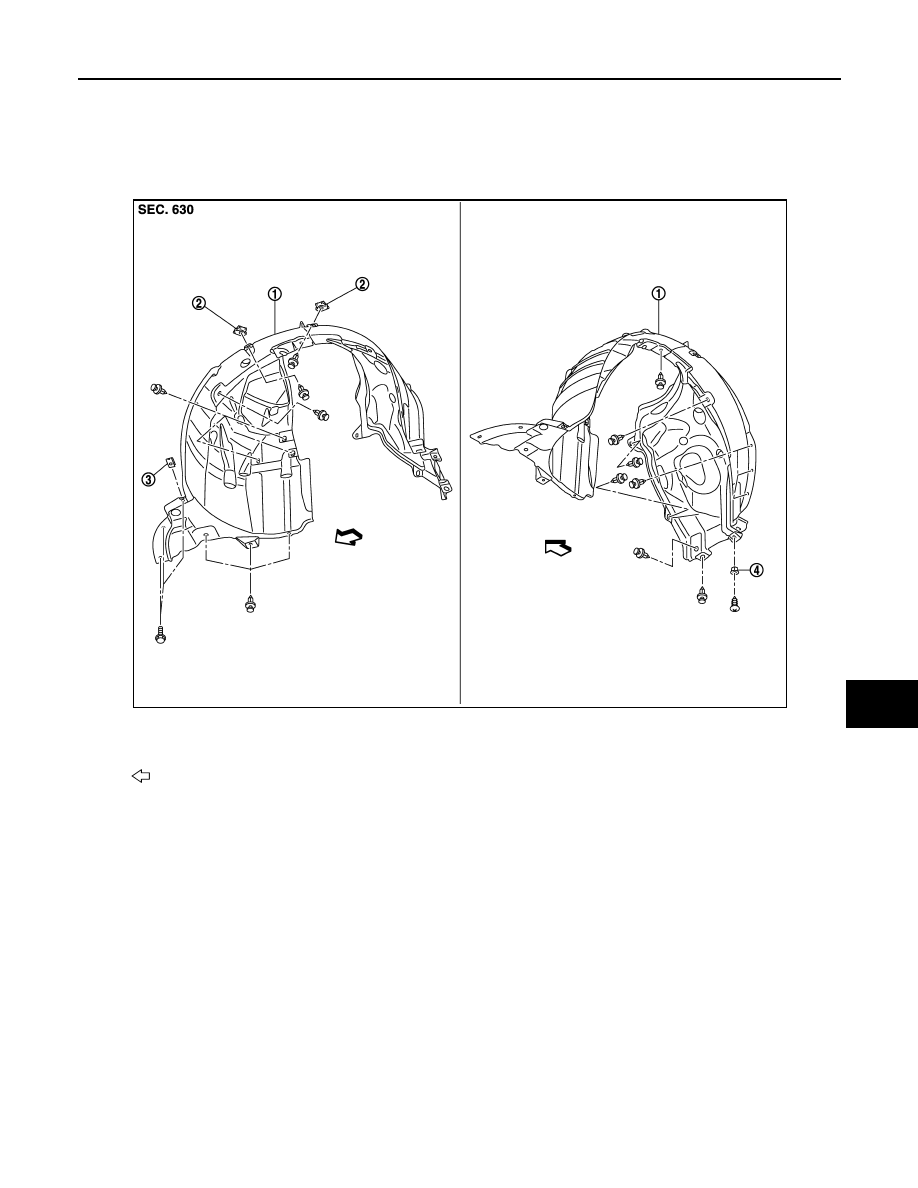

FENDER PROTECTOR : Exploded View

INFOID:0000000009949378

FENDER PROTECTOR : Removal and Installation

INFOID:0000000009949379

REMOVAL

1.

Remove front tire.

2.

Remove front fender protector fixing screws, bolts and clips.

3.

Disengage fender clips and fender protector, and then remove fender protector.

INSTALLATION

Install in the reverse order of removal.

1.

Fender protector

2.

Fender clip

3.

J nut

4.

Grommet

: Vehicle front

JMKIA3798ZZ

EXT-22

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

FLOOR SIDE FAIRING

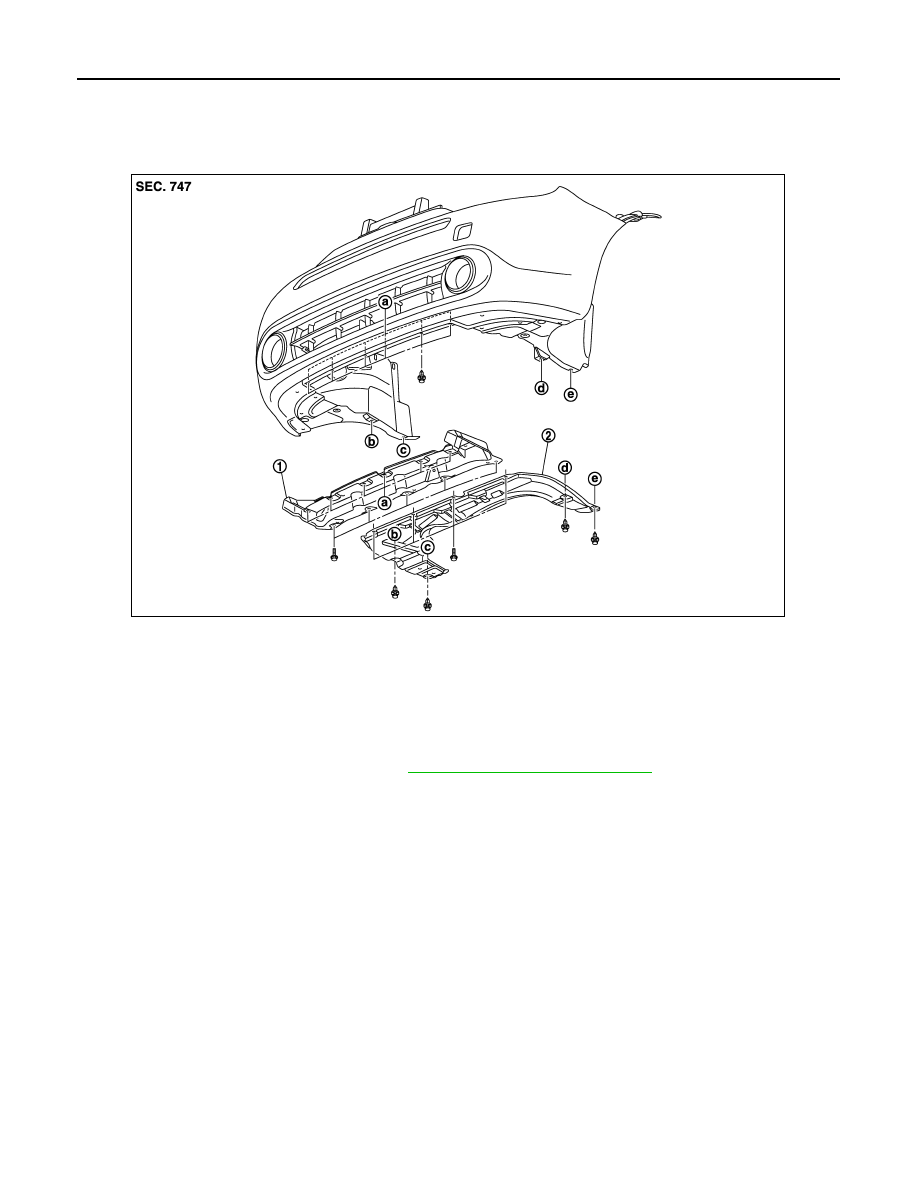

Exploded View

INFOID:0000000009949380

Removal and Installation

INFOID:0000000009949381

REMOVAL

FRONT UNDER COVER FRONT

1.

Remove bumper fascia assembly. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove front under cover front mounting bolts.

3.

Remove front under cover front.

FRONT UNDER COVER

1.

Remove front under cover mounting bolts and clips.

2.

Remove front under cover.

INSTALLATION

Install in the reverse order of removal.

1.

Front under cover front

2.

Front under cover

JMKIA4092ZZ

ROOF SIDE MOLDING

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

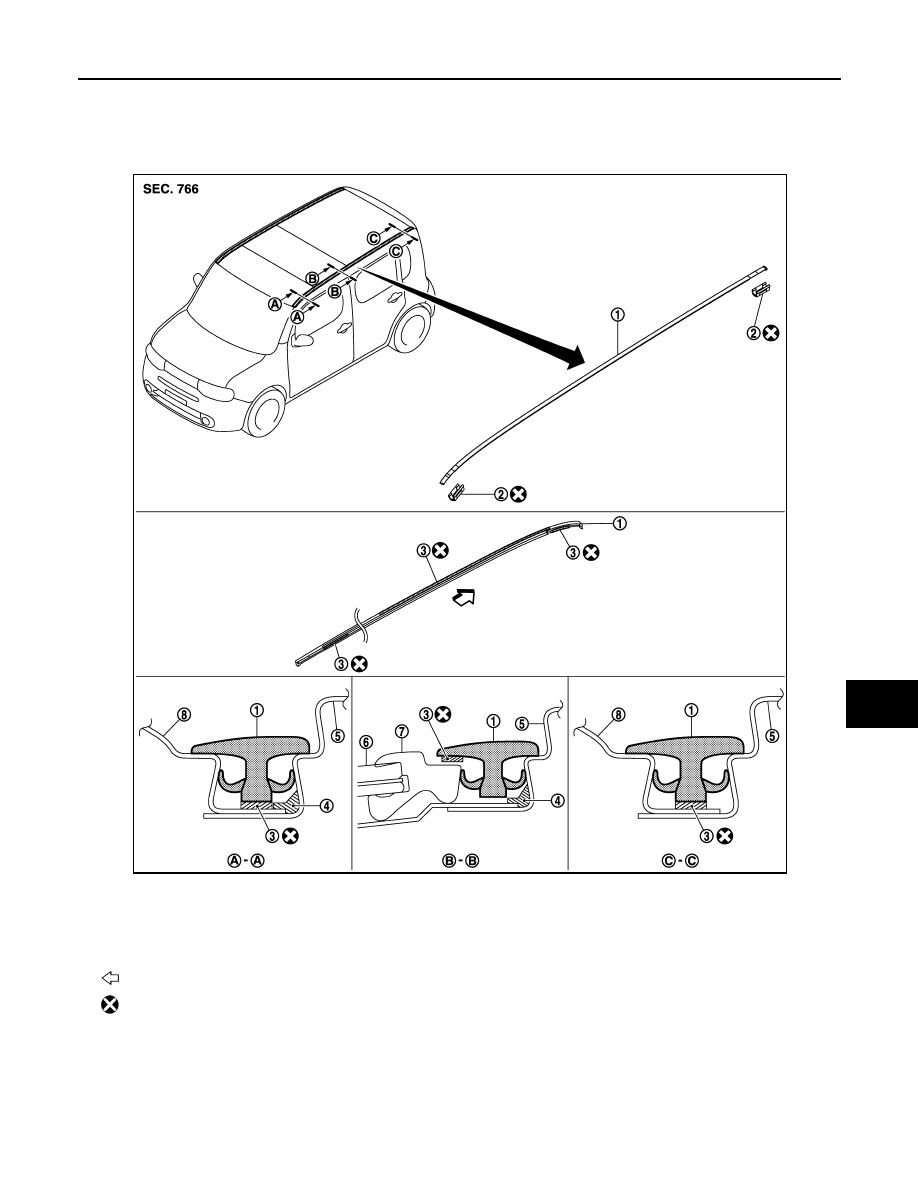

ROOF SIDE MOLDING

Exploded View

INFOID:0000000009949382

Removal and Installation

INFOID:0000000009949383

REMOVAL

1.

Roof side molding

2.

Roof side molding clip

3.

Double-faced adhesive tape
[t: 1.2 mm (0.047 in)]

4.

Paint sealant

5.

Body side outer panel

6.

Stylish glass

7.

Glass molding

8.

Roof panel

: Vehicle front

: Always replace after every disassembly.

JMKIA3799ZZ

EXT-24

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

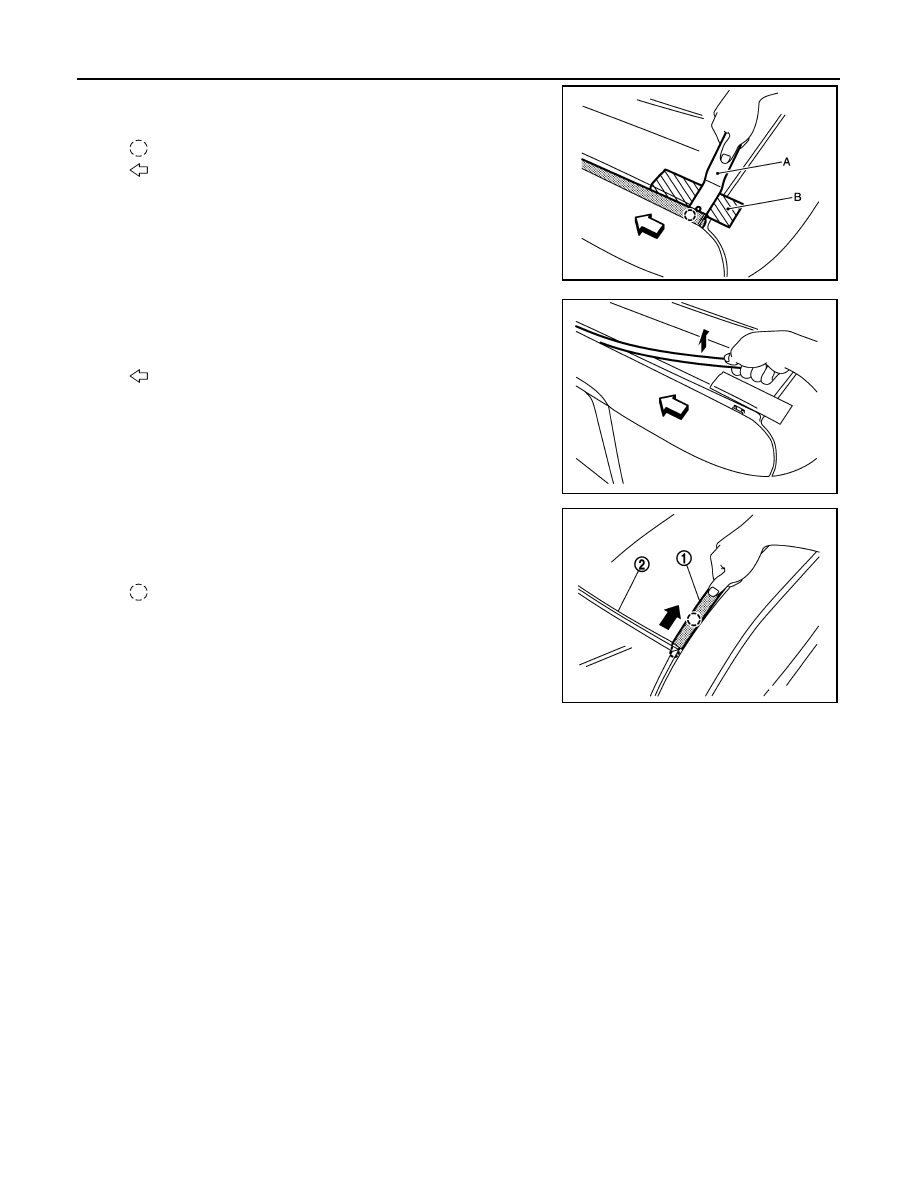

1.

Disengage roof side molding clip and roof side molding from
rear end, using remover tool (A).

CAUTION:

• Apply protective tape (B) on body to protect the painted

surface from damage.

• Never use an item as a remover tool that could damage

body panel.

2.

Remove roof side molding as shown by the arrow in the figure.

CAUTION:

Never pull the roof side molding strongly.

3.

Pull out and remove the front end of roof side molding (1)
towards vehicle rear after disengaging clip, because the front
end is located under the windshield molding (2).

INSTALLATION

Install from roof side molding rear end to front end in this order after temporarily holding.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1.

Remove roof side molding.

2.

Heat adhesive tape interface using a dryer, and then peel roof side molding clips (body side) using long-
nose pliers.

CAUTION:

Be careful not to damage the body.

Installation

1.

Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.

2.

Use two-part epoxy adhesive.

3.

Apply adhesive evenly to clip tape surface.

4.

Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to
tape side.

: Clip

: Vehicle front

JMKIA3883ZZ

: Vehicle front

JMKIA3884ZZ

: Clip

JMKIA3885ZZ

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)
