FRONT GRILLE

Exploded View

INFOID:0000000009949374

Removal and Installation

INFOID:0000000009949375

REMOVAL

1.

Fully open hood.

2.

Remove front grille upper side fixing clips.

3.

Disengage front grille mounting clips (B) by rotating 45

°

 using a

flat-bladed screwdriver (A) through access hole of front grille (1)
upper while pulling front grill toward vehicle front.

4.

Remove bumper fascia upper fixing clips.

5.

Disengage front grille fixing pawls from back side of front grille while pull front grille horizontally to word
vehicle front, and then remove front grille.

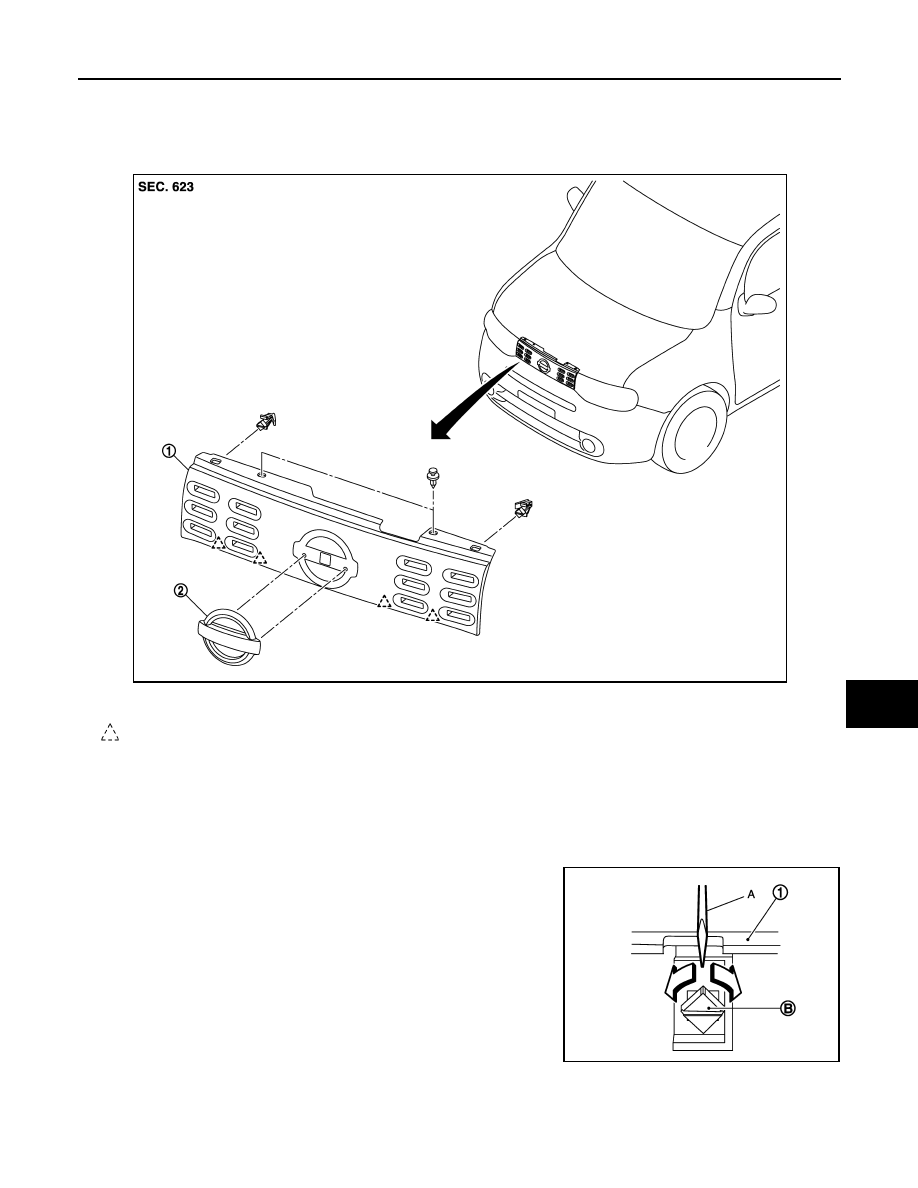

1.

Front grille

2.

Front emblem

: Pawl

JMKIA3796ZZ

JMKIA3818ZZ

EXT-18

< REMOVAL AND INSTALLATION >

FRONT GRILLE

6.

Remove the front emblem after removing front grille.

INSTALLATION

Install in the reverse order of removal.

COWL TOP

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

COWL TOP

Exploded View

INFOID:0000000009949376

Removal and Installation

INFOID:0000000009949377

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm, and blades (LH/RH). Refer to

WW-147, "Removal and Installation"

.

3.

Remove front fender cover. Refer to

DLK-188, "Removal and Installation"

 (with Intelligent Key System) or

DLK-341, "Removal and Installation"

  (without Intelligent Key System).

4.

Remove cowl top cover fixing clips.

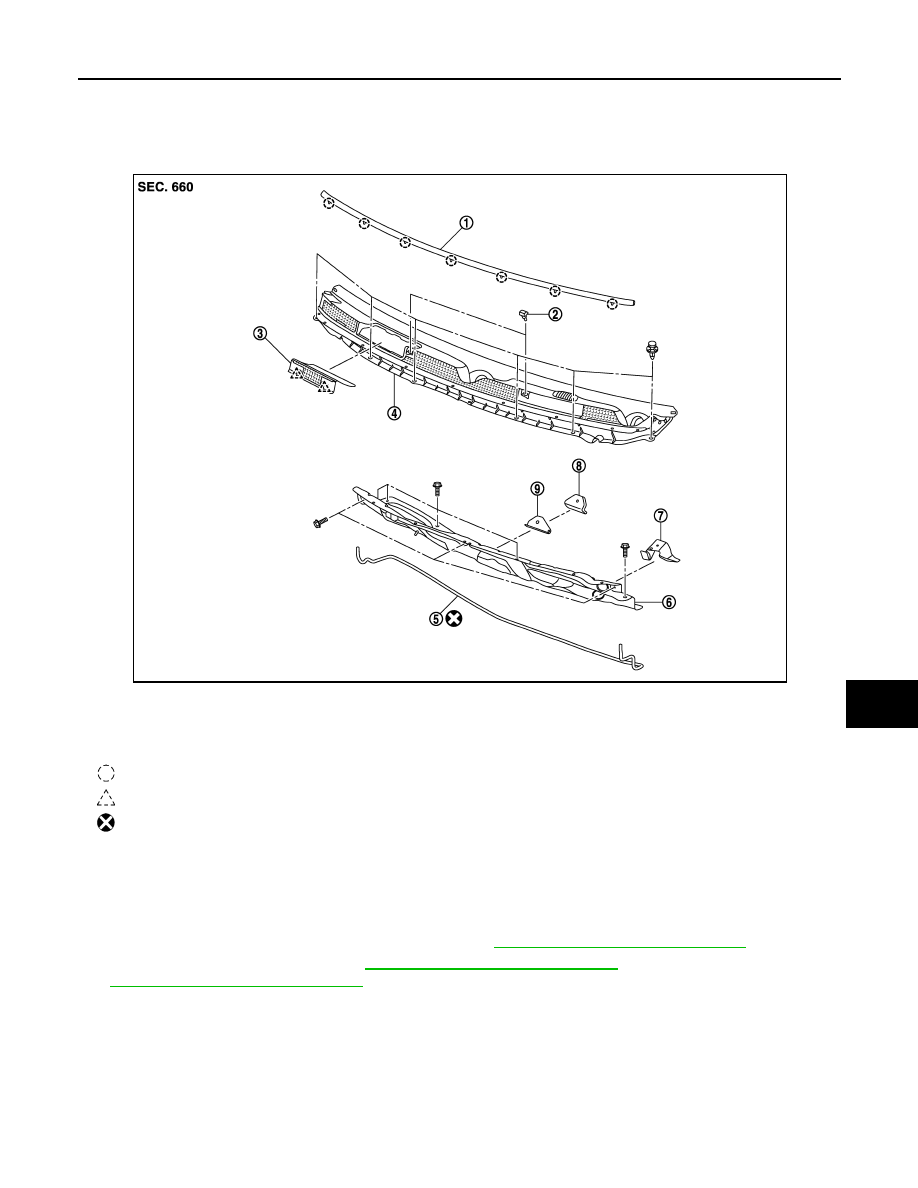

1.

Cowl top cover seal

2.

Washer nozzle

3.

Cowl top cover cap

4.

Cowl top cover

5.

EPT sealer [t: 3.0 mm (0.118 in)]

6.

Cowl top extension

7.

Wiper motor bracket

8.

Wiper pivot bracket rear

9.

Wiper pivot bracket front

: Clip

: Pawl

: Always replace after every disassembly.

JMKIA4089ZZ

EXT-20

< REMOVAL AND INSTALLATION >

COWL TOP

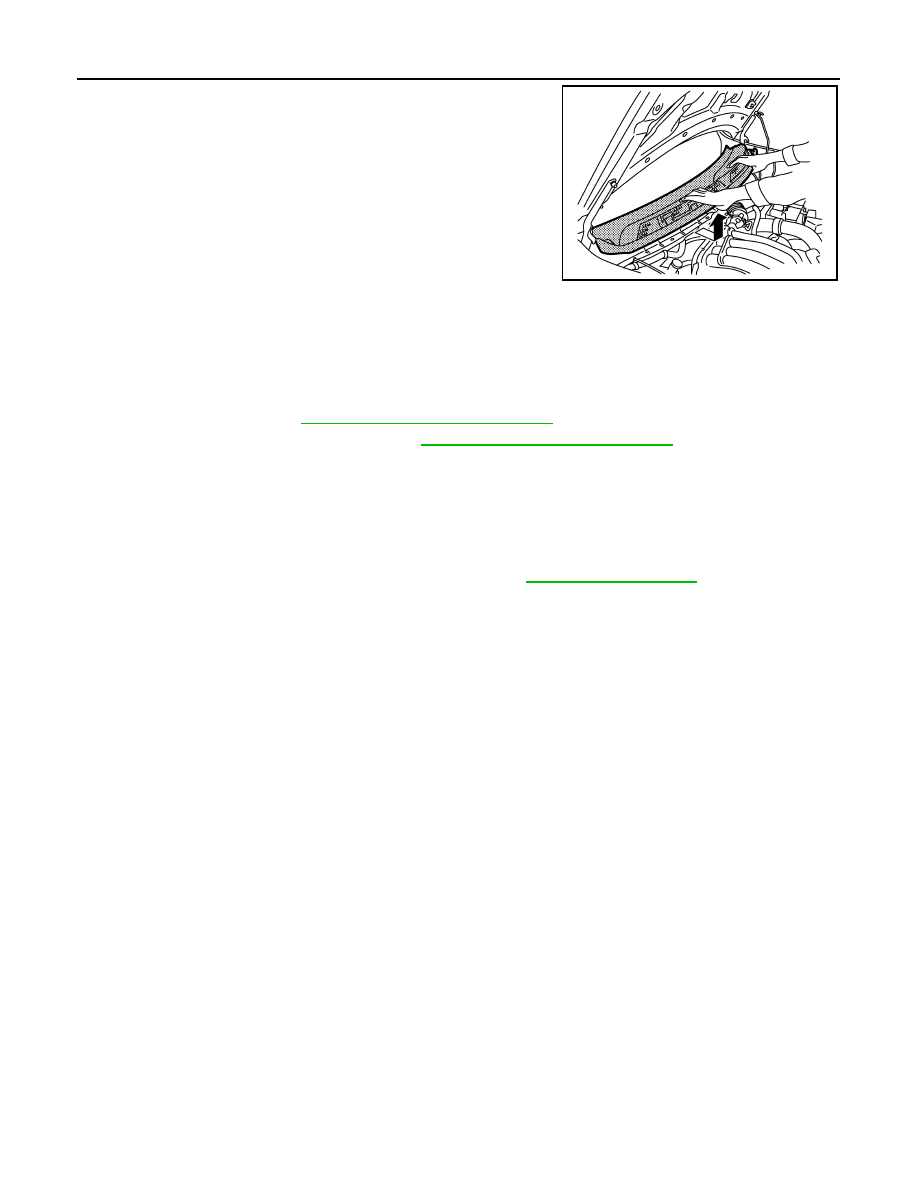

5.

Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top
cover, cover the lower and of windshield glass with ure-
thane etc.

6.

Disconnect wind washer tube connector.

7.

Remove cowl top cover.

8.

Remove the following parts after removing cowl top cover.
• EPT sealer
• Cowl top cover seal
• Washer tube
• Washer nozzles. Refer to

WW-144, "Removal and Installation"

.

9.

Remove front wiper drive assembly. Refer to

WW-149, "Removal and Installation"

.

10. Remove cowl top extension mounting bolts, and them cowl top extension.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.

• After installing, perform adjustment of wiper arm. Refer to

WW-147, "Adjustment"

.

JMKIA3819ZZ
