PRECAUTIONS

EXT-9

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

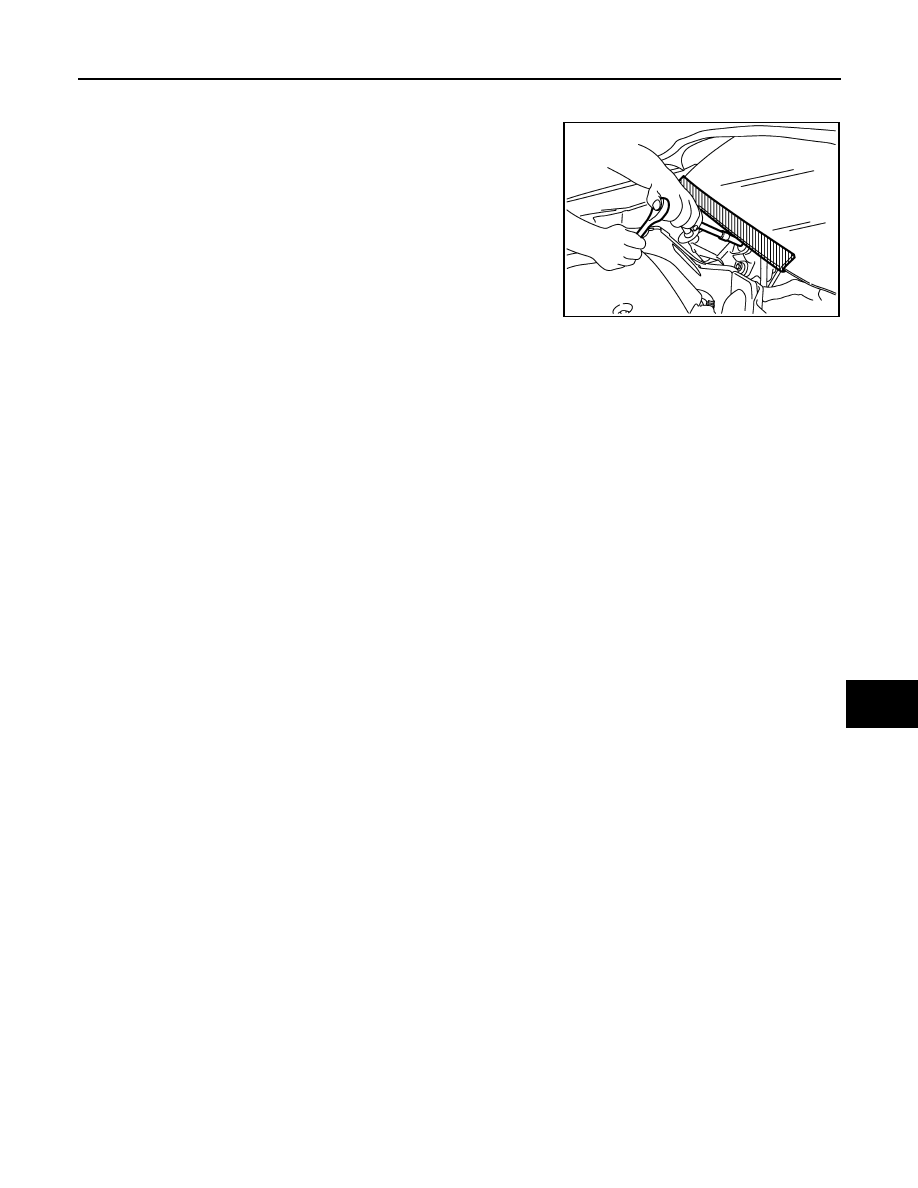

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009949366

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precaution for Work

INFOID:0000000009949367

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

EXT-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

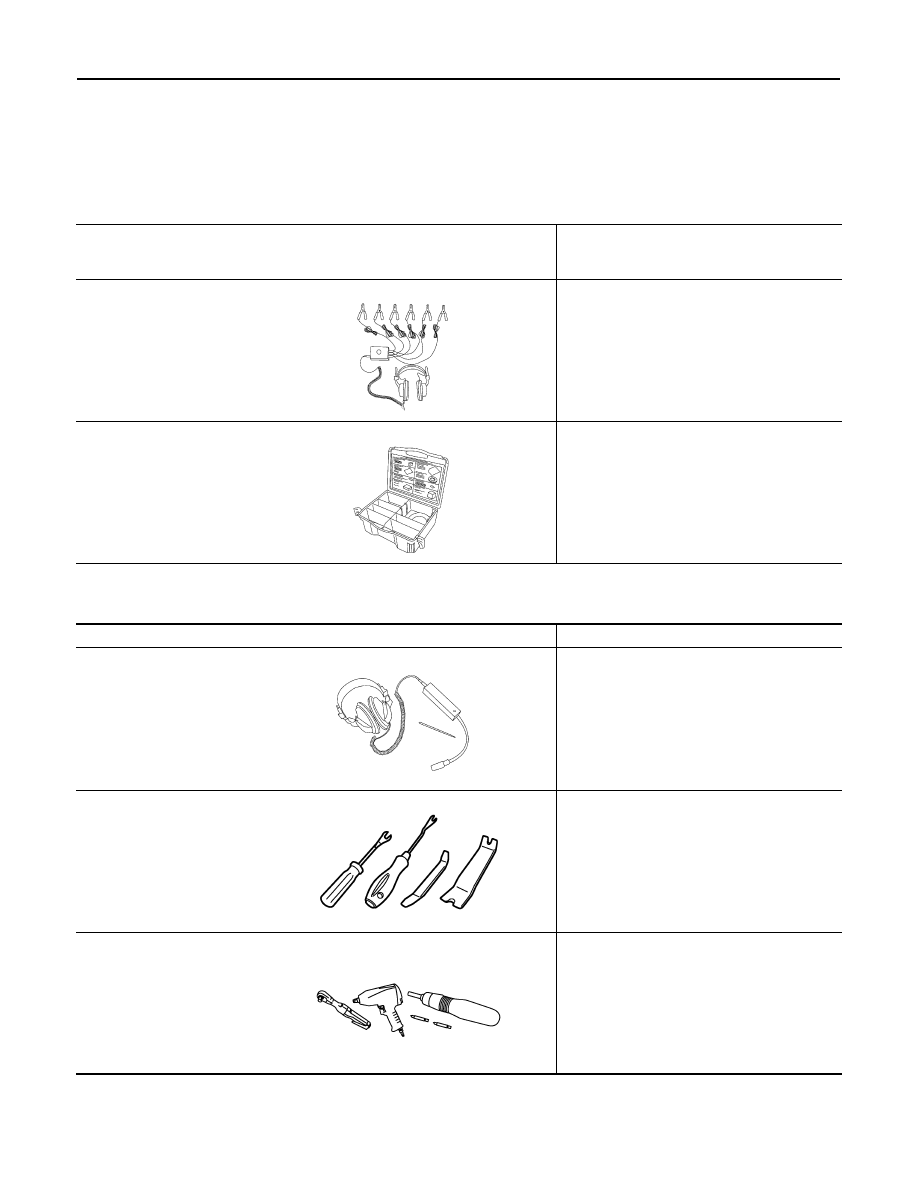

Special Service Tools

INFOID:0000000009949368

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009949369

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls and metal clips

Power tool

Loosening bolts, nuts and screws

SIIA0995E

JMKIA3050ZZ

PIIB1407E

FRONT BUMPER

EXT-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

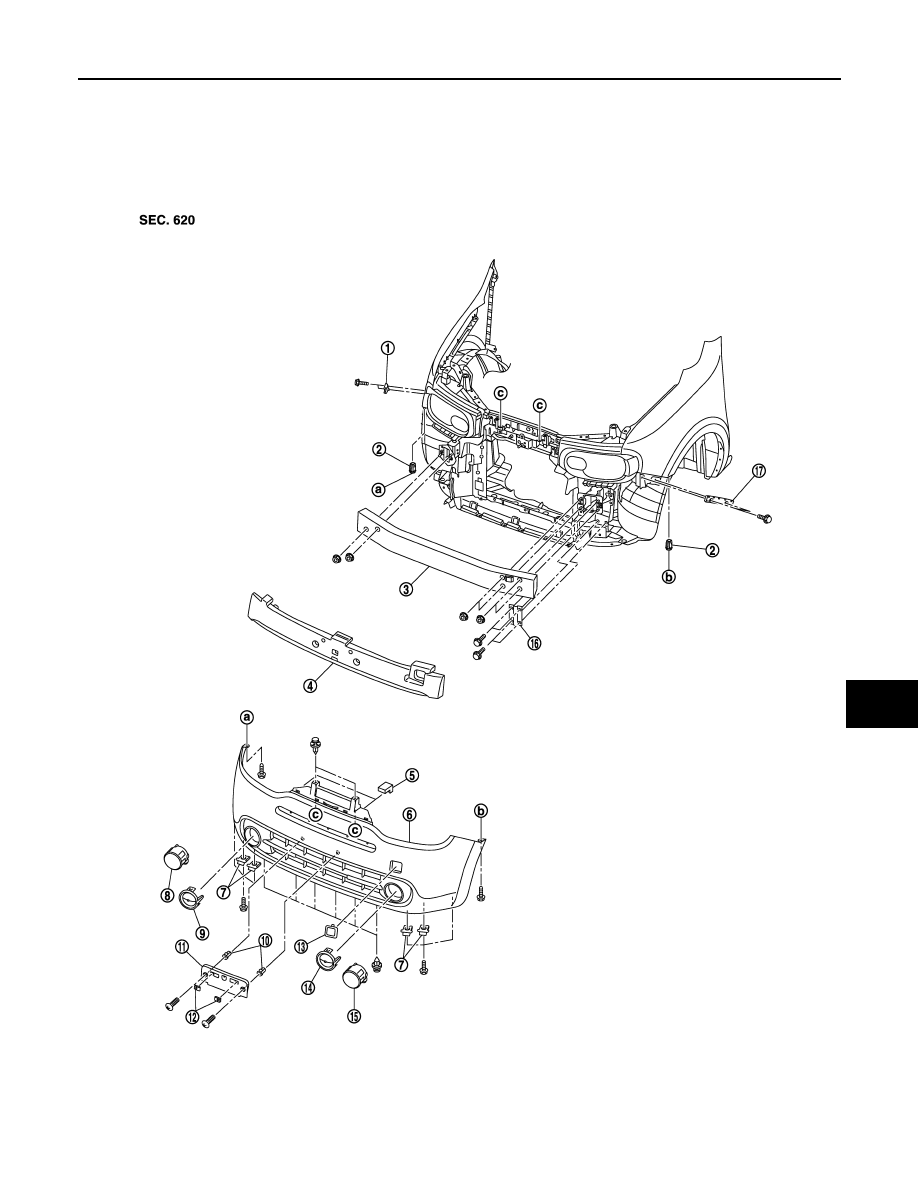

Exploded View

INFOID:0000000009949370

JMKIA4087ZZ

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

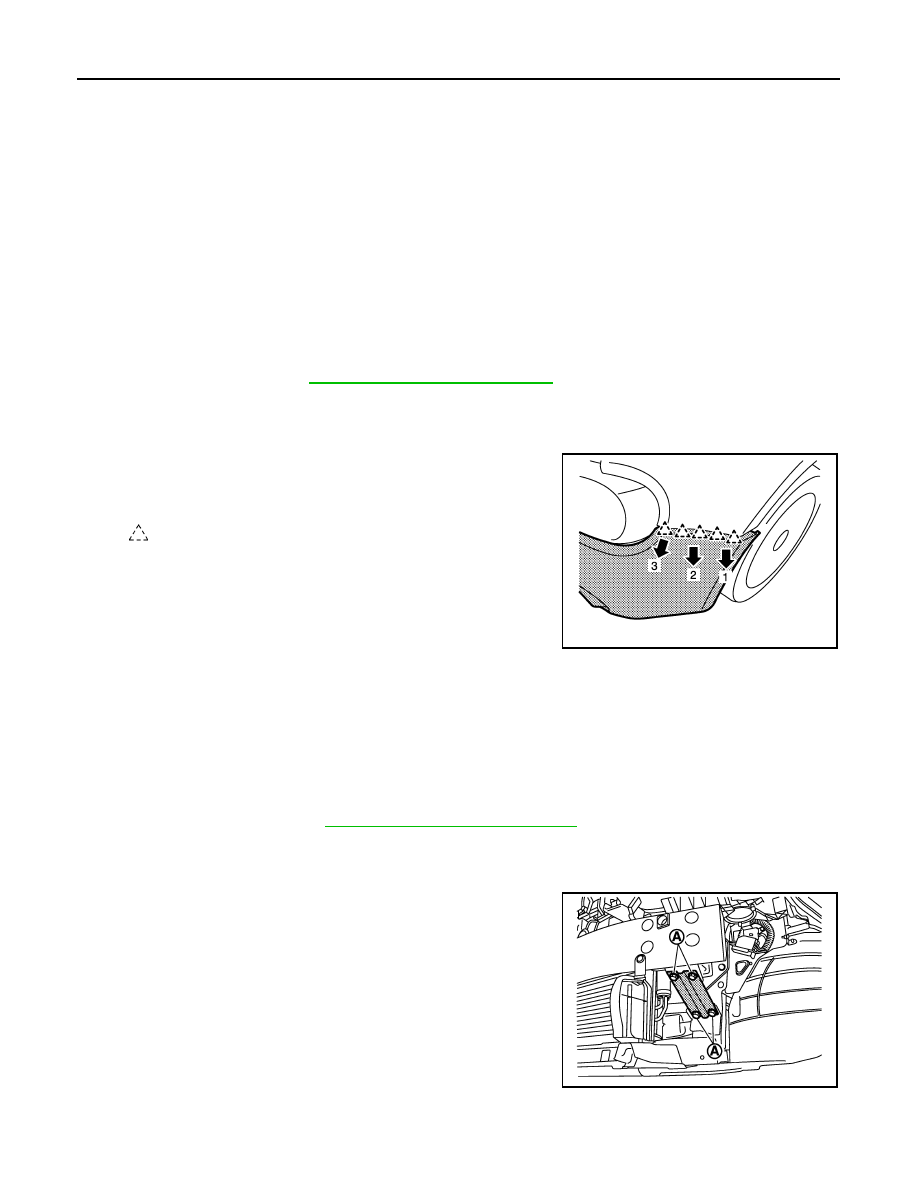

Removal and Installation

INFOID:0000000009949371

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open hood assembly.

2.

Remove front grille. Refer to

EXT-17, "Removal and Installation"

.

3.

Remove fender protector fixing clips and screws to access bumper fascia assembly fixing screw, and then
remove bumper fascia assembly fixing screws (LH/RH).

4.

Remove bumper fascia assembly lower side fixing bolts and clips.

5.

Pull bumper fascia assembly side toward the vehicle side as
shown by the arrows in the figure, and then disengage bumper
fascia assembly from bumper side brackets (LH/RH).

CAUTION:

When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.

6.

Disconnect front fog lamp harness connectors (LH/RH).

7.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

8.

Remove the following parts after removing bumper fascia.
• License plate bracket
• Front bumper side brackets (LH/RH)
• Front bumper finishers (LH/RH) (without front fog lamp models)
• Fog lamps (LH/RH). Refer to

EXL-194, "Removal and Installation"

.

• Bumper spacers

9.

Remove bumper energy absorber.

10. Remove bumper reinforcement.

• Remove radiator core lower stay mounting bolts (A), and then

remove radiator core lower stay.

• Remove bumper reinforcement fixing nuts.
• Partially remove bumper reinforcement right side.

1.

Bumper side bracket RH

2.

Grommet

3.

Bumper reinforcement

4.

Bumper energy absorber

5.

Spacer

6.

Bumper fascia

7.

J nut

8.

Front fog lamp RH

9.

Bumper finisher RH

10. Screw grommet

11.

License plate bracket

12. J nut

13. Bumper bracket cover

14.

Bumper finisher LH

15. Front fog lamp LH

16. Radiator core lower stay

17.

Bumper side bracket LH

: Pawl

JMKIA3812ZZ

JMKIA4093ZZ
