FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

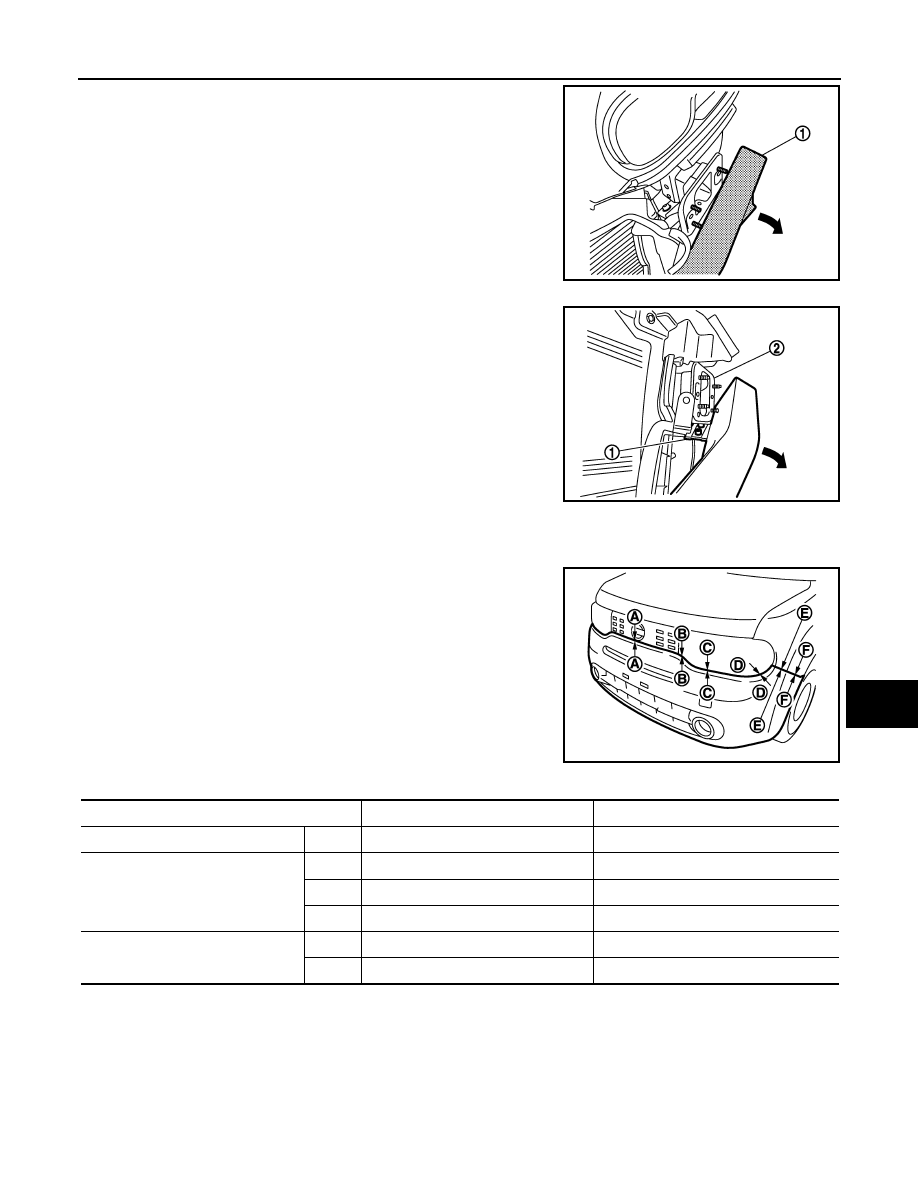

• Tilt bumper reinforcement (1) as shown by the arrow in the fig-

ure, and then partially remove bumper reinforcement left side.

• Tilt and remove bumper reinforcement, so that bumper rein-

forcement bracket (1) does not interfere to bumper stay (2) as
shown in the figure.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

JMKIA4094ZZ

JMKIA4095ZZ

JMKIA3813ZZ

Portion

Clearance

Surface height difference

Front bumper – Front grille

A – A

0.1 – 3.0 mm (0.039 – 0.118 in)

—

Front bumper – Headlamp

B – B

0.0 – 3.0 mm (0.000 – 0.118 in)

—

C – C

0.3 – 3.3 mm (0.012 – 0.130 in)

—

D – D

0.2 – 3.2 mm (0.008 – 0.126 in)

—

Front bumper – Front fender

E – E

0.0 – 0.8 mm (0.000 – 0.031 in) - 0.3 – 1.7 mm (- 0.012 – 0.067 in)

F – F

0.0 – 0.8 mm (0.000 – 0.031 in) - 0.3 – 1.7 mm (- 0.012 – 0.067 in)

EXT-14

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

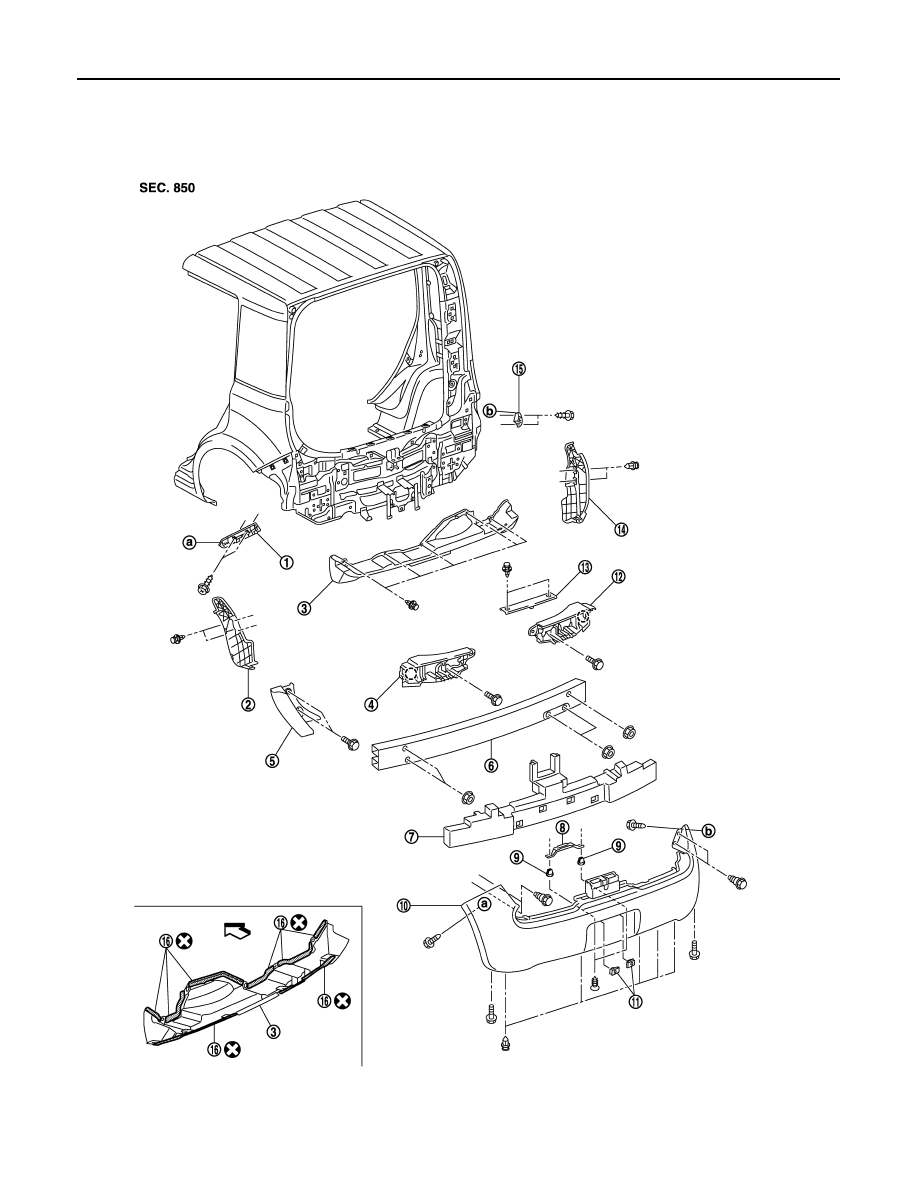

Exploded View

INFOID:0000000009949372

1.

Bumper side bracket LH

2.

Bumper closing LH

3.

Rear panel lower

4.

Bumper bracket LH

5.

Rear fender cover

6.

Bumper reinforcement

7.

Bumper energy absorber

8.

License lamp bracket

9.

Grommet

JMKIA4088ZZ

REAR BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009949373

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

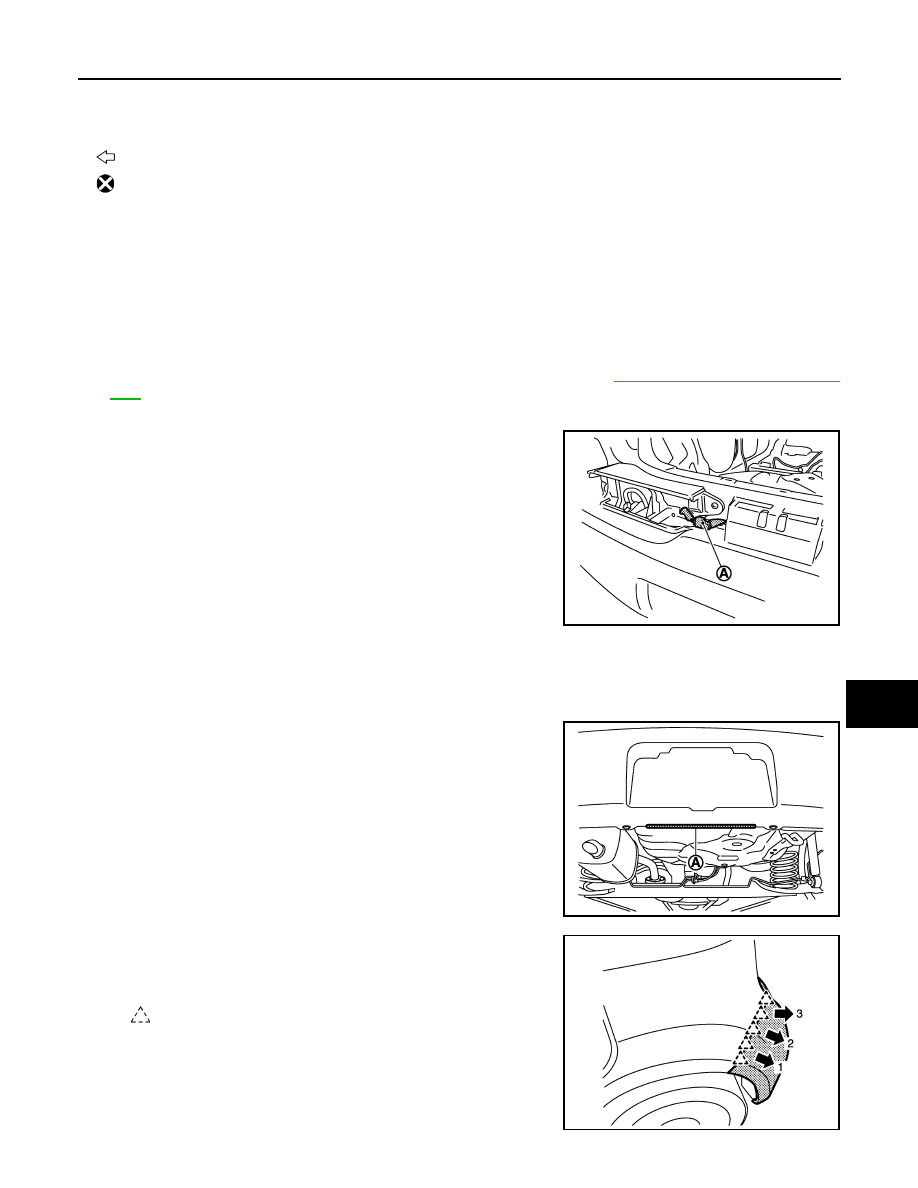

1.

Fully open back door.

2.

Remove rear bumper cover.

3.

Remove back door finisher and rear combination lamp (LH/RH). Refer to

EXL-201, "Removal and Installa-

tion"

.

4.

Remove rear fender cover.

5.

Disconnect harness connector (A).

6.

Remove bumper fascia upper mounting bolts (LH/RH).

7.

Remove bumper fascia lower fixing clips.

8.

Remove bumper fascia both ends fixing screws.

9.

Disengage bumper fascia and rear panel lower connecting por-
tion (A).

10. Pull bumper fascia assembly toward the vehicle out side as

shown by the arrows in the figure, and then disengage the
bumper fascia assembly from bumper side brackets (LH/RH).

10. Bumper fascia

11.

J nut

12. Bumper bracket RH

13. Rear bumper cover

14. Bumper closing RH

15. Bumper side bracket RH

16. EPT sealer [t: 3.0 mm (0.118 in)]

: Vehicle front

: Always replace after every disassembly.

JMKIA4100ZZ

JMKIA4091ZZ

: Pawl

JMKIA3816ZZ

EXT-16

< REMOVAL AND INSTALLATION >

REAR BUMPER

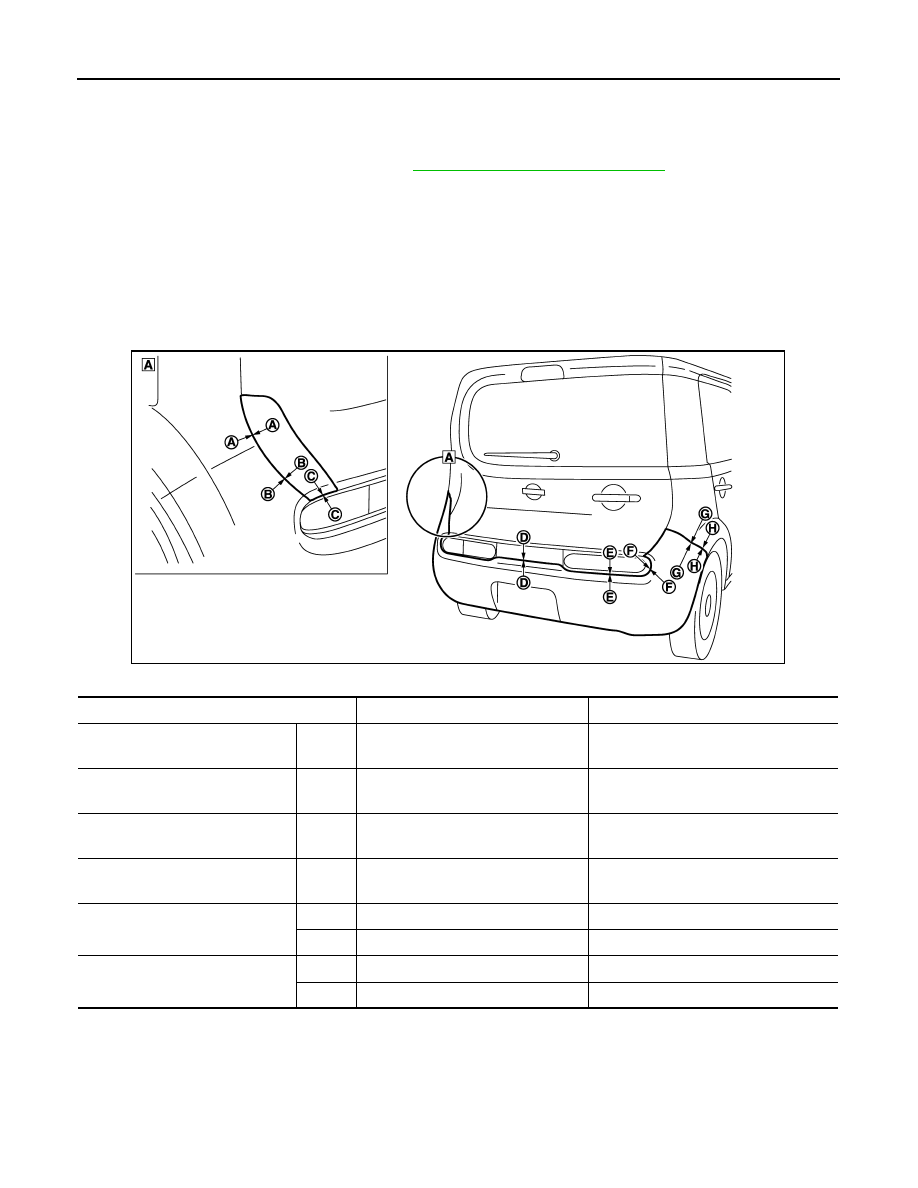

11. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing bumper fascia.

• Rear side maker lamps (LH/RH). Refer to

EXL-204, "Removal and Installation"

.

• Bumper closings (LH/RH)
• Bumper side brackets (LH/RH)
• Bumper sub harness

13. Remove bumper energy absorber.

14. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement with power tool.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

JMKIA4101ZZ

Portion

Clearance

Surface height difference

Rear fender cover – Rear
fender

A – A

0.0 – 1.0 mm (0.000 – 0.039 in) - 0.5 – 1.9 mm (- 0.020 – 0.075 in)

Rear fender cover – Rear
bumper

B – B

0.0 – 1.0 mm (0.000 – 0.039 in) - 1.3 – 1.3 mm (- 0.051 – 0.051 in)

Rear fender cover – Rear
combination lamp

C – C

5.4 – 8.6 mm (0.213 – 0.339 in)

—

Rear bumper – Back door
finisher

D – D

0.4 – 3.6 mm (0.016 – 0.142 in)

Rear fender cover – Rear
combination lamp

E – E

0.5 – 3.5 mm (0.020 – 0.138 in)

—

F – F

2.0 – 5.0 mm (0.079 – 0.197 in)

—

Rear bumper – Rear fender

G – G

0.0 – 0.9 mm (0.000 – 0.035 in) - 0.3 – 1.7 mm (- 0.012 – 0.067 in)

H – H

0.0 – 0.9 mm (0.000 – 0.035 in) - 0.3 – 1.7 mm (- 0.012 – 0.067 in)
