ROOF SIDE MOLDING

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5.

Tape clips after press fit, and temporarily hold it for specified time based on the following.

6.

Install from roof side molding rear end to front end in this order after temporarily holding.

CAUTION:

• Use double-faced adhesive tape after hardening for clips.
• Securely insert molding rear end cap onto roof rear end cutout (installation standard).
• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Never wash the vehicle with in 24 hours so as to keep adhesive.

Press-fit limit

: 19.6 N (2.0 Kg - 4.41 lb)

×

 2 seconds

 5 to 10

°

C (41 to 50

°

F)

: 1 hour or more

11 to 23

°

C (52 to 73

°

F)

: 30 minutes or more

24

°

C or more (75

°

F or more)

: 15 minutes or more

EXT-26

< REMOVAL AND INSTALLATION >

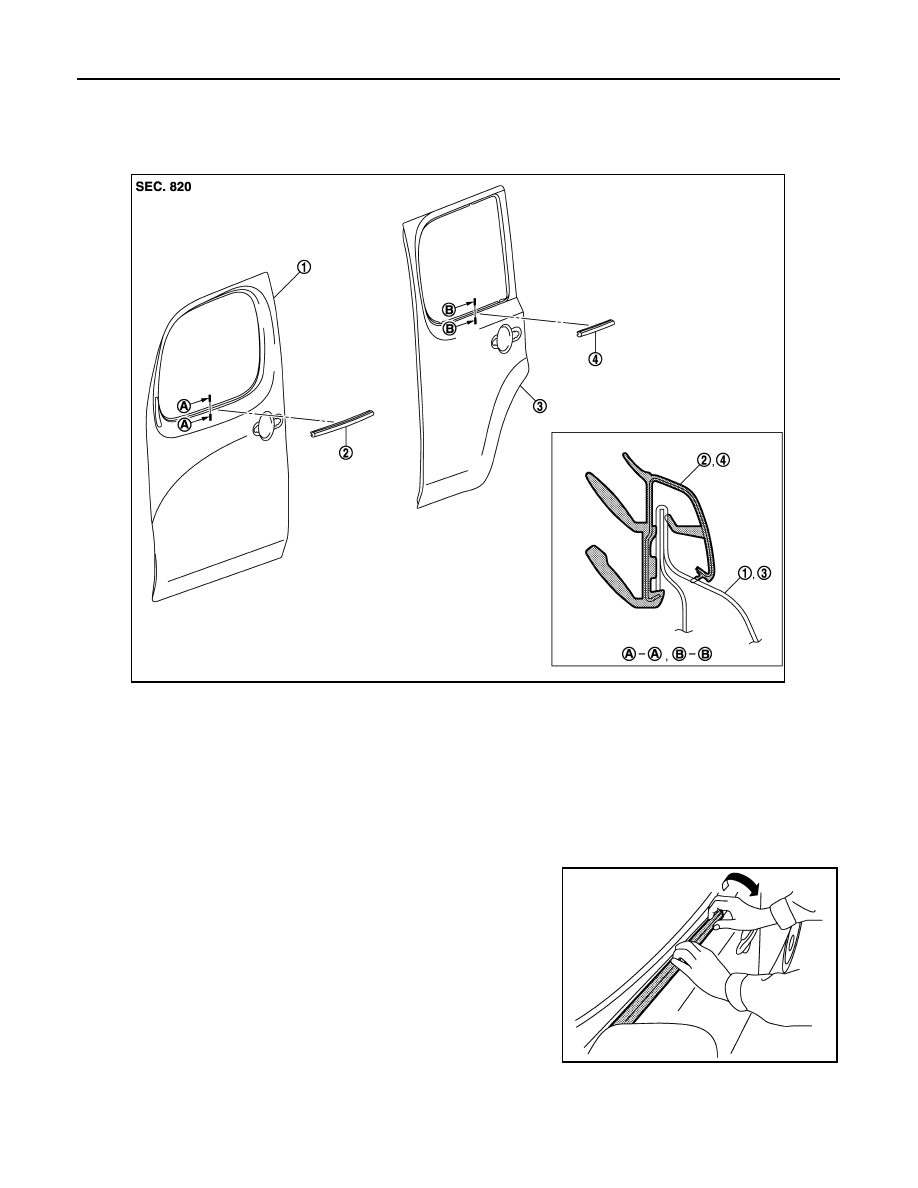

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000009949384

Removal and Installation

INFOID:0000000009949385

REMOVAL

FRONT DOOR OUTSIDE MOLDING

1.

Fully open front door glass.

2.

Twist door outside molding toward the outside of the vehicle,
and then lift up and remove it while disengaging the pawls.

REAR DOOR OUTSIDE MOLDING

1.

Fully open door window.

1.

Front door panel

2.

Front door outside molding

3.

Rear door panel

4.

Rear door outside molding

JMKIA3800GB

JMKIA3824ZZ

DOOR OUTSIDE MOLDING

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

Twist door outside molding to ward the outside of the vehicle,
and then lift up and remove it while disengaging the pawls.

INSTALLATION

Install in the reverse order of removal.

JMKIA3825ZZ

EXT-28

< REMOVAL AND INSTALLATION >

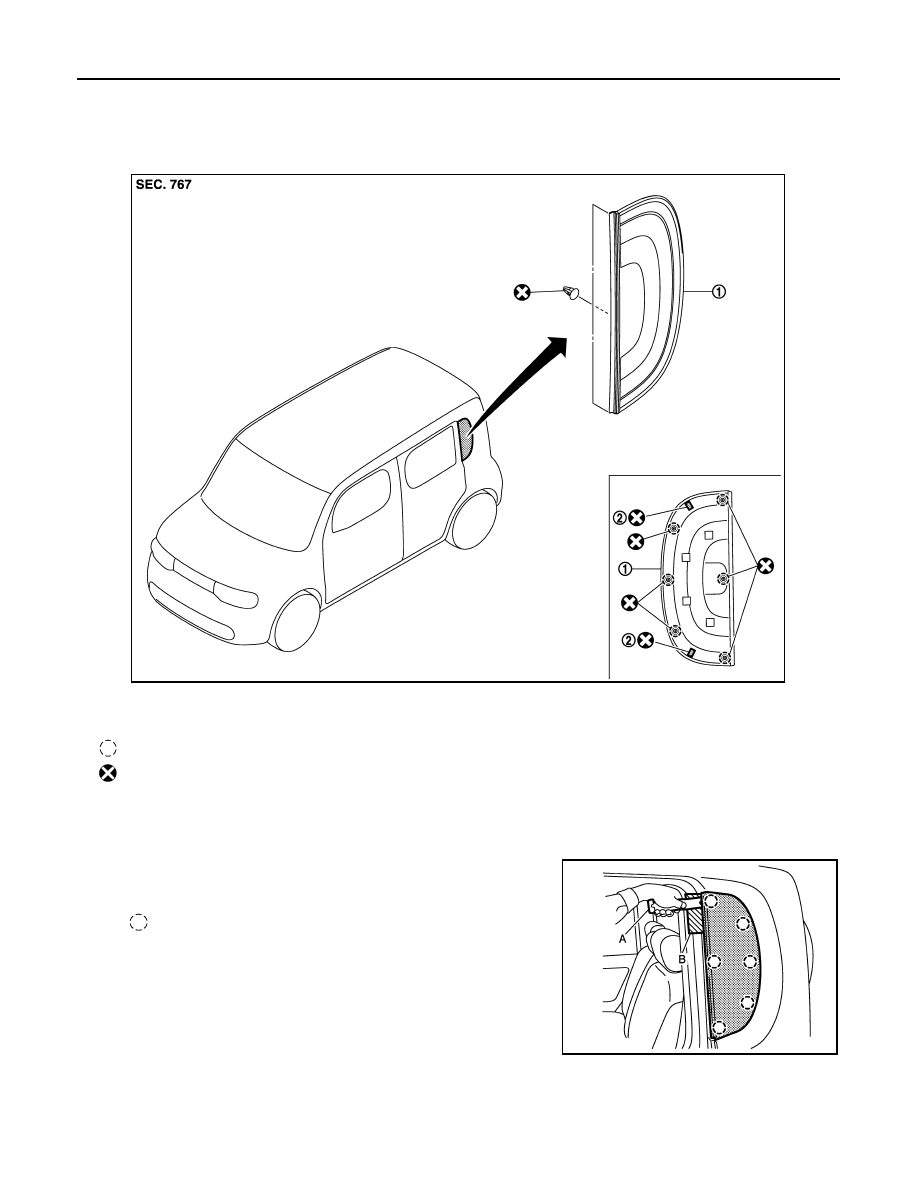

REAR PILLAR FINISHER

REAR PILLAR FINISHER

Exploded View

INFOID:0000000009949386

Removal and Installation

INFOID:0000000009949387

REMOVAL

Disengage rear pillar finisher fixing clips using remover tool (A), and
then remove rear pillar finisher.

CAUTION:

Apply protective tape (B) to the body side to protect from dam-
age.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace double-faced adhesive tape and dips with a new one, if rear pillar finisher is reused.

1.

Rear pillar finisher

2.

Double-faced adhesive tape
[t: 1.2 mm (0.047 in)]

: Clip

: Always replace after every disassembly.

JMKIA4090ZZ

: Clip

JMKIA4102ZZ
