EXL-202

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

2.

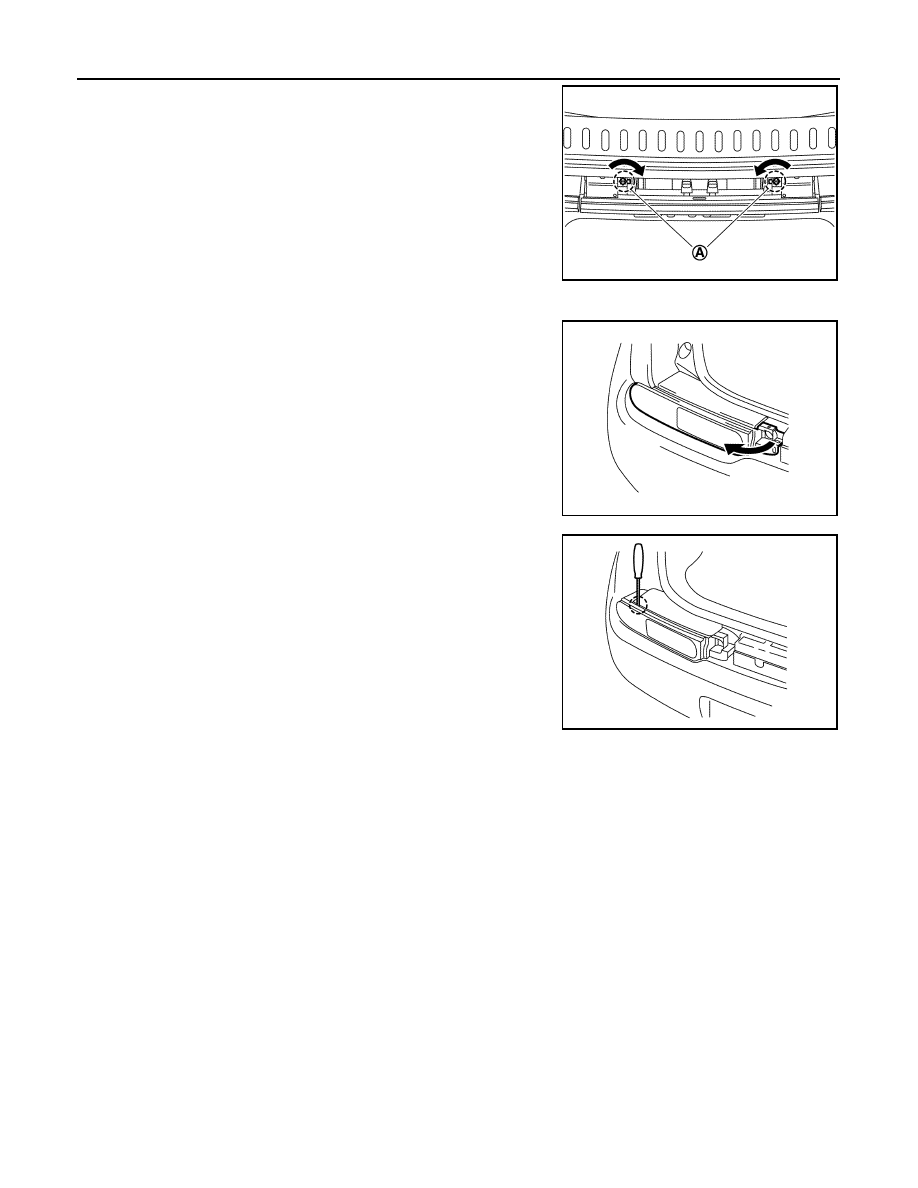

Disengage backdoor finisher mounting fastener (A) to remove
the back door finisher.

3.

Remove rear combination lamp mounting bolts.

4.

Slightly turn the rear combination lamp to leave a clearance.

5.

Insert an appropriate tool into the clearance between the rear
combination lamp and the rear bamper side bracket.

CAUTION:

Since the rear combination lamp has another clip at the
lower center, be careful when removing the outer clip.

6.

Pull rear combination lamp rearward to remove.

7.

Disconnect rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.
NOTE:
The back door finisher mounting fastener remains on the rear combination lamp side after removing the back
door finisher. Therefore, be sure to install the mountind fastener on the back door finisher side.

Replacement

INFOID:0000000009945226

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Rotate the stop/tail lamp bulb socket counterclockwise, and unlock it.

3.

Remove bulb from the bulb socket.

JPLIA1700ZZ

JPLIA1635ZZ

JPLIA1636ZZ

REAR COMBINATION LAMP

EXL-203

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.

3.

Remove bulb from the bulb socket.

BACK-UP LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Rotate the back-up lamp bulb socket counterclockwise, and unlock it.

3.

Remove bulb from the bulb socket.

EXL-204

< REMOVAL AND INSTALLATION >

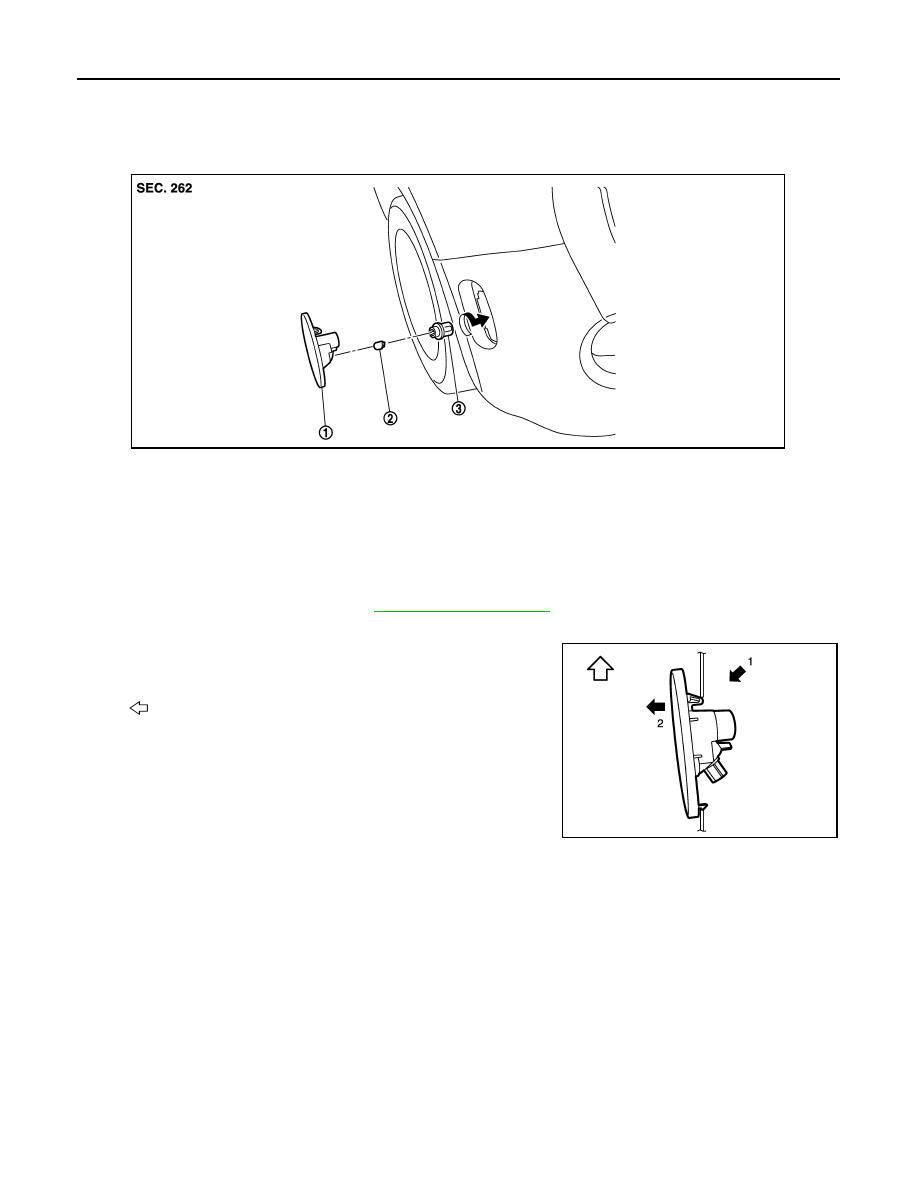

REAR SIDE MARKER LAMP

REAR SIDE MARKER LAMP

Exploded View

INFOID:0000000009945227

Removal and Installation

INFOID:0000000009945228

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.
1.

Remove rear bunper closing. Refer to

EXT-14, "Exploded View"

.

2.

Disconnect rear side marker lamp connector.

3.

Remove rear side marker lamp in numerical order shown in the
figure.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009945229

CAUTION:

• Disconnect battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR SIDE MARKER LAMP BULB

1.

Remove the rear side marker lamp.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

1.

Rear side marker lamp housing

2.

Rear side marker lamp

3.

Rear side marker lamp socket

JPLIA1811ZZ

:Vehicle front

JPLIA1812ZZ

HIGH-MOUNTED STOP LAMP

EXL-205

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

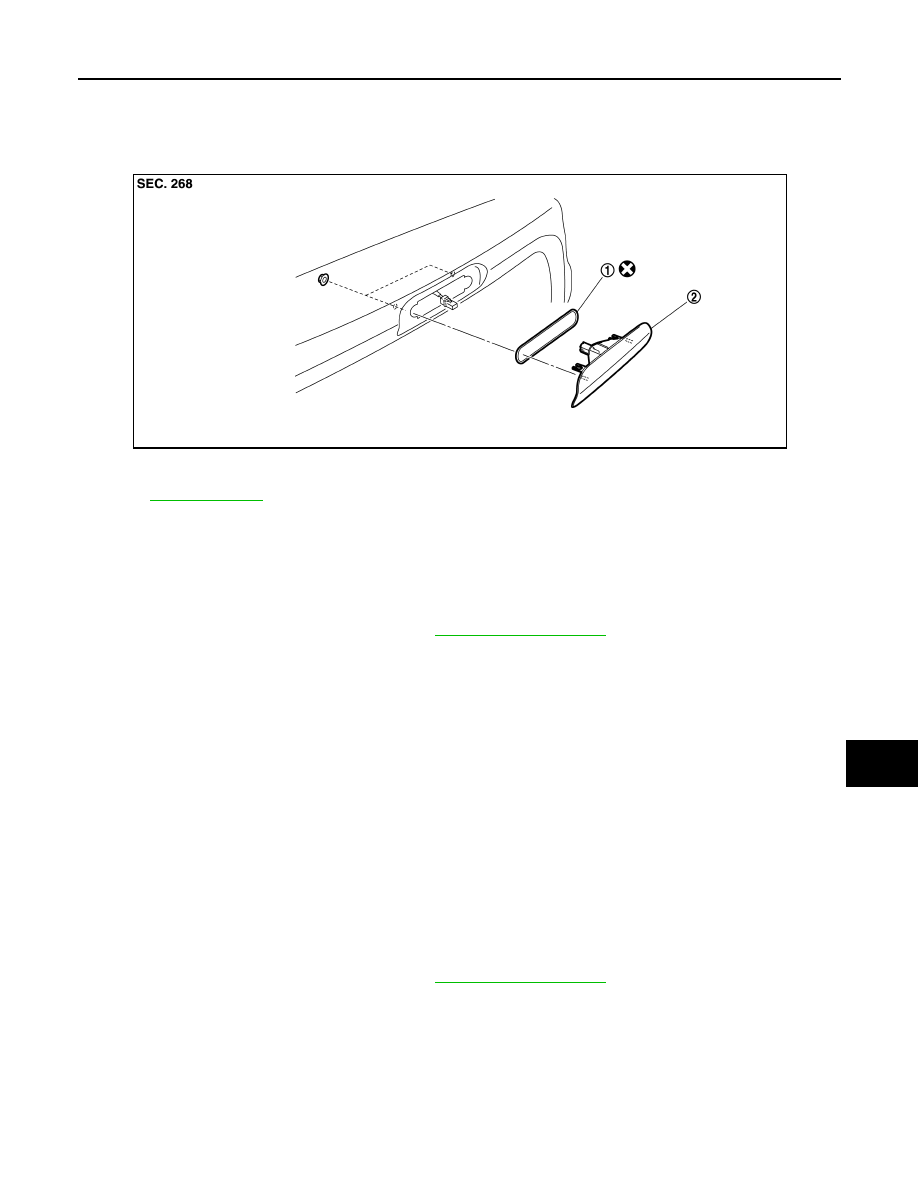

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000009945230

Removal and Installation

INFOID:0000000009945231

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door finisher upper. Refer to

INT-27, "Exploded View"

.

2.

Remove the mounting nuts.

3.

Disconnect the high-mounted stop lamp connector.

4.

Pull the high-mounted stop lamp toward rear of the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000009945232

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HIGH-MOUNTED STOP LAMP BULB

1.

Remove the back door finisher upper. Refer to

INT-27, "Exploded View"

.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols in the figure.
