Nissan Cube. Manual - part 481





EXL-198

< REMOVAL AND INSTALLATION >

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

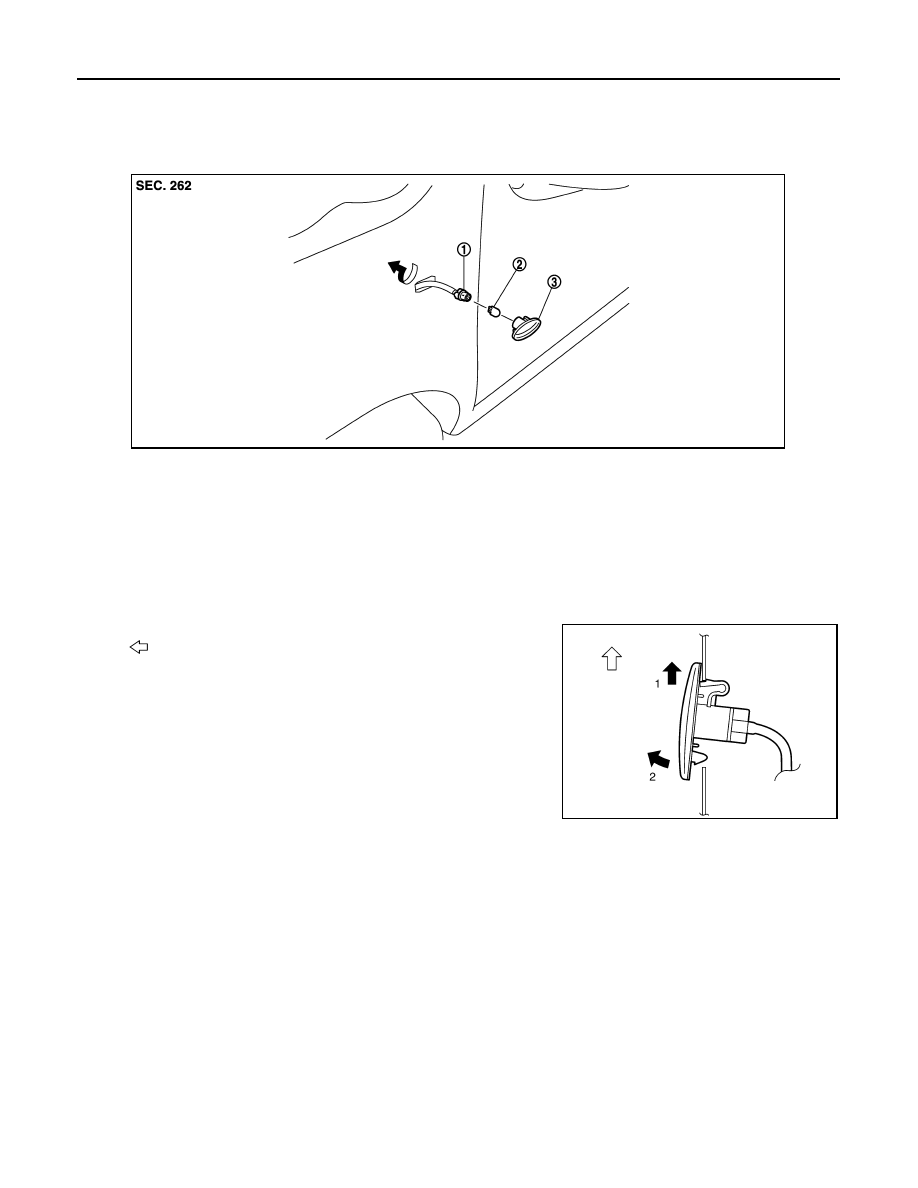

Exploded View

INFOID:0000000009945219

Removal and Installation

INFOID:0000000009945220

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the side turn signal lamp in numerical order shown in the figure.

2.

Rotate the bulb socket counterclockwise and unlock it.
NOTE:
Support side turn signal lamp harness with tape so that it won't
fall into the front fender.

INSTALLATION

1.

Rotate the bulb socket clockwise and lock it.

2.

Fix the pawl-side behind the side turn signal lamp housing first, then push the resin clip-side.

Replacement

INFOID:0000000009945221

CAUTION:

• Disconnect battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

SIDE TURN SIGNAL LAMP BULB

1.

Remove the side turn signal lamp.

2.

Rotate the bulb socket counterclockwise and unlock it.
NOTE:

1.

Side turn signal lamp bulb socket

2.

Side turn signal lamp bulb

3.

Side turn signal lamp housing

JPLIA1809ZZ

: Installable both direction

JSLIA0057ZZ

SIDE TURN SIGNAL LAMP

EXL-199

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Support the vehicle-side harness of the side turn signal lamp with tape so that it does not drop inside the
front fender.

3.

Remove the bulb from the bulb socket.

EXL-200

< REMOVAL AND INSTALLATION >

HAZARD SWITCH

HAZARD SWITCH

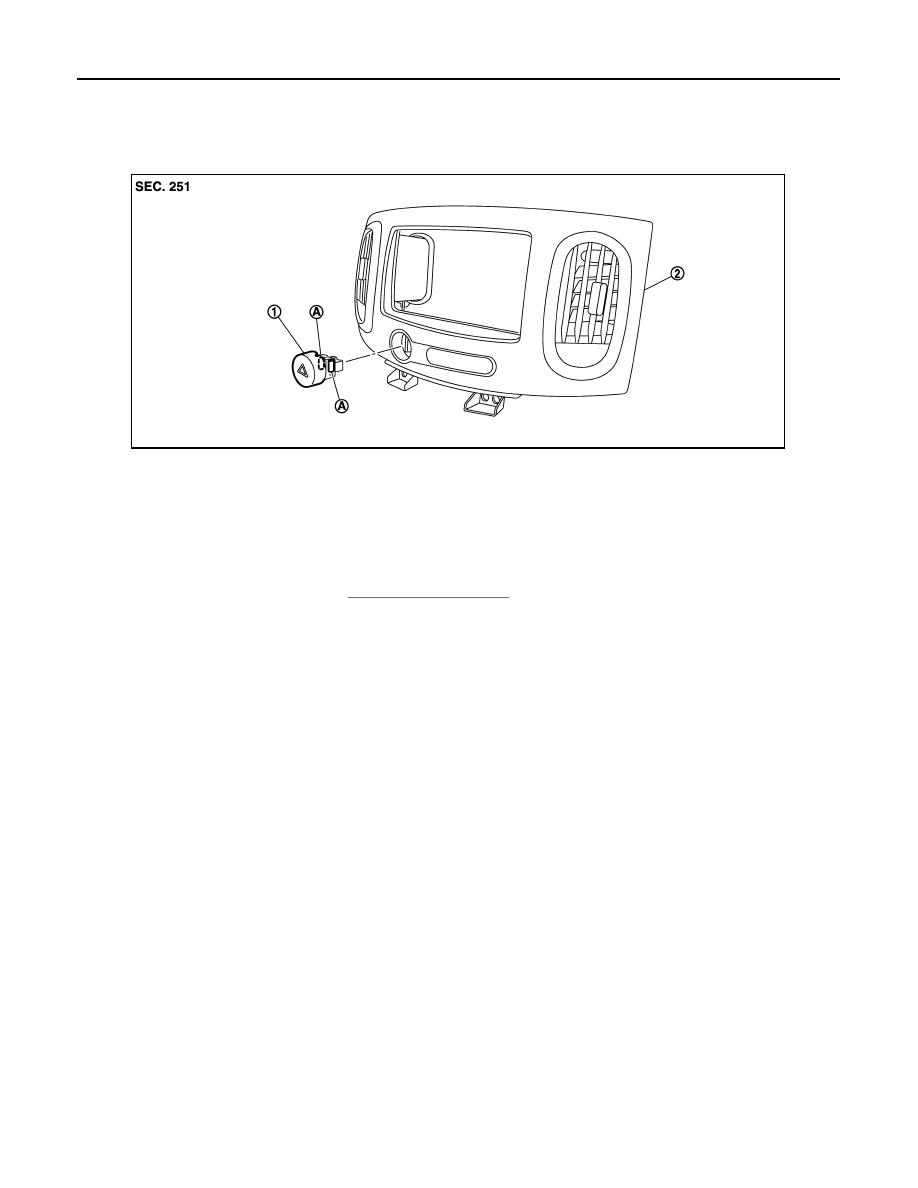

Exploded View

INFOID:0000000009945222

Removal and Installation

INFOID:0000000009945223

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-13, "Exploded View"

.

2.

While pressing pawls, push the hazard switch. And remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Hazard switch

2.

Cluster lid C

A.

Pawl

JPLIA1810ZZ

REAR COMBINATION LAMP

EXL-201

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

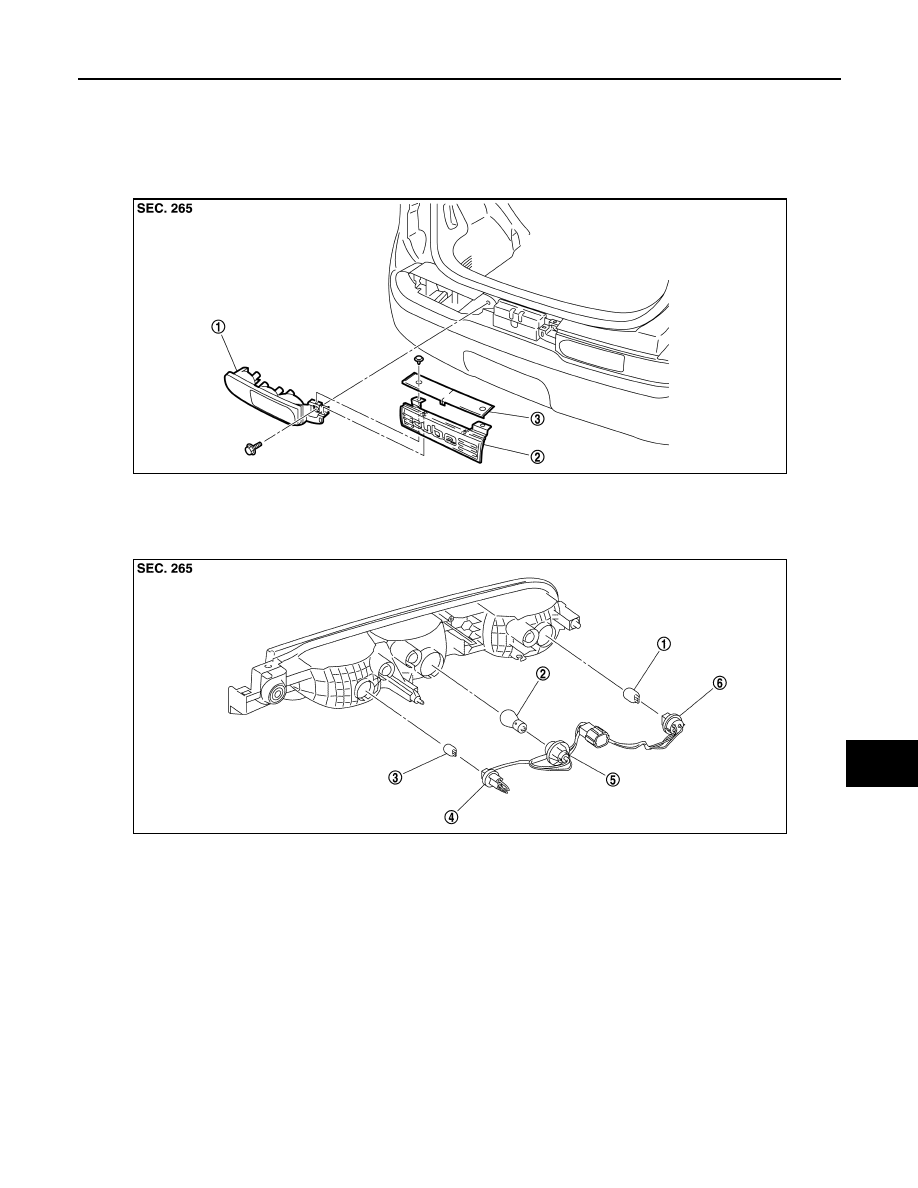

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009945224

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009945225

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Wrap the tip of remover tool with a cloth to protect the body from damage.

REMOVAL

1.

Remove rear back door finisher cover.

1.

Rear combination lamp

2.

Back door finisher

3.

Back door finisher cover

JPLIA1633ZZ

1.

Stop/tail lamp bulb

2.

Rear turn signal lamp bulb

3.

Reverse lamp bulb

4.

Reverse lamp bulb socket

5.

Rear turn signal lamp bulb socket

6.

Stop/tail lamp bulb socket

JPLIA1634ZZ
