EXL-190

< PERIODIC MAINTENANCE >

FRONT FOG LAMP AIMING ADJUSTMENT

A

: Cutoff line

B

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

FRONT COMBINATION LAMP

EXL-191

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

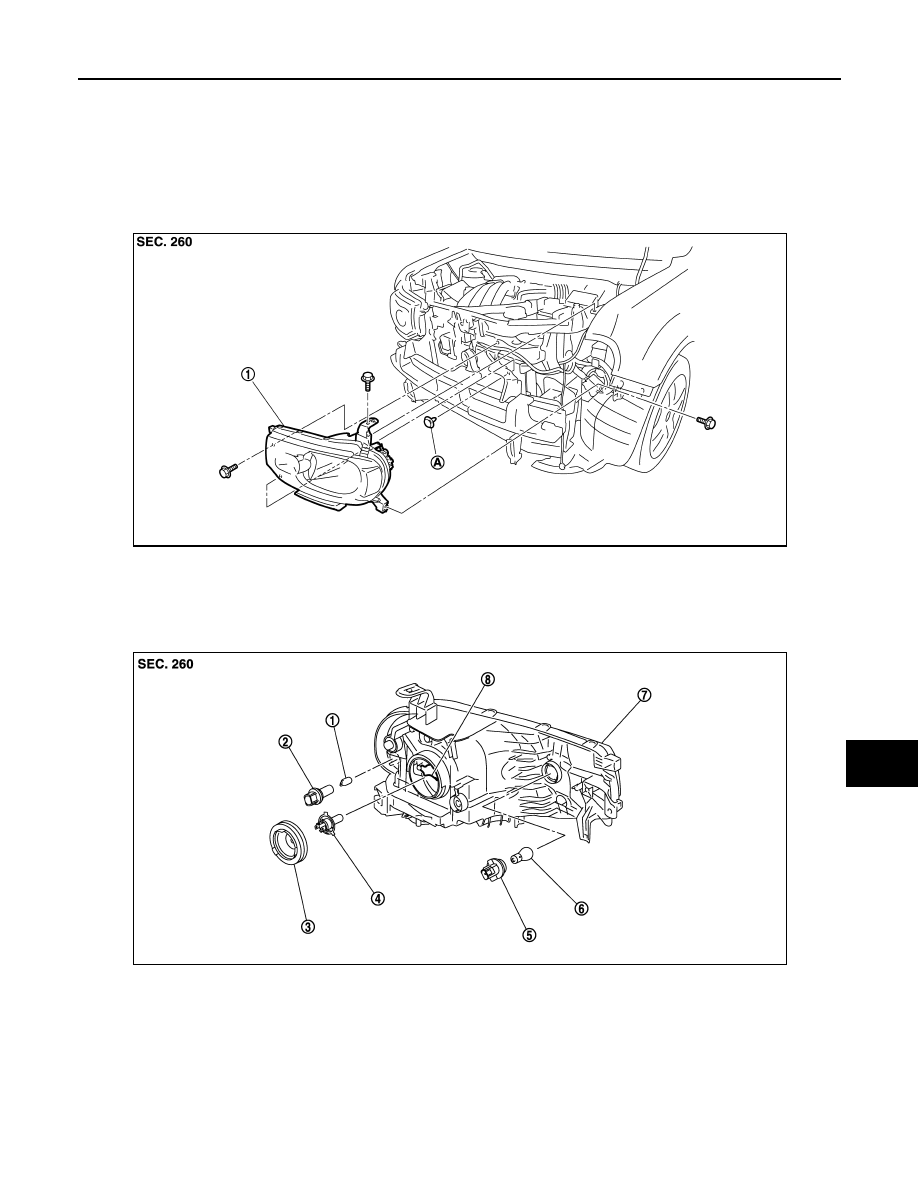

Exploded View

INFOID:0000000009945209

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009945210

REMOVAL

1.

Front combination lamp

A.

Air duct clip(only left)

JPLIA1726ZZ

1.

Parking(side marker) lamp bulb

2.

Parking(side marker)lamp bulb sock-
et

3.

Back cover

4.

Halogen bulb

5.

Front turn signal lamp bulb socket

6.

Front turn signal lamp bulb

7.

Headlamp housing assembly

8.

Retaining spring

JPLIA1807ZZ

EXL-192

< REMOVAL AND INSTALLATION >

FRONT COMBINATION LAMP

CAUTION:

Disconnect the battery negative terminal or the fuse.
1.

Remove front bumper fascia. Refer to

EXT-11, "Exploded View"

.

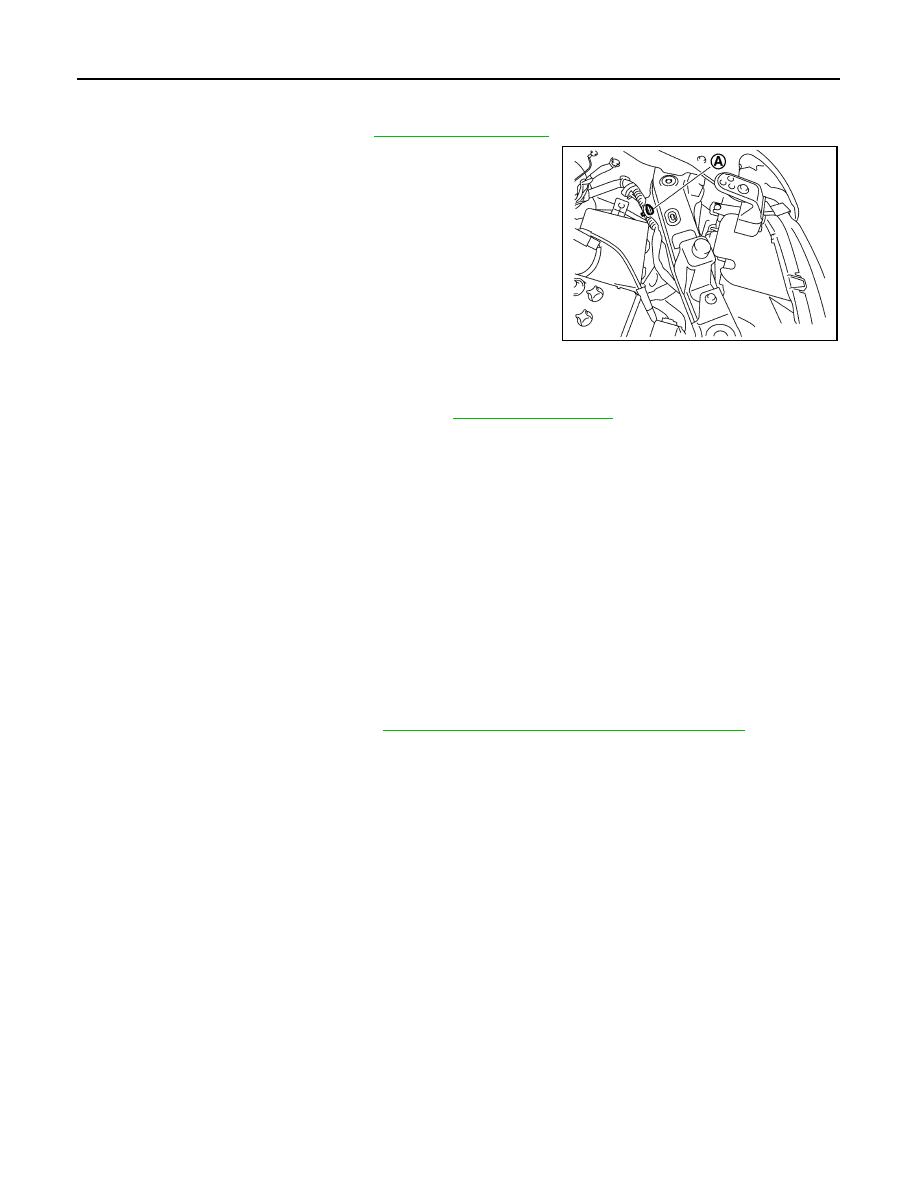

2.

Remove the harness clips (A)*.
*: When replace a left.

3.

Remove the air duct clip*.
*: When replace a left.

4.

Remove the headlamp mounting bolts.

5.

Pull out the headlamp assembly forward the vehicle.

6.

Disconnect the connector before removing the headlamp
assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-186, "Description"

.

Replacement

INFOID:0000000009945211

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB

1.

Disconnect the headlamp bulb connector.

2.

Remove the back cover.

3.

Remove the retaining spring lock. And remove the bulb from the headlamp housing assembly.

PARKING(FRONT SIDE MARKER) LAMP BULB

1.

Remove the fender protector. Refer to

EXT-21, "FENDER PROTECTOR : Exploded View"

. Keep a ser-

vice area.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000009945212

DISASSEMBLY

1.

Remove the back cover.

2.

Remove the retaining spring lock. And remove the bulb from the headlamp housing assembly.

3.

Rotate the parking(front side marker) lamp bulb socket counterclockwise and unlock it.

4.

Remove the bulb from the parking(front side marker) lamp bulb socket.

5.

Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

6.

Remove the bulb from the front turn signal lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

JPLIA1727ZZ

FRONT COMBINATION LAMP

EXL-193

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
