Nissan Cube. Manual - part 480





EXL-194

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000009945213

Removal and Installation

INFOID:0000000009945214

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove the fender protector. Refer to

EXT-21, "FENDER PROTECTOR : Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the front fog lamp mounting bolt.

4.

While pressing pawls, remove the front fog lamp.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-189, "Description"

.

Replacement

INFOID:0000000009945215

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the fender protector. Keep the service area.Refer to

EXT-21, "FENDER PROTECTOR :

Exploded View"

.

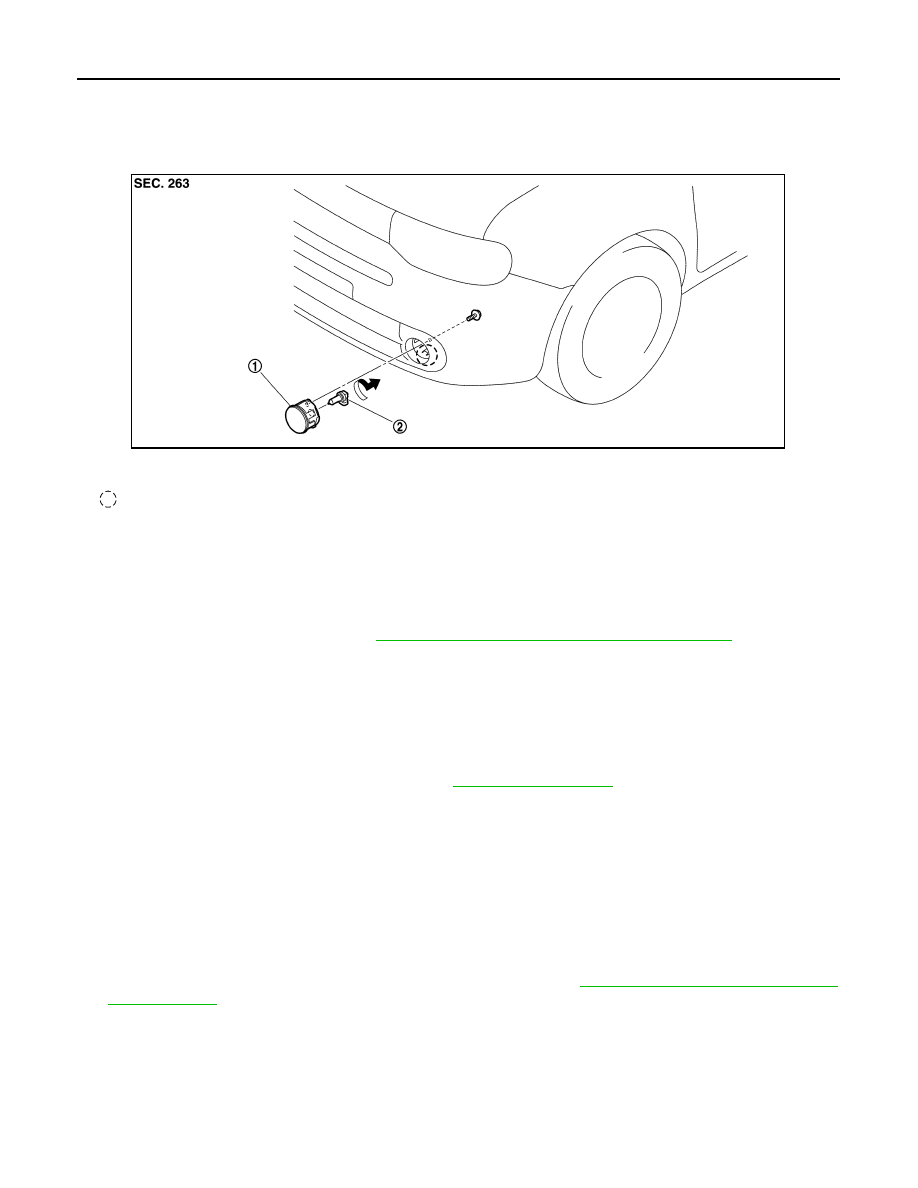

1.

Front fog lamp

2.

Front fog lamp bulb

: Pawl

JPLIA1632ZZ

FRONT FOG LAMP

EXL-195

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

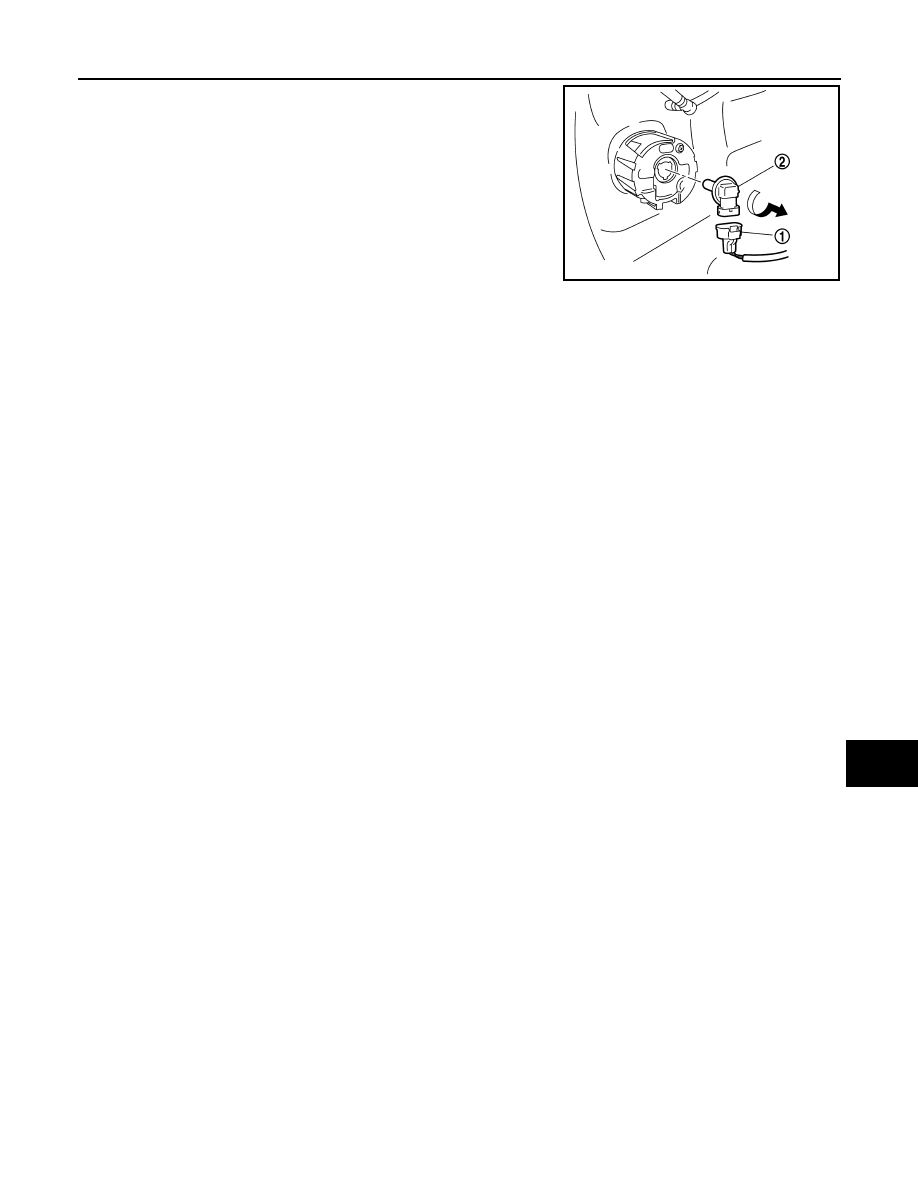

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0345ZZ

EXL-196

< REMOVAL AND INSTALLATION >

OPTICAL SENSOR

OPTICAL SENSOR

Exploded View

INFOID:0000000009945216

Removal and Installation

INFOID:0000000009945217

REMOVAL

1.

Remove the instrument mask.

2.

Disconnect the connector. Remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

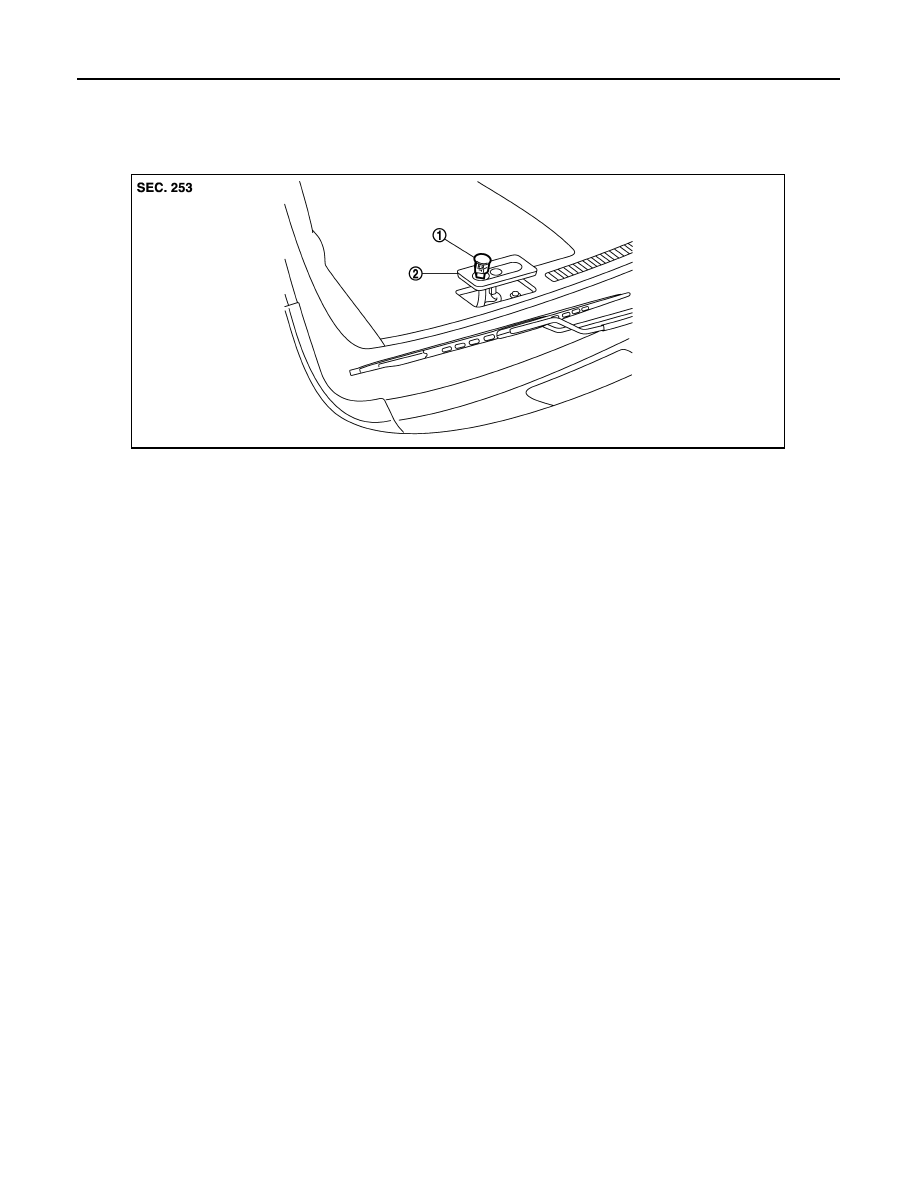

1.

Optical sensor

2.

Instrument mask

JPLIA1808ZZ

LIGHTING & TURN SIGNAL SWITCH

EXL-197

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000009945218

The lighting & turn switch is integrated in the combination switch. Refer to

BCS-89, "Exploded View"

.
