EXL-206

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

2.

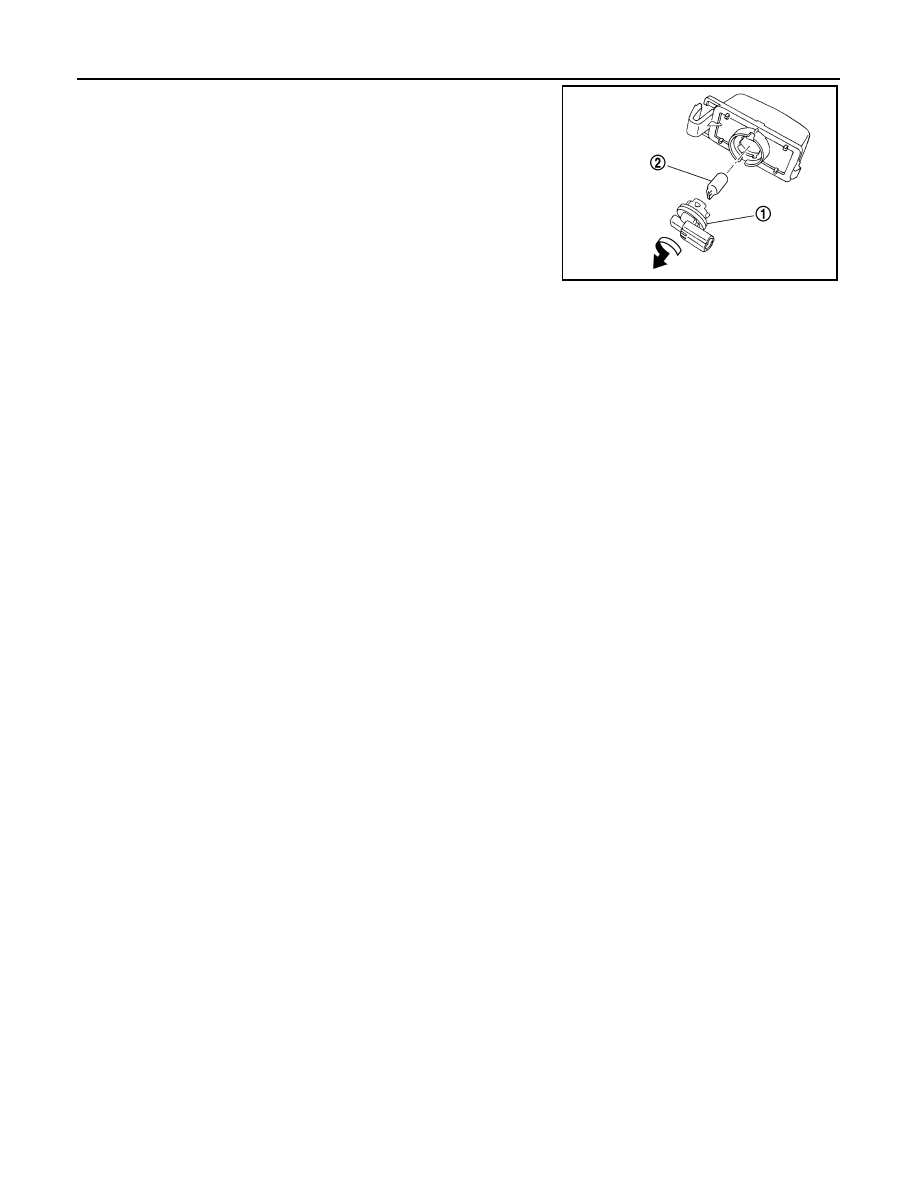

Rotate the bulb socket(1) counterclockwise, and unlock it.

3.

Remove the bulb from the bulb(2) socket.

JPLIA1728ZZ

LICENSE PLATE LAMP

EXL-207

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

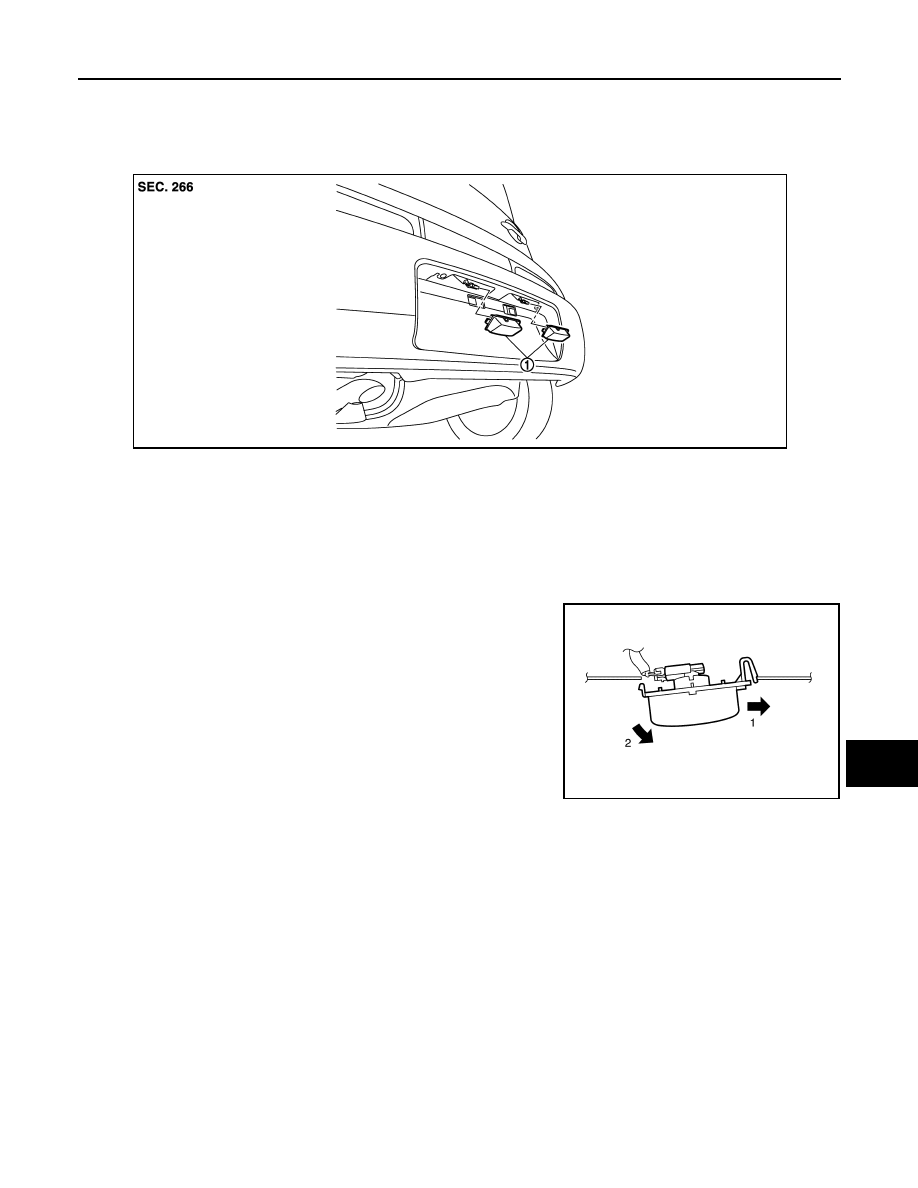

Exploded View

INFOID:0000000009945233

Removal and Installation

INFOID:0000000009945234

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the license plate lamp in numerical order.

2.

Disconnect the license plate lamp connector.

3.

Remove the license plate lamp.

INSTALLATION

1.

Connect the license plate lamp connector.

2.

Fix the pawl side. And then push the resin clip side.

Replacement

INFOID:0000000009945235

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the license plate lamp.

1.

License plate lamp

JPLIA1813ZZ

JPLIA0056ZZ

EXL-208

< REMOVAL AND INSTALLATION >

LICENSE PLATE LAMP

2.

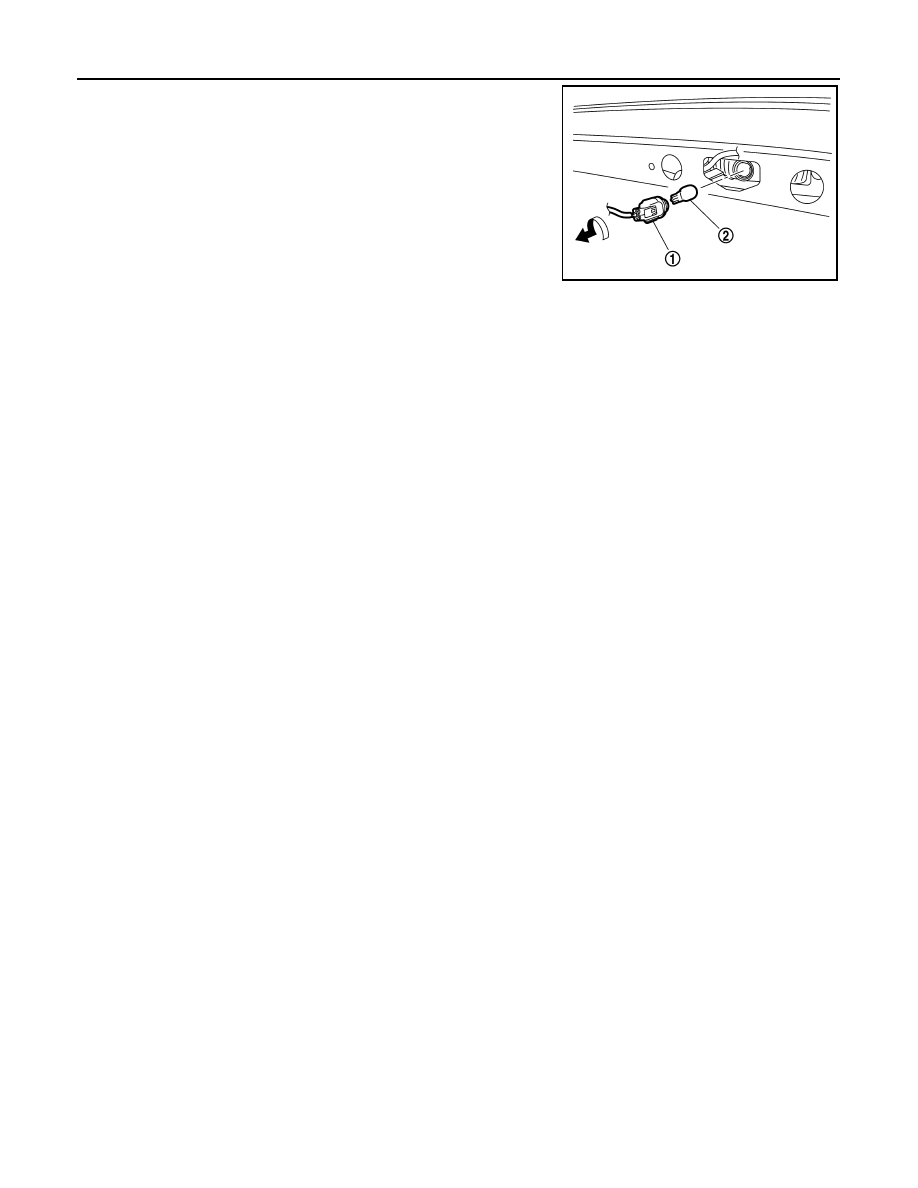

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

JPLIA0055ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-209

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009945236

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI/LO)

H4

60/55

Front turn signal lamp

PY21W (Amber)

21

Parking(front side marker)
lamp

W5W

5

Front fog lamp

H8

35

Side turn signal lamp

WY5W (Amber)

5

Rear combination lamp

Stop lamp/Tail lamp

W21/5W

21/5

Rear turn signal lamp

PY21W

16

Back-up lamp

W16W

21

License plate lamp

W5W

5

High-mounted stop lamp

W16W

—

Rear side marker lamp

W5W

5
