DLK-366

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

INSIDE HANDLE

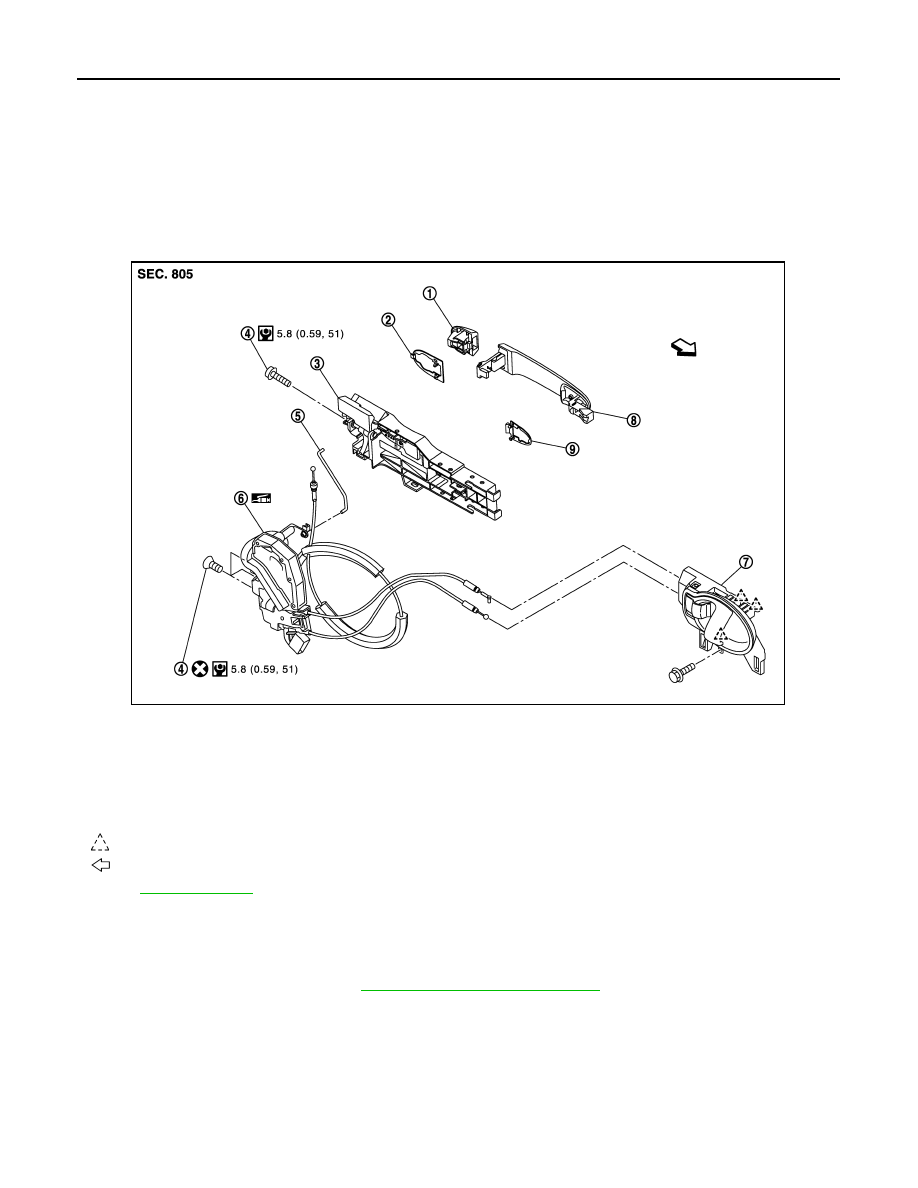

INSIDE HANDLE : Exploded View

INFOID:0000000009950820

INSIDE HANDLE : Removal and Installation

INFOID:0000000009950821

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Remove inside handle mounting bolts, slide handle toward rear of vehicle, disengage handle from door
panel, and remove inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle

8.

Outside handle

9.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3960GB

FRONT DOOR LOCK

DLK-367

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

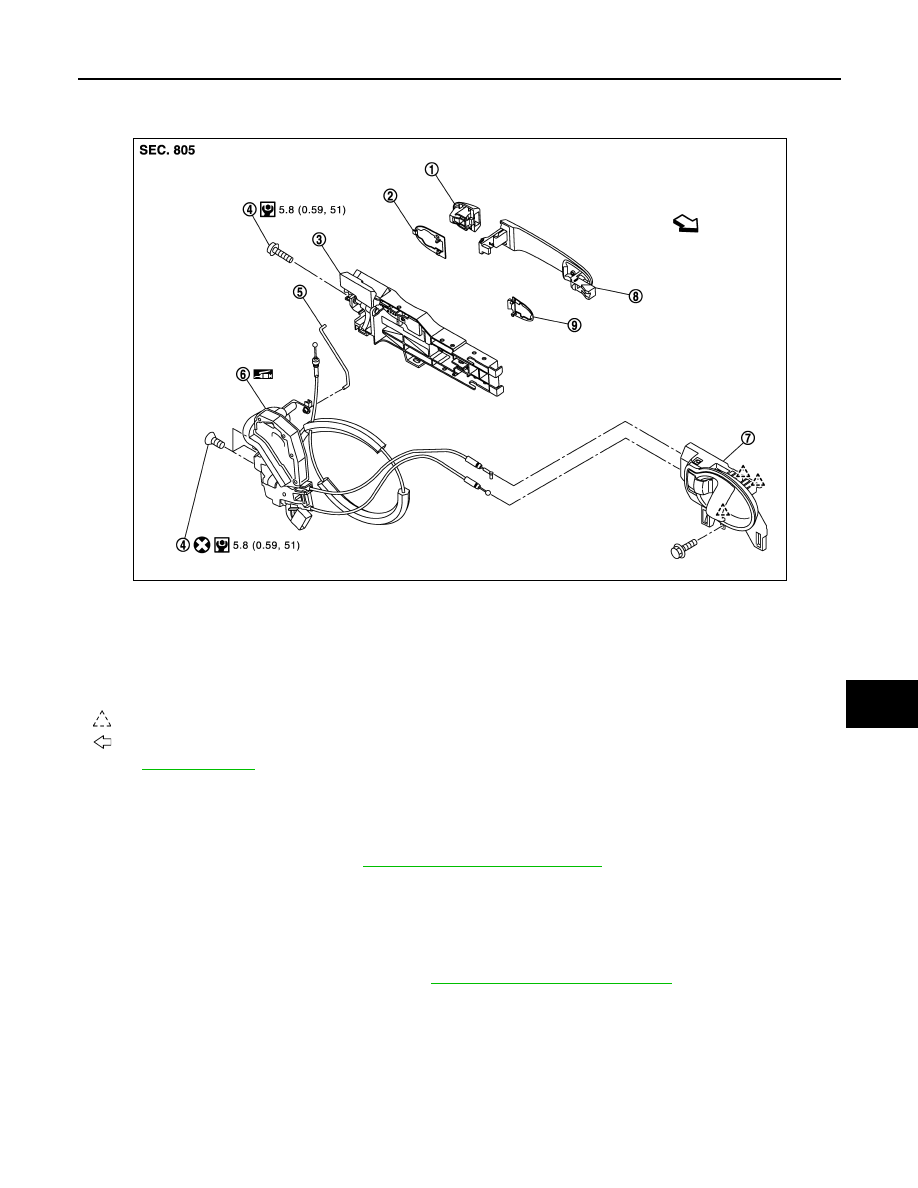

OUTSIDE HANDLE : Exploded View

INFOID:0000000009950822

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009950823

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Fully close the front door glass.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove front door lower sash (rear). Refer to

GW-18, "Removal and Installation"

.

5.

Disconnect key rod (driver side).

6.

Disconnect door antenna and door request switch connector and remove harness clamp (with Intelligent
Key system) on outside handle bracket.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle

8.

Outside handle

9.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3960GB

DLK-368

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

7.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

8.

While pulling outside handle, remove door key cylinder assem-
bly (diver side) or outside handle escutcheon (passenger side).

9.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

10. Remove front gasket and rear gasket.
11. While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

12. Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

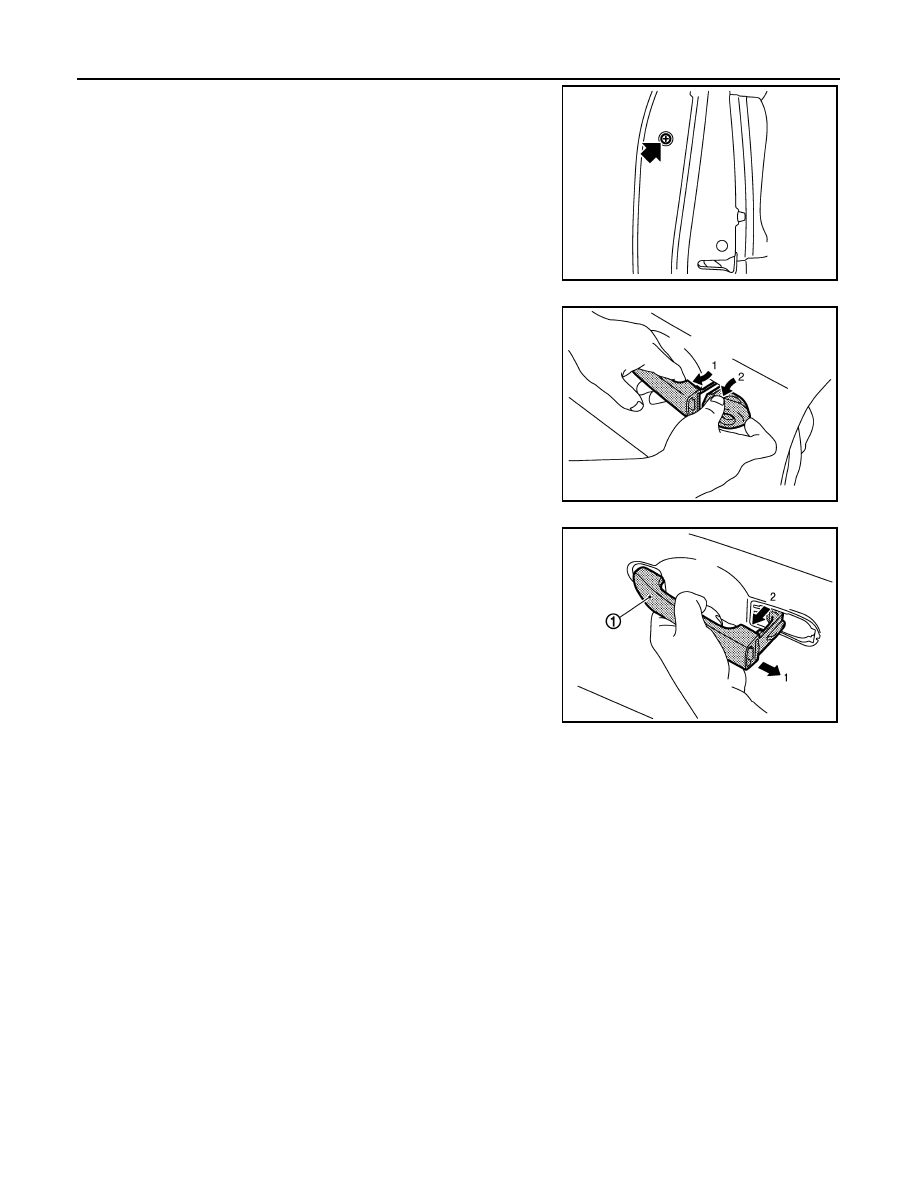

JMKIA0020ZZ

JMKIA0560ZZ

JMKIA0524ZZ

REAR DOOR LOCK

DLK-369

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

DOOR LOCK

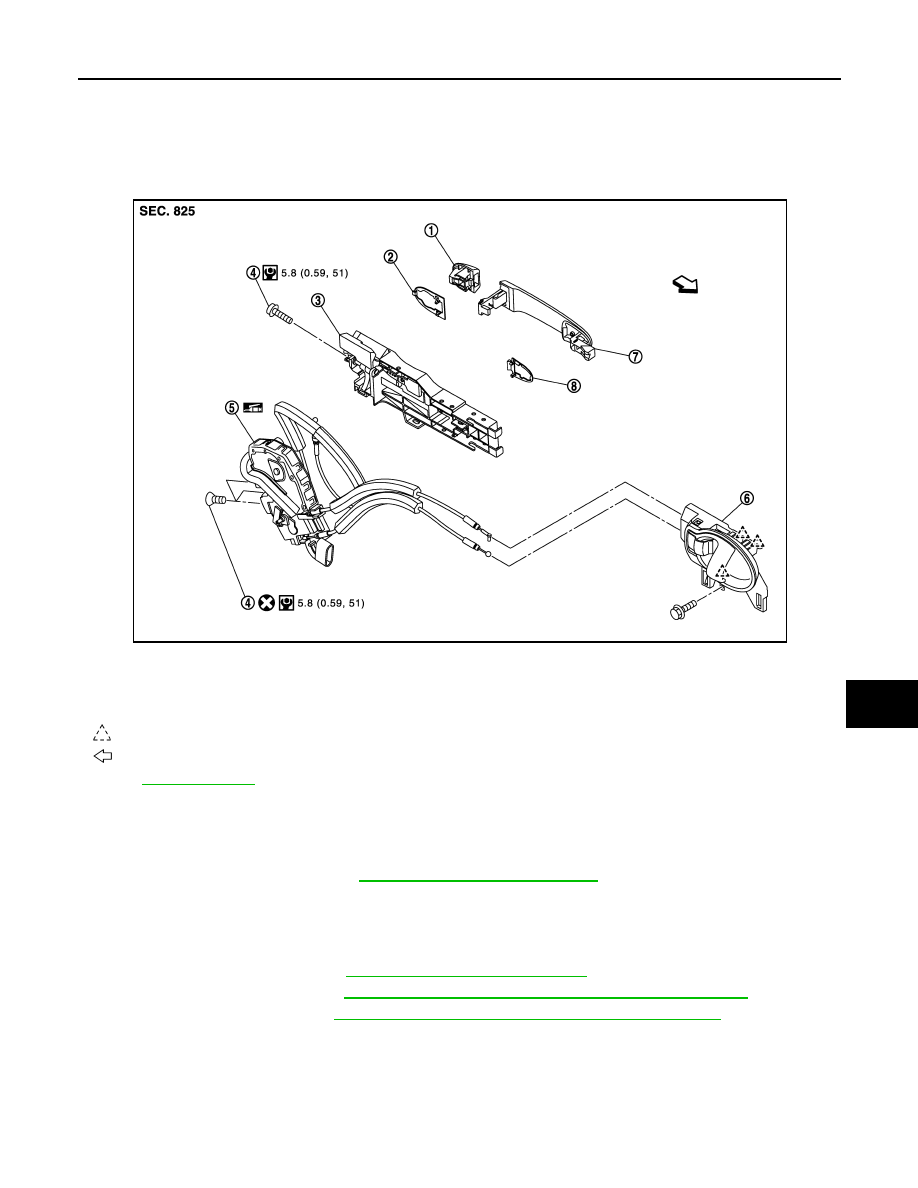

DOOR LOCK : Exploded View

INFOID:0000000009950824

DOOR LOCK : Removal and Installation

INFOID:0000000009950825

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove rear door glass. Refer to

GW-23, "Removal and Installation"

.

4.

Remove outside handle. Refer to

DLK-371, "OUTSIDE HANDLE : Removal and Installation"

.

5.

Remove inside handle. Refer to

DLK-370, "INSIDE HANDLE : Removal and Installation"

.

6.

Remove door lock assembly TORX bolts.

7.

Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle

7.

Outside handle

8.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3961GB
