BACK DOOR

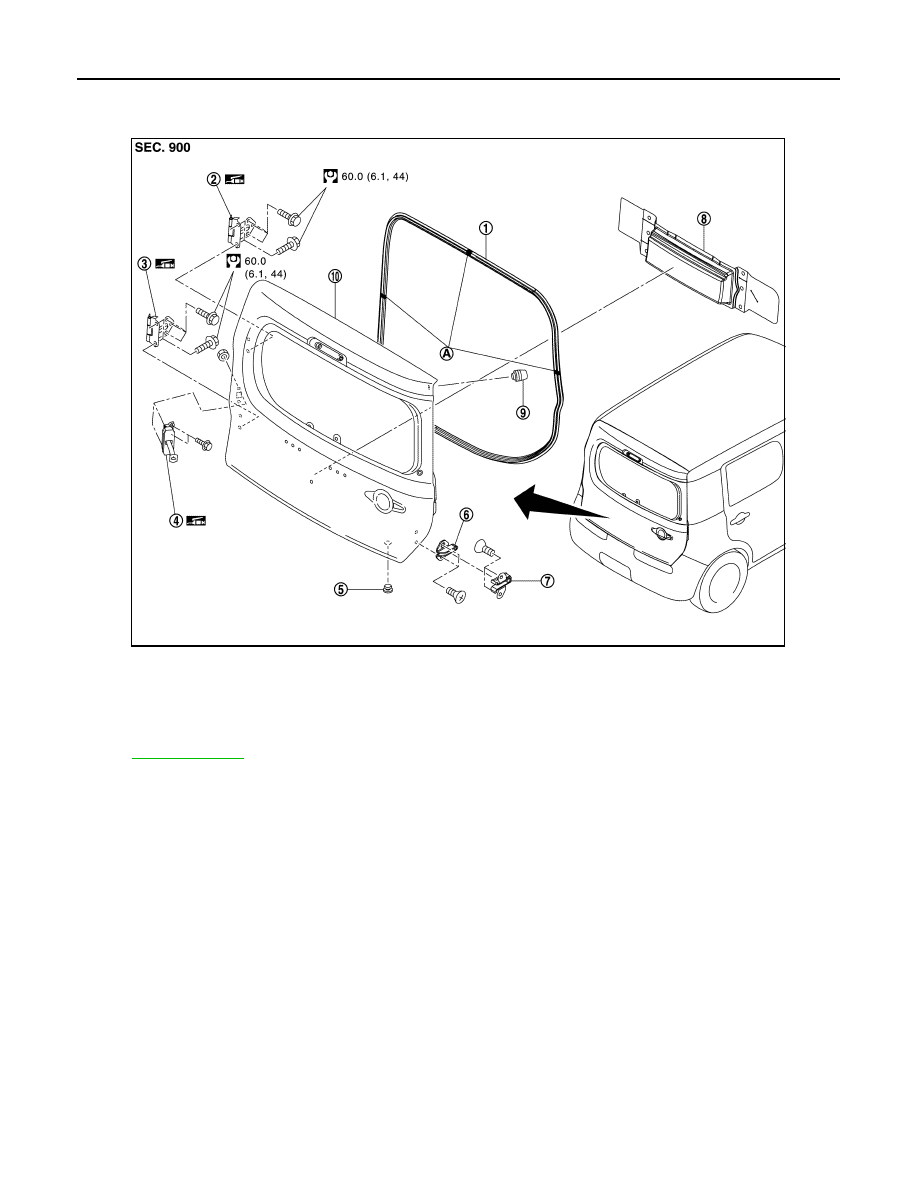

BACK DOOR WEATHER-STRIP : Exploded View

INFOID:0000000009950813

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000009950814

REMOVAL

1.

Pull and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1.

Working from the upper section, align weather-strip center mark (A) with vehicle center mark (cutting posi-
tion) and install weather-strip onto the vehicle.

2.

Pull weather-strip gently to ensure that there is no loose section.
NOTE:
Make sure that weather-strip is fit tightly at each corner and luggage rear plate.

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB

HOOD LOCK

DLK-363

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

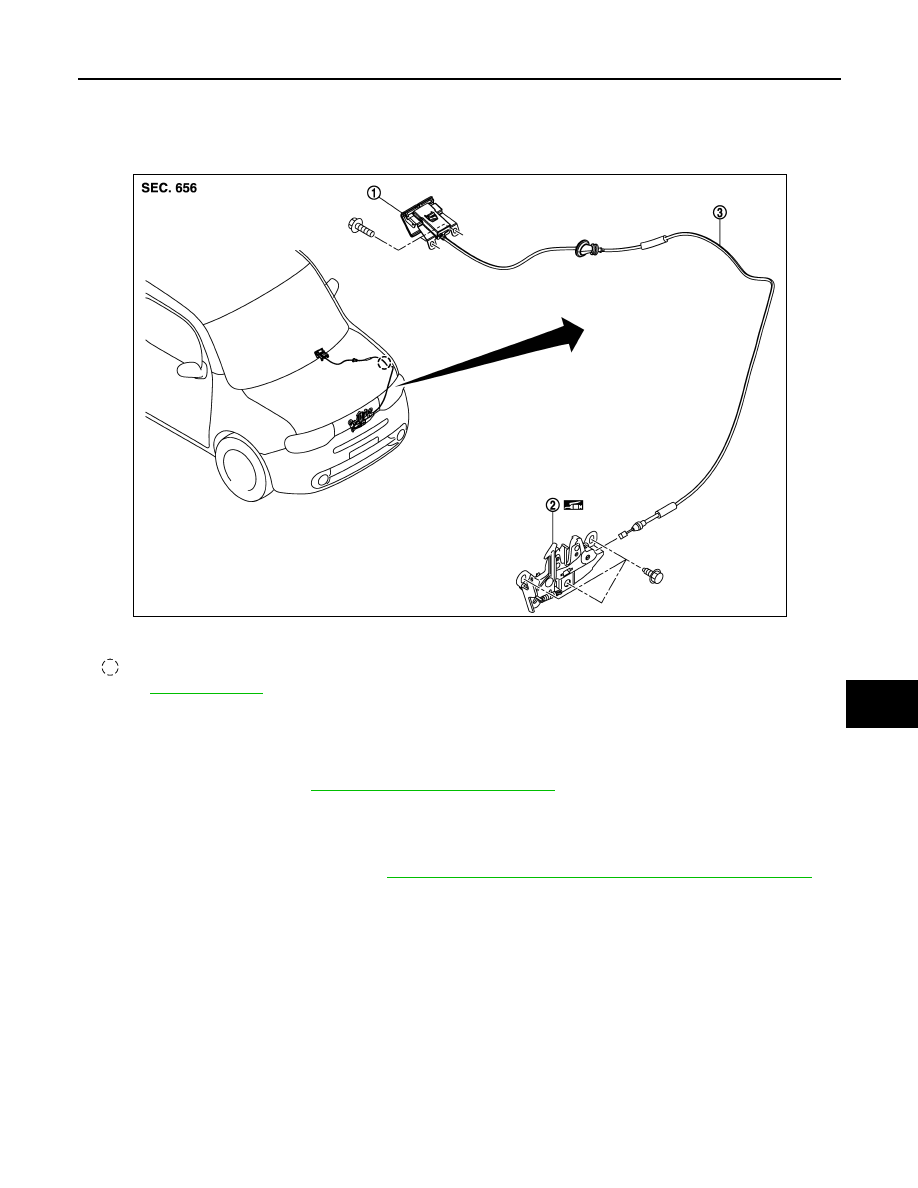

Exploded View

INFOID:0000000009950815

Removal and Installation

INFOID:0000000009950816

REMOVAL

1.

Remove front grille. Refer to

EXT-17, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove hood lock assembly.

3.

Disconnect hood lock cable from hood lock assembly.

4.

Remove hood lock cable clip.

5.

Remove fender protector (LH). Refer to

EXT-21, "FENDER PROTECTOR : Removal and Installation"

.

6.

Remove hood lock opener lever.

7.

Disconnect hood lock cable from hood lock opener lever.

8.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.

1.

Hood lock opener lever

2.

Hood lock assembly

3.

Hood lock control cable

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3959ZZ

DLK-364

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD LOCK

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-335, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-364, "Inspection"

.

Inspection

INFOID:0000000009950817

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] by hood
weight.

2.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

3.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m, 69 – 361 ft – lb).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Never press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.

PIIB5801E

FRONT DOOR LOCK

DLK-365

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

DOOR LOCK

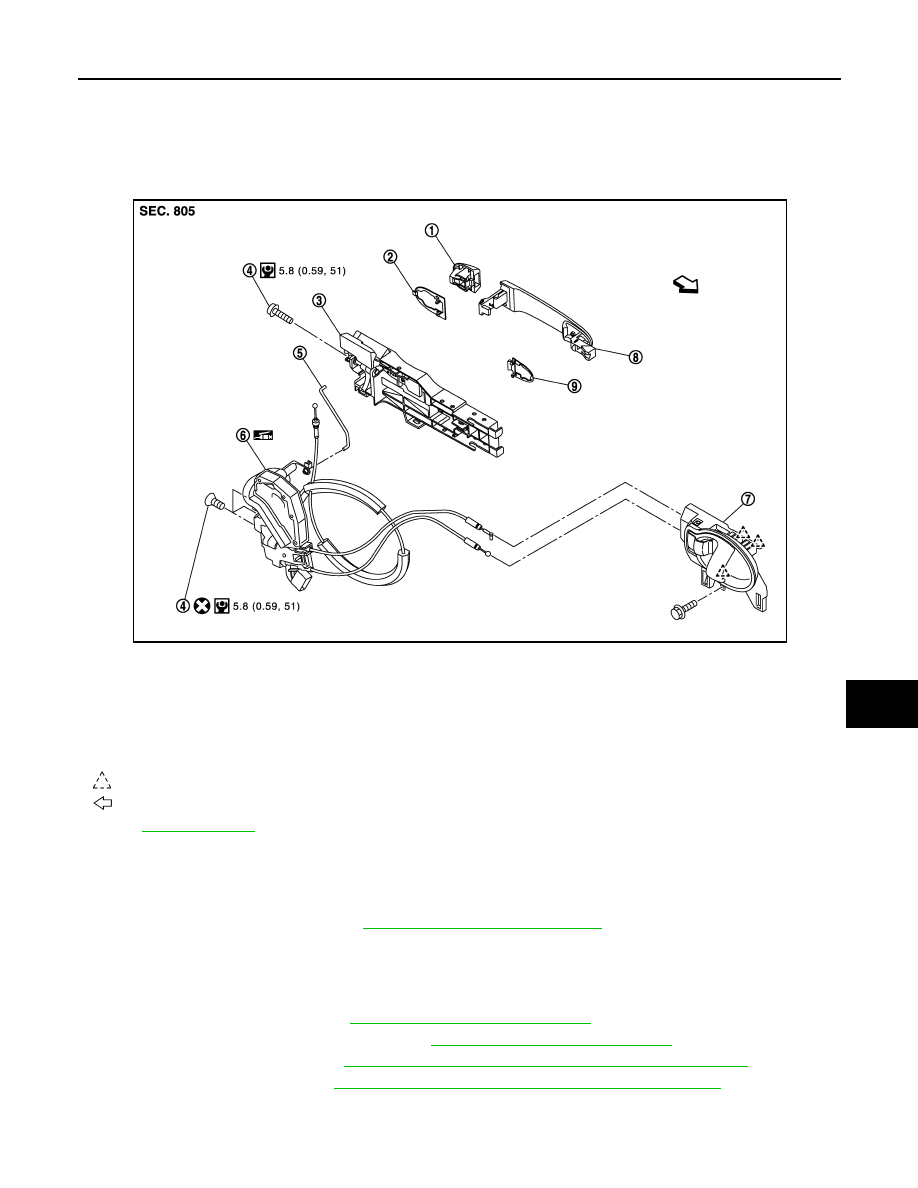

DOOR LOCK : Exploded View

INFOID:0000000009950818

DOOR LOCK : Removal and Installation

INFOID:0000000009950819

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove front door glass. Refer to

GW-18, "Removal and Installation"

.

4.

Remove front door lower sash (rear). Refer to

GW-18, "Removal and Installation"

.

5.

Remove outside handle. Refer to

DLK-367, "OUTSIDE HANDLE : Removal and Installation"

.

6.

Remove inside handle. Refer to

DLK-366, "INSIDE HANDLE : Removal and Installation"

.

7.

Remove door lock assembly TORX bolts.

8.

Disconnect door lock actuator connector, and then remove door lock assembly.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle

8.

Outside handle

9.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3960GB
