Nissan Cube. Manual - part 273

DLK-358

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR STRIKER : Exploded View

INFOID:0000000009950805

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000009950806

REMOVAL

Remove mounting bolts, and then remove back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• When removing and installing back door striker, be sure to perform the fitting adjustment. Refer to

DLK-356, "BACK DOOR ASSEMBLY : Adjustment"

.

BACK DOOR HINGE

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB

BACK DOOR

DLK-359

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

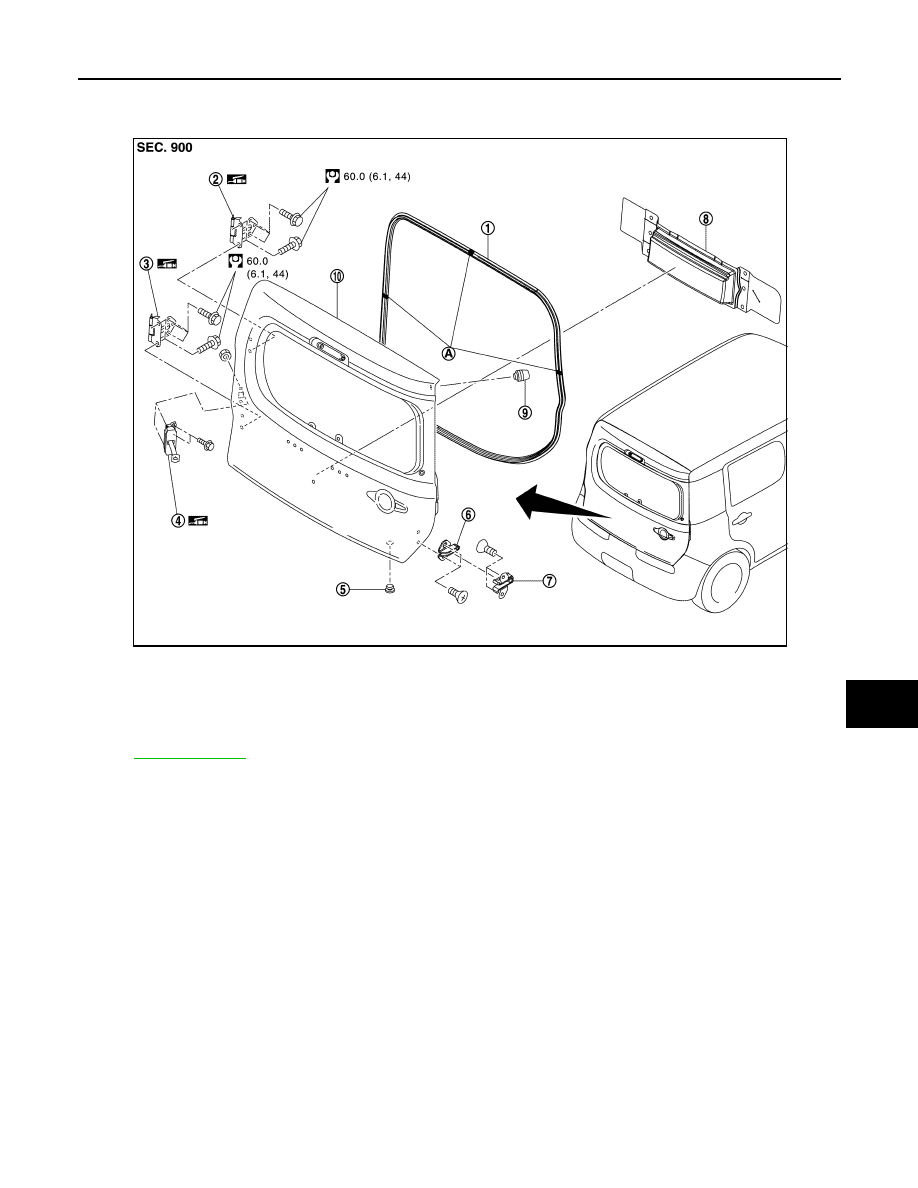

BACK DOOR HINGE : Exploded View

INFOID:0000000009950807

BACK DOOR HINGE : Removal and Installation

INFOID:0000000009950808

CAUTION:

Perform work with 2 workers, because of its heavy weight.

REMOVAL

1.

Remove back door assembly. Refer to

DLK-354, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove back door hinge mounting bolts (body side), and then remove back door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing back door assembly, perform the fitting adjustment. Refer to

DLK-356,

"BACK DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of back door hinge mounting

nuts.

DOOR CHECK LINK

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB

DLK-360

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

DOOR CHECK LINK : Exploded View

INFOID:0000000009950809

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009950810

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some part of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove mounting bolts of door check link on the vehicle.

4.

Remove mounting nuts of door check link on the back door panel.

5.

Take door check link out from the hole of back door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check back door open/close operation after installation.

DOVETAIL

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB

BACK DOOR

DLK-361

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOVETAIL : Exploded View

INFOID:0000000009950811

DOVETAIL : Removal and Installation

INFOID:0000000009950812

REMOVAL

1.

Remove mounting bolts, and then remove dovetai (male).

2.

Remove mounting bolts, and then remove dovetai (female).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check back door open/close operation after installation.

BACK DOOR WEATHER-STRIP

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB
