REAR DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009950795

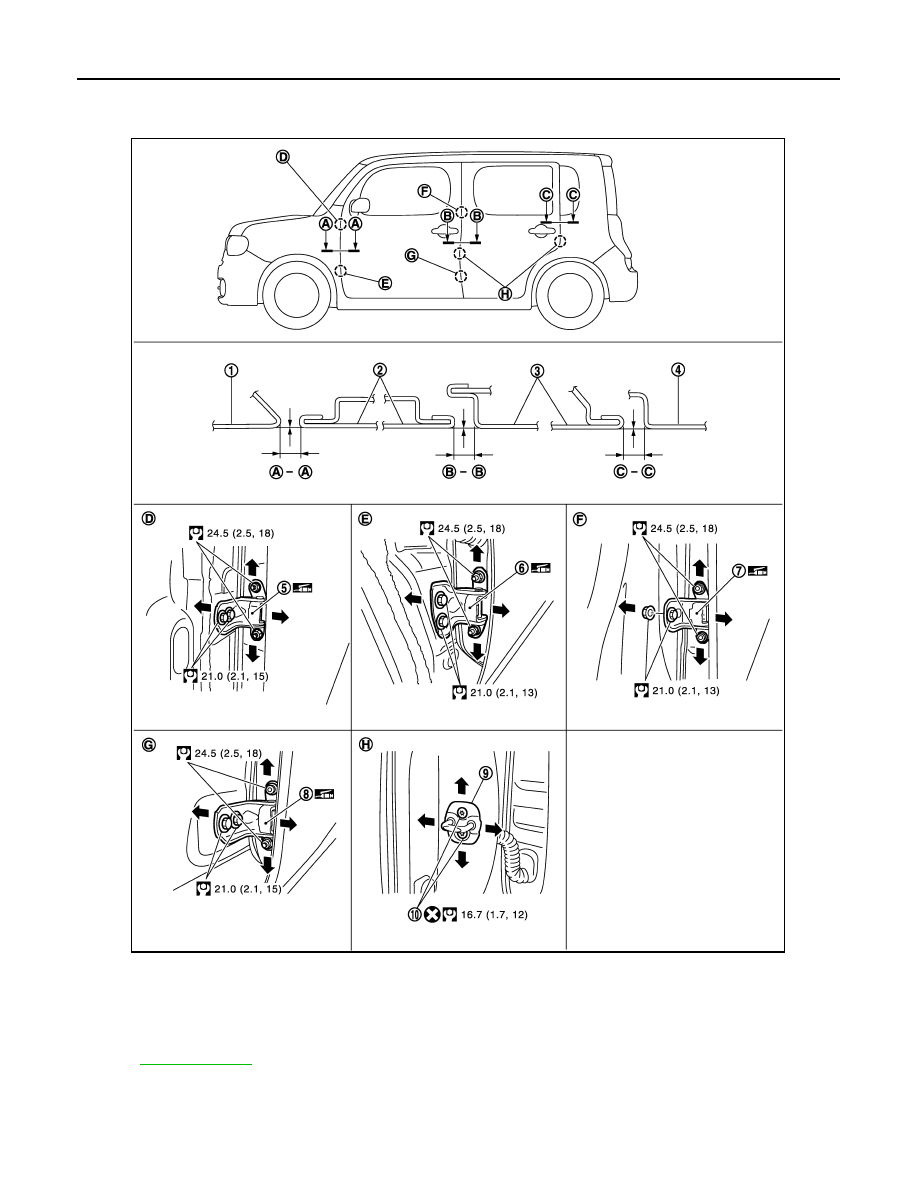

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge (upper)

6.

Front door hinge (lower)

7.

Rear door hinge (upper)

8.

Rear door hinge (lower)

9.

Door striker

10.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3837GB

REAR DOOR

DLK-351

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm (in)

1.

Remove center pillar garnish (upper/lower). Refer to

INT-16, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install center pillar garnish (upper/lower). Refer to

INT-16, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

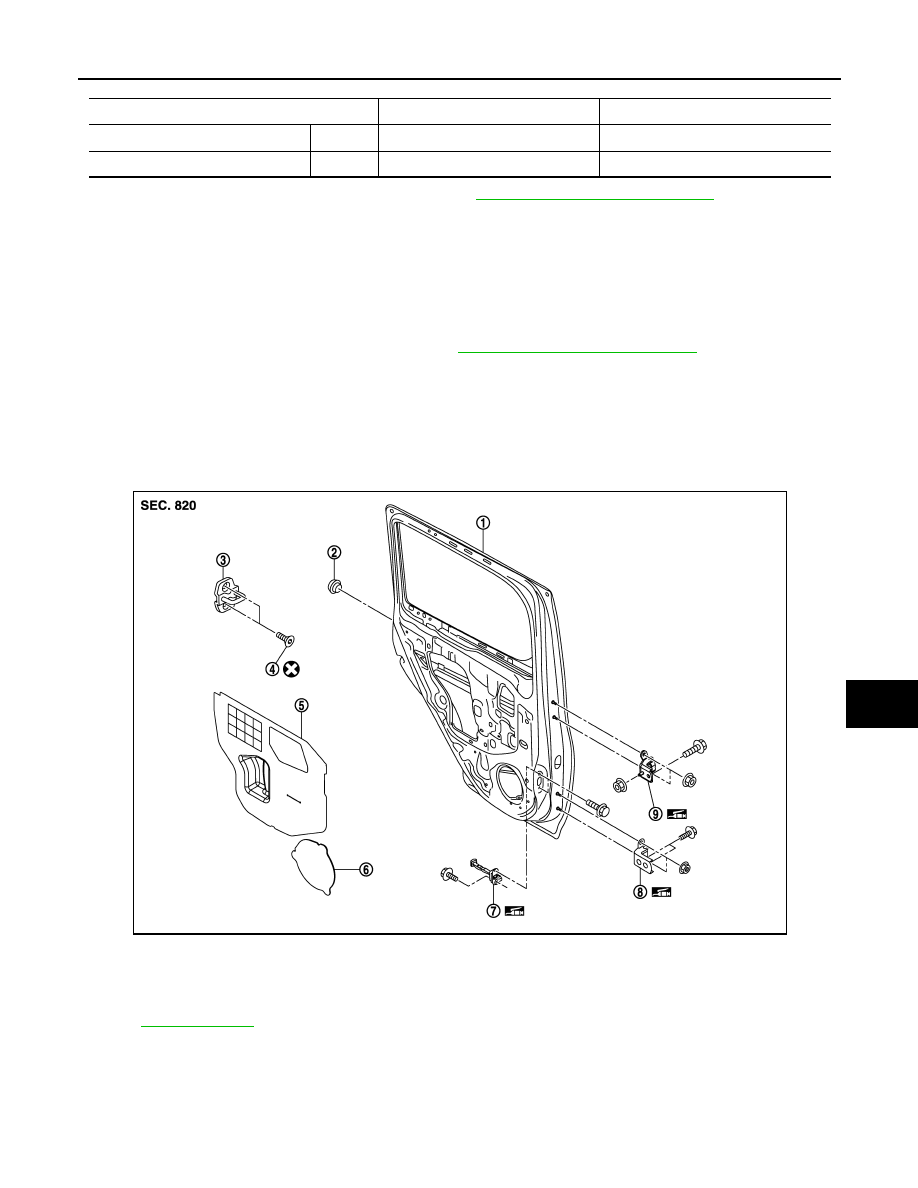

DOOR STRIKER : Exploded View

INFOID:0000000009950796

DOOR STRIKER : Removal and Installation

INFOID:0000000009950797

REMOVAL

Remove TORX bolts, and then remove door striker.

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

3.5 – 5.5 (0.138 – 0.217)

-1.0 – 1.0 (-0.039 – 0.039)

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3957ZZ
