Nissan Cube. Manual - part 270

DLK-346

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-344, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

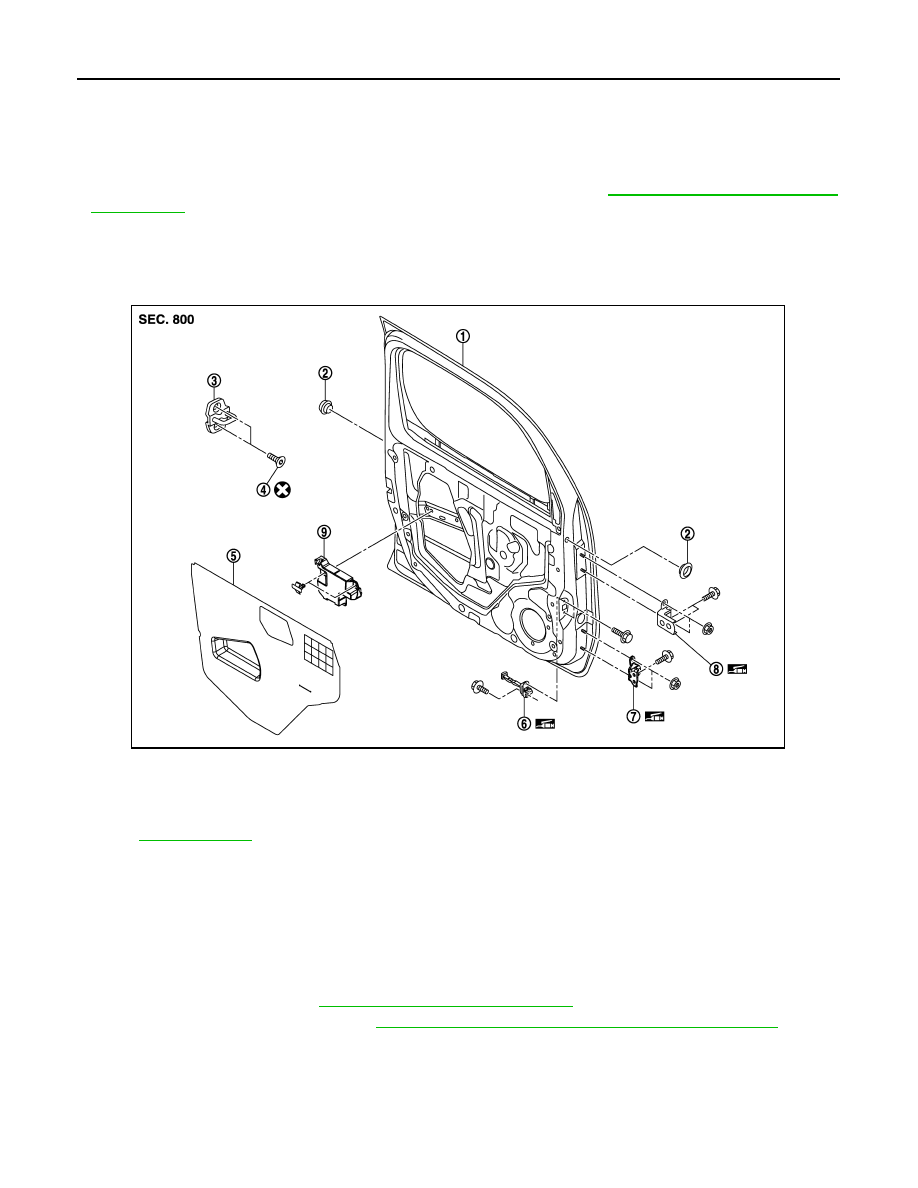

DOOR HINGE : Exploded View

INFOID:0000000009950789

DOOR HINGE : Removal and Installation

INFOID:0000000009950790

REMOVAL

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-341, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-343, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3956ZZ

FRONT DOOR

DLK-347

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-344, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

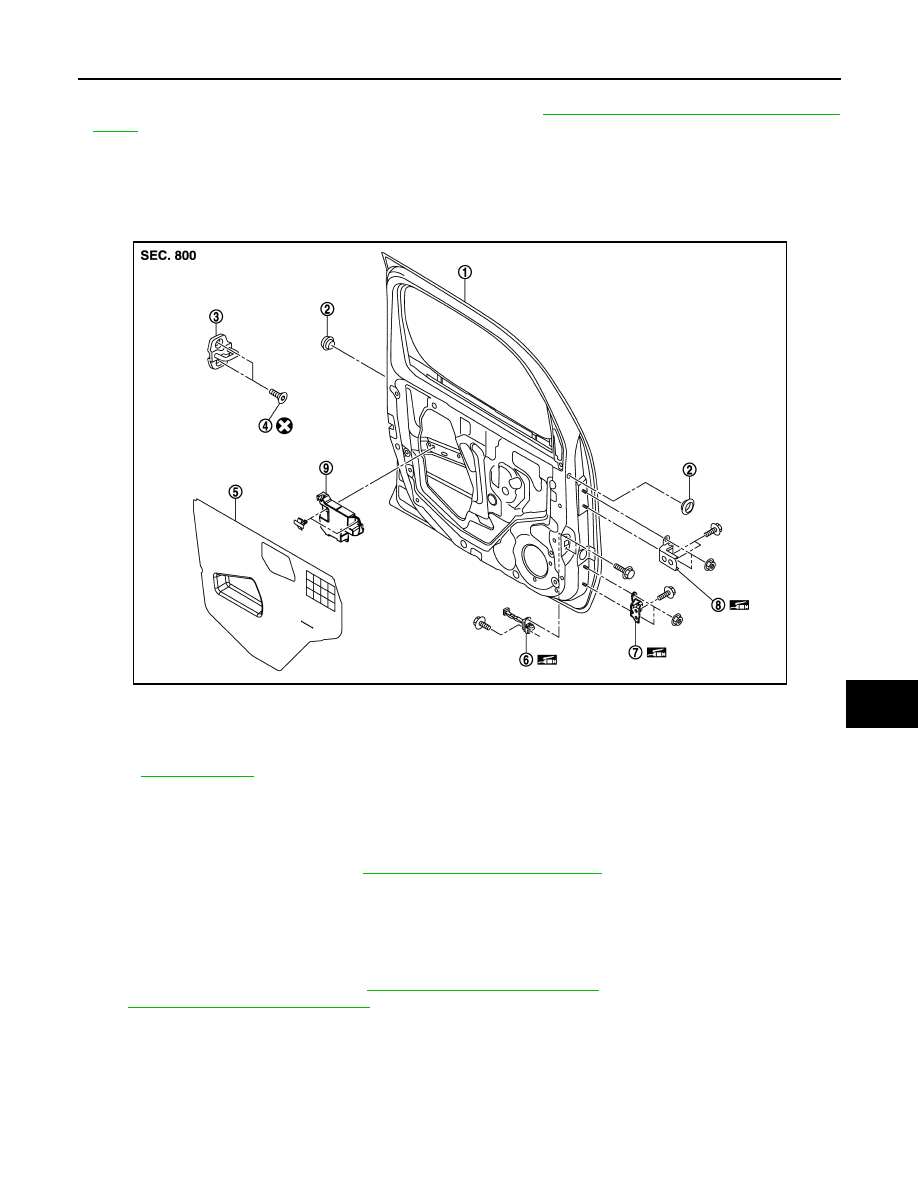

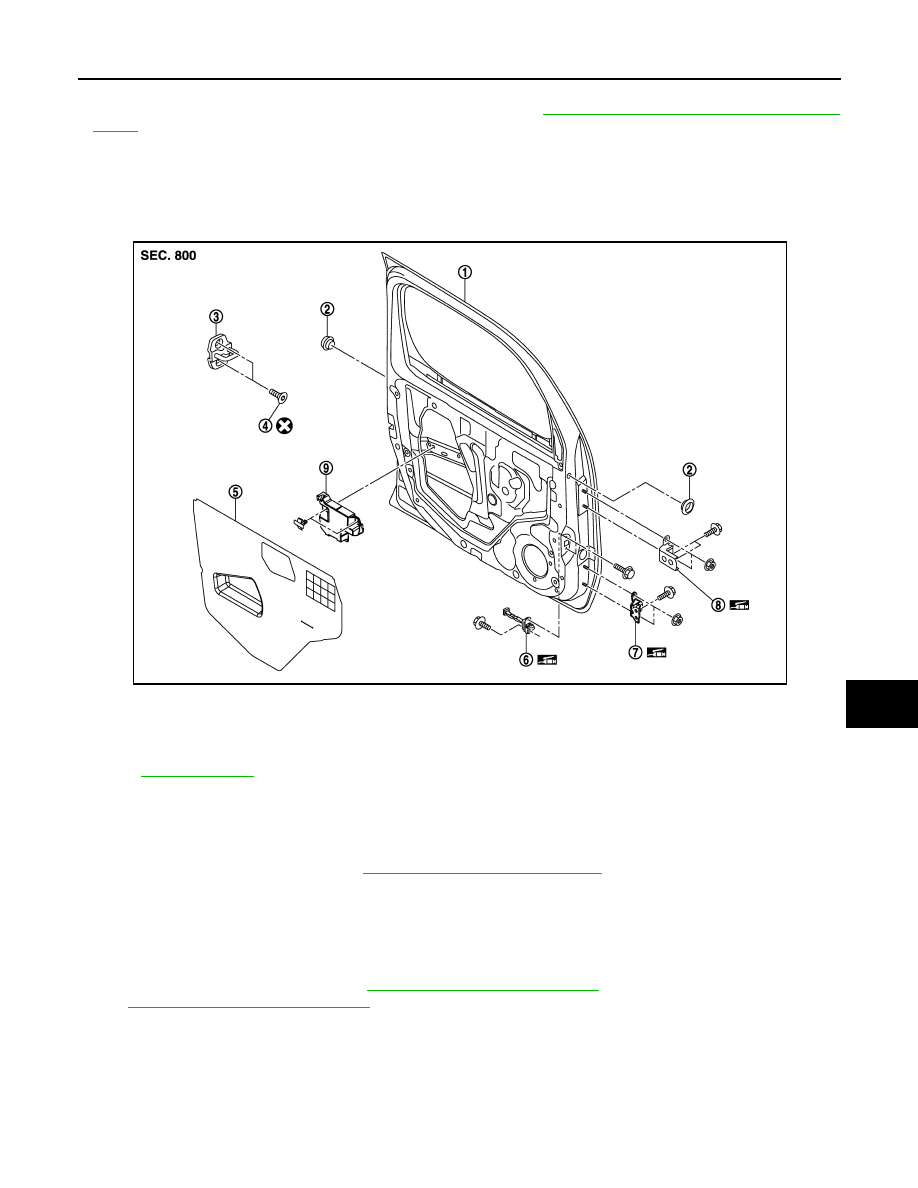

DOOR CHECK LINK : Exploded View

INFOID:0000000009950791

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009950792

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove front door speaker. Refer to

AV-62, "Removal and Installation"

 (AUDIO WITHOUT NAVIGATION)

or

AV-133, "Removal and Installation"

 (AUDIO WITH NAVIGATION).

5.

Remove mounting bolts of door check link on the vehicle.

6.

Remove mounting bolts of door check link on door panel.

7.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3956ZZ

DLK-348

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

Check front door open/close operation after installation.

REAR DOOR

DLK-349

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

DOOR ASSEMBLY

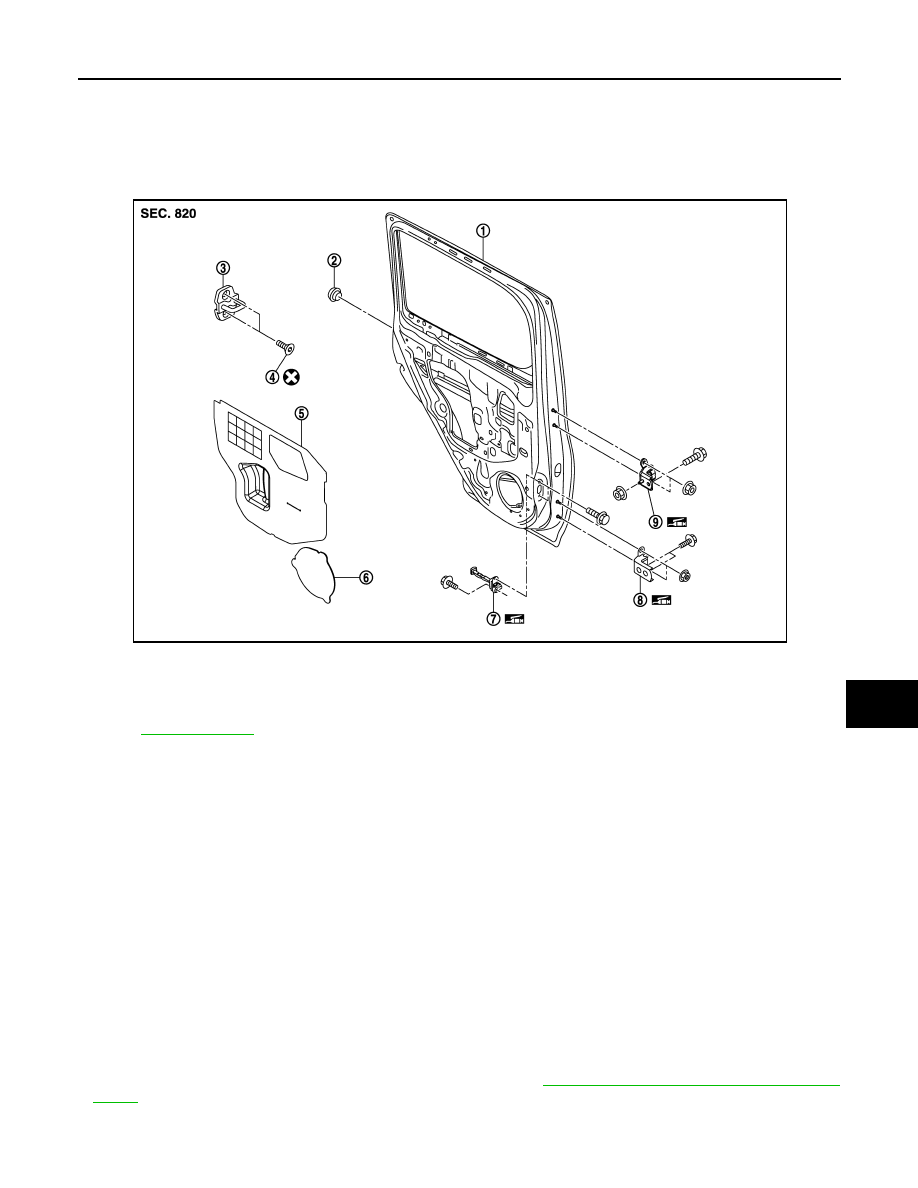

DOOR ASSEMBLY : Exploded View

INFOID:0000000009950793

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009950794

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet, and then pull out door harness from the vehicle.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolts of door check link on the vehicle.

4.

Remove door hinge mounting nuts (door side), and then remove rear door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-350, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3957ZZ
