REAR DOOR LOCK

• Check door lock cable is properly engaged with outside handle bracket.

INSIDE HANDLE

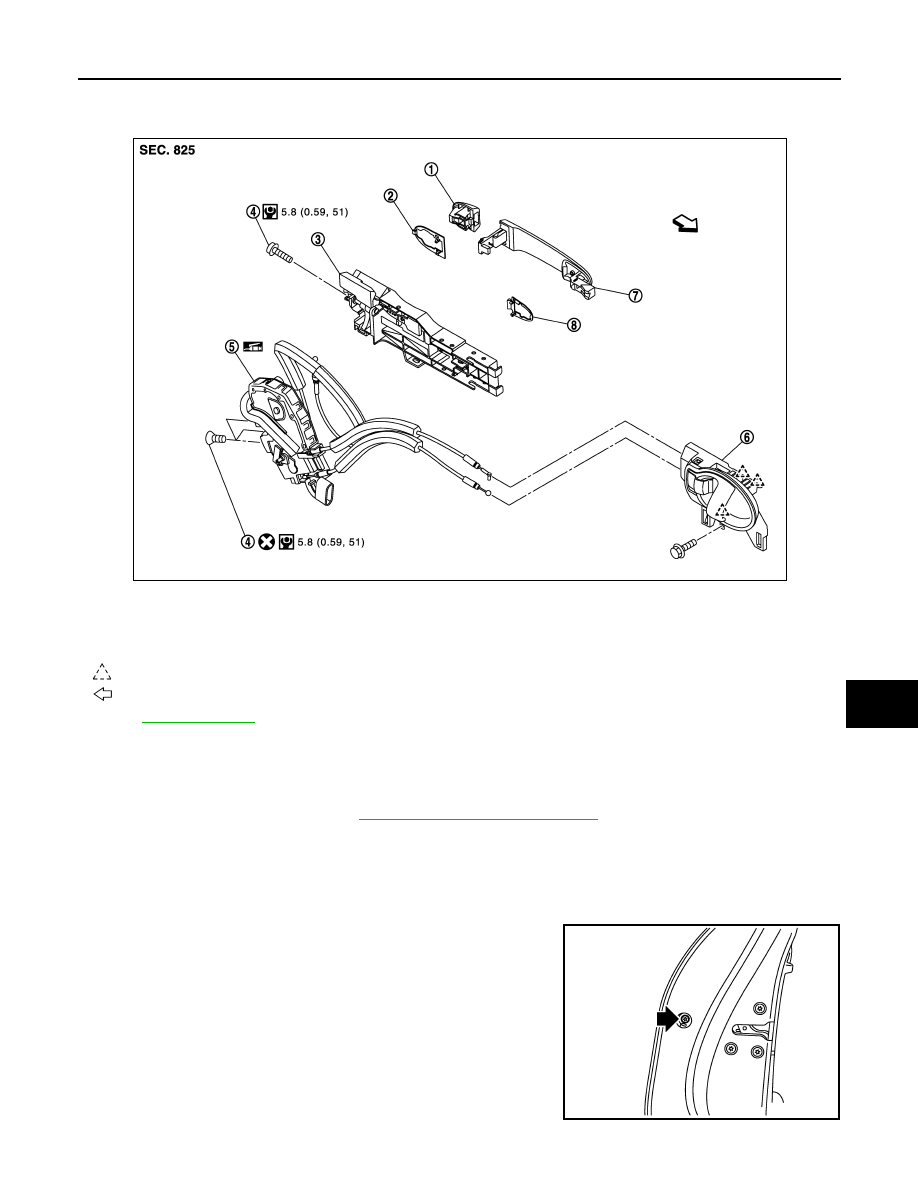

INSIDE HANDLE : Exploded View

INFOID:0000000009950826

INSIDE HANDLE : Removal and Installation

INFOID:0000000009950827

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove inside handle mounting bolts, slide handle toward rear of vehicle, disengage handle from door
panel, and remove inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle

7.

Outside handle

8.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3961GB

REAR DOOR LOCK

DLK-371

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

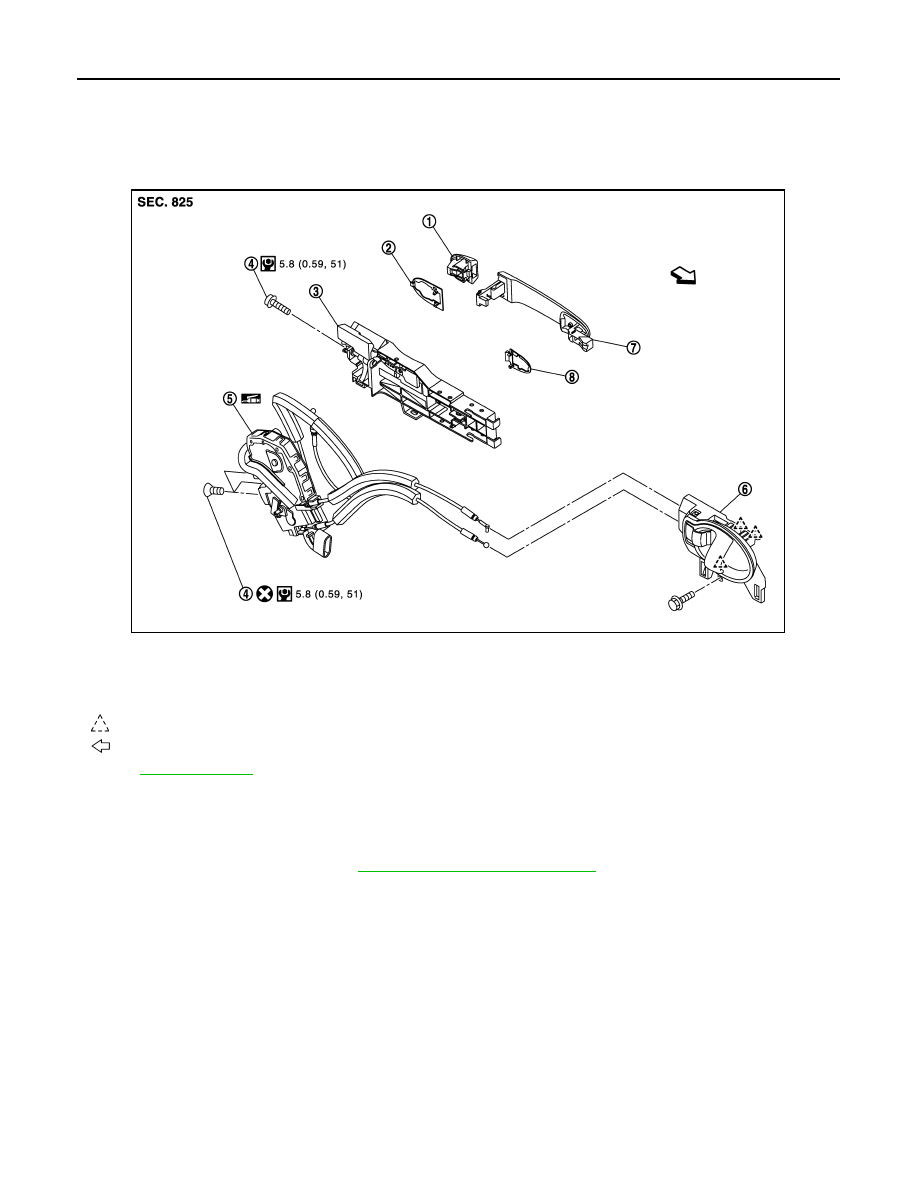

OUTSIDE HANDLE : Exploded View

INFOID:0000000009950828

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009950829

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Fully close rear door glass.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle

7.

Outside handle

8.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3961GB

JMKIA1467ZZ

DLK-372

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

5.

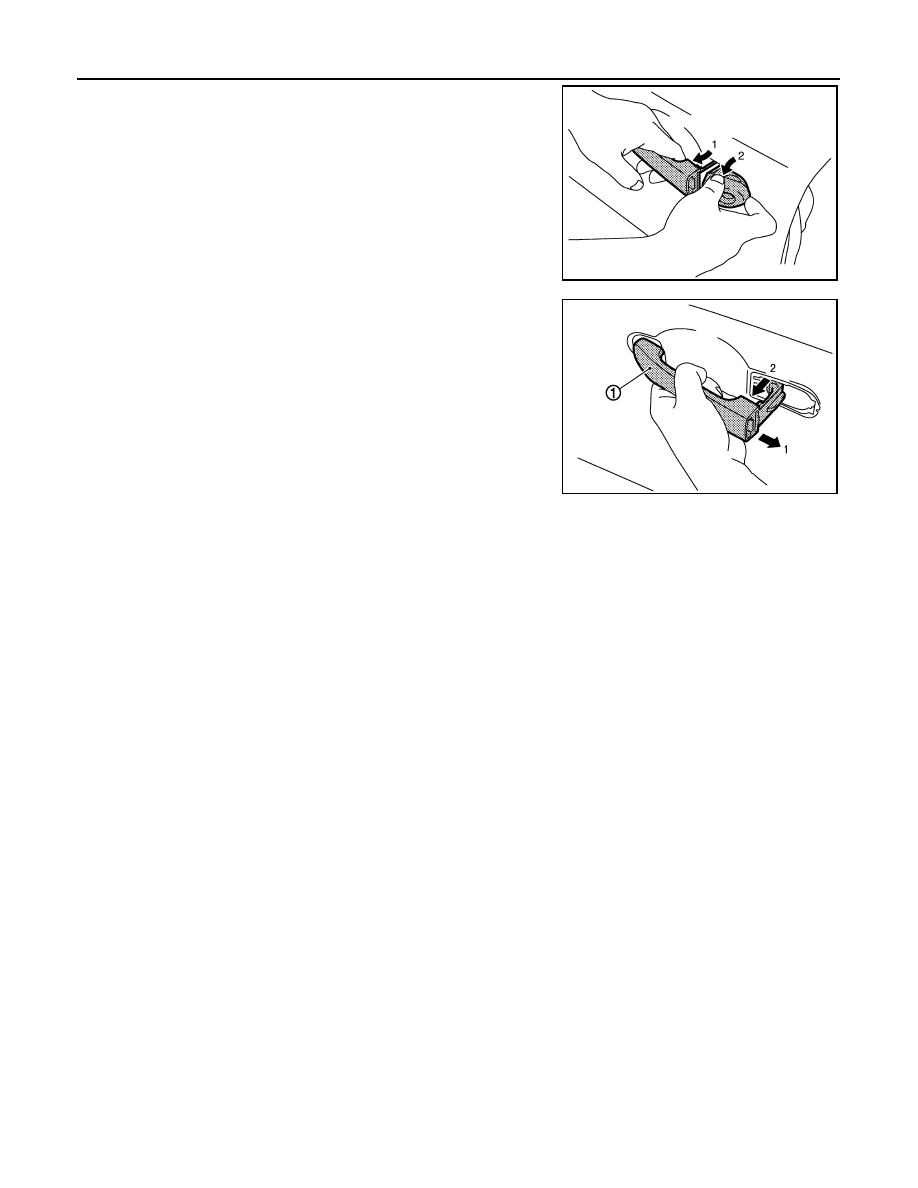

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

JMKIA0560ZZ

JMKIA0524ZZ

BACK DOOR LOCK

DLK-373

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR LOCK

DOOR LOCK

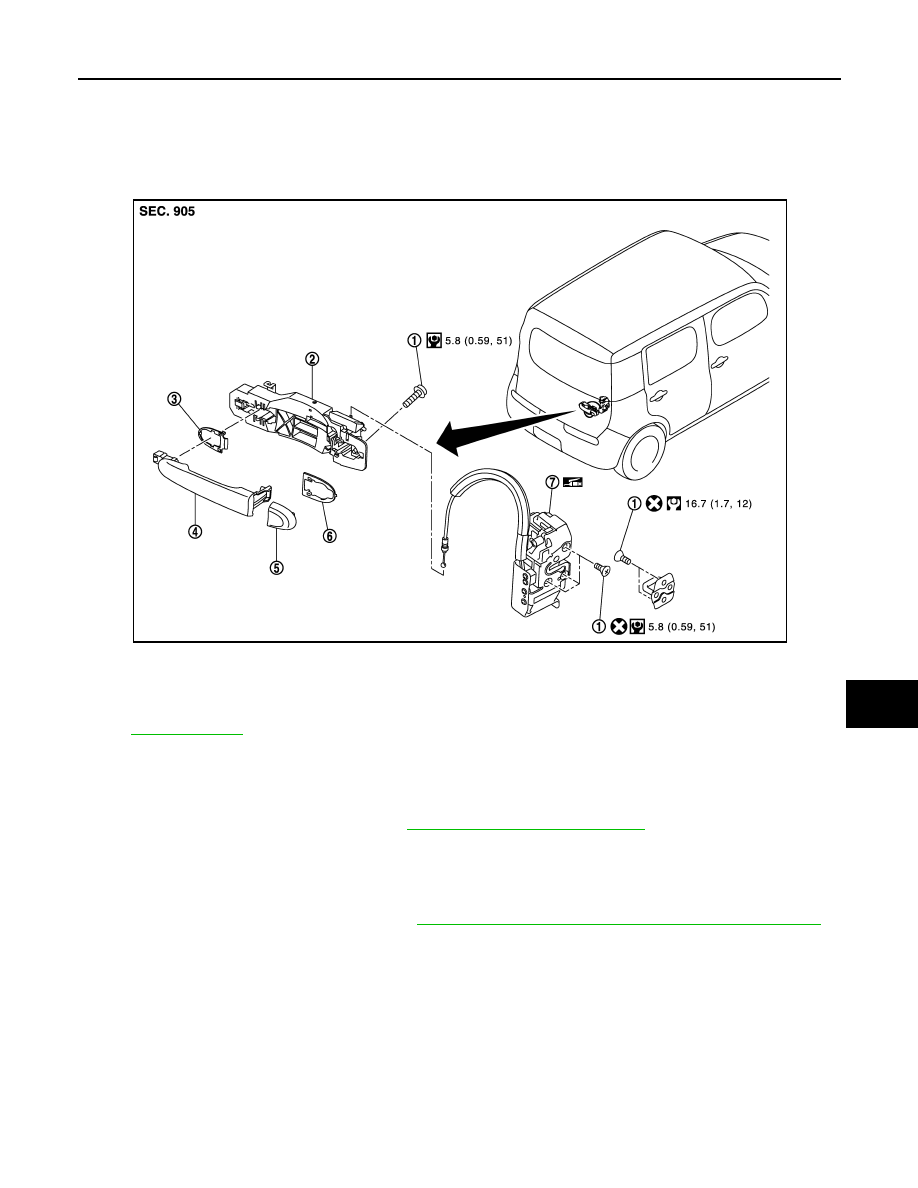

DOOR LOCK : Exploded View

INFOID:0000000009950830

DOOR LOCK : Removal and Installation

INFOID:0000000009950831

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove back door outside handle. Refer to

DLK-374, "OUTSIDE HANDLE : Removal and Installation"

.

4.

Remove back door lock assembly mounting bolts.

5.

Disconnect harness connector from back door lock assembly.

6.

Remove back door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

OUTSIDE HANDLE

JMKIA3962GB

1.

TORX bolt

2.

Outside handle bracket

3.

Rear gasket

4.

Outside handle

5.

Outside handle escutcheon

6.

Front gasket

7.

Back door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.
