BACK DOOR

3.

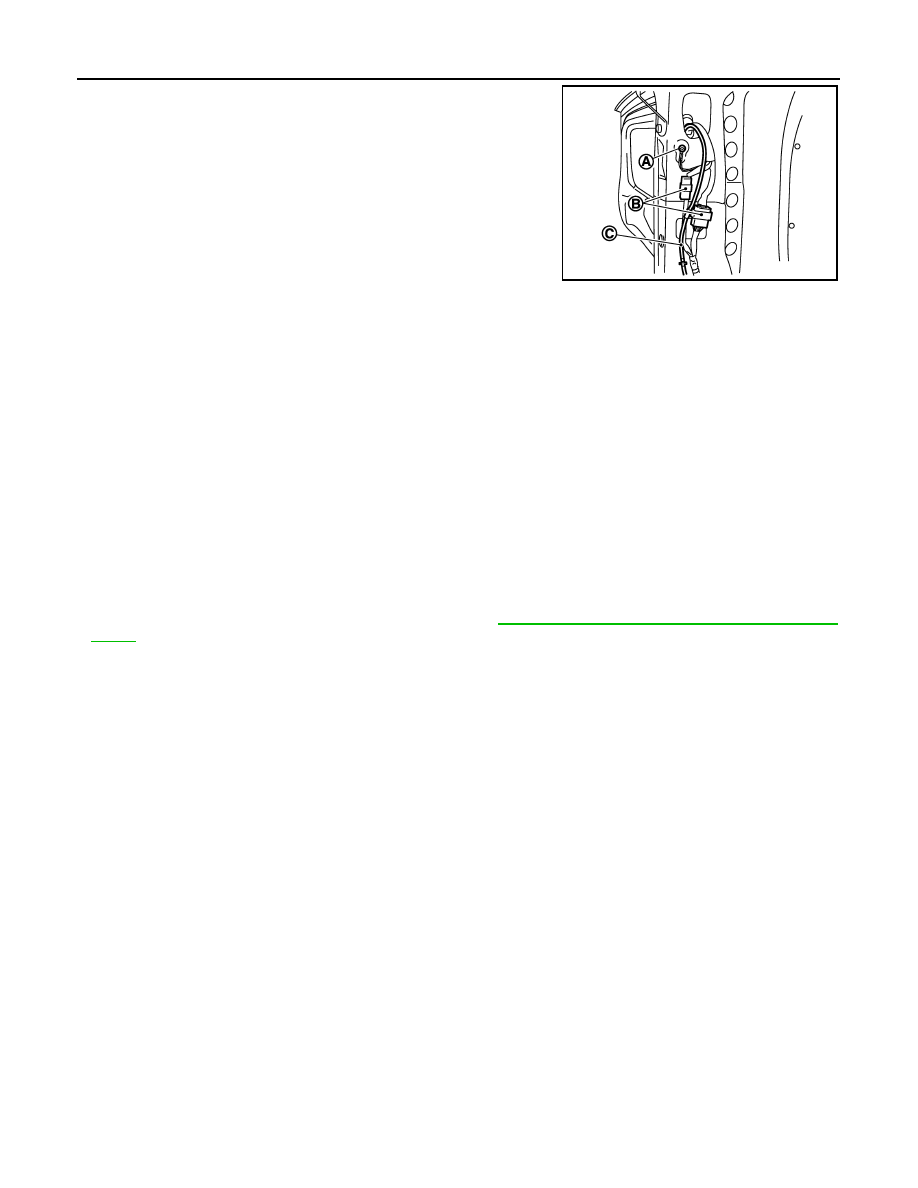

Remove ground bolt (A) and disengage connections of harness
connectors (B) and rear washer hose (C).

4.

Remove back door harness grommet, and then pull out the harness from the vehcle.

5.

Support back door with the proper material to prevent it from falling.

6.

Remove mounting bolt of door check link on the vehcle.

7.

Remove back door hinge mounting bolts (back door side), and then remove back door assembly.

8.

Remove the following parts after removing back door assembly.
• Back door finisher upper
• Sealing screen
• Dovetail (male)
• Dovetail (female)
• Door check link
• Grommet
• Bumper rubber

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• After installation, perform fitting adjustment. Refer to

DLK-203, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

JMKIA3963ZZ

BACK DOOR

DLK-203

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

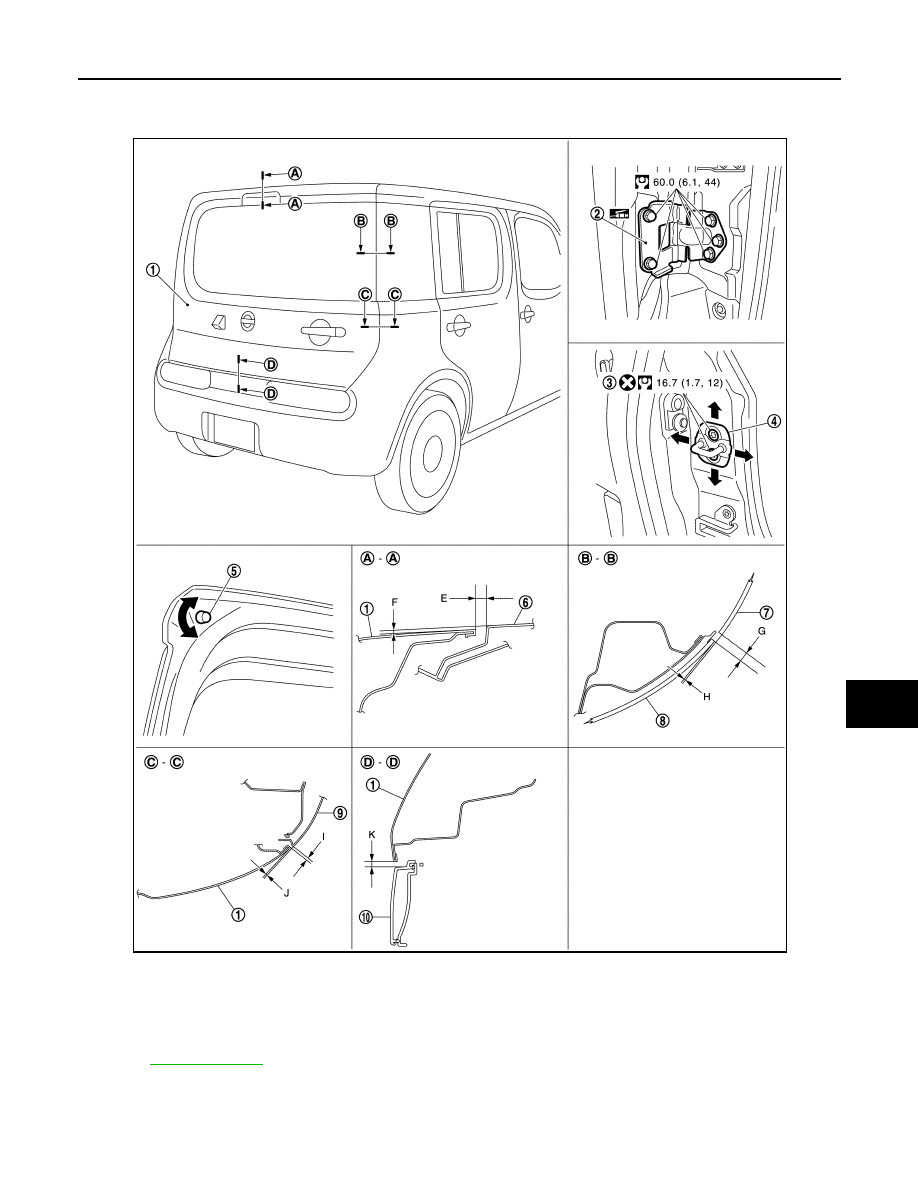

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000009950629

Check the clearance and the surface height between back door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Back door panel

2.

Back door hinge

3.

TORX bolt

4.

Back door striker

5.

Back door bumper rubber

6.

Roof panel

7.

Side window glass

8.

Back door glass

9.

Body side outer panel

10. Back door finisher

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6717GB

DLK-204

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

Unit: mm (in)

1.

Loosen back door striker mounting bolts.

2.

Loosen bumper rubber.

3.

Adjust right and left clearances and clearances between rear bumper to the standard value specified in
the table, by taping back door striker using a rubber hammer and adjusting back door striker and bumper
rubber.

4.

Finally tighten back door hinge, bumper rubber, and back door striker.

CAUTION:

• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, apply touch-up paint (the body color) onto the head of back door hinge mounting

nuts.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

Portion

Standard

Difference

(RH/LH)

Back door – Roof

A – A

E

Clearance

6.1 – 9.9 (0.240 – 0.390)

—

F

Surface height

-0.6 – 1.4 (-0.024 – 0.055)

—

Side window glass – Back door
glass

B – B

G

Clearance

4.4 – 8.4 (0.173 – 0.331)

< 2.0 (0.079)

H

Surface height

0 – 2.0 (0 – 0.079)

—

Body side outer panel – Back
door

C – C

I

Clearance

4.0 – 6.0 (0.157 – 0.236)

< 1.0 (0.039)

J

Surface height

-1.0 – 1.0 (-0.039 – 0.039)

—

Back door – Back door finisher

D – D

K

Clearance

5.0 – 9.0 (0.197 – 0.354)

—

BACK DOOR

DLK-205

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR STRIKER : Exploded View

INFOID:0000000009950630

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000009950631

REMOVAL

Remove mounting bolts, and then remove back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• When removing and installing back door striker, be sure to perform the fitting adjustment. Refer to

DLK-203, "BACK DOOR ASSEMBLY : Adjustment"

.

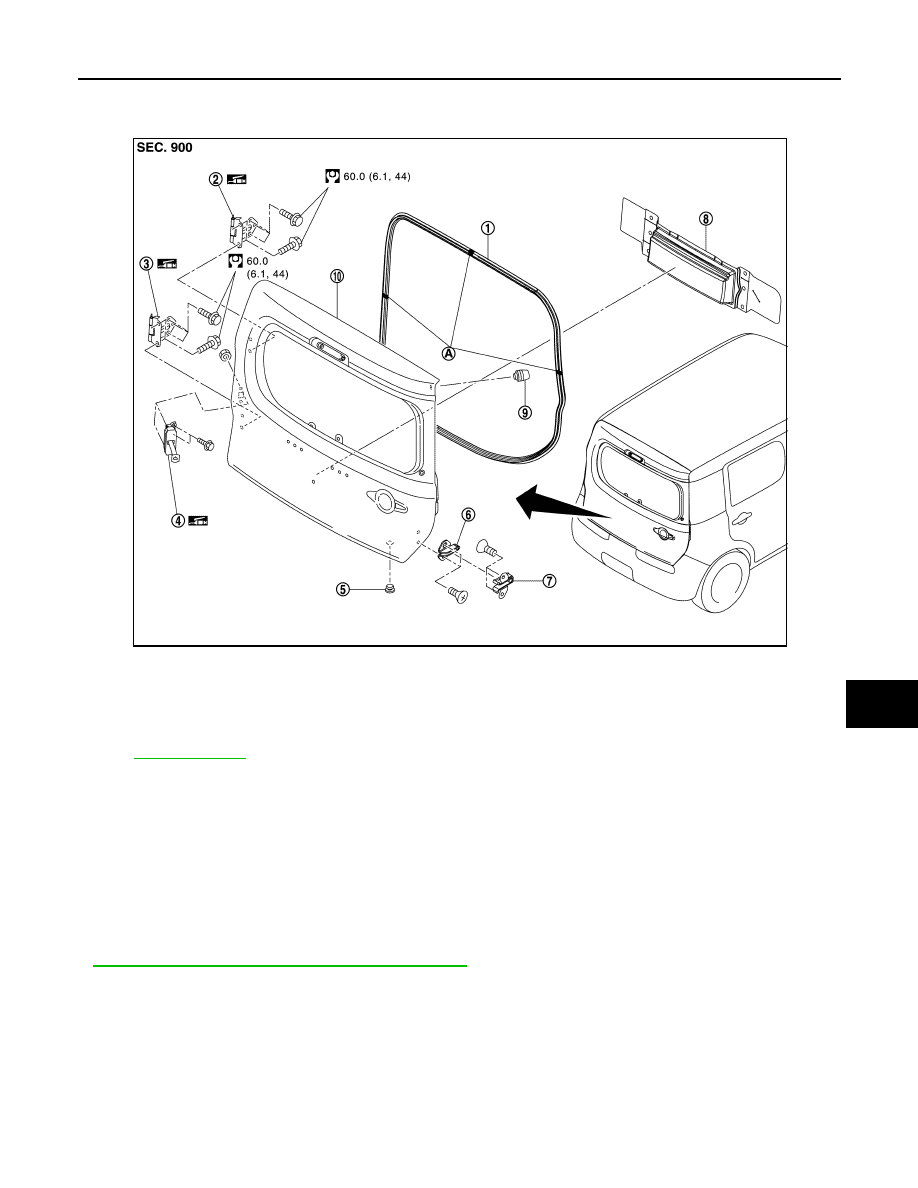

BACK DOOR HINGE

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB
