Nissan Cube. Manual - part 233





DLK-198

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

Unit: mm (in)

1.

Remove center pillar garnish (upper/lower). Refer to

INT-16, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install center pillar garnish (upper/lower). Refer to

INT-16, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Exploded View

INFOID:0000000009950621

DOOR STRIKER : Removal and Installation

INFOID:0000000009950622

REMOVAL

Remove TORX bolts, and then remove door striker.

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

3.5 – 5.5 (0.138 – 0.217)

-1.0 – 1.0 (-0.039 – 0.039)

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3957ZZ

REAR DOOR

DLK-199

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-197, "DOOR ASSEMBLY :

Adjustment"

.

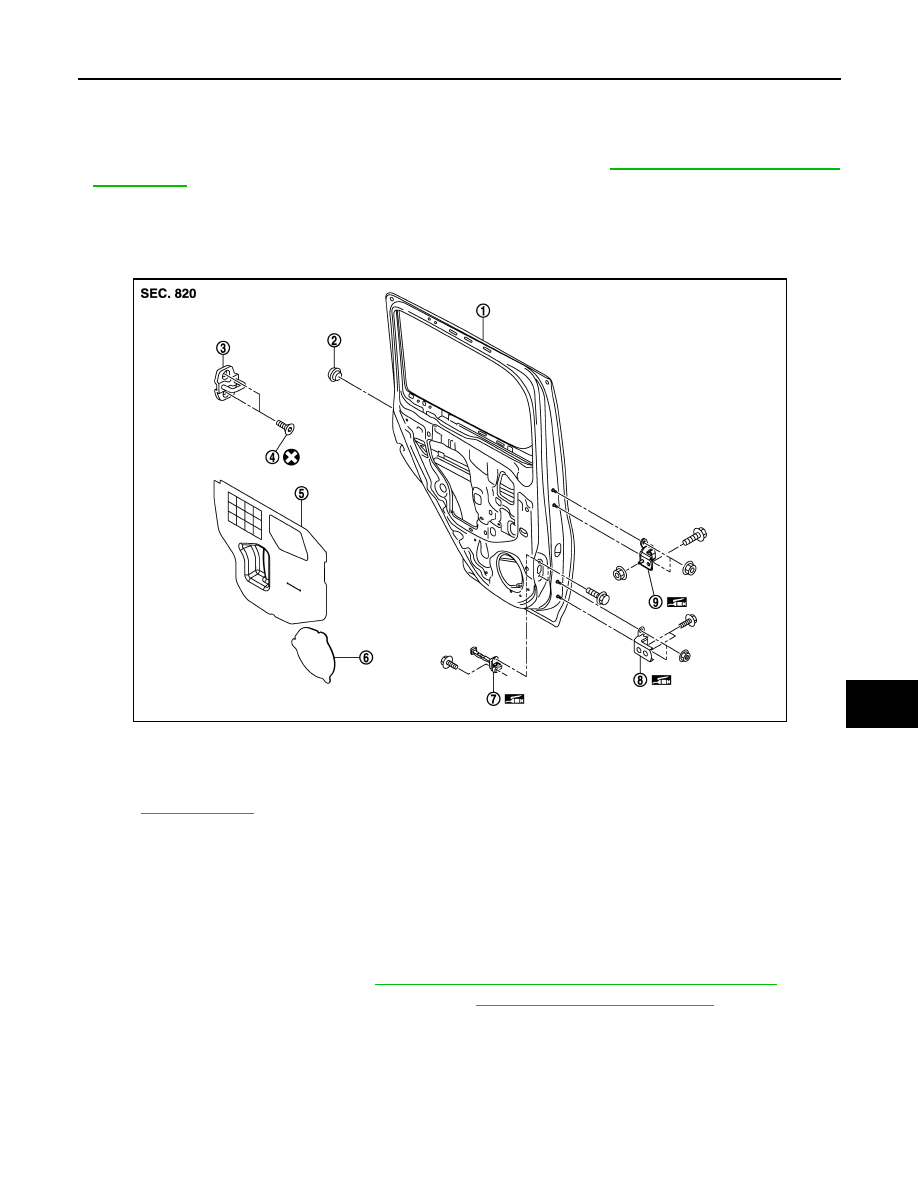

DOOR HINGE

DOOR HINGE : Exploded View

INFOID:0000000009950623

DOOR HINGE : Removal and Installation

INFOID:0000000009950624

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-196, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove center pillar garnish (upper/lower). Refer to

INT-16, "Removal and Installation"

.

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3957ZZ

DLK-200

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-197,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000009950625

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009950626

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Fully close the rear door window.

3.

Remove rear door speaker. Refer to

AV-64, "Removal and Installation"

 (AUDIO WITHOUT NAVIGATION)

or

AV-135, "Removal and Installation"

 (AUDIO WITH NAVIGATION).

4.

Remove mounting bolts of the check link on the vehicle.

5.

Remove mounting bolts of the check link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check rear door open/close operation after installation.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3957ZZ

BACK DOOR

DLK-201

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

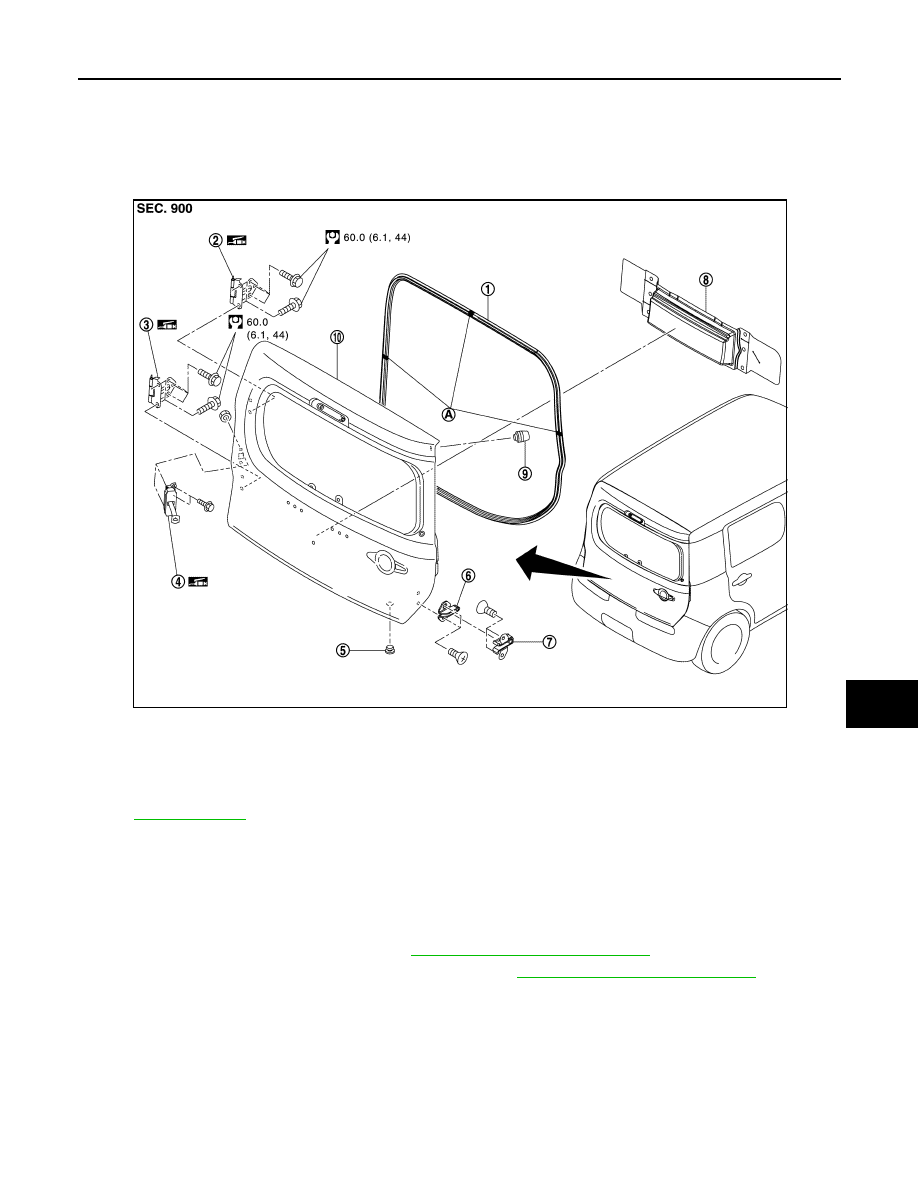

BACK DOOR

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Exploded View

INFOID:0000000009950627

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009950628

CAUTION:

Perform work with 2 workers, because of its heavy weight.

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

2.

Remove luggage side finisher (LH) (upper/lower). Refer to

INT-24, "Removal and Installation"

.

1.

Back door weather-strip

2.

Back door hinge (upper)

3.

Back door hinge (lower)

4.

Door check link

5.

Grommet

6.

Dovetail male

7.

Dovetail female

8.

Sealing screen

9.

Bumper rubber

10. Back door panel

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA6716GB
