FRONT DOOR

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-191, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000009950616

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009950617

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove front door speaker. Refer to

AV-62, "Removal and Installation"

 (AUDIO WITHOUT NAVIGATION)

or

AV-133, "Removal and Installation"

 (AUDIO WITH NAVIGATION).

5.

Remove mounting bolts of door check link on the vehicle.

6.

Remove mounting bolts of door check link on door panel.

7.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

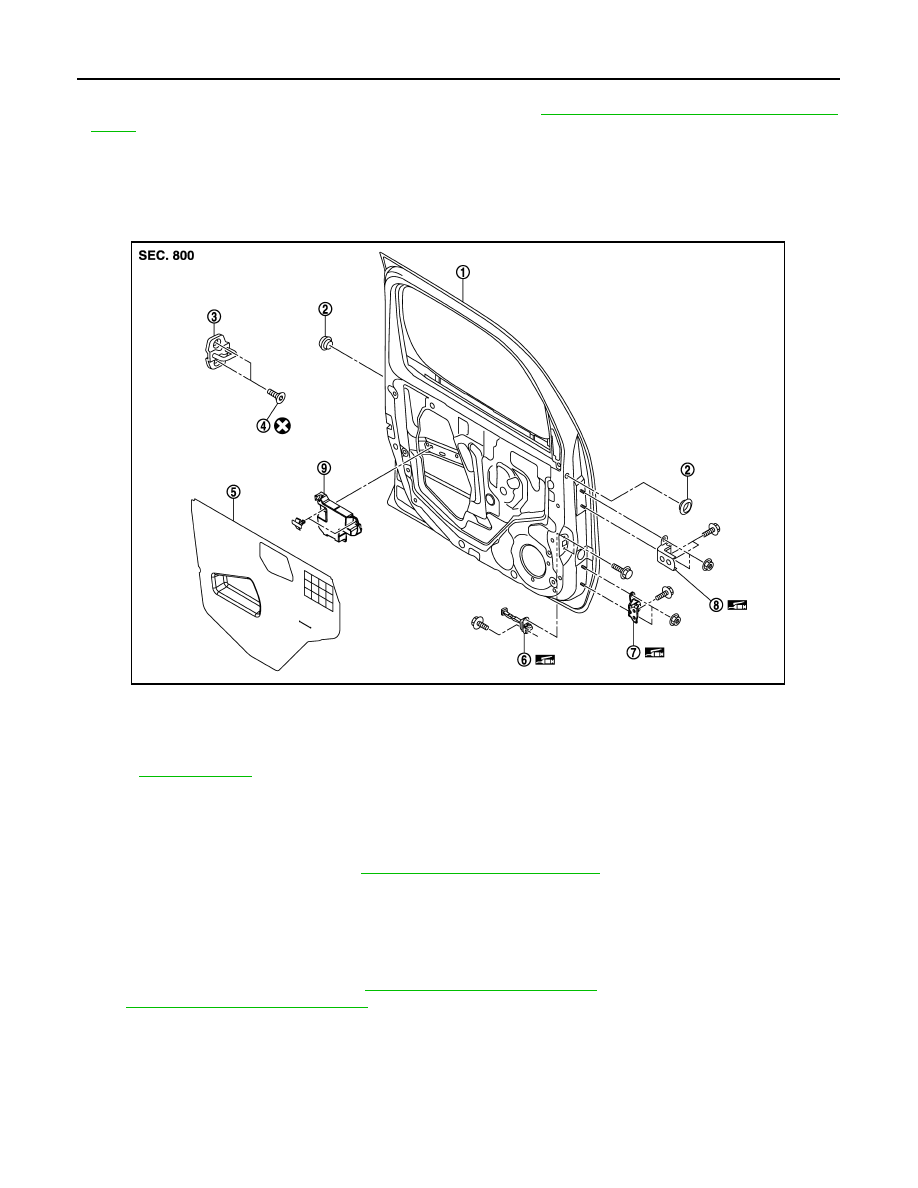

JMKIA3956ZZ

FRONT DOOR

DLK-195

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check front door open/close operation after installation.

DLK-196

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

REAR DOOR

DOOR ASSEMBLY

DOOR ASSEMBLY : Exploded View

INFOID:0000000009950618

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009950619

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet, and then pull out door harness from the vehicle.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolts of door check link on the vehicle.

4.

Remove door hinge mounting nuts (door side), and then remove rear door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-197, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Sealing screen (upper)

6.

Sealing screen (lower)

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

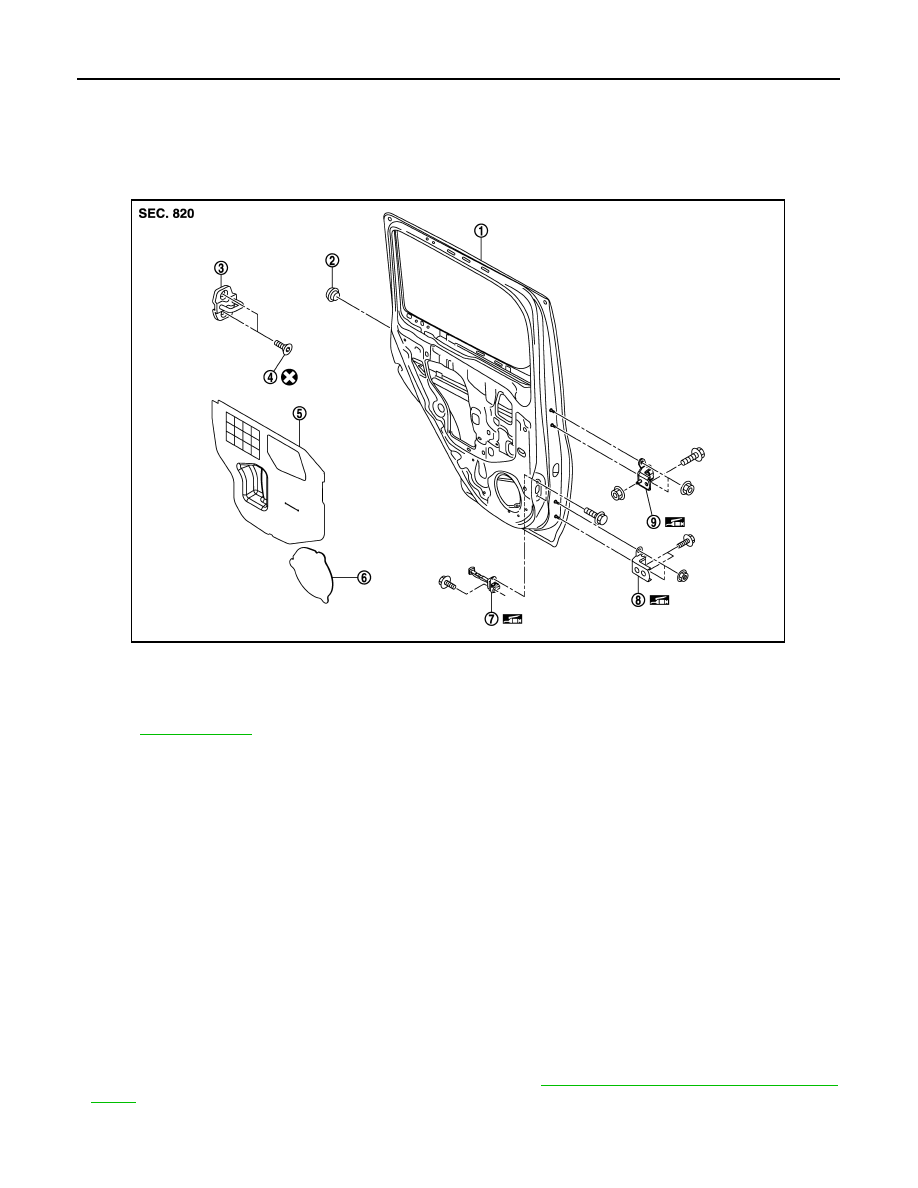

JMKIA3957ZZ

REAR DOOR

DLK-197

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR ASSEMBLY : Adjustment

INFOID:0000000009950620

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge (upper)

6.

Front door hinge (lower)

7.

Rear door hinge (upper)

8.

Rear door hinge (lower)

9.

Door striker

10.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

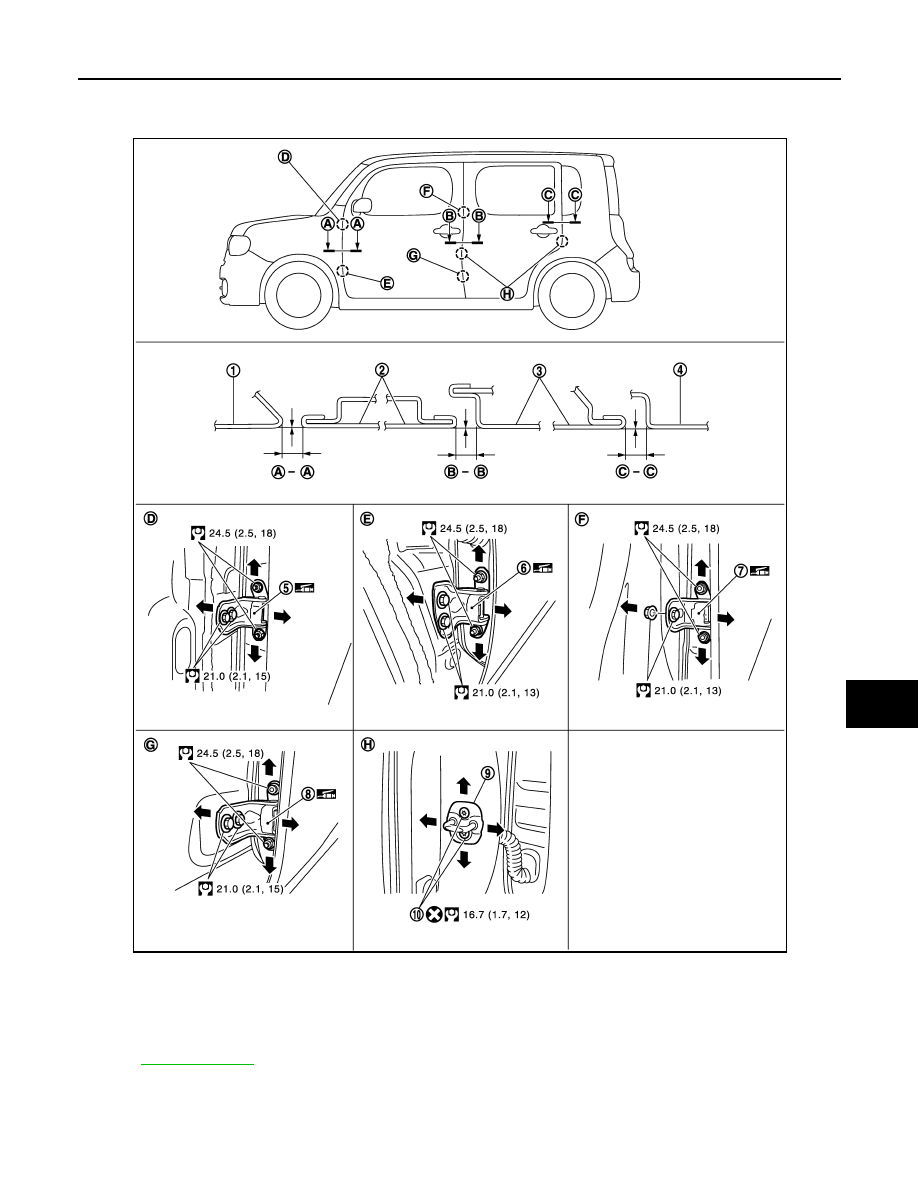

JMKIA3837GB
