REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

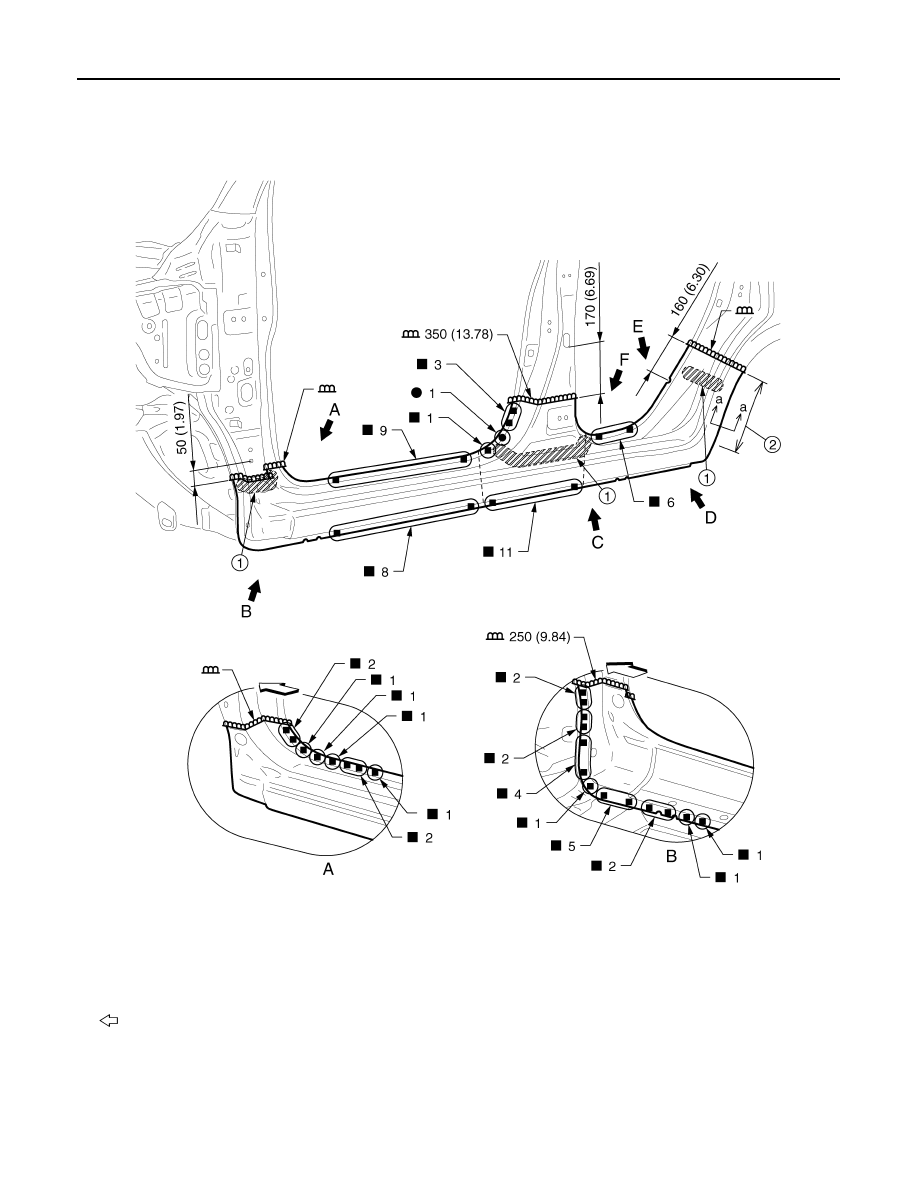

Outer Sill (Partial Replacement)

INFOID:0000000009949343

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

JSKIA1164GB

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

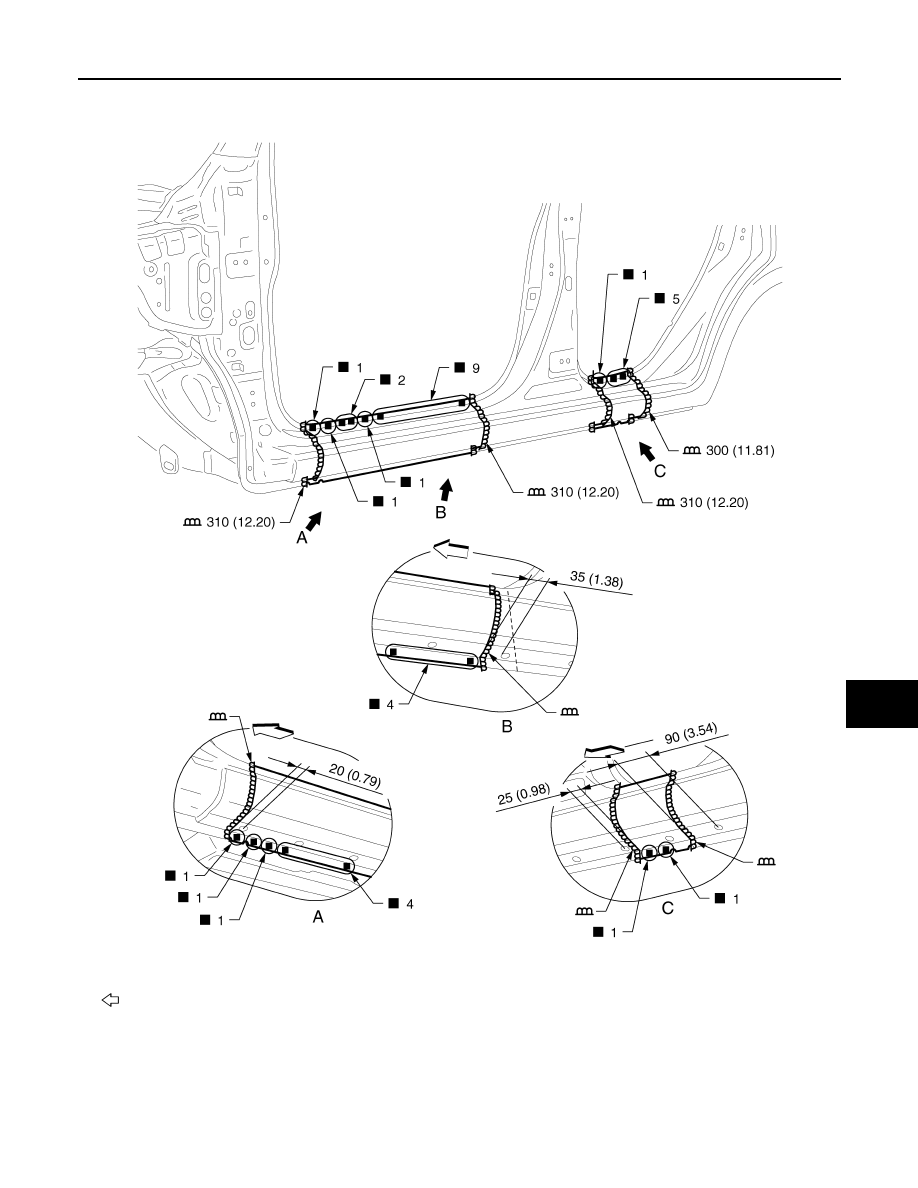

Outer Sill

INFOID:0000000009949344

1.

Urethane foam

2.

Hemming portion

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

JSKIA1165GB

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

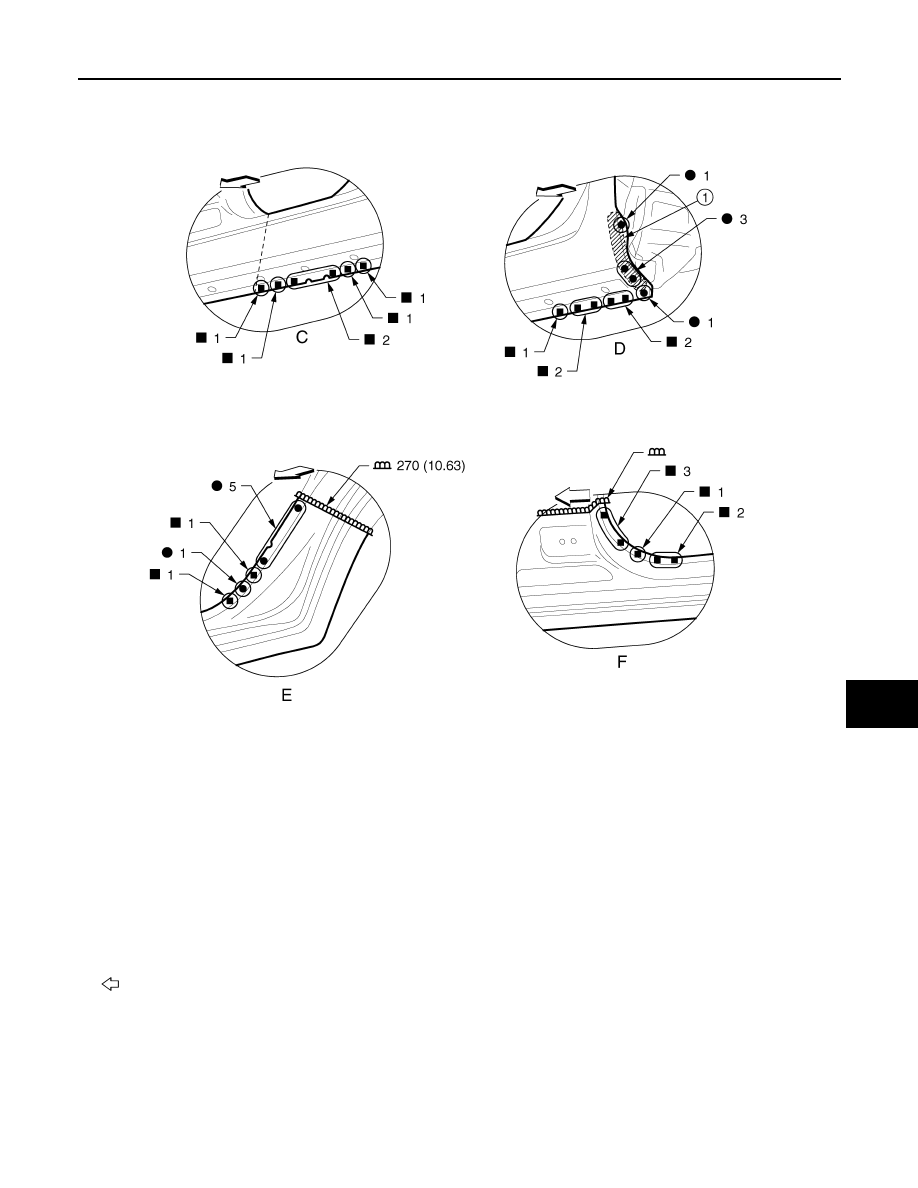

POINT

1.

Body sealing

Unit: mm (in)

: Vehicle front

JSKIA1166GB

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

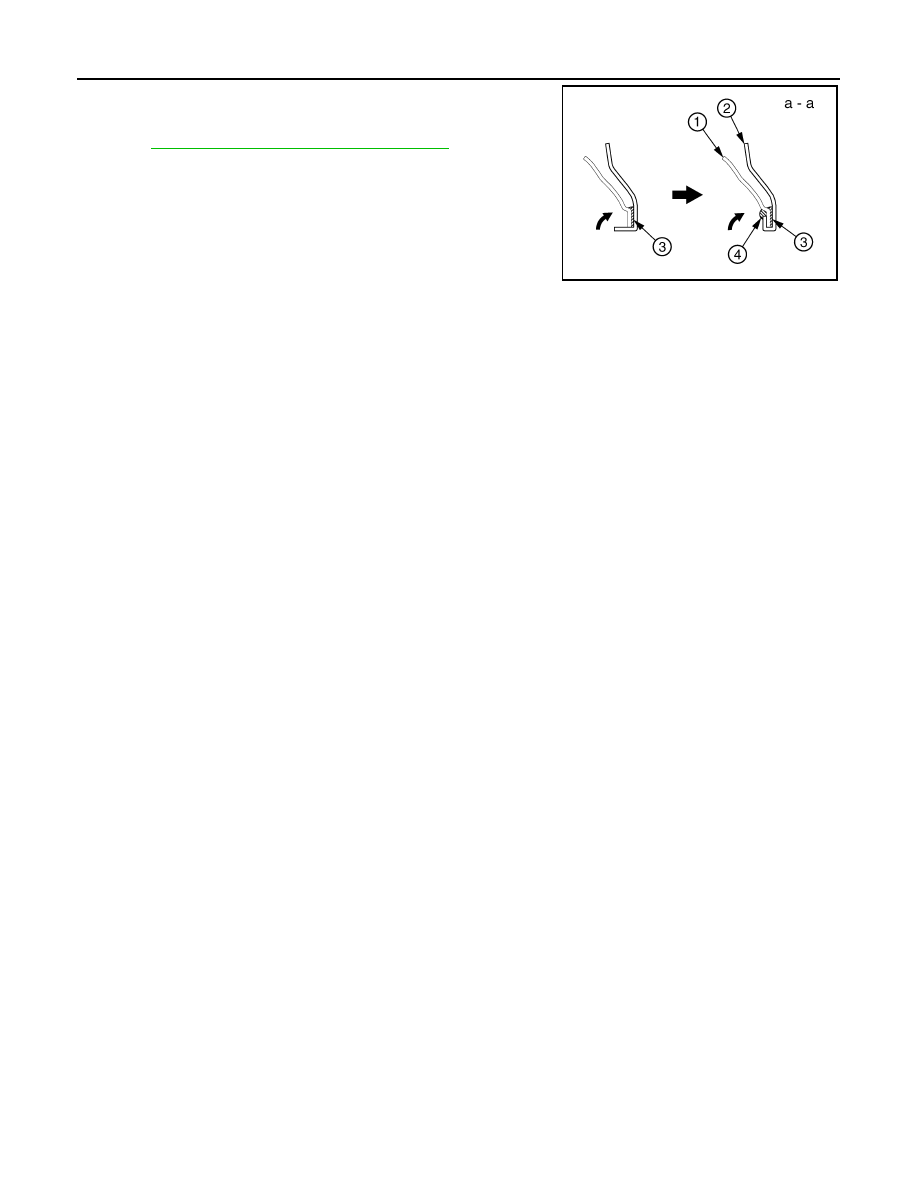

• Perform the hemming to the flange of wheelarch after applying the

adhesive.

• Apply the sealing to the flange end.
• Refer to

BRM-19, "Rear Fender Hemming Process"

.

1.

Outer rear wheelhouse

2.

Rear fender

3.

Adhesive

4.

Sealant

JSKIA0204GB
