REPLACEMENT OPERATIONS

BRM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

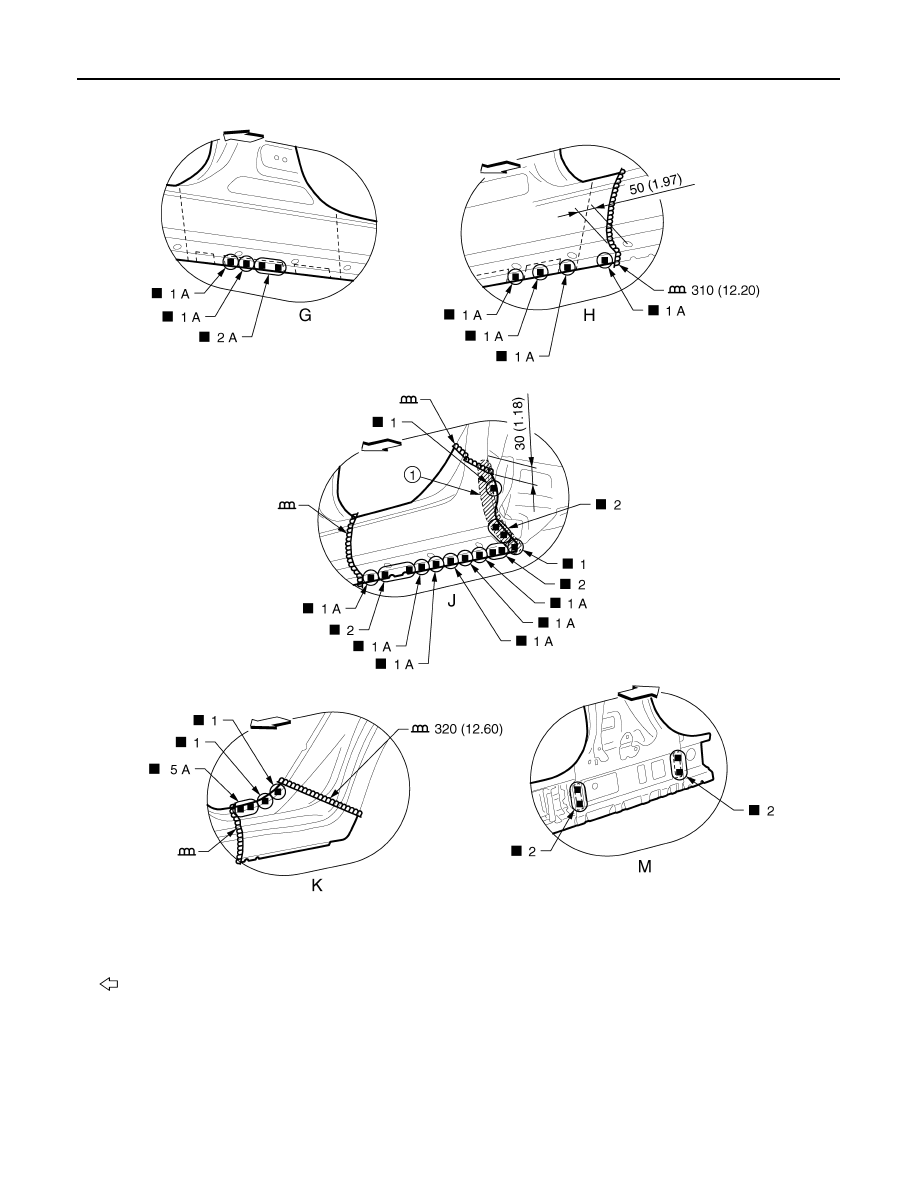

View G: Before installing side body assembly
View M: Before installing outer front side body

Center Pillar

INFOID:0000000009949342

Never cut and joint the lower lock pillar reinforcement, because it is made of ultra high strength steel plate.
Remove the reusable area of the outer front side body (see View J and K) from the vehicle for easier installa-
tion.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA2659GB

BRM-34

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

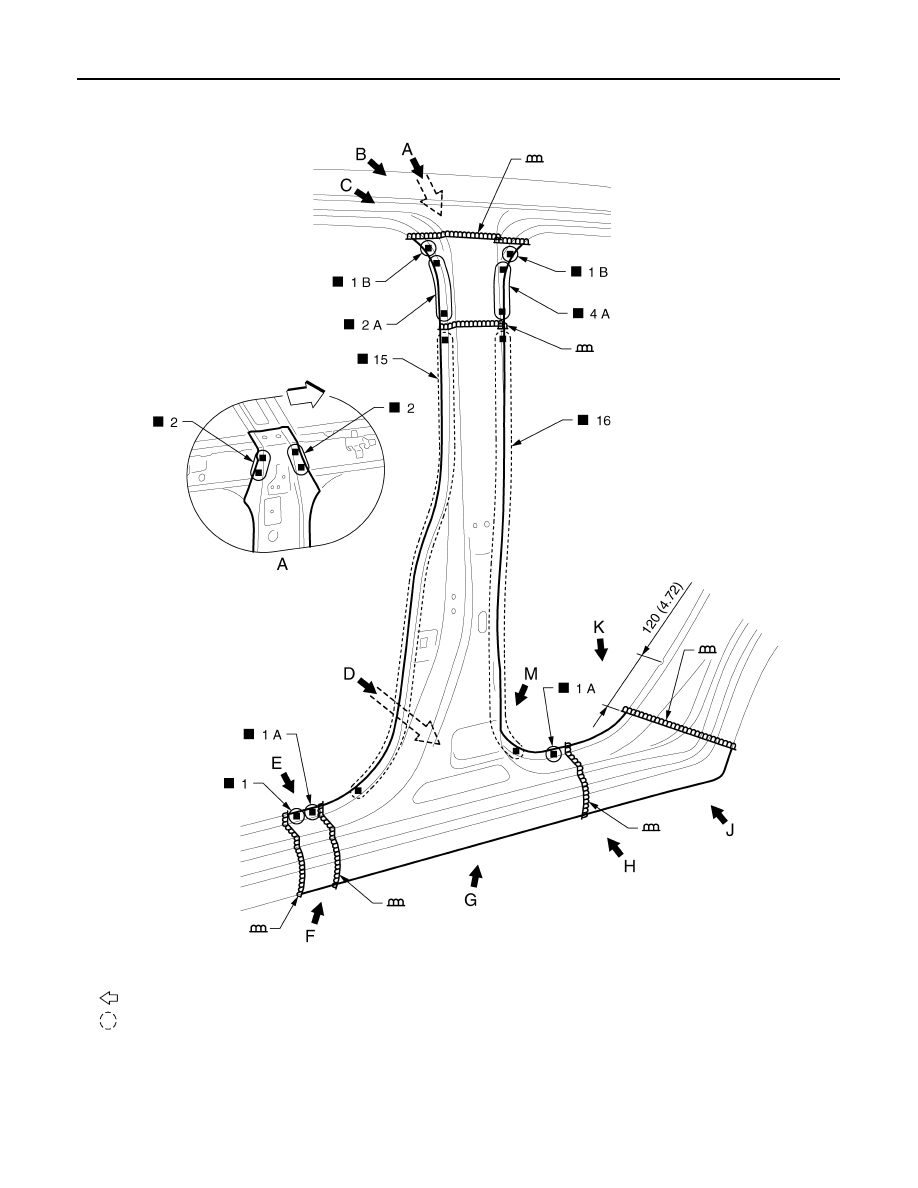

Install the inner center pillar to the side body assembly as shown in the figure for repairing the hidden welding
point

″

View M

″

.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Side body assembly (LH)

z

Inner center pillar (LH)

JSKIA1161GB

REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

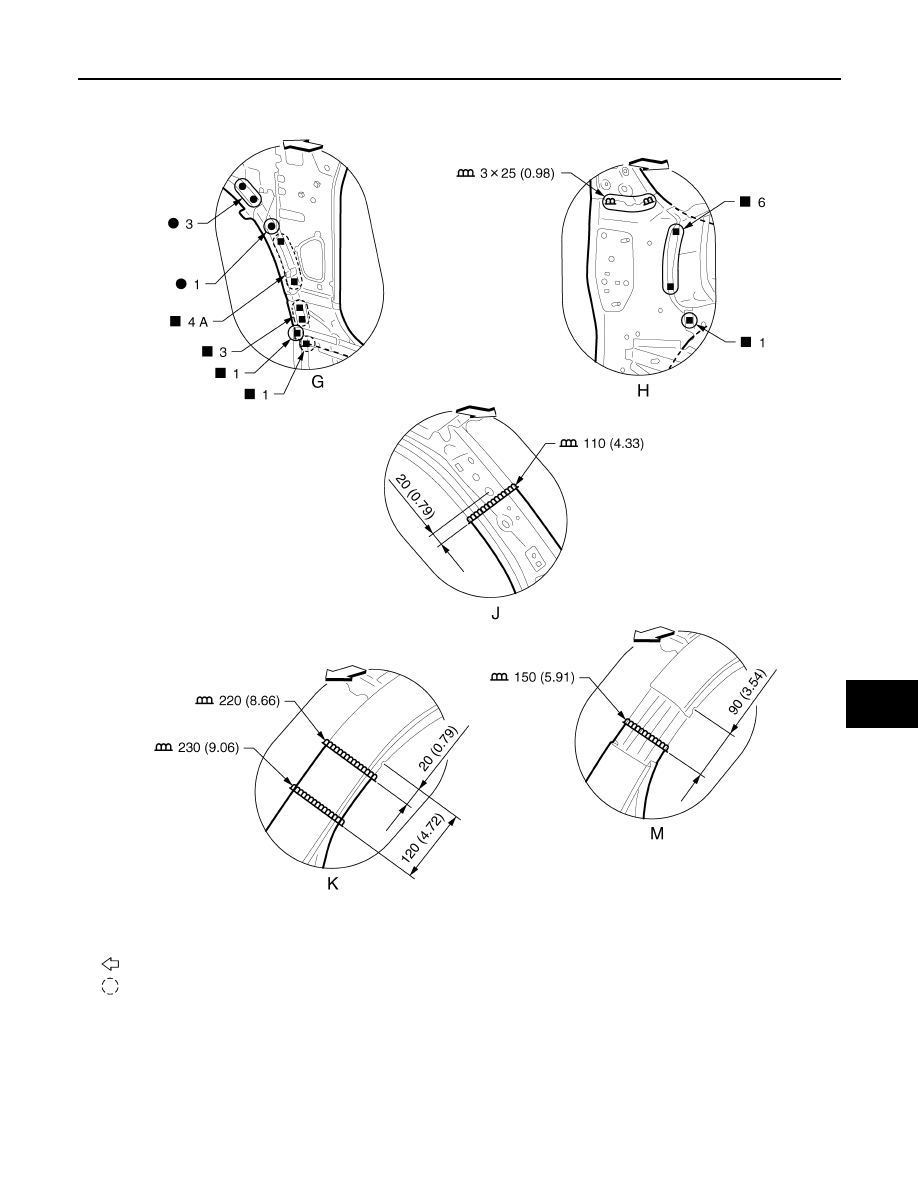

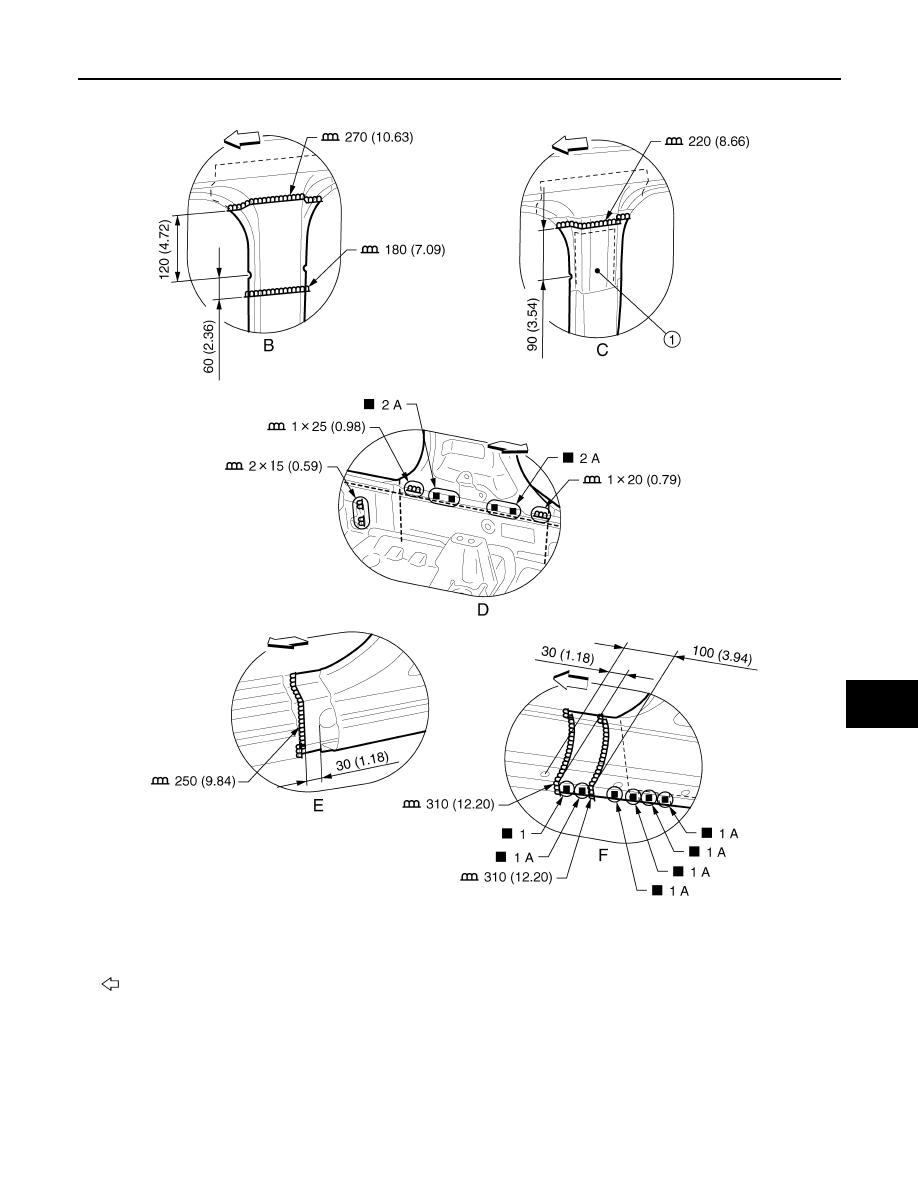

View C and E: Before installing outer front side body

1.

Lower lock pillar reinforcement (ultra high strength steel plate)

Unit: mm (in)

: Vehicle front

JSKIA1162GB

BRM-36

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View M: Inner center pillar (replacement parts) and side body assembly (replacement parts)

1.

Body sealing

Unit: mm (in)

: Vehicle front

JSKIA1163GB
