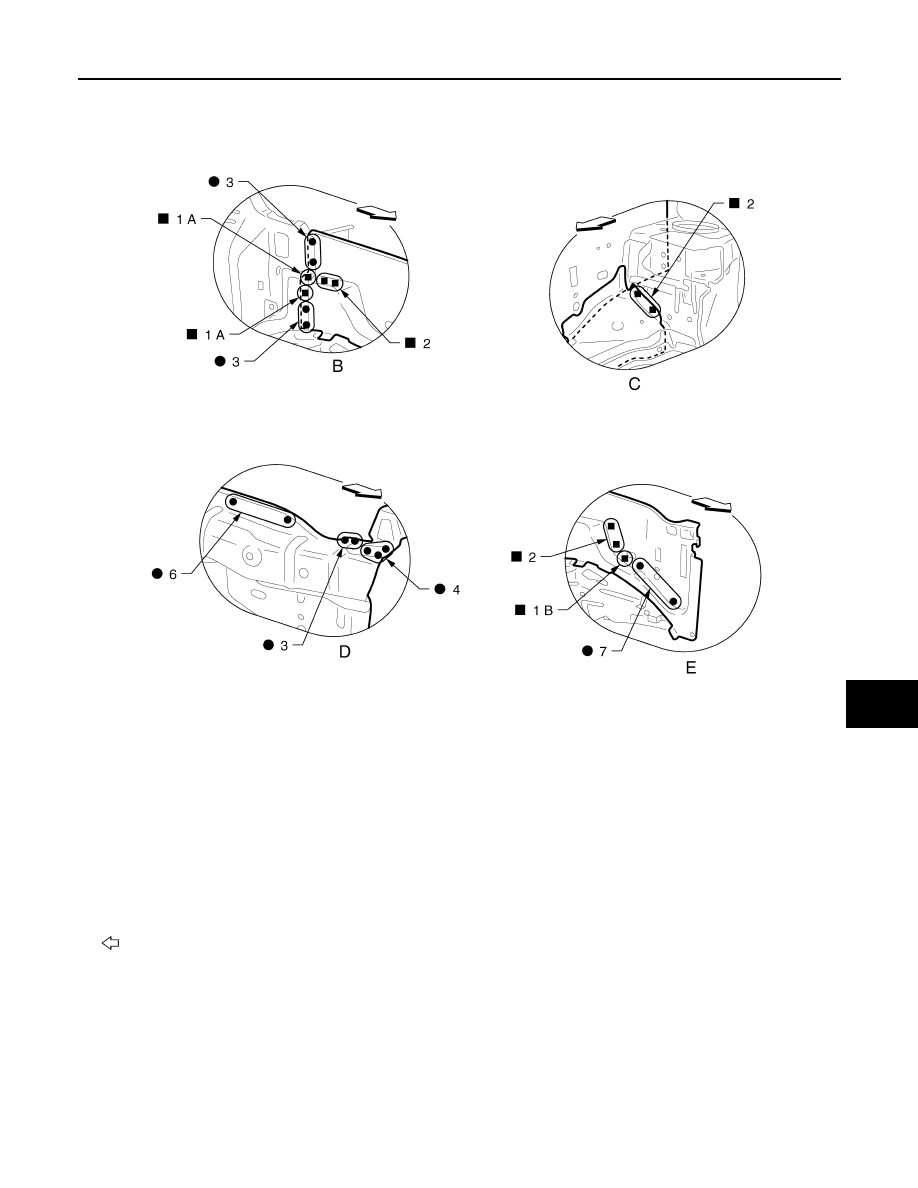

View E and G: Before installing hoodledge reinforcement

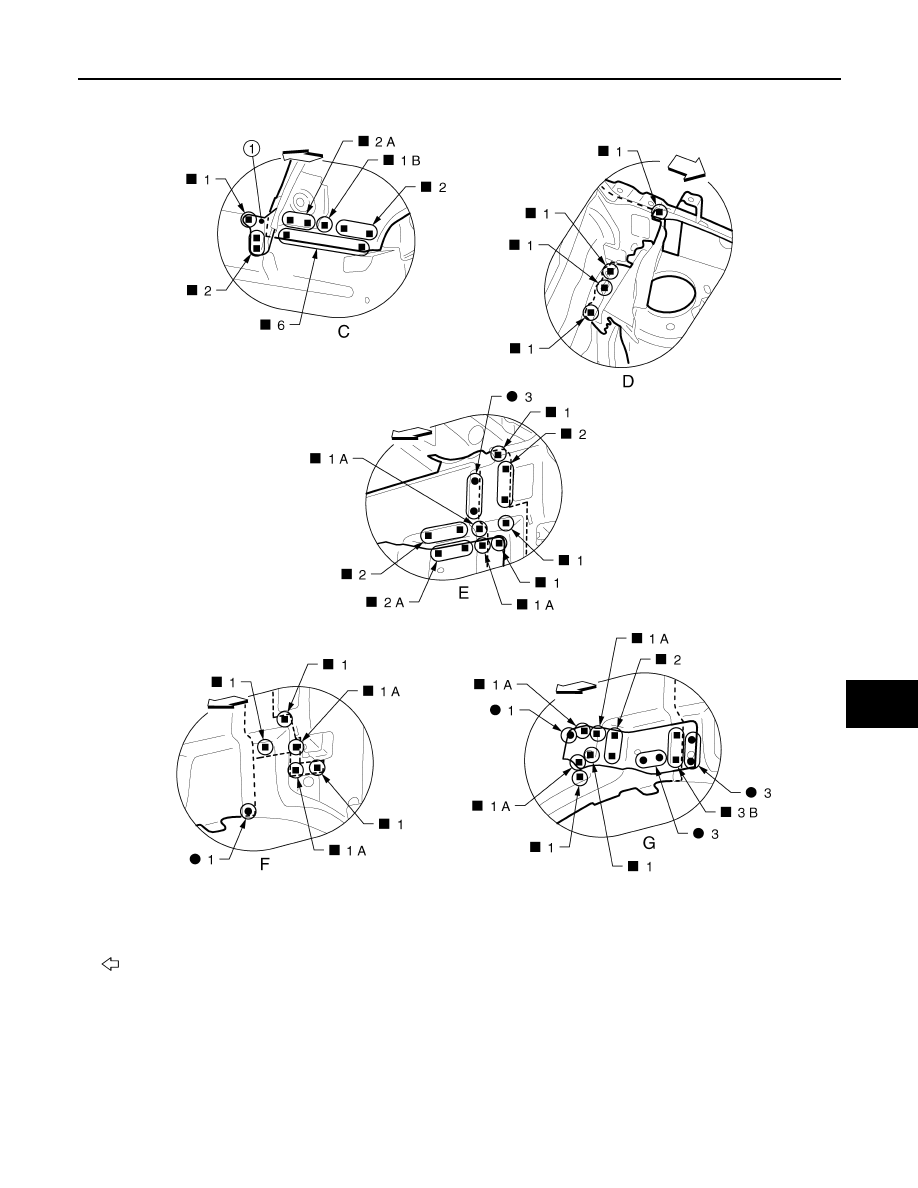

View F: Before installing hoodledge reinforcement and hoodledge reinforcement gusset

Hoodledge (Partial Replacement)

INFOID:0000000009949338

Work after radiator core support is removed.

1.

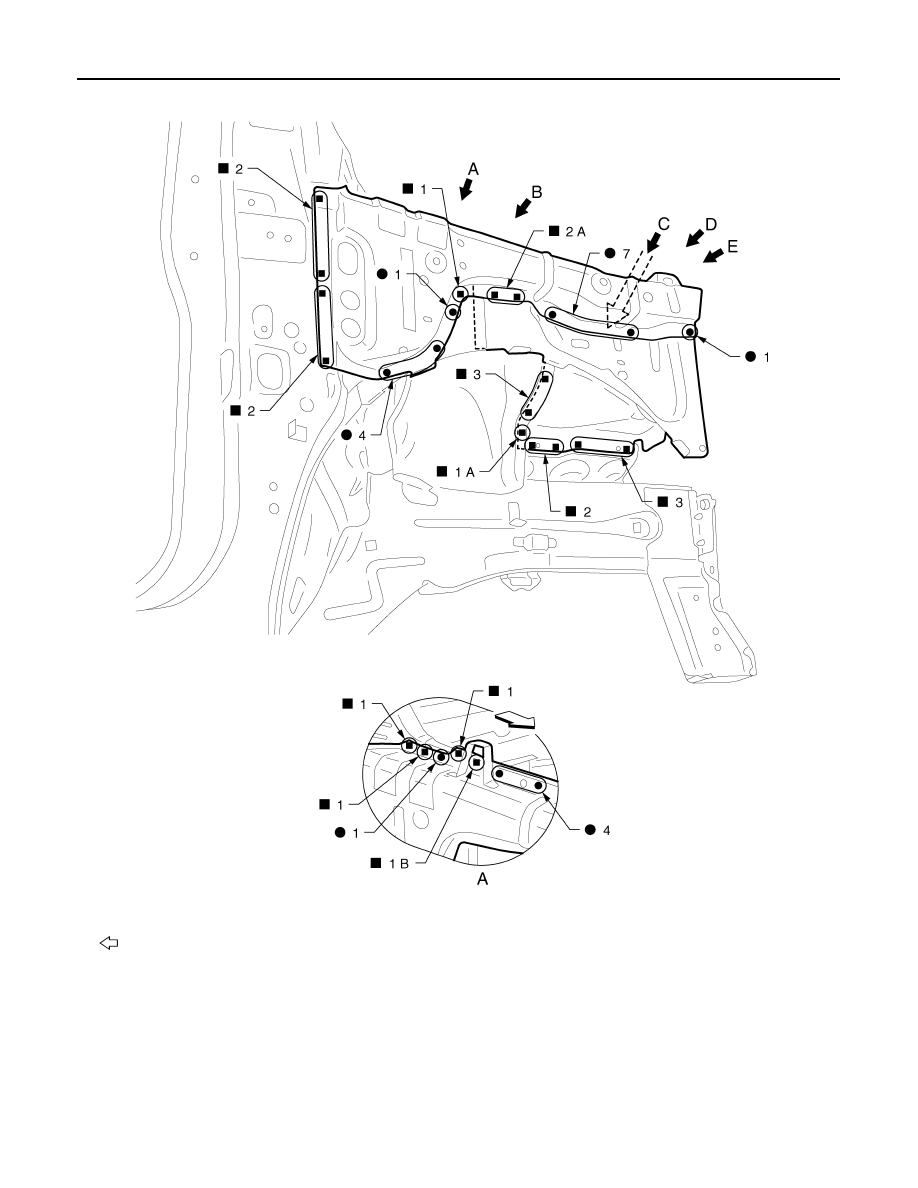

Front side rear closing reinforcement

: Vehicle front

JSKIA1152ZZ

BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

: Vehicle front

Replacement parts

z

Upper hoodledge (RH)

z

Hoodledge reinforcement (RH)

z

Lower front hoodledge

JSKIA2657ZZ

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View B and E: Before installing hoodledge reinforcement

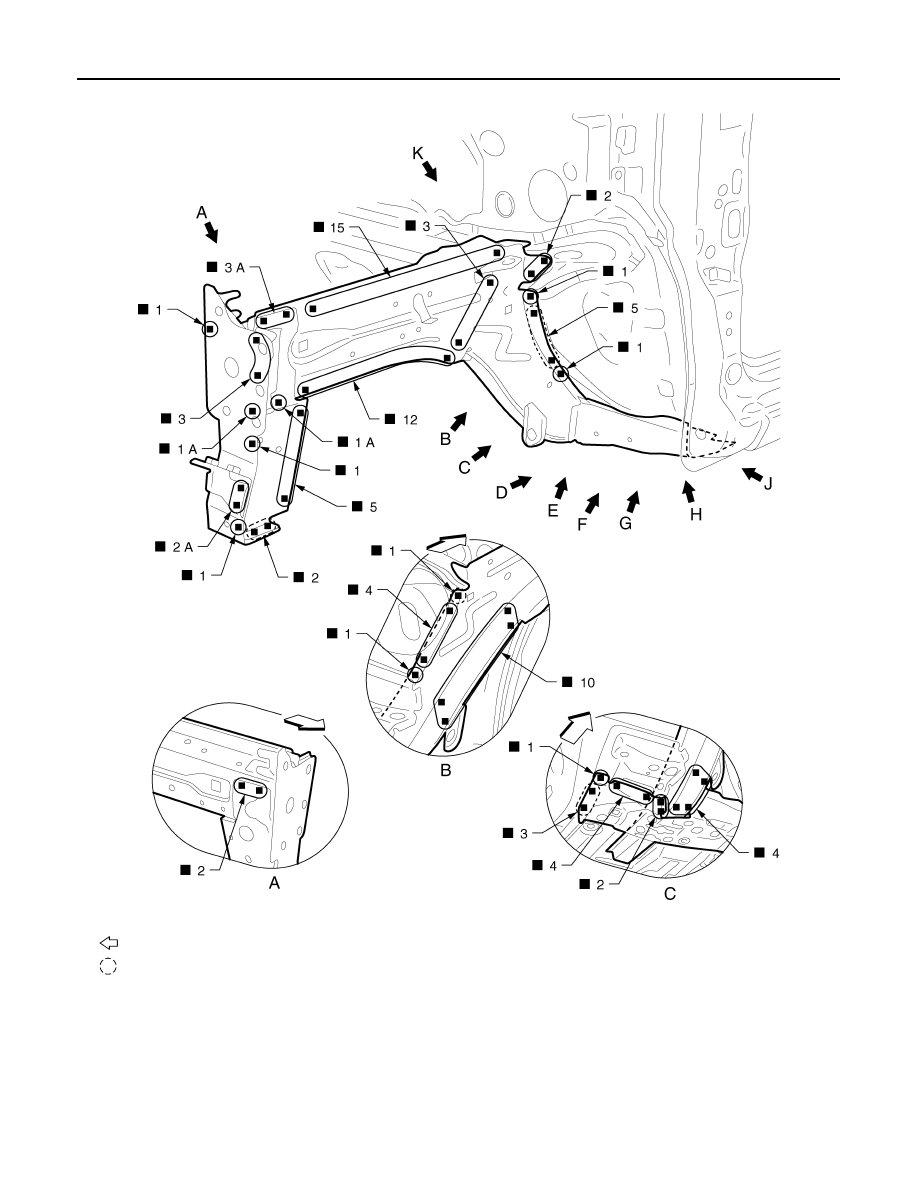

Front Side Member

INFOID:0000000009949339

Work after radiator core support and hoodledge are removed.
Remove the front side closing plate reinforcement (reusable) and front side rear closing reinforcement (reus-
able) from the service part

″

front side member closing plate assembly

″

 for easier installation of hoodledge.

: Vehicle front

JSKIA2658ZZ

BRM-28

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

z

Front suspension mounting bracket
(LH)

JSKIA1155ZZ
