BODY CONSTRUCTION

BODY CONSTRUCTION

Body Construction

INFOID:0000000009949333

1.

Outer side body

2.

Outer front pillar reinforcement

3.

Upper inner front pillar

4.

Upper hinge plate

5.

Hoodledge reinforcement

6.

Side dash

7.

Cowl top

8.

Cowl top stay

9.

Upper dash

JSKIA1186ZZ

BODY CONSTRUCTION

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender Hemming Process

INFOID:0000000009949334

1.

A wheel arch is to be installed and hemmed over the left and right outer wheel houses.

2.

In order to hem the wheel arch, it is necessary to repair any damaged or defaced parts around outer
wheel house.

CAUTION:

Ensure that the area that is to be glued around the outer wheelhouse is undamaged or defaced.

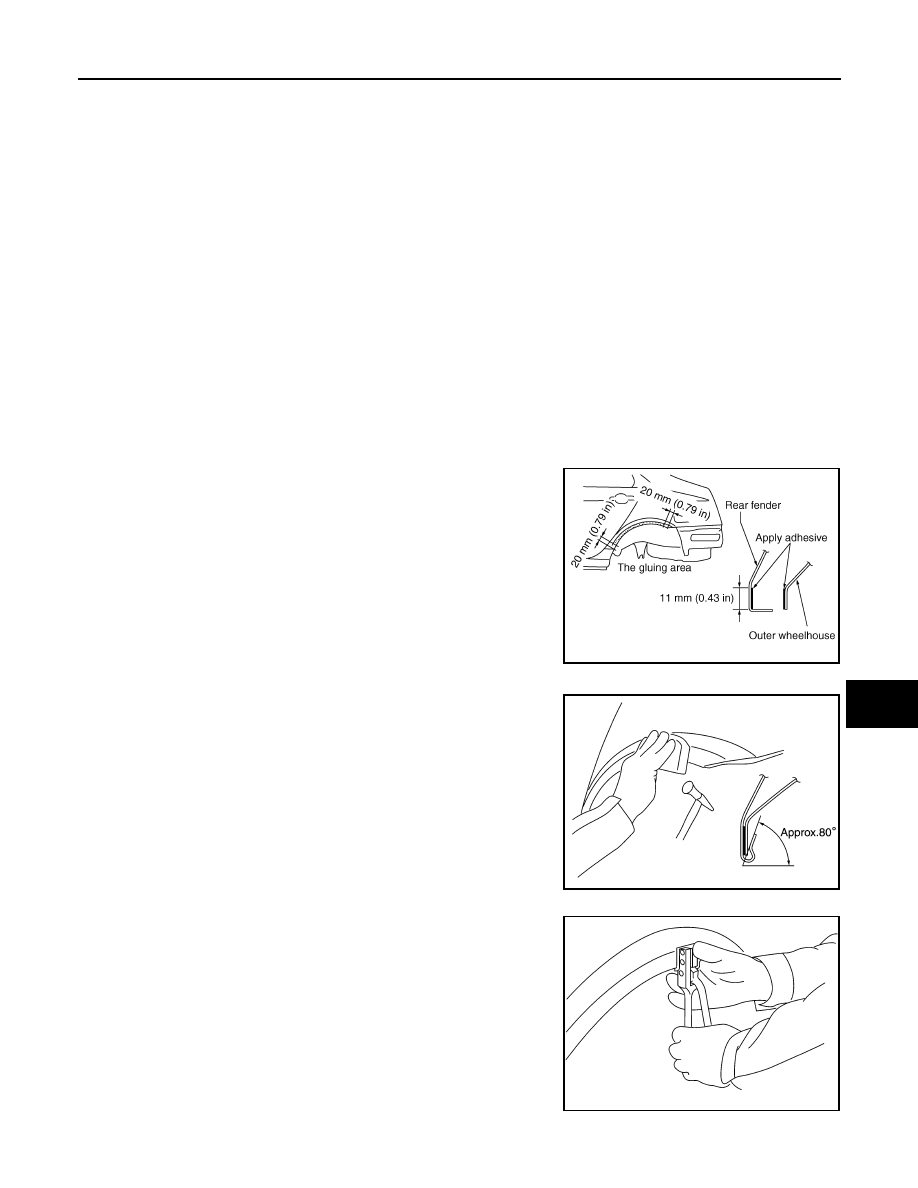

PROCEDURE OF THE HEMMING PROCESS

• Peel off old bonding material on the surface of the outer wheel-

house and clean thoroughly.

• Peel off a primer coat in the specified area where new adhesive is

to be applied on rear fender (the replacing part).

• Apply new adhesive to both specified areas of the outer wheel-

house and rear fender.

• Attach rear fender to the body of the car, and weld the required

part except the hemming part.

• Bend the welded part starting from the center of the wheel arch

gradually with a hammer and a dolly. (Also hem the end of the
flange.)

• Hemming with a hammer is conducted to an approximate angle of

80 degrees.

• Starting from the center, hem the wheel arch gradually, using slight

back and forth motion with a hemming tool.

10. Inner front pillar reinforcement

11.

Weld nut

12. Lower front pillar hinge brace

13. Lower hinge plate

14. Lower dash

15. Inner front pillar reinforcement

16. Outer sill reinforcement

17. Lower front pillar reinforcement

18. Inner sill

19. Front outrigger

20. Front floor

21. Front floor reinforcement

22. Inner sill reinforcement

23. Inner sill

24. 2nd crossmember

25. Outer front seat mount bracket

26. Outer front seat mount front rein-

forcement

27. Center pillar reinforcement

28. Lower lock pillar reinforcement

29. Inner center pillar

30. Outer sill brace

31. Inner rear wheelhouse

32. Outer rear wheelhouse

33. Rear pillar seat belt anchor

34. Inner rear pillar

35. Back pillar reinforcement

36. Lower outer back pillar

37. Upper hinge brace

<Adhesive>

3M™ Automix™ Panel Bonding Adhe-
sive 08115 or equivalent

JSKIA0136GB

SIIA2245E

SIIA2246E

BRM-20

< REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

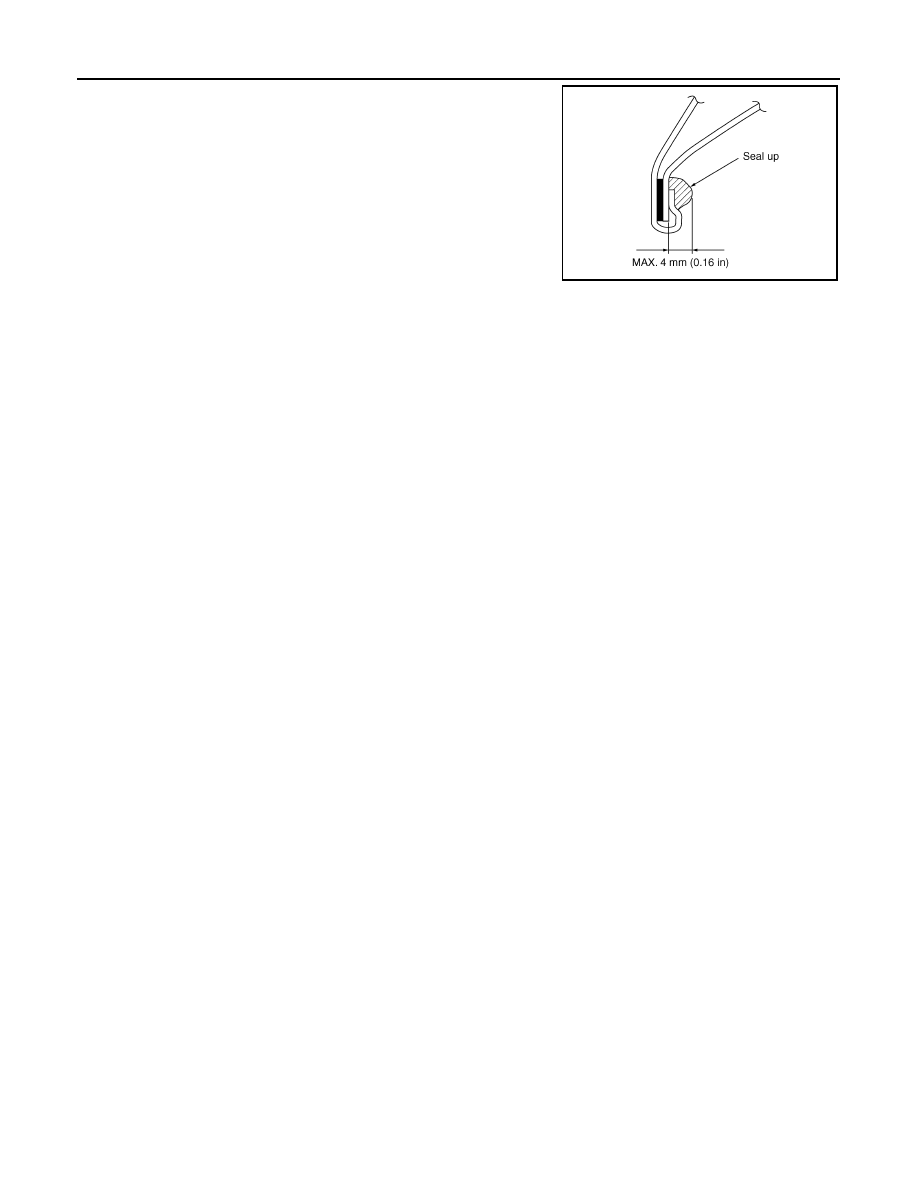

• Seal up the area around the hemmed end of the flange.

JSKIA0137GB
