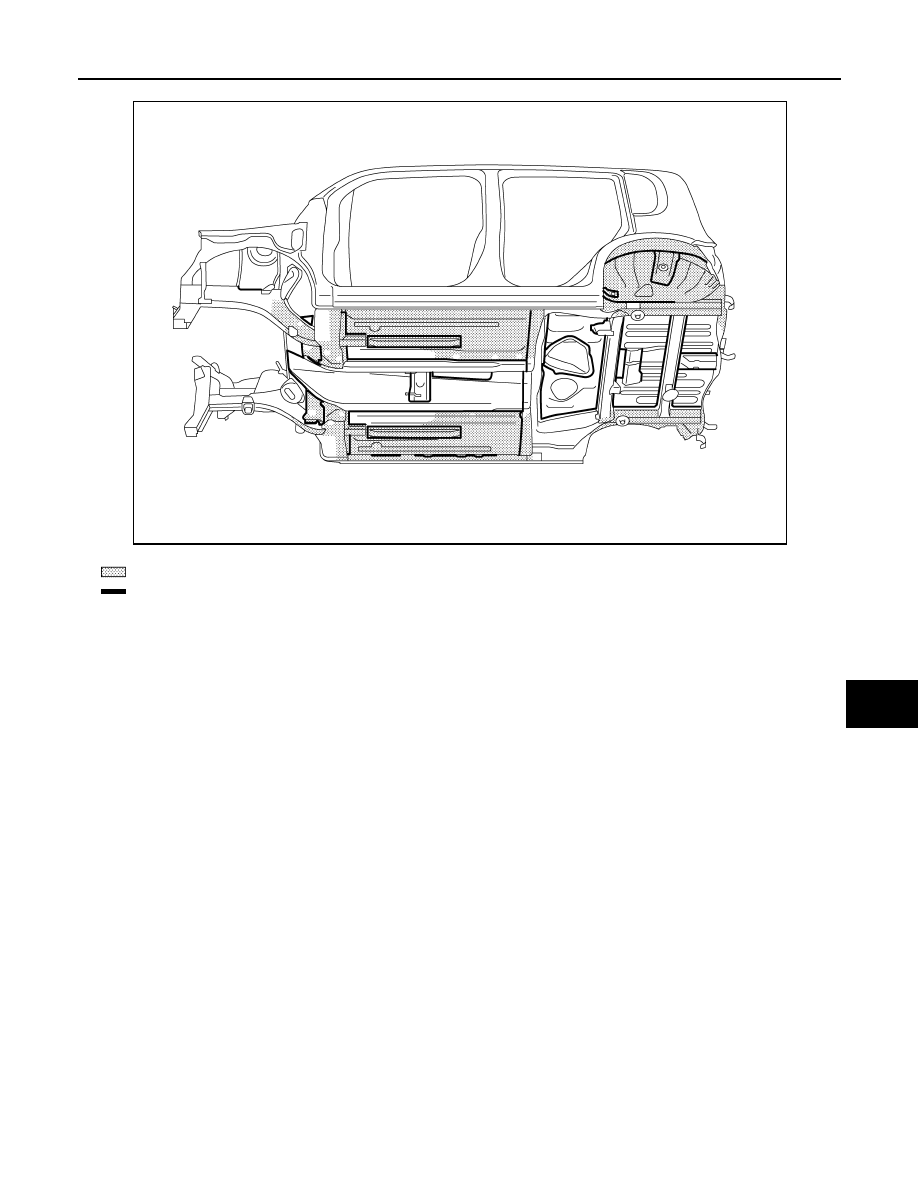

Stone Guard Coat

INFOID:0000000009949331

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

: Undercoated areas

: Sealed portions

JSKIA1181ZZ

BRM-14

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

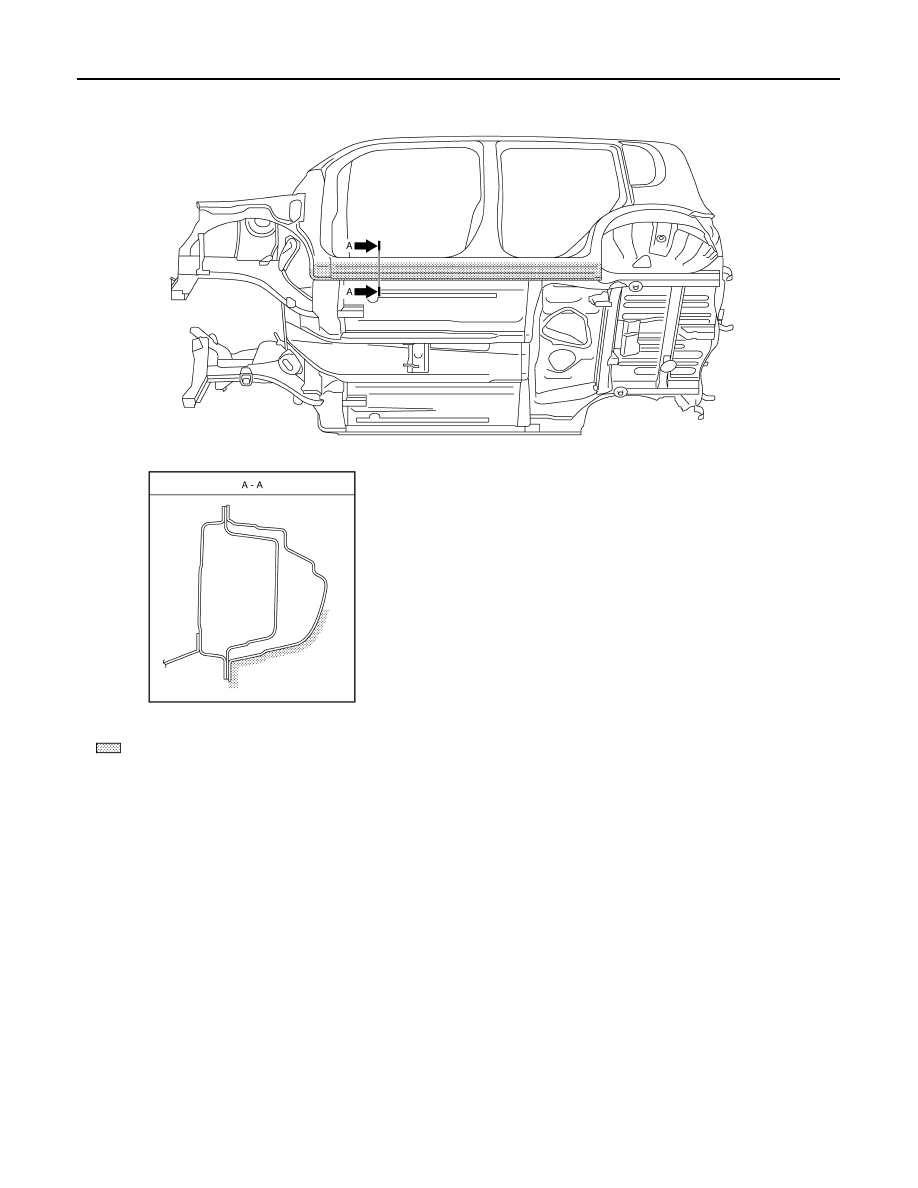

Body Sealing

INFOID:0000000009949332

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Stone guard coated portions

JSKIA1182ZZ

CORROSION PROTECTION

BRM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

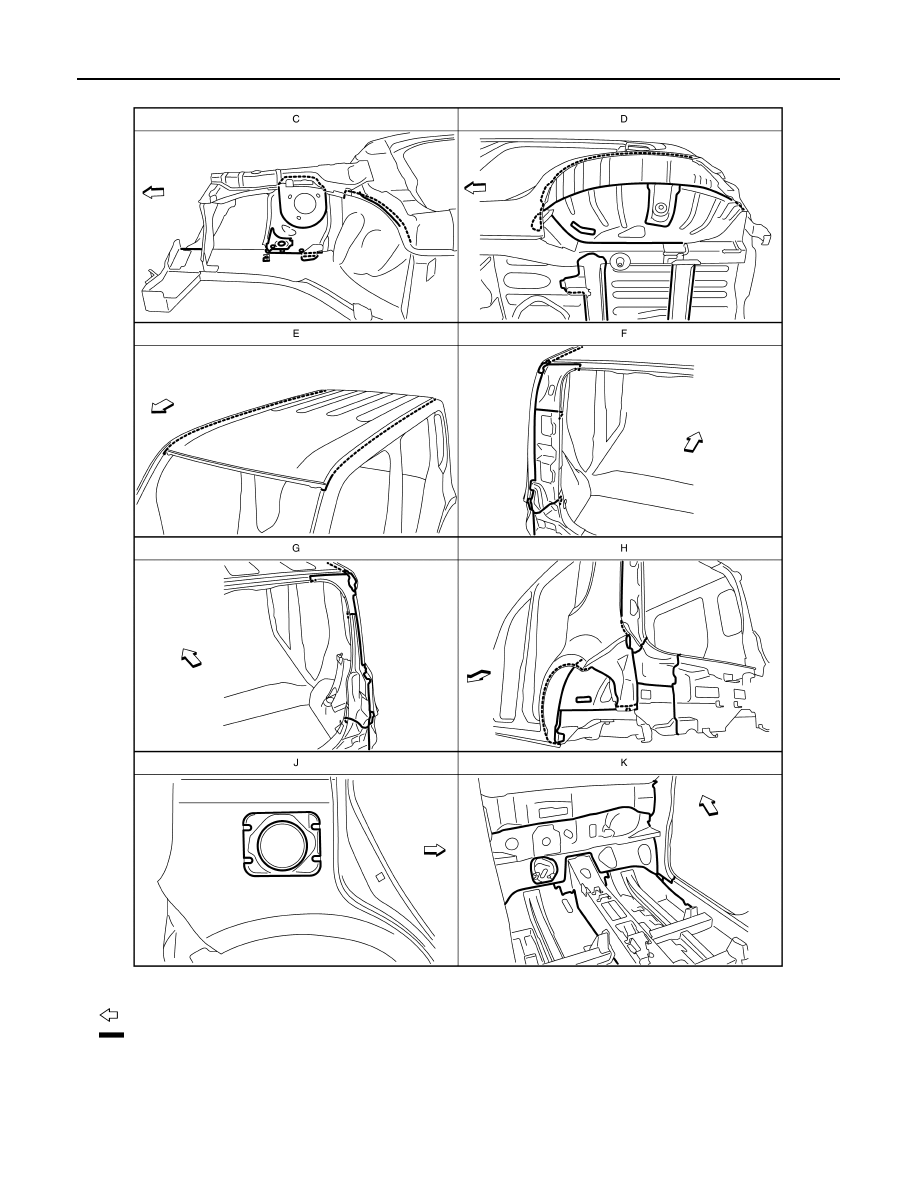

: Vehicle front

: Sealed portions

JSKIA1183ZZ

BRM-16

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

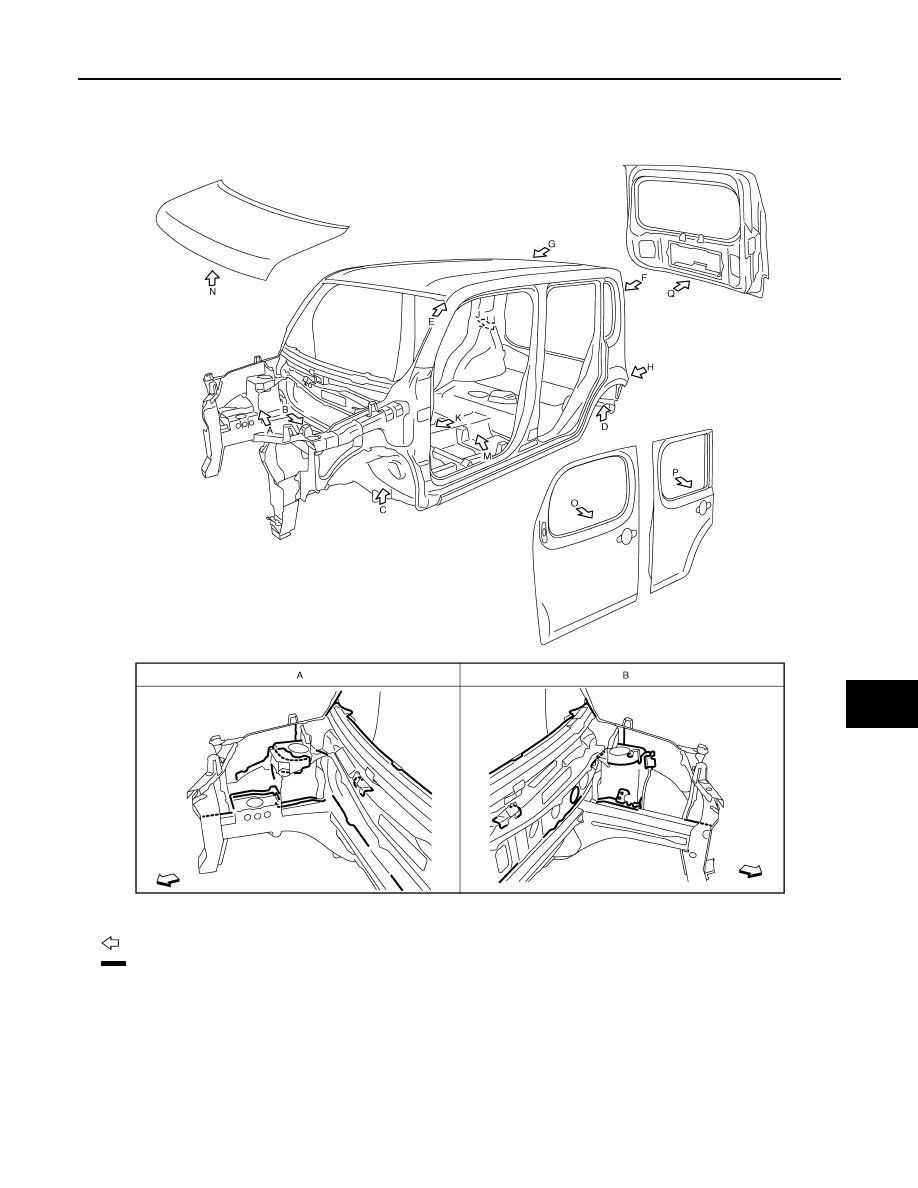

: Vehicle front

: Sealed portions

JSKIA2655ZZ
