BODY COMPONENT PARTS

BRM-9

< PREPARATION >

BRM

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

Hoodledge reinforcement (RH & LH) 8.

Front strut housing (RH & LH)

Cowl top

10. Upper dash assembly

11.

Lower dash

12. Steering hole patch

13. Lower dash crossmember assembly 14. Lower dash crossmember reinforce-

ment

15. Lower dash reinforcement

16. Center front floor

17. Front floor (RH & LH)

18. Inner sill (RH & LH)

19. Rear floor front

20. Rear floor rear

21. Center rear member assembly

22. Rear floor rear cover

23. Front side member assembly (RH &

LH)

24. Outer add on frame bracket (RH &

LH)

25. Front side member closing plate as-

sembly (RH & LH)

26. Add on frame bracket (RH & LH)

27. Tie down hook reinforcement

28. Front side closing plate reinforce-

ment

29. Front side rear closing reinforcement 30. Lower front hoodledge

31. Strut housing reinforcement

32. Front suspension mounting bracket

(RH & LH)

33. Rear seat crossmember

34. Center rear crossmember assembly

35. 7th crossmember

36. Rear side member assembly (RH &

LH)

37. Rear side member extension (RH &

LH)

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

BRM-10

< PREPARATION >

BODY COMPONENT PARTS

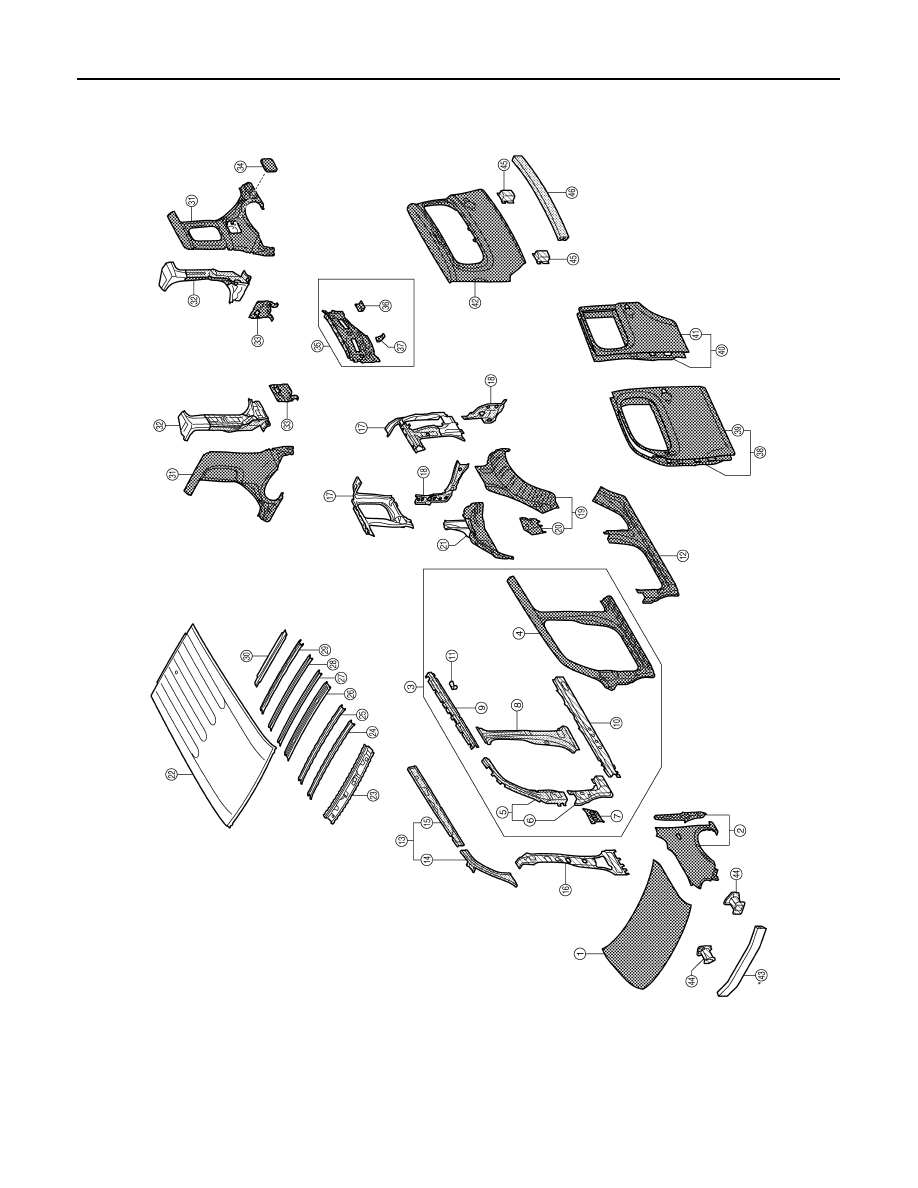

Body Component Parts

INFOID:0000000009949328

Hood

Front fender (RH & LH)

Side body assembly (RH & LH)

Outer front side body (RH & LH)

Front pillar brace (RH & LH)

Lower front pillar hinge brace (RH &
LH)

Lower front pillar reinforcement (RH
& LH)

Center pillar reinforcement (RH &
LH)

Outer side roof rail reinforcement
(RH & LH)

JSKIA1178ZZ

BODY COMPONENT PARTS

BRM-11

< PREPARATION >

BRM

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

10. Outer sill reinforcement (RH & LH)

11.

Seat belt anchor reinforcement

12. Outer sill (RH & LH)

13. Inner side roof rail complete (RH &

LH)

14. Upper inner front pillar (RH & LH)

15. Inner side roof rail (RH & LH)

16. Inner center pillar (RH & LH)

17. Inner rear pillar (RH & LH)

18. Lower inner rear pillar (RH & LH)

19. Outer rear wheelhouse (RH & LH)

20. Outer rear wheelhouse extension

(RH & LH)

21. Inner rear wheelhouse (RH & LH)

22. Roof

23. Front roof rail

24. Roof bow No. 1

25. Roof bow No. 2

26. Center roof reinforcement

27. Roof bow No. 3

28. Roof bow No. 4

29. Roof bow No. 5

30. Rear roof rail

31. Rear fender assembly (RH & LH)

32. Back pillar assembly (RH & LH)

33. Rear combination lamp base exten-

sion (RH & LH)

34. Fuel filler lid

35. Rear panel assembly

36. Upper rear bumper retainer

37. Rear side bumper bracket

38. Front door assembly (RH & LH)

39. Outer front door panel (RH & LH)

40. Rear door assembly (RH & LH)

41. Outer rear door panel (RH & LH)

42. Back door

43. Front bumper armature assembly

44. Front side member front assembly

(RH & LH)

45. Rear bumper stay (RH & LH)

46. Inner center rear bumper reinforce-

ment assembly

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

*: Aluminum portion

BRM-12

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000009949329

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

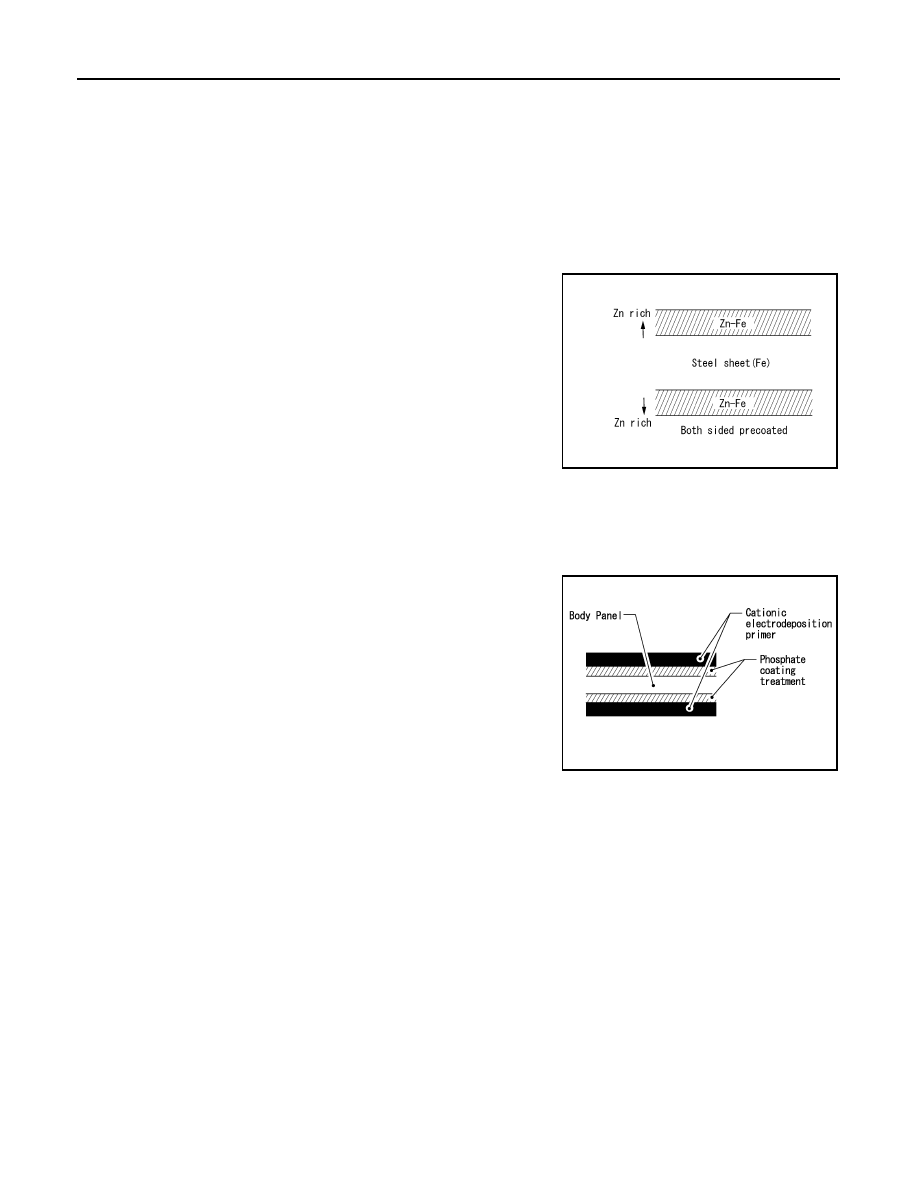

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet is adopted replacing conventional
zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

NISSAN genuine parts are fabricated from galvannealed steel. Therefore, it is recommended that NISSAN
genuine parts or an equivalent be used for panel replacement to maintain the anti-corrosive performance built
into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition
primer, which provide excellent corrosion protection, are applied to
all body components.

CAUTION:

Confine paint removal during welding operation to an absolute
minimum.

NISSAN genuine parts are also treated in the same manner. Therefore, it is recommended that NISSAN gen-
uine parts or an equivalent be used for panel replacement to maintain anti-corrosive performance built into the
vehicle at the factory.

Undercoating

INFOID:0000000009949330

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

PRECAUTIONS IN UNDERCOATING

Never apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst that are subjected to heat).

Never undercoat the exhaust pipe or other parts that become hot.

Never undercoat rotating parts.

Apply bitumen wax after applying undercoating.

After putting seal on the vehicle, put undercoating on it.

SIIA2294E

PIIA0095E
