REPLACEMENT OPERATIONS

BRM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

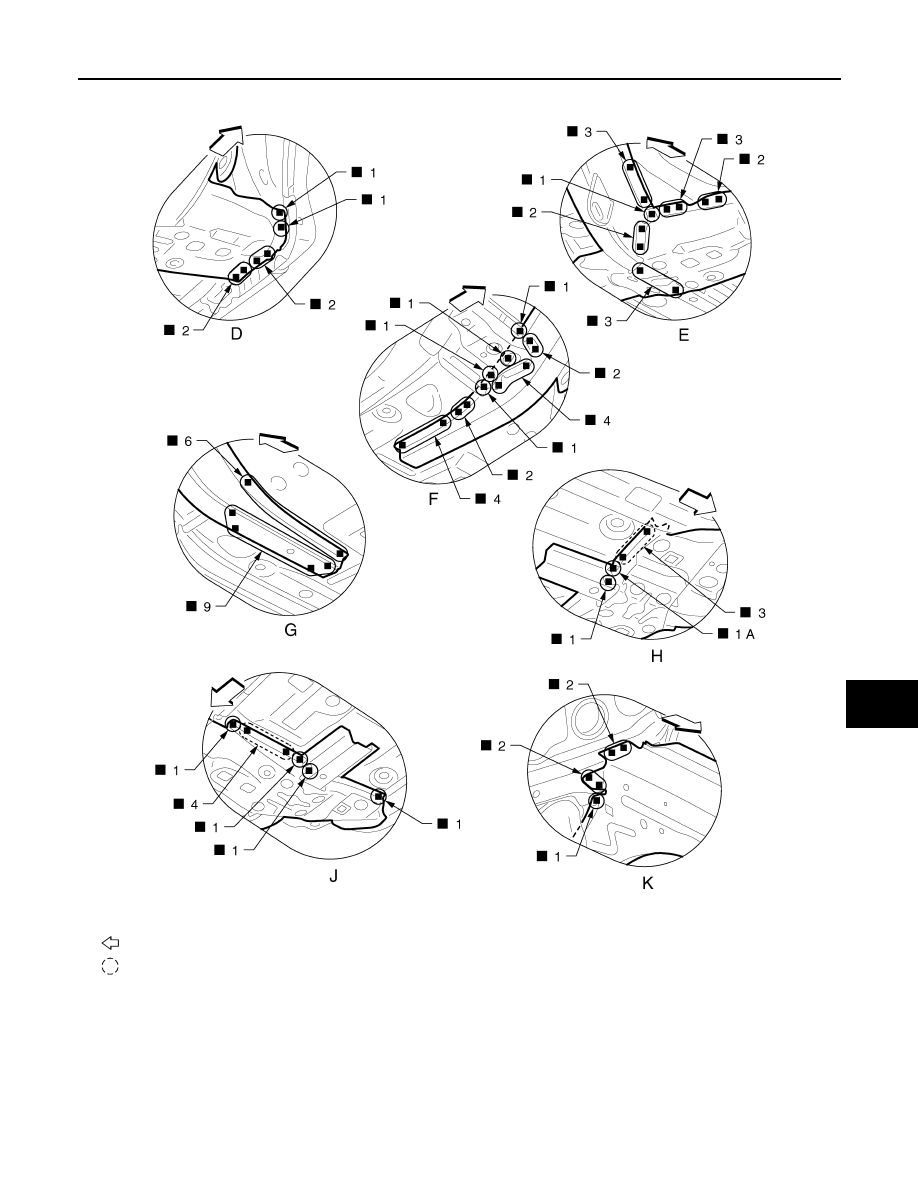

View F and G: Before installing front suspension mounting bracket

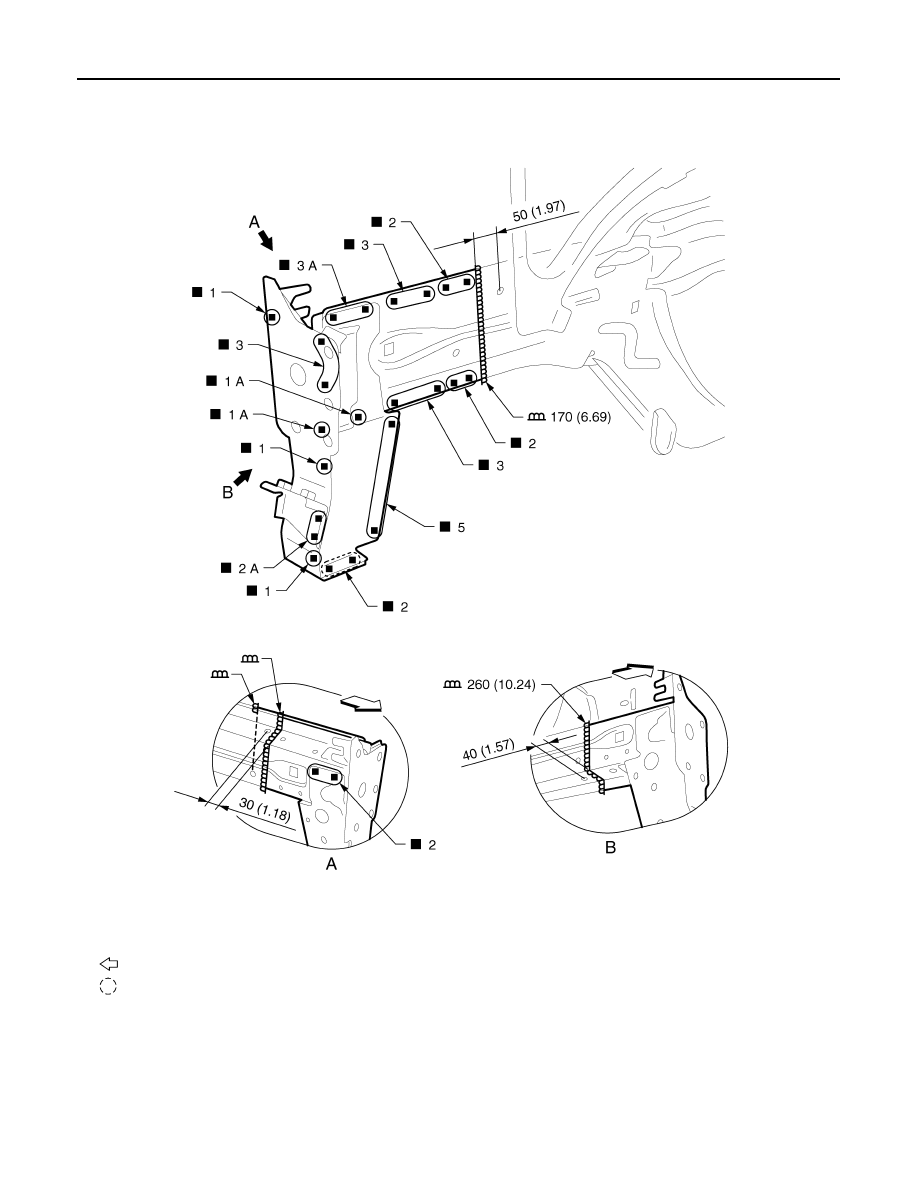

Front Side Member (Partial Replacement)

INFOID:0000000009949340

Work after radiator core support is removed.

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA1156ZZ

BRM-30

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

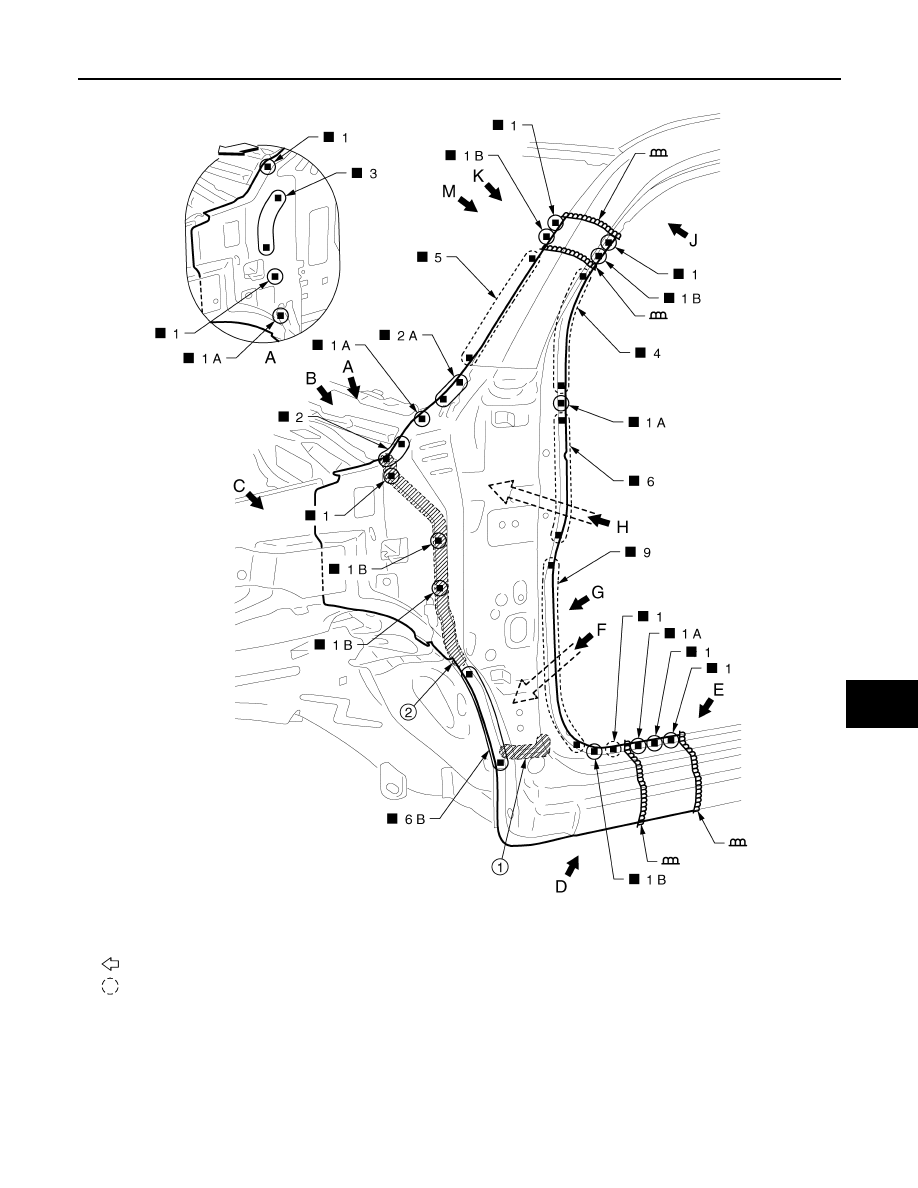

Front Pillar

INFOID:0000000009949341

Work after hoodledge reinforcement is removed.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

JSKIA1157GB

REPLACEMENT OPERATIONS

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View A: Before installing side body assembly

1.

Urethane foam

2.

Body sealing

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Side body assembly (LH)

z

Side dash (LH)

z

Upper inner front pillar (LH)

JSKIA1158ZZ

BRM-32

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

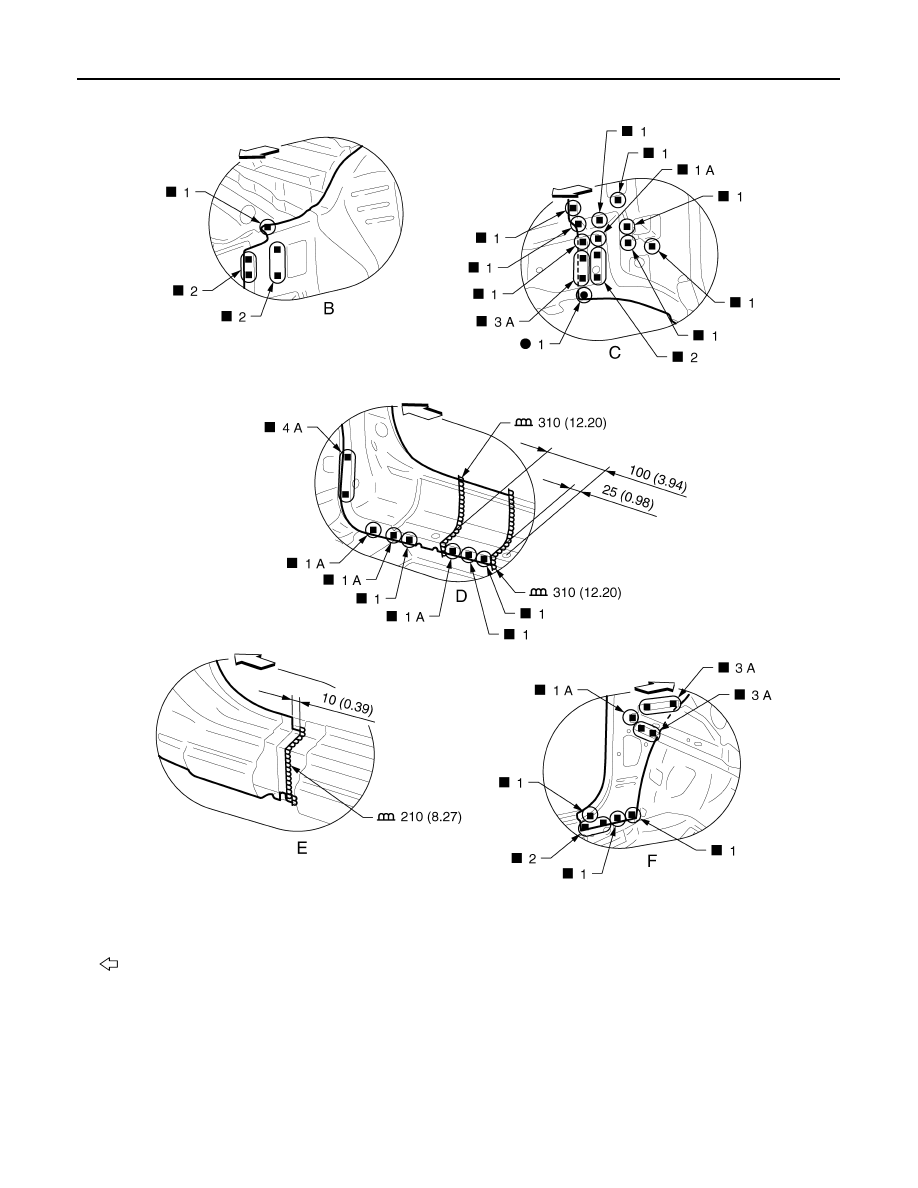

View E: Before installing outer front side body

Unit: mm (in)

: Vehicle front

JSKIA1159GB
