Nissan Cube. Manual - part 127





REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

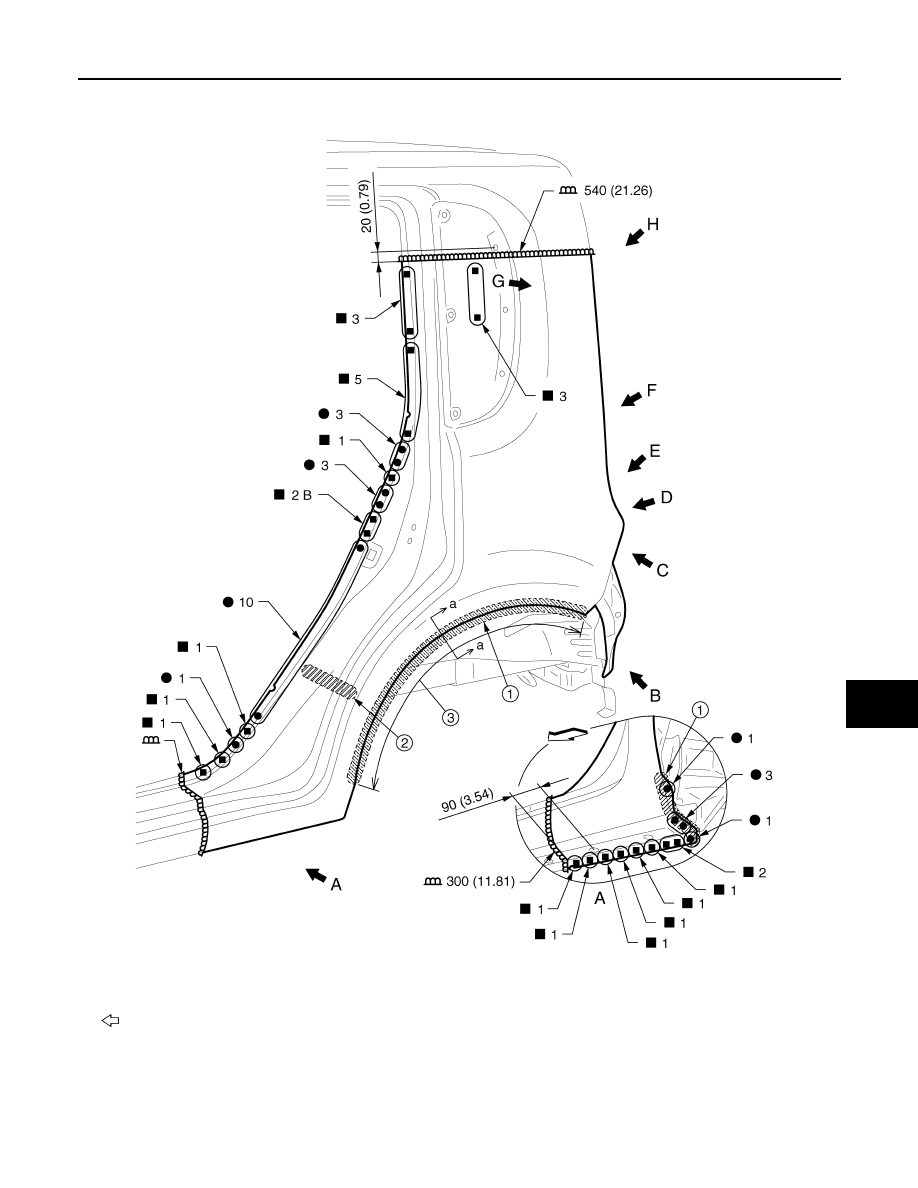

Rear Fender (LH)

INFOID:0000000009949345

1.

Adhesive

2.

Urethane foam

3.

Hemming portion

Unit: mm (in)

: Vehicle front

Replacement parts

z

Rear fender assembly (LH)

z

Back pillar assembly (LH)

JSKIA1167GB

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

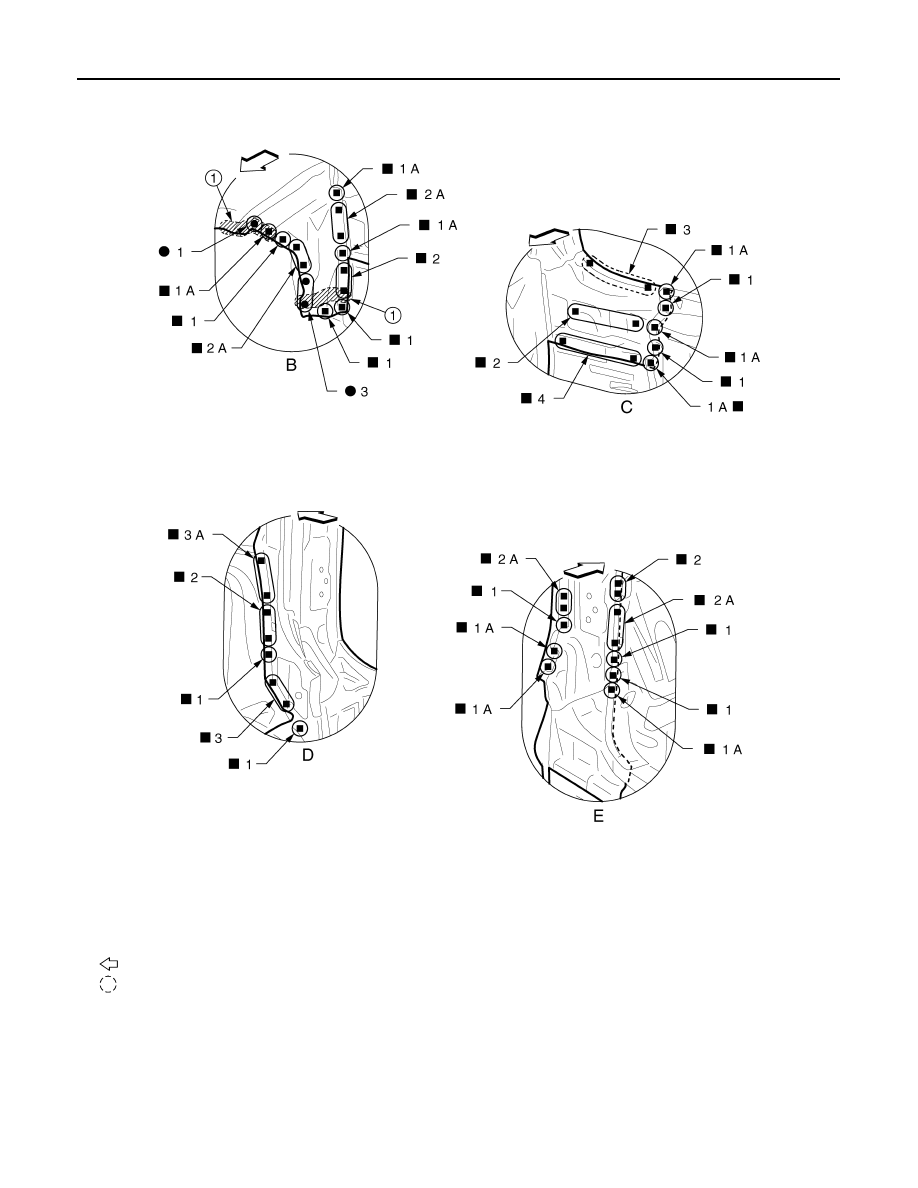

View D: Before installing rear fender assembly

1.

Body sealing

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA1168ZZ

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

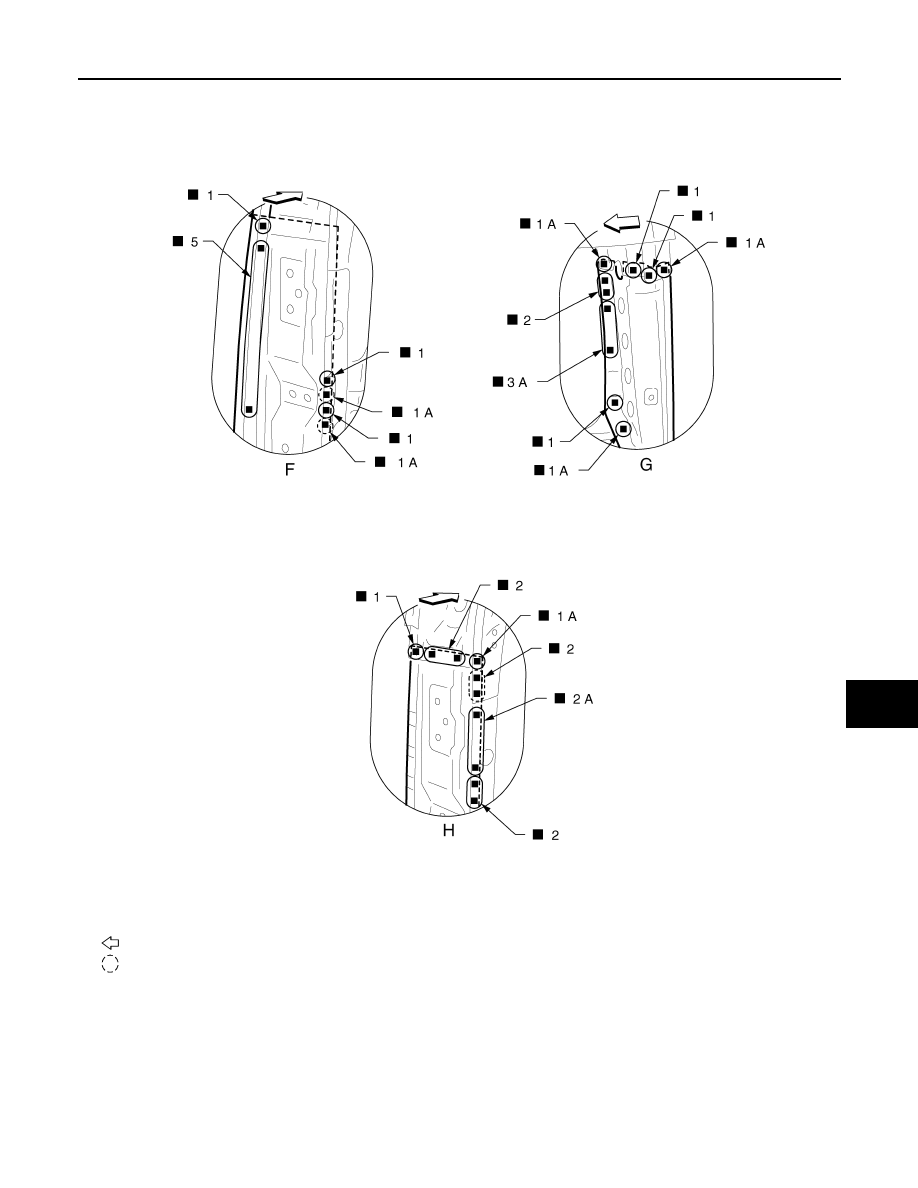

View G and H: Before installing rear fender assembly

POINT

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA1169ZZ

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

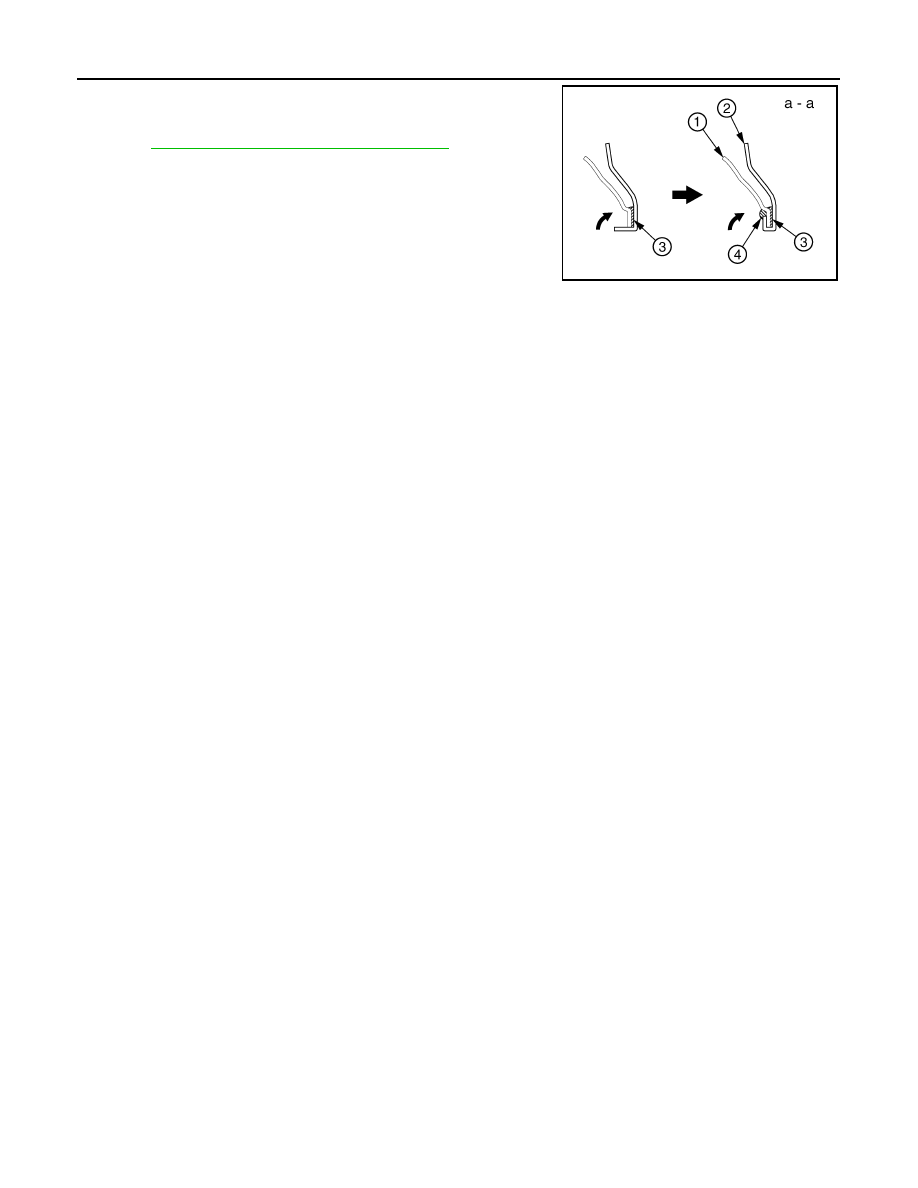

• Perform the hemming to the flange of wheelarch after applying the

adhesive.

• Apply the sealing to the flange end.
• Refer to

BRM-19, "Rear Fender Hemming Process"

.

1.

Outer rear wheelhouse

2.

Rear fender

3.

Adhesive

4.

Sealant

JSKIA0204GB
