FRONT WIPER DRIVE ASSEMBLY

WW-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

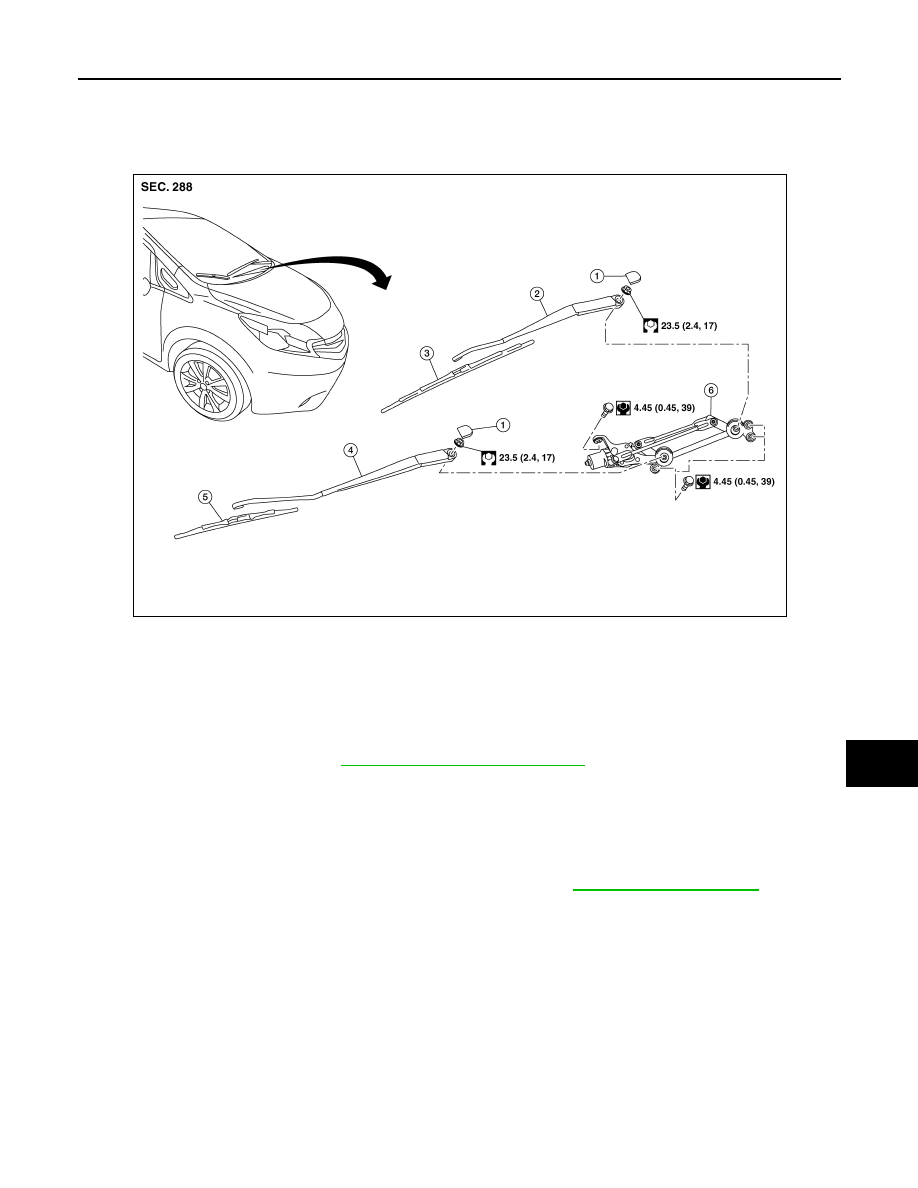

Exploded View

INFOID:0000000009596022

Removal and Installation

INFOID:0000000009578787

REMOVAL

1. Remove cowl top cover. Refer to

EXT-35, "Removal and Installation"

.

2. Disconnect the harness connector from front wiper motor.
3. Remove bolts and front wiper drive assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten front wiper drive assembly bolts to specification. Refer to

WW-71, "Exploded View"

.

1.

Wiper arm cap (LH/RH)

2.

Wiper arm (LH)

3.

Wiper blade (LH)

4.

Wiper arm (RH)

5.

Wiper blade (RH)

6.

Front wiper drive assembly

ALLIA1310ZZ

WW-72

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

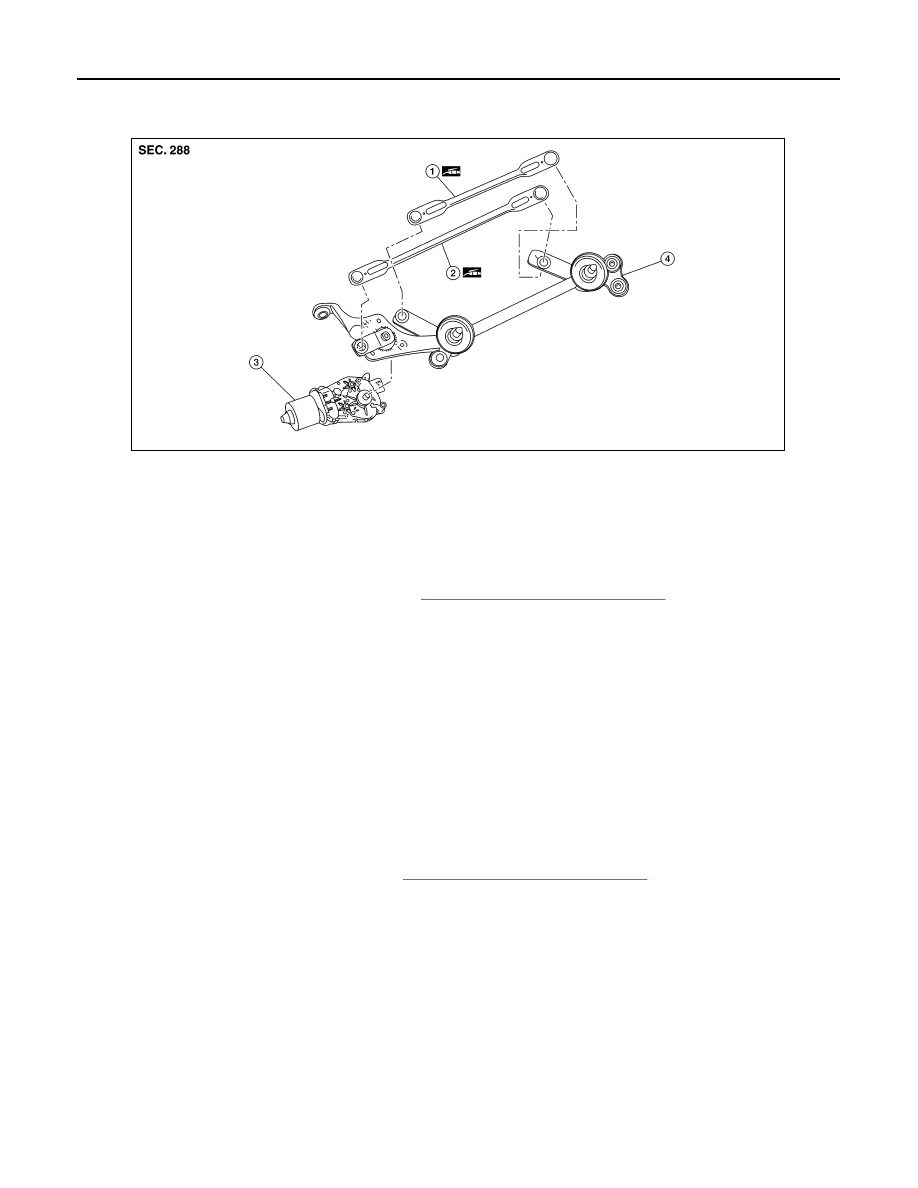

Exploded View

INFOID:0000000009596023

Disassembly and Assembly

INFOID:0000000009578788

DISASSEMBLY

1. Remove front wiper drive assembly. Refer to

WW-71, "Removal and Installation"

.

2. Remove wiper linkage 1 and 2 from the front wiper drive.

CAUTION:

Do not bend the linkage or damage the plastic part of the ball joint when removing the wiper link-

age.

3. Remove screws and wiper motor from front wiper drive.

ASSEMBLY

1. Install wiper motor screws and wiper motor to front wiper drive.
2. Install wiper linkage 2 to the front wiper drive.

CAUTION:

• Do not drop wiper motor or cause it to come into contact with other parts.

• Be careful of the grease condition at the wiper motor and wiper linkage joint (retainer). Apply a

suitable multi

−purpose grease if necessary.

3. Install wiper linkage 1 to the wiper motor and the front wiper drive.
4. Install front wiper drive assembly. Refer to

WW-71, "Removal and Installation"

.

1.

Wiper linkage 2

2.

Wiper linkage 1

3.

Front wiper motor

4.

Front wiper drive

ALLIA1311ZZ

WIPER AND WASHER SWITCH

WW-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Removal and Installation

INFOID:0000000009578798

The wiper and washer switch is part of the combination switch. Refer to

EXL-103, "Removal and Installation"

.

WW-74

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

REAR WIPER ARM

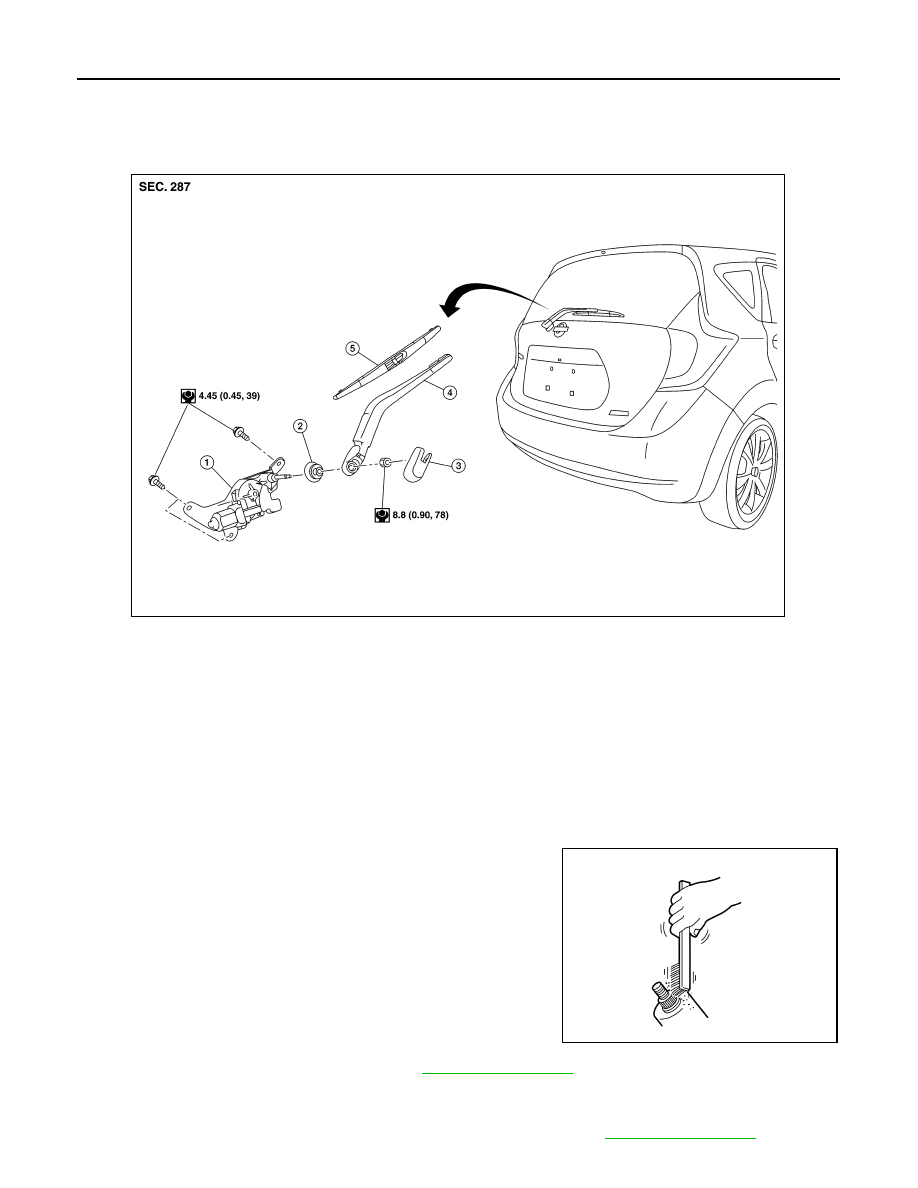

Exploded View

INFOID:0000000009578892

Removal and Installation

INFOID:0000000009578893

REMOVAL

1. Operate the rear wiper to move it to the auto stop position.
2. Remove rear wiper arm cover.
3. Remove nut and rear wiper arm.

INSTALLATION

1. Clean the rear wiper arm as shown. This will reduce the possibil-

ity of wiper arm looseness.

2. Adjust the rear wiper blade position. Refer to

WW-75, "Adjustment"

.

3. Install the rear wiper arm and nut.
4. Install the rear wiper arm cover.
5. Check that the rear wiper blade stops at the specified position. Refer to

WW-75, "Adjustment"

.

1.

Rear wiper motor

2.

Rear wiper arm seal

3.

Rear wiper arm cover

4.

Rear wiper arm

5.

Rear wiper blade

ALLIA1312ZZ

SKIA0082J
