FRONT WASHER NOZZLE AND TUBE

WW-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

WASHER TUBE : Inspection

INFOID:0000000009596021

INSPECTION

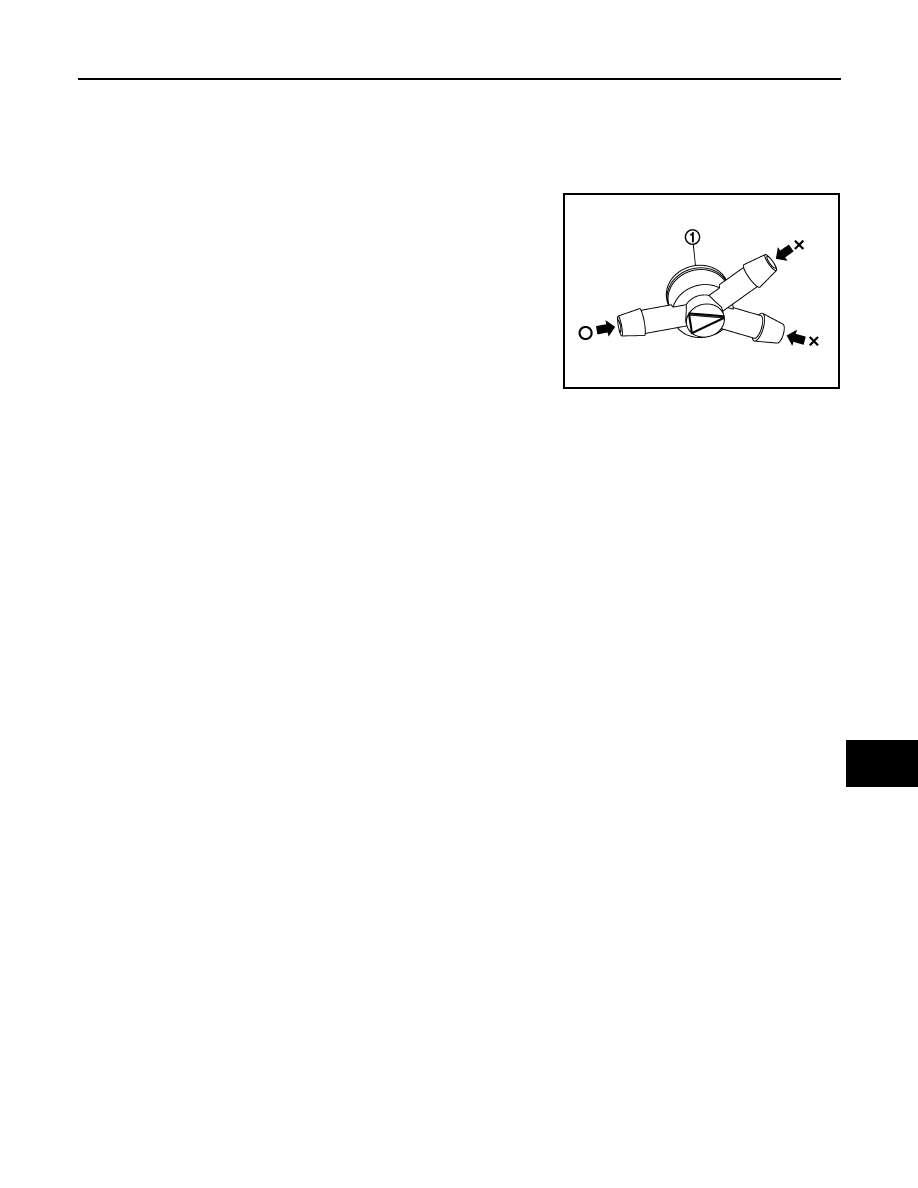

Check that air can pass through the nozzle (1) by blowing into the

nozzle and that air cannot flow in the opposite direction.

O: Air can flow

X: Air cannot flow

JMLIA1326ZZ

WW-68

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

FRONT WIPER ARM

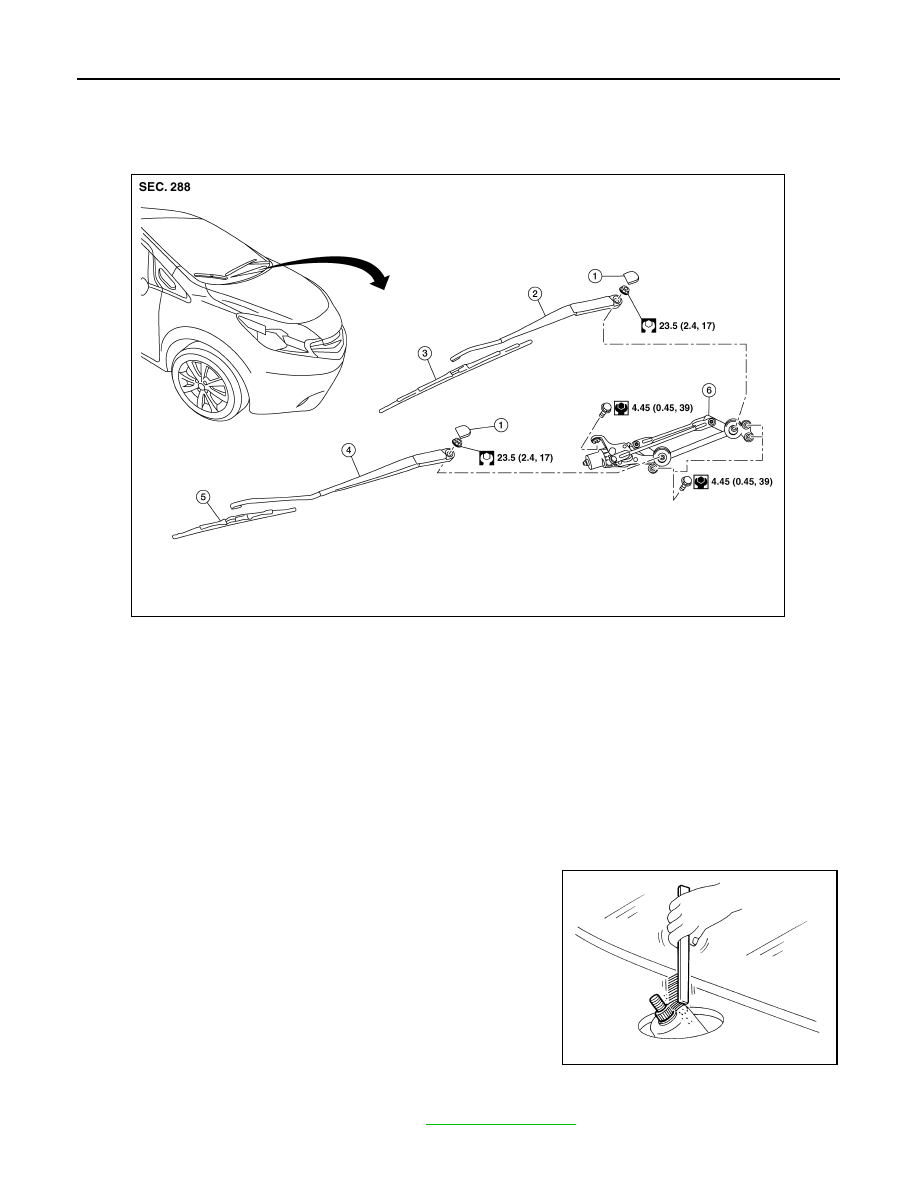

Exploded View

INFOID:0000000009578782

Removal and Installation

INFOID:0000000009578783

REMOVAL

1. Open hood.
2. Operate wiper to move it to the auto stop position.
3. Remove wiper arm cap.
4. Remove wiper arm nut and wiper arm.

INSTALLATION

1. Clean wiper arm mount as shown. This will reduce the possibility

of wiper arm looseness.

2. Operate wiper motor to move the wiper to the auto stop position.
3. Adjust the front wiper blade position. Refer to

WW-69, "Adjustment"

.

1.

Wiper arm cap (LH/RH)

2.

Wiper arm (LH)

3.

Wiper blade (LH)

4.

Wiper arm (RH)

5.

Wiper blade (RH)

6.

Front wiper drive

ALLIA1310ZZ

ELH0717D

FRONT WIPER ARM

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4. Install front wiper arm and front wiper arm nut.

CAUTION:

Tighten front wiper arm nut to specification. Refer to

WW-68, "Exploded View"

.

5. Install front wiper arm cap.
6. Check that wiper blades stop at the specified position. Refer to

WW-69, "Adjustment"

.

Adjustment

INFOID:0000000009578784

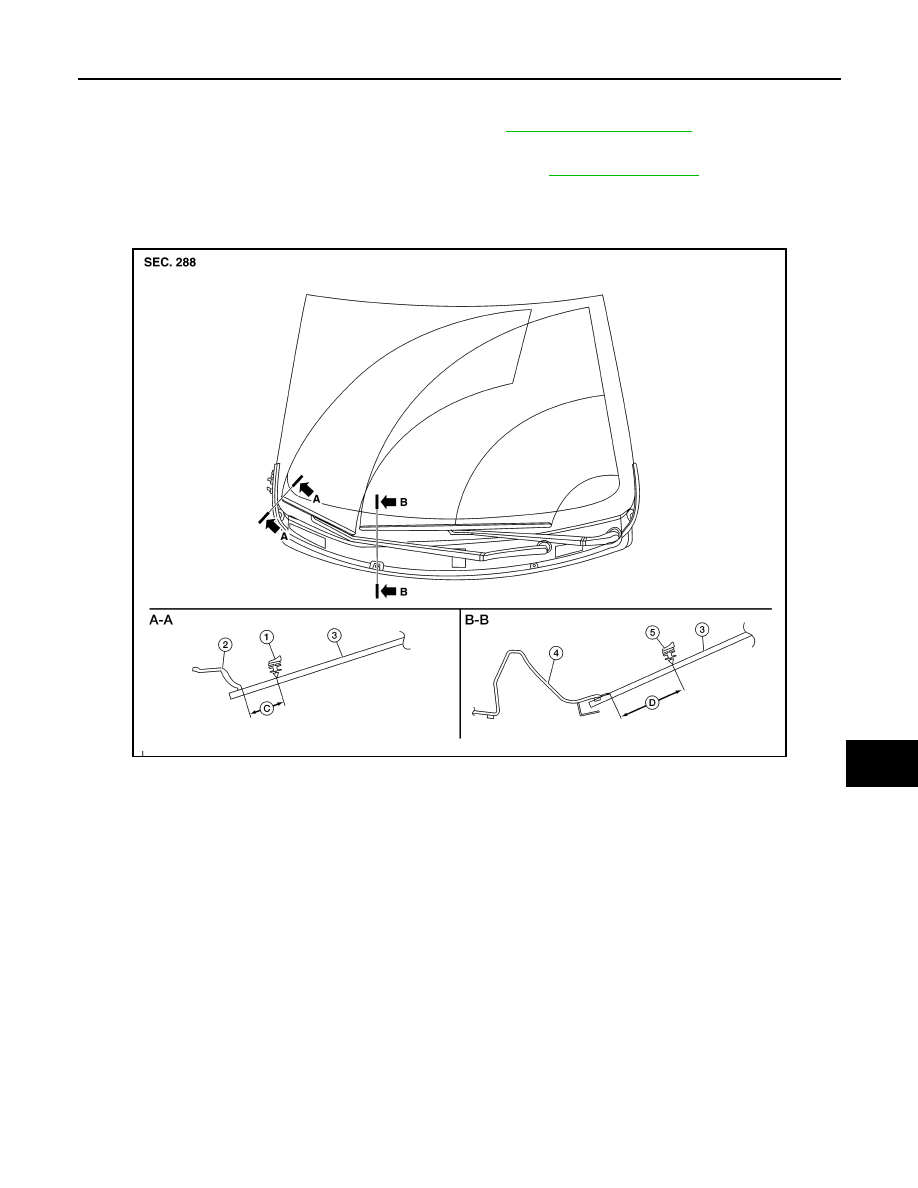

WIPER BLADE POSITION ADJUSTMENT

ALLIA1309ZZ

1.

Wiper blade (RH)

2.

Front fender (RH)

3.

Windshield glass

4.

Cowl top cover

5.

Wiper blade (LH)

C.

28.0

± 7.5 mm (1.10 ± 0.30 in)

D.

60.7

± 7.5 mm (2.39 ± 0.30 in)

WW-70

< REMOVAL AND INSTALLATION >

FRONT WIPER BLADE

FRONT WIPER BLADE

Removal and Installation

INFOID:0000000009578785

REMOVAL

1. Lift up wiper arm and set to the position where wiper arm can be locked back.

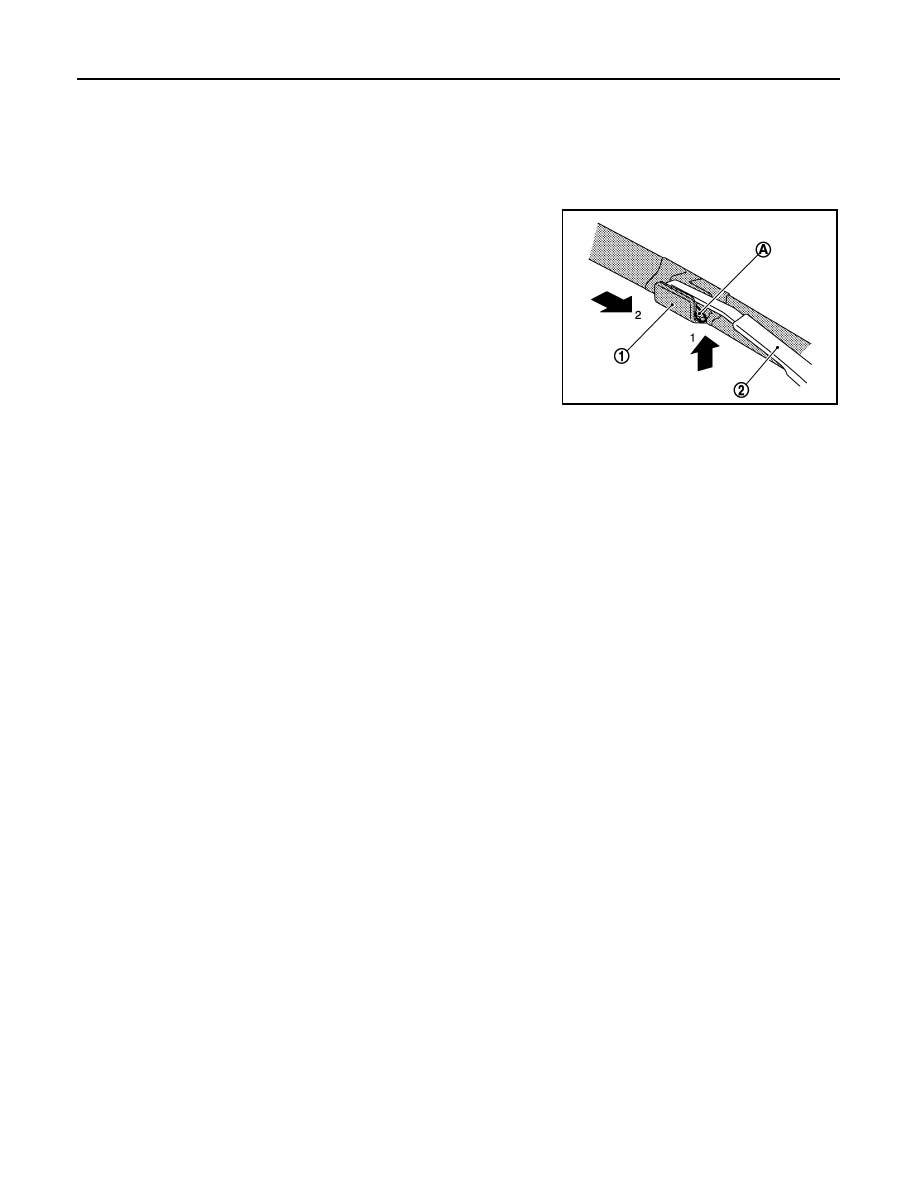

2. Push the release tab (A) of the front wiper blade (1), then move

the front wiper blade down the front wiper arm (2) to remove.

CAUTION:

Be careful not to drop the wiper arm onto the windshield

glass.

INSTALLATION

Insert the front wiper blade onto the front wiper arm until it clicks into place.

JMLIA1044ZZ
