FRONT WIPER DOES NOT OPERATE

WW-59

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

1. With CONSULT, select FR WIP REQ in DATA MONITOR of IPDM E/R.

2. Switch the front wiper switch to HI and LO.

3. Check the status of FR WIP REQ while operating the switch.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-31, "Removal and Installation"

 (with Intelligent Key) or

PCS-60,

"Removal and Installation"

 (without Intelligent Key).

NO

>> GO TO 6.

6.

 CHECK COMBINATION SWITCH (WIPER AND WASHER SWITCH)

Check combination switch (wiper and washer switch). Refer to

WW-48, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

 (with Intelligent Key) or

BCS-127,

"Removal and Installation"

 (without Intelligent Key).

NO

>> Repair or replace the applicable parts.

Data monitor

Condition

Status

FR WIP REQ

Front wiper switch OFF

STOP

Front wiper switch LO

LOW

Front wiper switch HI

HI

WW-60

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000009643042

FRONT WIPER PROTECTION FUNCTION

IPDM E/R detects front wiper stop position by a front wiper stop position signal.

When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 seconds activation and 20 seconds stop.

NOTE:

This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item

“WIP PROT” while the wiper is stopped.

REAR WIPER MOTOR PROTECTION FUNCTION

• BCM may stop rear wiper to protect the rear wiper motor when the rear wiper is stopped for 5 seconds or

more due to a snowfall.

• Rear wiper operates normally one minute after the obstacles are removed with rear wiper OFF.

Ignition switch

Front wiper switch

Front wiper stop position signal

ON

OFF

The front wiper stop position signal (stop position) cannot be input for 10 seconds.

ON

The front wiper stop position signal does not change for 10 seconds.

WASHER TANK

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REMOVAL AND INSTALLATION

WASHER TANK

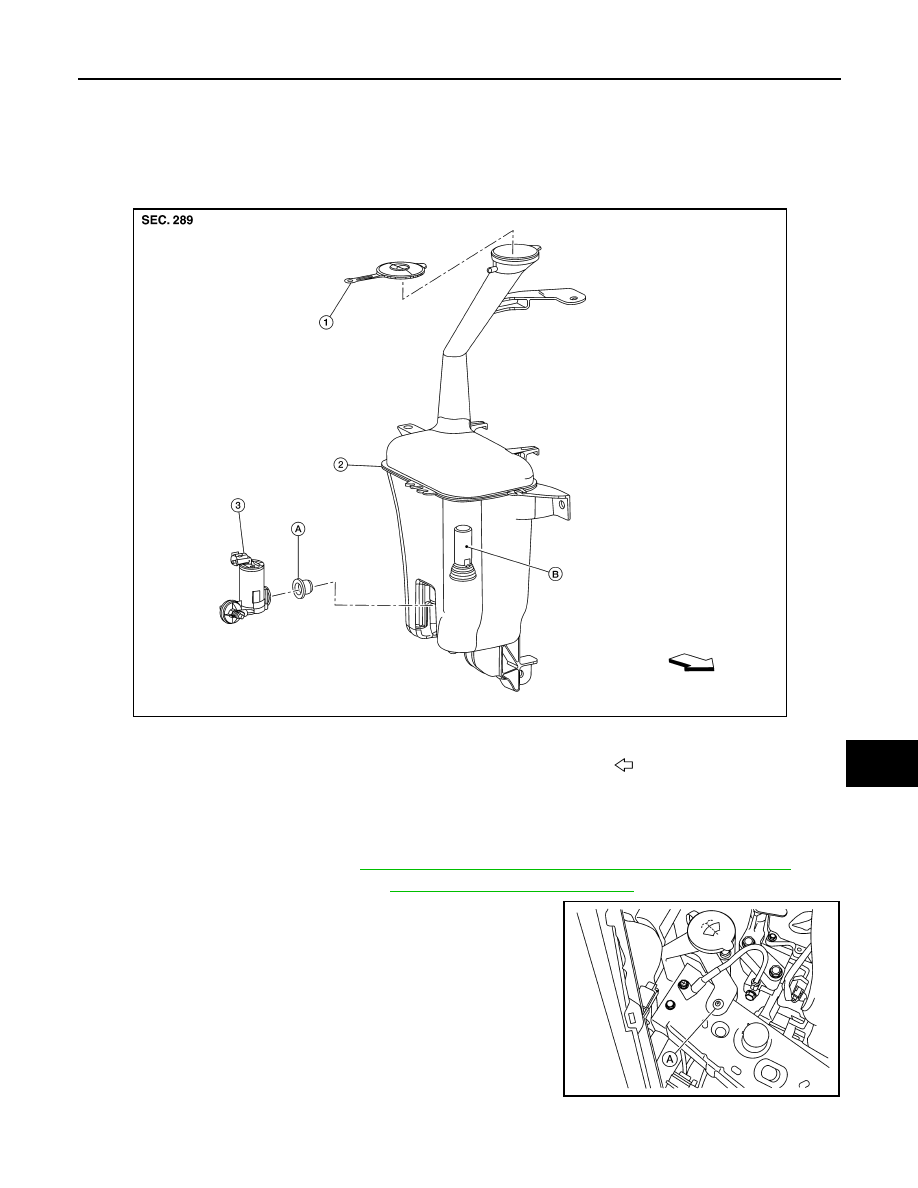

Exploded View

INFOID:0000000009578789

Removal and Installation

INFOID:0000000009578790

REMOVAL

1. Remove front under cover. Refer to

EXT-37, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove fender protector (RH). Refer to

EXT-36, "Removal and Installation"

.

3. Remove washer tank clip (A) using a suitable tool.

1.

Washer tank cap

2.

Washer tank

3.

Front washer motor

A. Front washer motor seal

B. Washer fluid level switch (if equipped)

Front

ALLIA1317ZZ

ALKIA3175ZZ

WW-62

< REMOVAL AND INSTALLATION >

WASHER TANK

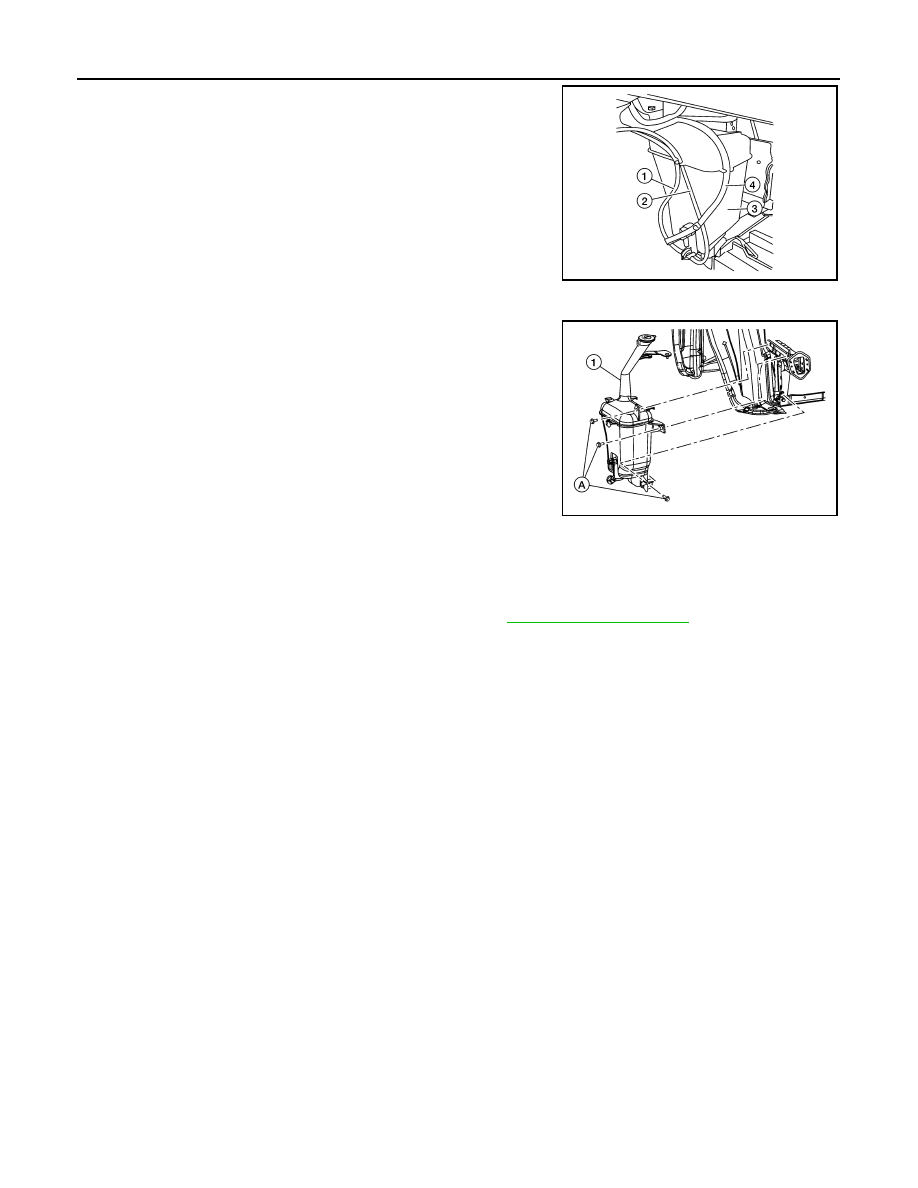

4. Release the front washer tube (2) and rear washer tube (1) from

washer tank (3).

5. Release the harness (4) from the washer tank (3).

6. Disconnect the harness connector from the front washer motor.
7. Remove bolts (A) and washer tank (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, add water to the top of the washer tank inlet to check that no leaks exist.

• Fill washer tank with specified amount of fluid. Refer to

WW-81, "Specifications"

.

ALLIA1305ZZ

ALLIA1303ZZ
