Nissan Versa Note. Manual - part 886





FRONT WASHER MOTOR

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

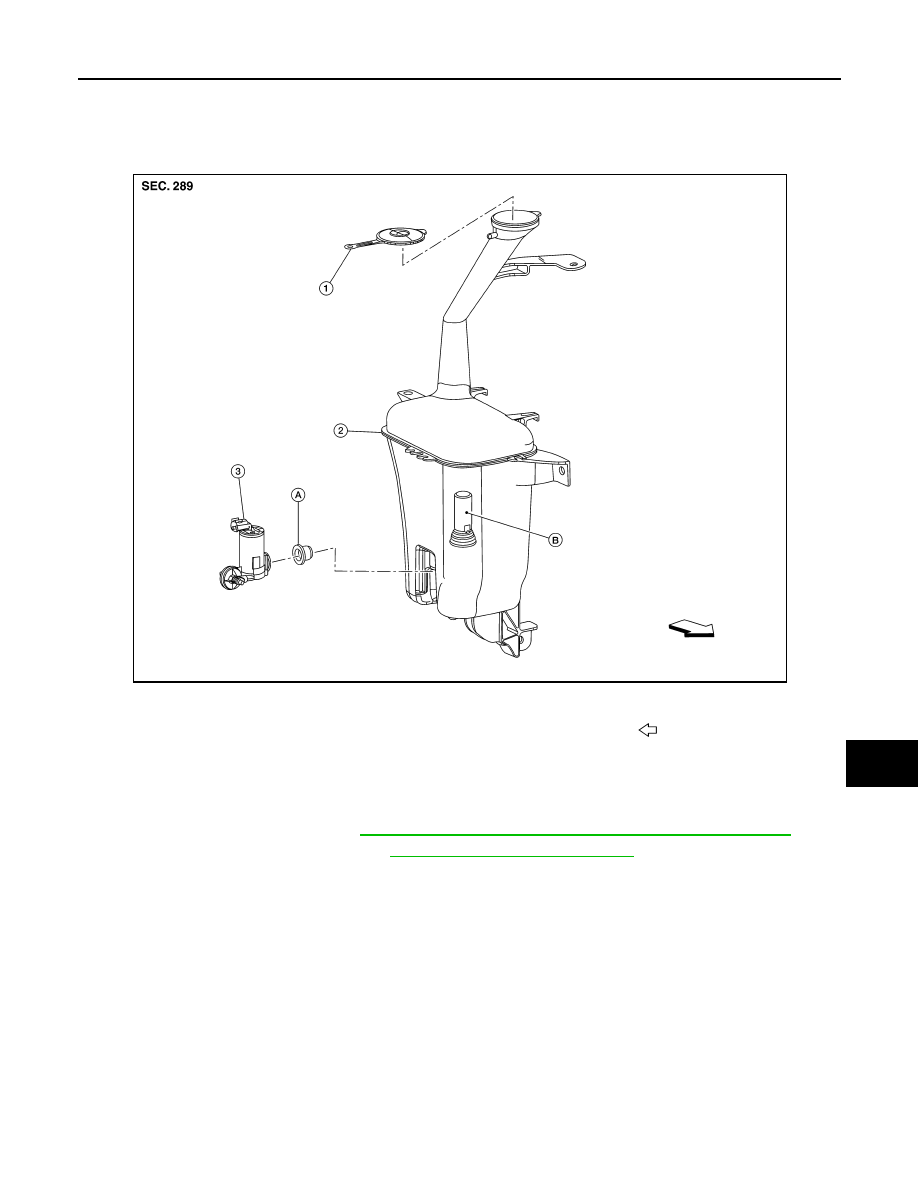

FRONT WASHER MOTOR

Exploded View

INFOID:0000000009578791

Removal and Installation

INFOID:0000000009578792

REMOVAL

1. Remove front under cover. Refer to

EXT-37, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove fender protector (RH). Refer to

EXT-36, "Removal and Installation"

.

3. Disconnect the harness connector from the front washer motor.
4. Remove front washer tube and rear washer tube from front washer motor.
5. Remove front washer motor from washer tank.
6. Remove front washer motor seal from washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not rotate or damage the front washer motor seal when installing the front washer motor.

1.

Washer tank cap

2.

Washer tank

3.

Front washer motor

A.

Front washer motor seal

B.

Washer fluid level switch (if equipped)

Front

ALLIA1317ZZ

WW-64

< REMOVAL AND INSTALLATION >

WASHER FLUID LEVEL SWITCH

WASHER FLUID LEVEL SWITCH

Removal and Installation

INFOID:0000000009578885

The washer fluid level switch is serviced as part of the washer tank. Refer to

WW-61, "Removal and Installa-

tion"

.

FRONT WASHER NOZZLE AND TUBE

WW-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

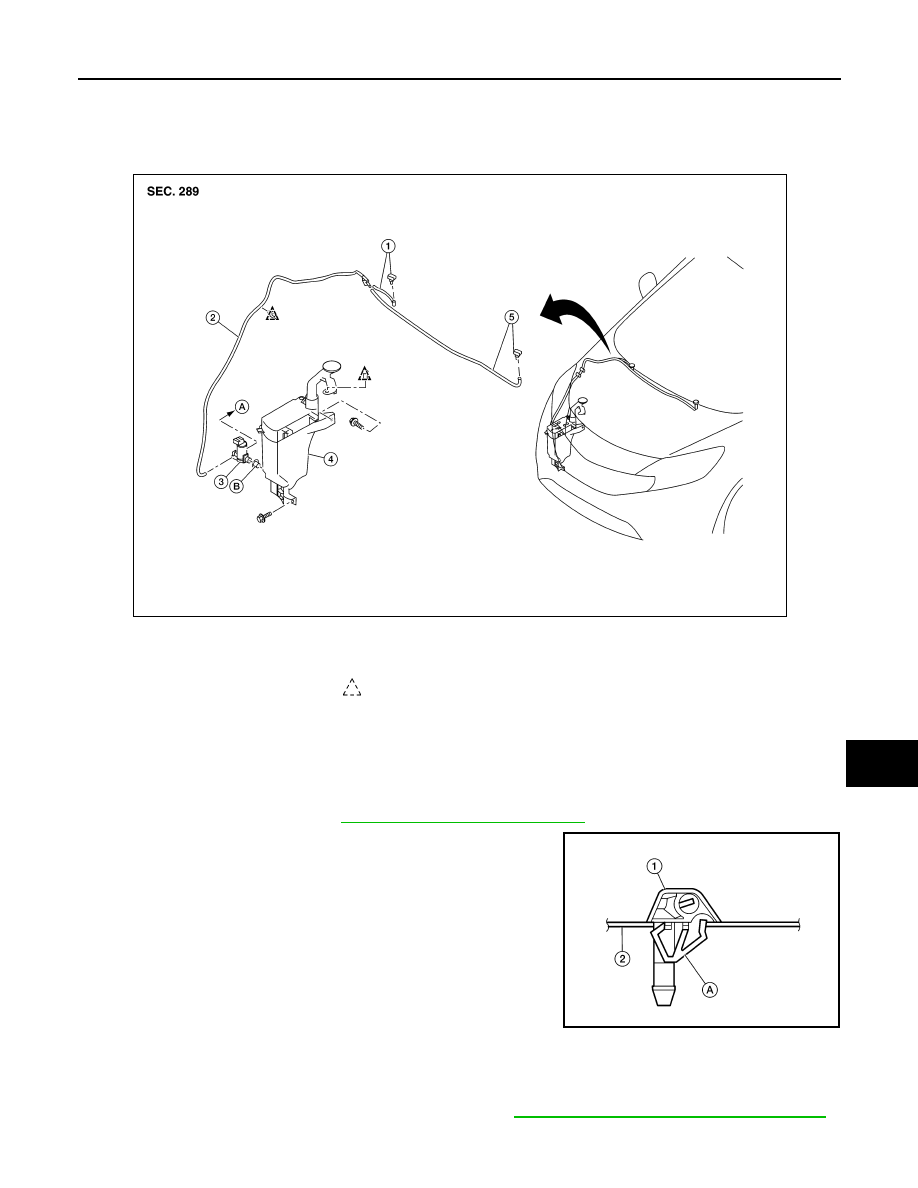

FRONT WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000009578793

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009578795

REMOVAL

1. Remove cowl top cover. Refer to

EXT-35, "Removal and Installation"

.

2. Disconnect front washer tube from front washer nozzle (1).
3. Place cowl top cover (2) up side down and release front washer

nozzle pawl (A) using a suitable tool to remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, adjust the nozzle spray pattern. Refer to

WW-66, "WASHER NOZZLE : Adjustment"

.

1.

Front washer nozzle (RH)

2.

Front washer tube

3.

Front washer motor

4.

Washer tank

5.

Front washer nozzle (LH)

A.

To rear washer

B.

Washer pump seal

Clip

ALLIA1306ZZ

AWLIA2161ZZ

WW-66

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

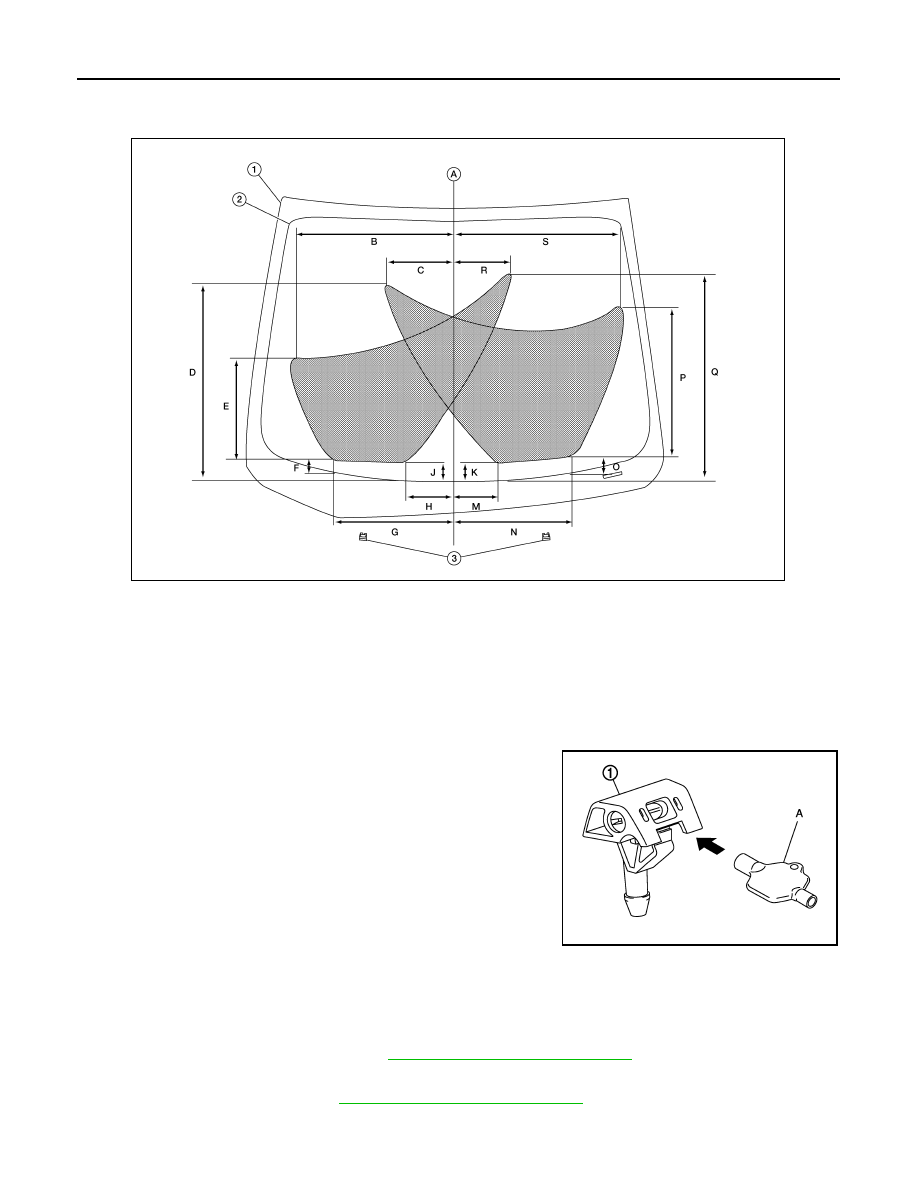

WASHER NOZZLE : Adjustment

INFOID:0000000009578796

If washer nozzle (1) spray pattern is not within specification, adjust

using a suitable tool (A).

WASHER TUBE
WASHER TUBE : Removal and Installation

INFOID:0000000009578797

REMOVAL

1. Remove fender protector (RH). Refer to

EXT-36, "Removal and Installation"

.

2. Remove front washer tube from washer pump.
3. Remove cowl top cover. Refer to

EXT-35, "Removal and Installation"

.

4. Release the clips that retain the front washer tube to the vehicle body using a suitable tool and remove.

1.

Windshield glass

2.

Black printed area line

3.

Front washer nozzle (LH/RH)

A.

Center line

B.

509.7 mm (20.07 in)

C.

215.7 mm (8.49 in)

D.

614.5 mm (24.19 in)

E.

329.1 mm (12.96 in)

F.

41.0 mm (1.61 in)

G.

379.6 mm (14.94 in)

H.

161.1 mm (6.34 in)

J.

58.6 mm (2.31 in)

K.

58.0 mm (2.28 in)

M.

142.0 mm (5.59 in)

N.

365.9 mm (14.41 in)

O.

54.7 mm (2.15 in)

P.

492.5 mm (19.39 in)

Q.

652.2 mm (25.68 in)

R.

174.3 mm (6.86 in)

S.

520.7 mm (20.50 in)

ALLIA1307ZZ

JMLIA1327ZZ
